ELECTRIC CONTROLLED COUPLING OIL SEAL

DLN-149

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: RTVS]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

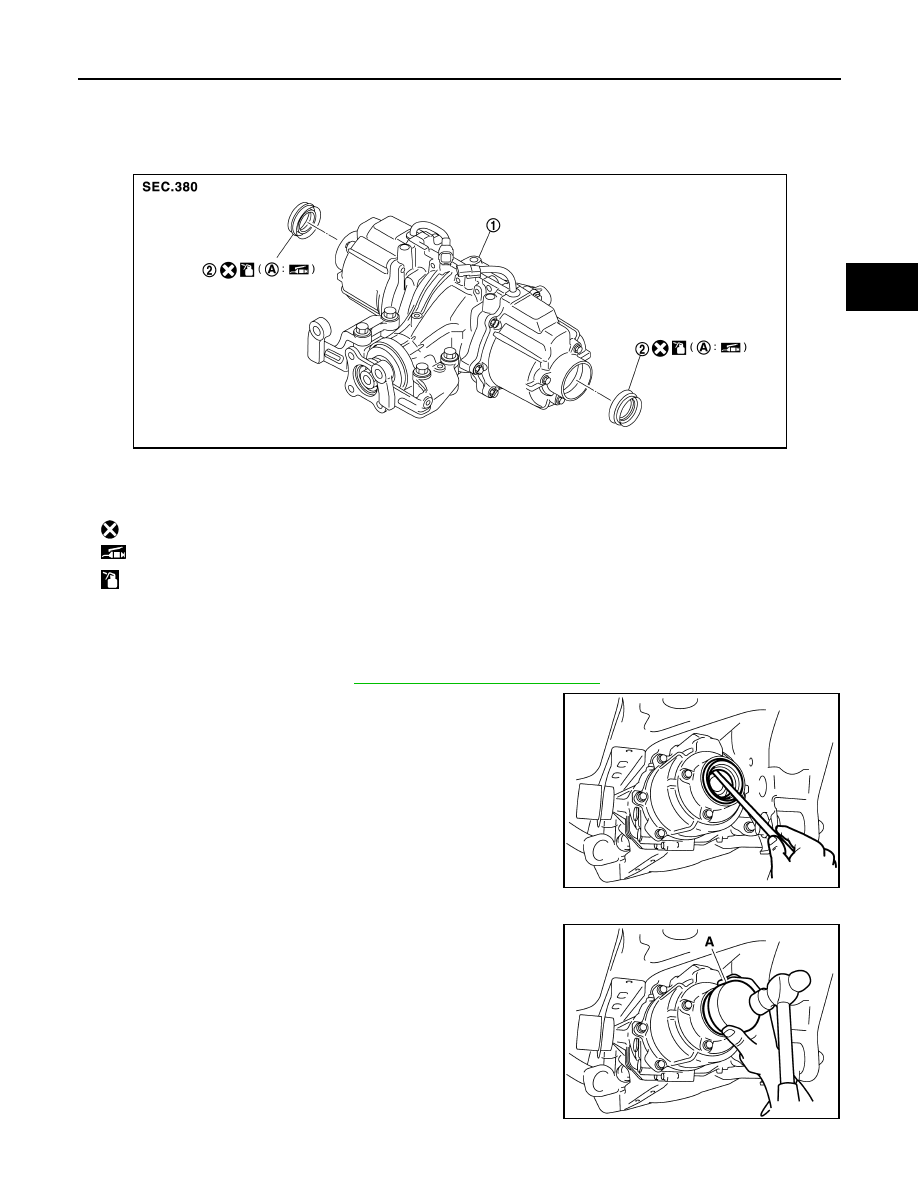

ELECTRIC CONTROLLED COUPLING OIL SEAL

Exploded View

INFOID:0000000012199509

Removal and Installation

INFOID:0000000012199510

REMOVAL

1. Remove rear drive shafts. Refer to

RAX-19, "Removal and Installation"

.

2. Remove electric controlled coupling oil seal from electric con-

trolled coupling, using the suitable oil seal remover.

CAUTION:

Never damage electric controlled coupling.

INSTALLATION

1. Using the drift (A) [SST: KV38109700 (

—

)], install elec-

tric controlled coupling oil seal to electric controlled coupling to

electric controlled coupling all the way until SST contact the end.

NOTE:

The use of SST satisfies the mounting dimensions.

CAUTION:

• Always use SST [KV38109700 (

—

)].

• Never reuse oil seal.

• When installing, never incline oil seal.

• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

1.

Rear final drive assembly

2.

Electric controlled coupling oil seal

A.

Oil seal lip

: Always replace after every disassembly.

: Apply multi purpose grease

: Apply gear oil.

JSDIA2243ZZ

JSDIA2244ZZ

JSDIA2245ZZ

DLN-150

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: RTVS]

ELECTRIC CONTROLLED COUPLING OIL SEAL

2. Install rear drive shafts. Refer to

RAX-19, "Removal and Installation"

.

CAUTION:

Never damage electric controlled coupling oil seal.

REAR FINAL DRIVE ASSEMBLY

DLN-151

< UNIT REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: RTVS]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT REMOVAL AND INSTALLATION

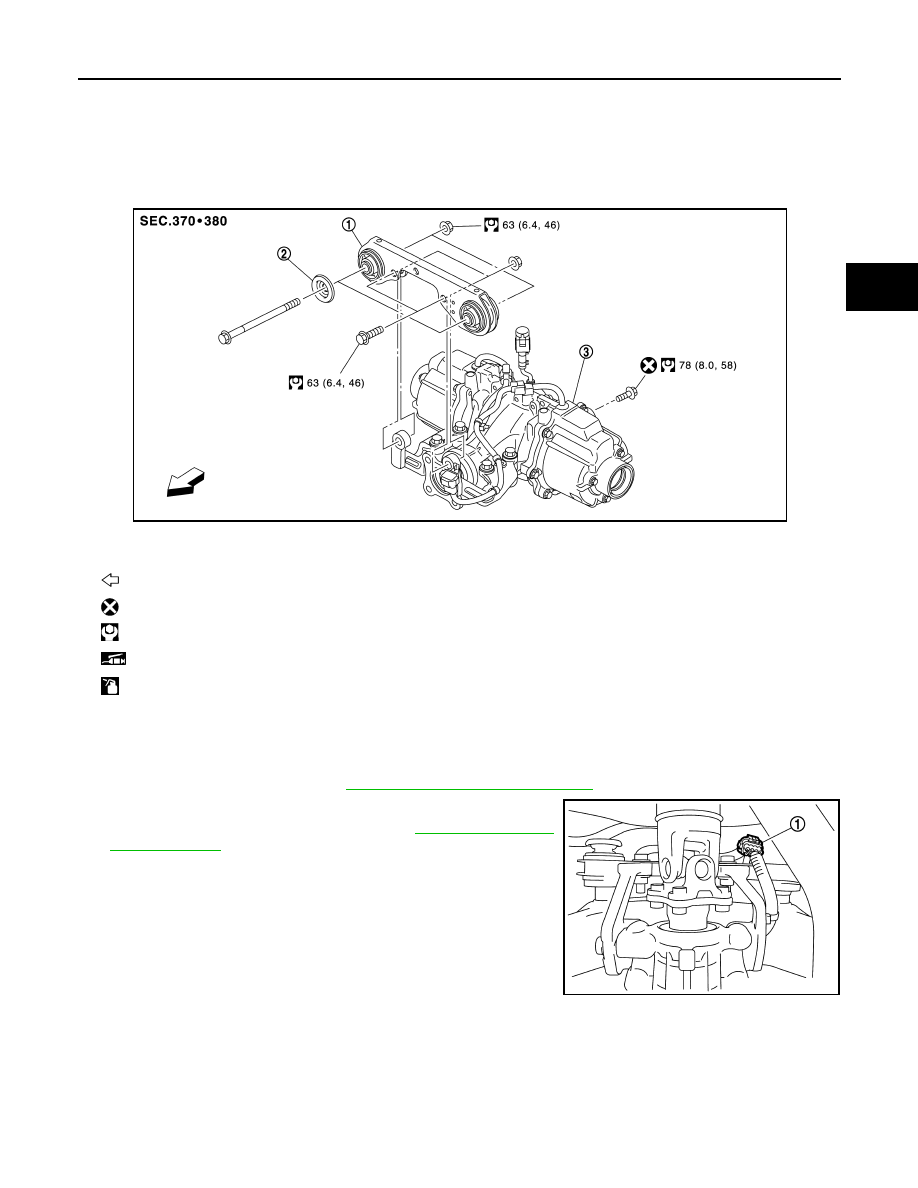

REAR FINAL DRIVE ASSEMBLY

Exploded View

INFOID:0000000012199511

Removal and Installation

INFOID:0000000012199512

REMOVAL

1. Remove rear drive shaft. Refer to

RAX-19, "Removal and Installation"

.

2. Disconnect sub-harness connector (1).
3. Remove propeller shaft assembly. Refer to

DLN-124, "Removal

and Installation"

.

4. Support rear final drive assembly with a suitable jack.

1.

Final drive mounting bracket

2.

Washer

3.

Rear final drive assembly

: Vehicle front

: Always replace after every disassembly

: N·m (kg-m, ft-lb)

: Apply multi purpose grease

: Apply gear oil.

JSDIA2134GB

JSDIA2135ZZ

DLN-152

< UNIT REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: RTVS]

REAR FINAL DRIVE ASSEMBLY

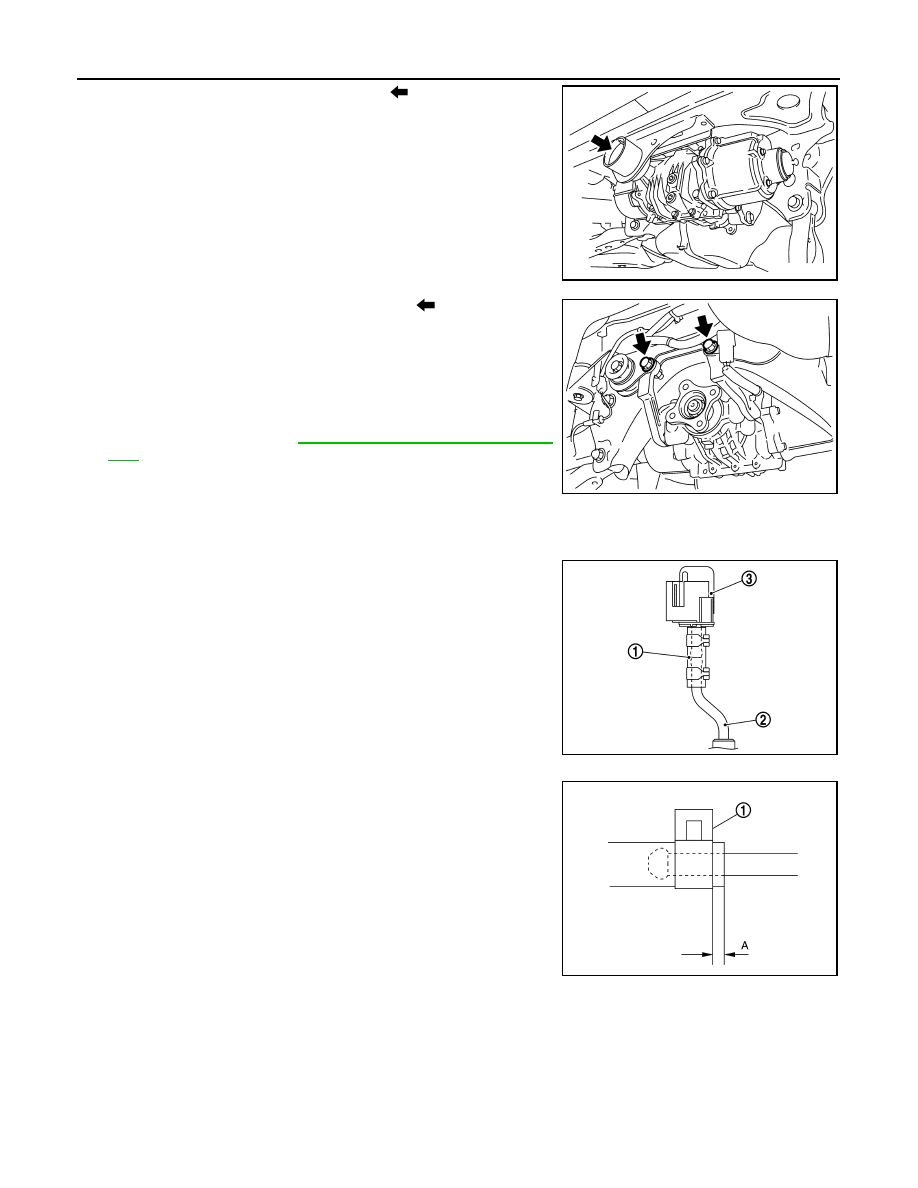

5. Remove rear final drive mounting bolt (

) at rear suspension

member.

6. Remove final drive mounting bolts and nuts (

) with power tool,

and then remove rear final drive assembly from final drive

mounting bracket.

CAUTION:

Secure final drive assembly to a suitable jack while remov-

ing it.

7. Remove rear final drive breather hose.
8. Remove fuel tank. Refer to

FL-23, "AWD : Removal and Installa-

tion"

.

9. Remove final drive mounting bracket.

INSTALLATION

Note the following, and install in the reverse order of removal.

• If remove breather hose, install breather hose as following.

- Insert breather hose (1) of final drive side to breather tube (2) until

hose end reaches the tube bent R portion.

- Install the breather to breather hose until hose end reaches the

breather.

- Install hose clamp (1) until dimension (A) shown as follows.

CAUTION:

• Never reuse hose clamps.

• Install the hose clamps, with the tab facing vehicle rear.

JSDIA2136ZZ

JSDIA2137ZZ

(3): Breather

JSDIA2468ZZ

Dimension A

: 5 mm (0.20 in)
