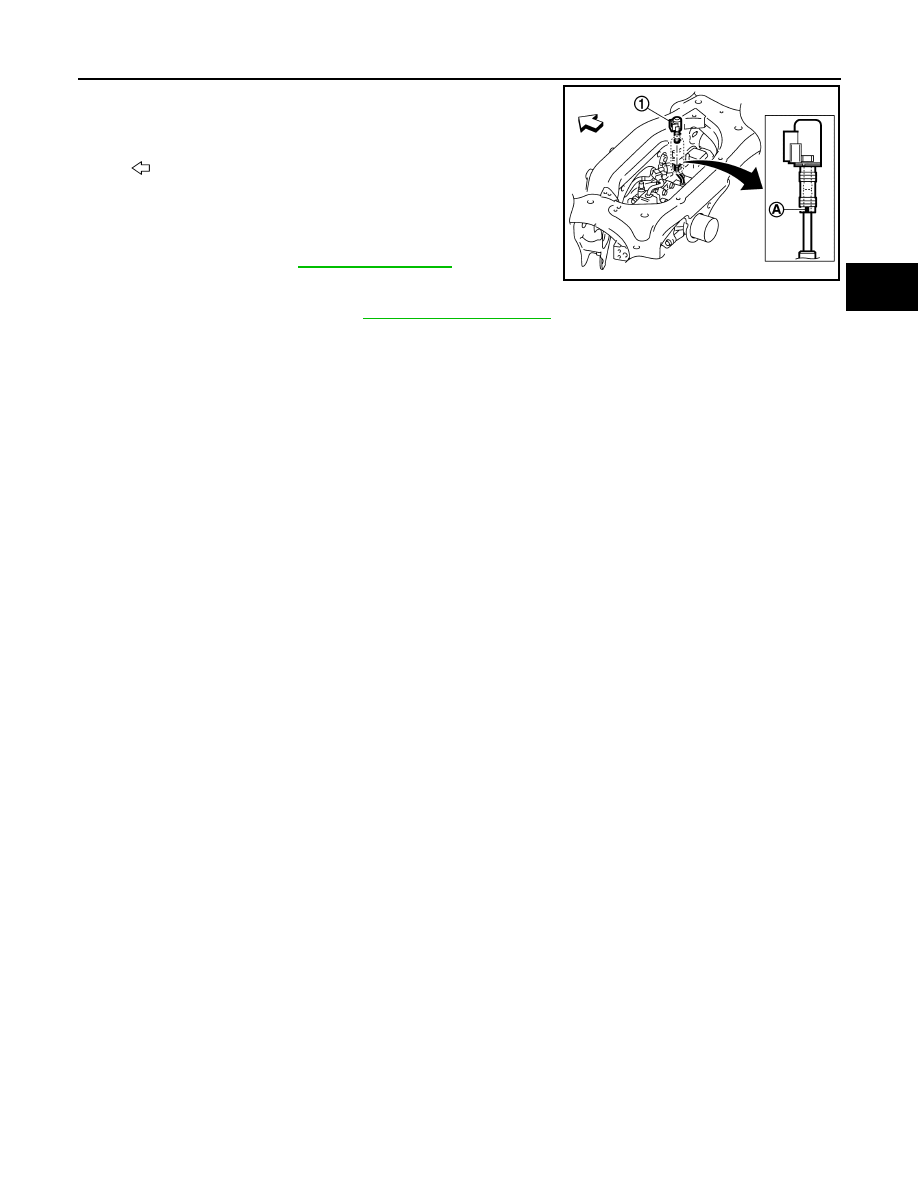

- Install breather assembly (1) to final drive as shown in the figure.

- Install breather hose with paint mark (A) facing vehicle rear.

• When installing rear drive shaft, never damage electric controlled

coupling oil seal.

• When oil leaks while removing final drive assembly, check oil level

after the installation. Refer to

DLN-137, "Inspection"

.

• When replacing rear final drive assembly or electric controlled cou-

pling, perform writing unit characteristics after installing rear final

drive assembly to the vehicle. Refer to

DLN-42, "Work Procedure"

.

CAUTION:

Always writing unit characteristics of both side electric controlled couplings.

(A): Paint mark

: Vehicle front

JSDIA2138ZZ

DLN-154

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: RTVS]

ELECTRIC CONTROLLED COUPLING

UNIT DISASSEMBLY AND ASSEMBLY

ELECTRIC CONTROLLED COUPLING

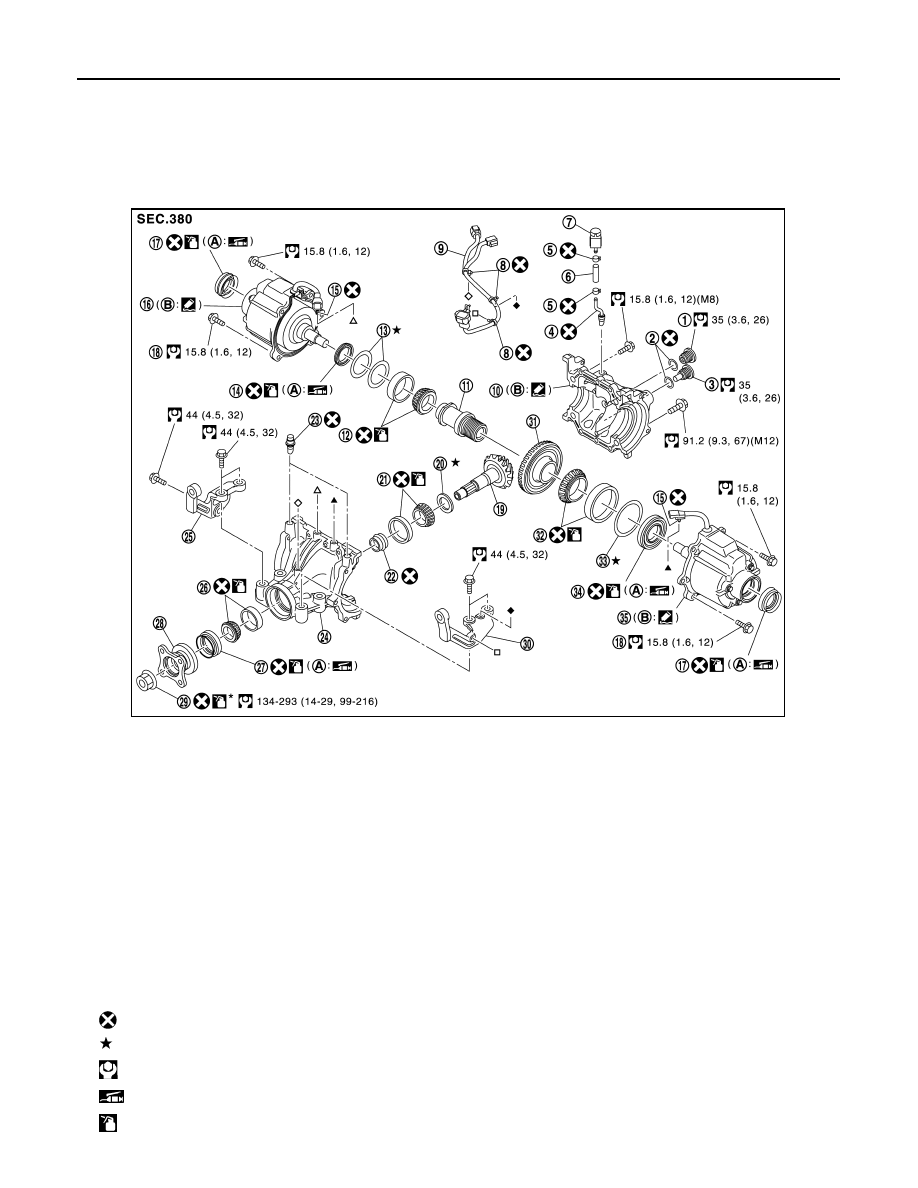

Exploded View

INFOID:0000000012199513

1.

Filler plug

2.

Gasket

3.

Drain plug

4.

Breather tube

5.

Hose clamp

6.

Breather hose

7.

Breather

8.

Band clip

9.

Sub-harness

10. Rear cover

11. Center stem

12. Side bearing (right)

13. Side bearing adjusting shim (right)

14. Side oil seal (right)

15. Connector clip

16. Electric controlled coupling (right)

17. Electric controlled coupling oil seal

18. Reamer bolt

19. Drive pinion

20. Drive pinion adjusting shim

21. Pinion bearing (rear)

22. Collapsible spacer

23. Breather

24. Gear carrier

25. Carrier bracket (right)

26. Pinion bearing (front)

27. Front oil seal

28. Companion flange

29. Drive pinion lock nut

30. Carrier bracket (left)

31. Drive gear

32. Side bearing (left)

33. Side bearing adjusting shim (left)

34. Side oil seal (left)

35. Electric controlled coupling (left)

A.

Oil seal lip

B.

Gear carrier mounting face

: Always replace after every disassembly.

: Select with proper thickness.

: N·m (kg-m, ft-lb)

: Apply multi purpose grease

: Apply gear oil.

JSDIA2246GB

ELECTRIC CONTROLLED COUPLING

DLN-155

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: RTVS]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Disassembly

INFOID:0000000012199514

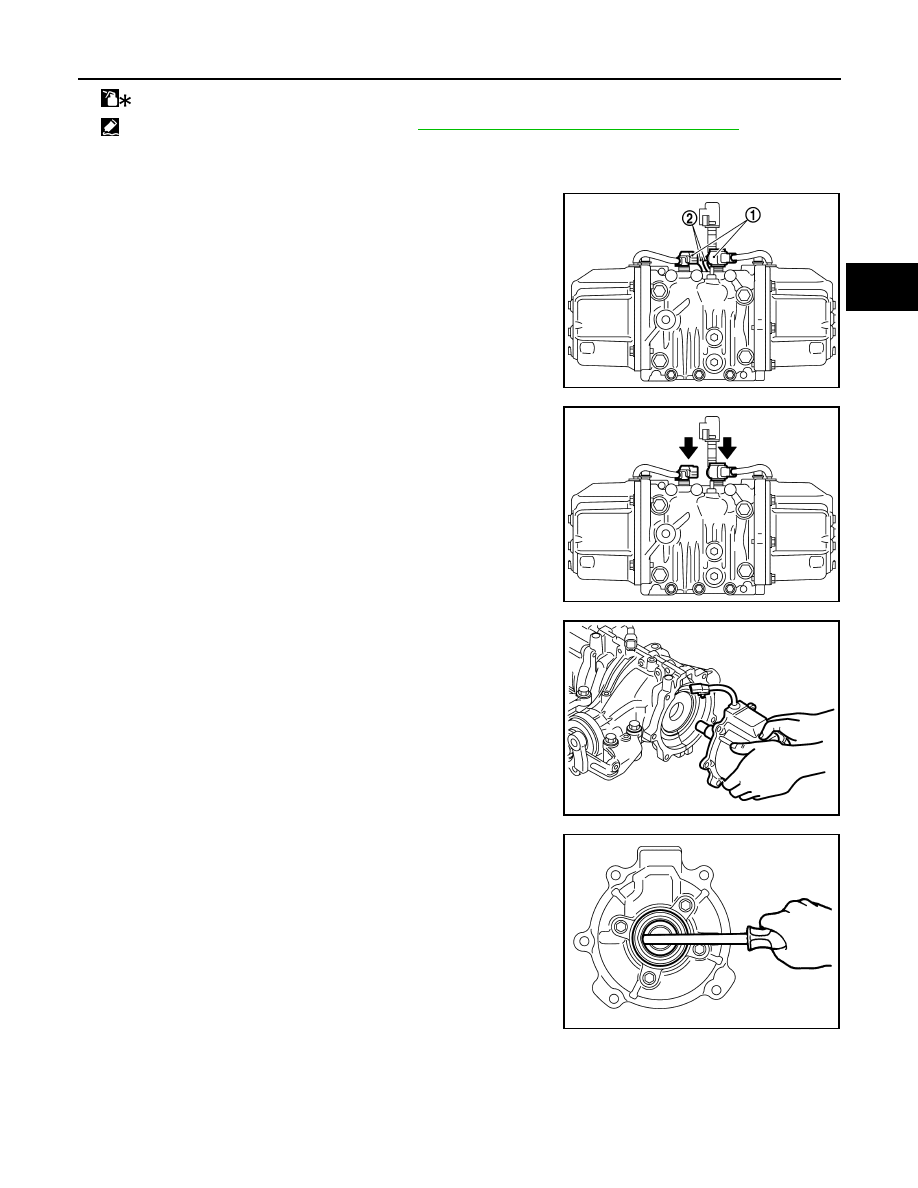

1. Disconnect electric controlled coupling connector (1) from sub-

harness (2).

2. Remove electric controlled coupling connector from final drive

assembly.

3. Remove electric controlled coupling from final drive assembly.

CAUTION:

Never damage side oil seal.

4. Remove sub-harness from final drive assembly.

CAUTION:

Remove sub-harness only when necessary.

5. Remove electric controlled coupling oil seal from electric con-

trolled coupling, using the suitable oil seal remover.

CAUTION:

Never damage electric controlled coupling.

: Apply anti-corrosive oil.

: Apply Genuine Silicone RTV or equivalent. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

JSDIA2238ZZ

JSDIA2239ZZ

JSDIA2474ZZ

JSDIA2571ZZ

DLN-156

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: RTVS]

ELECTRIC CONTROLLED COUPLING

Assembly

INFOID:0000000012199515

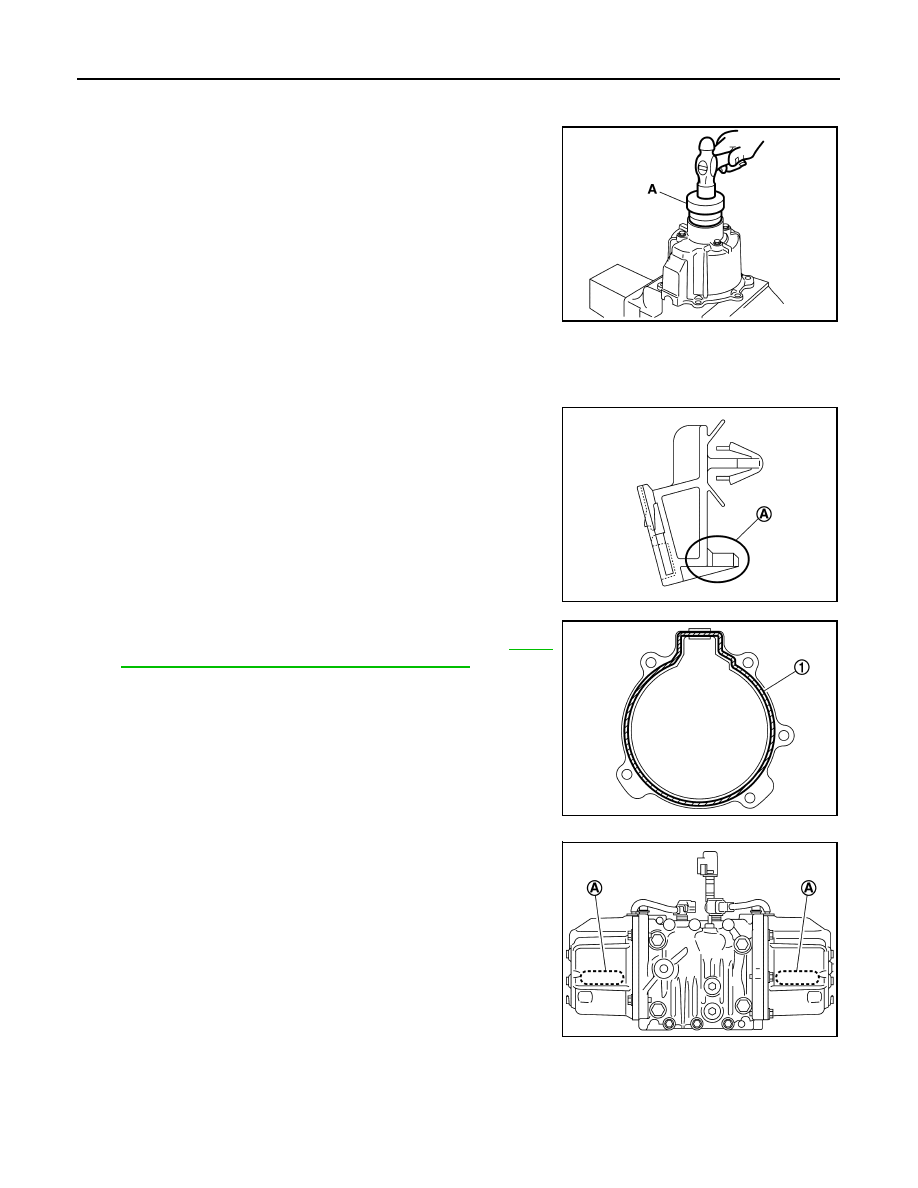

1. Using the drift (A) [SST: KV38109700 (

—

)], install elec-

tric controlled coupling oil seal to electric controlled coupling to

electric controlled coupling all the way until SST contact the end.

NOTE:

The use of SST satisfies the mounting dimensions.

CAUTION:

• Always use SST [KV38109700 (

—

)].

• Never reuse oil seal.

• When installing, never incline oil seal.

• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

2. If remove sub–harness, replace band clip to sub-harness, and

then install sub–harness to rear final drive assembly.

CAUTION:

• Never reuse band clip.

• Check original mounting dimensions to install clip to the original position.

• Pin (A) of sub–harness connector clip must be function-

ing certainly as baffle pin.

• Check the area around the rotating object to see that there

is no interference.

3. Apply liquid gasket (1) to mating surface of coupling cover.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-22,

"Recommended Chemical Products and Sealants"

.

CAUTION:

• Remove old gasket adhering to the mounting surfaces.

Also remove any moisture, oil, or foreign material adher-

ing to the mounting surfaces.

• Overlap both ends of the bead for at least 3 mm (0.12 in).

• Apply liquid gasket to grommet as well.

• The width of sealant bend is approximately 3 mm (0.012

in).

• Never allow liquid gasket to contact the unit characteris-

tics (A or B) of the coupling cover.

JSDIA2301ZZ

JSDIA2525ZZ

JSDIA2241ZZ

JSDIA2572ZZ
