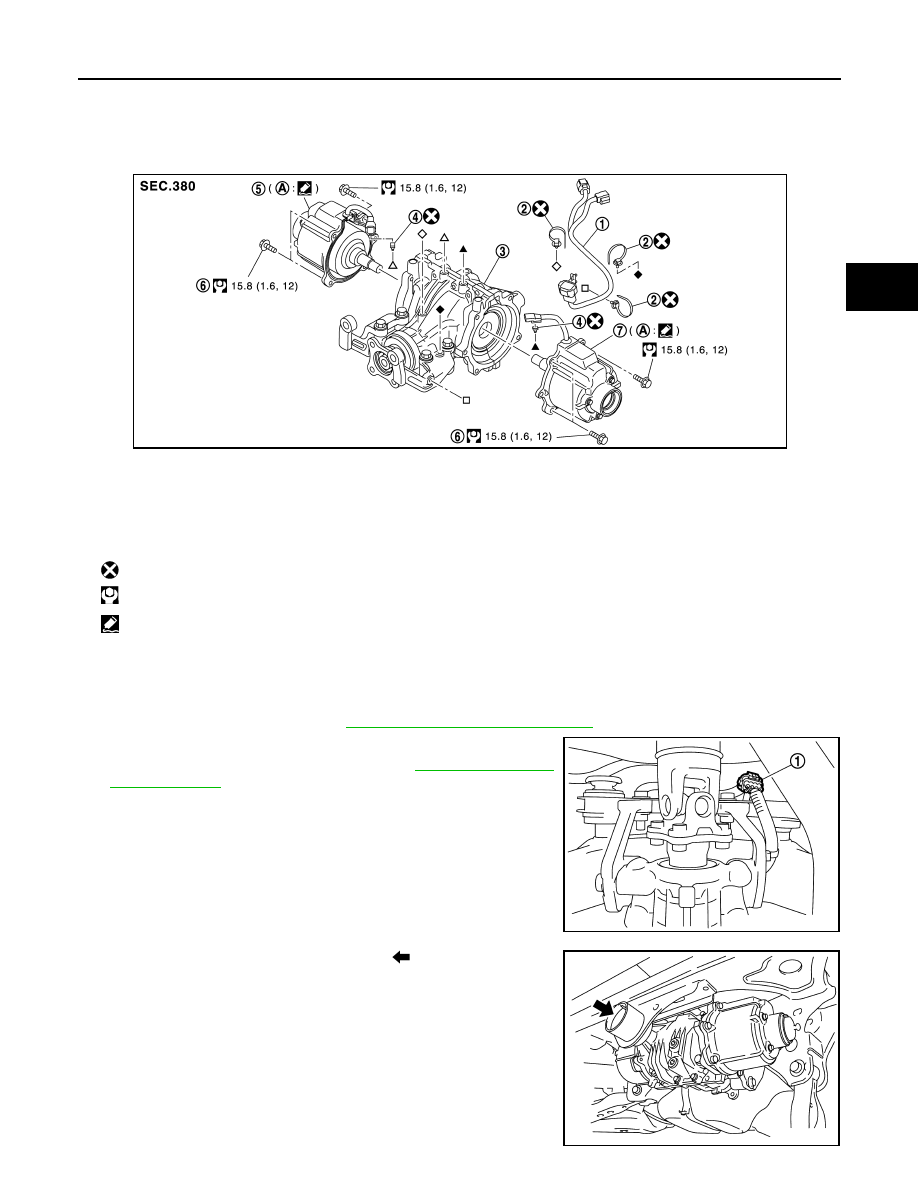

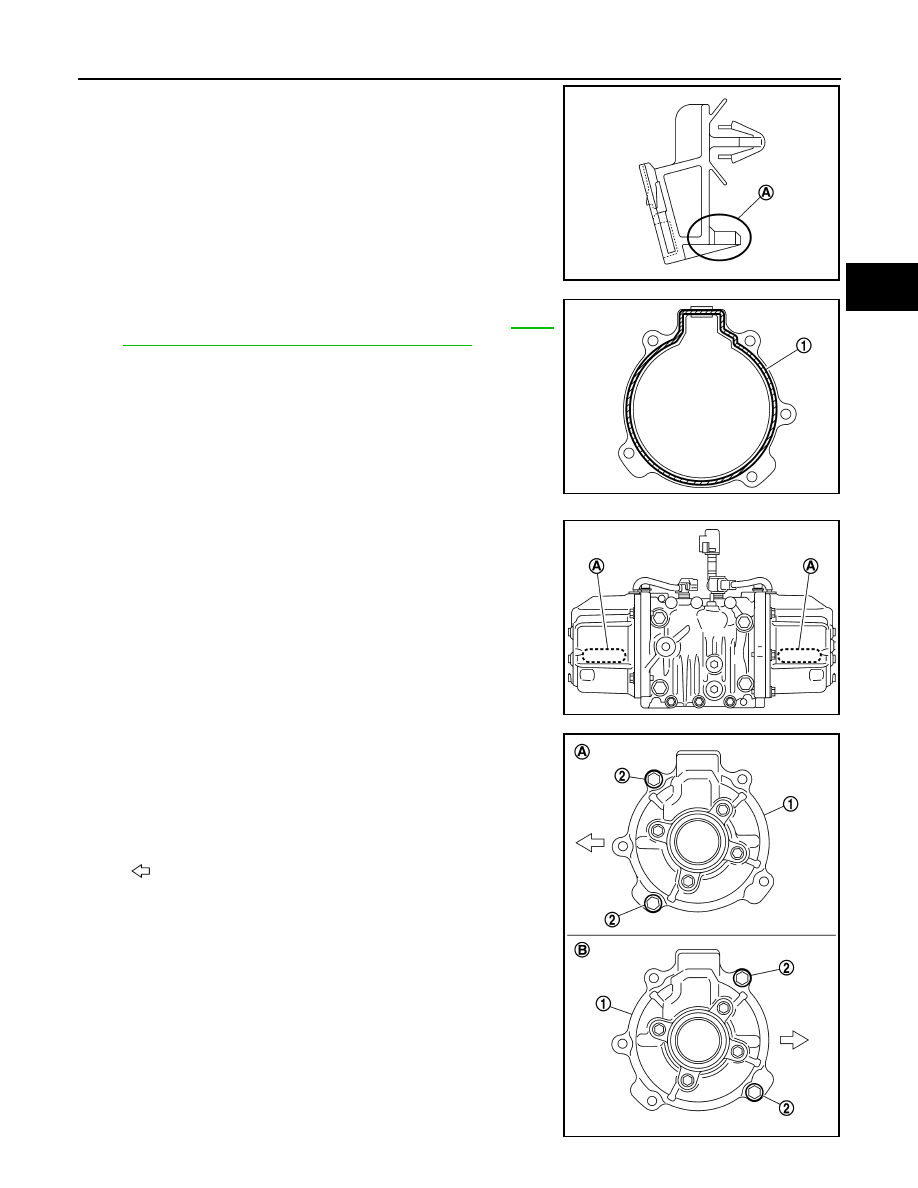

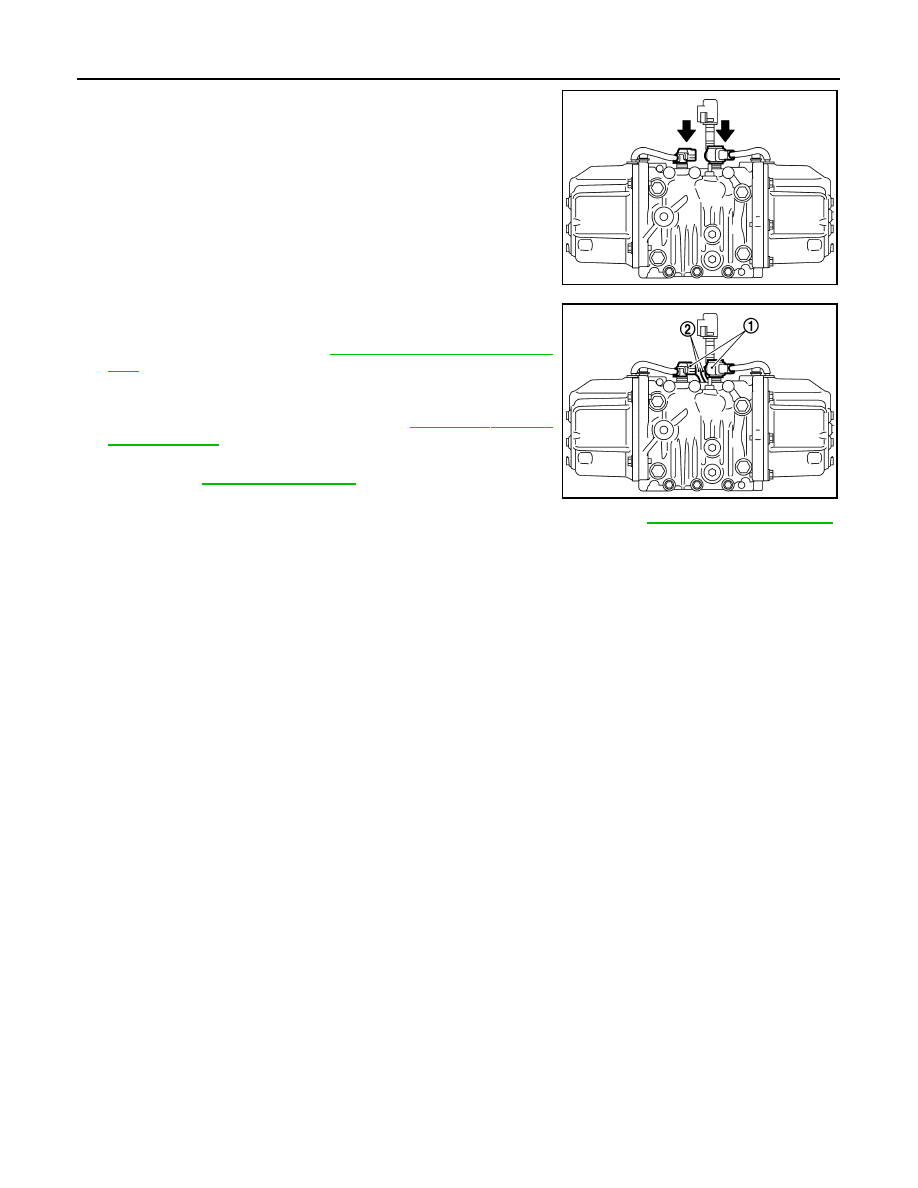

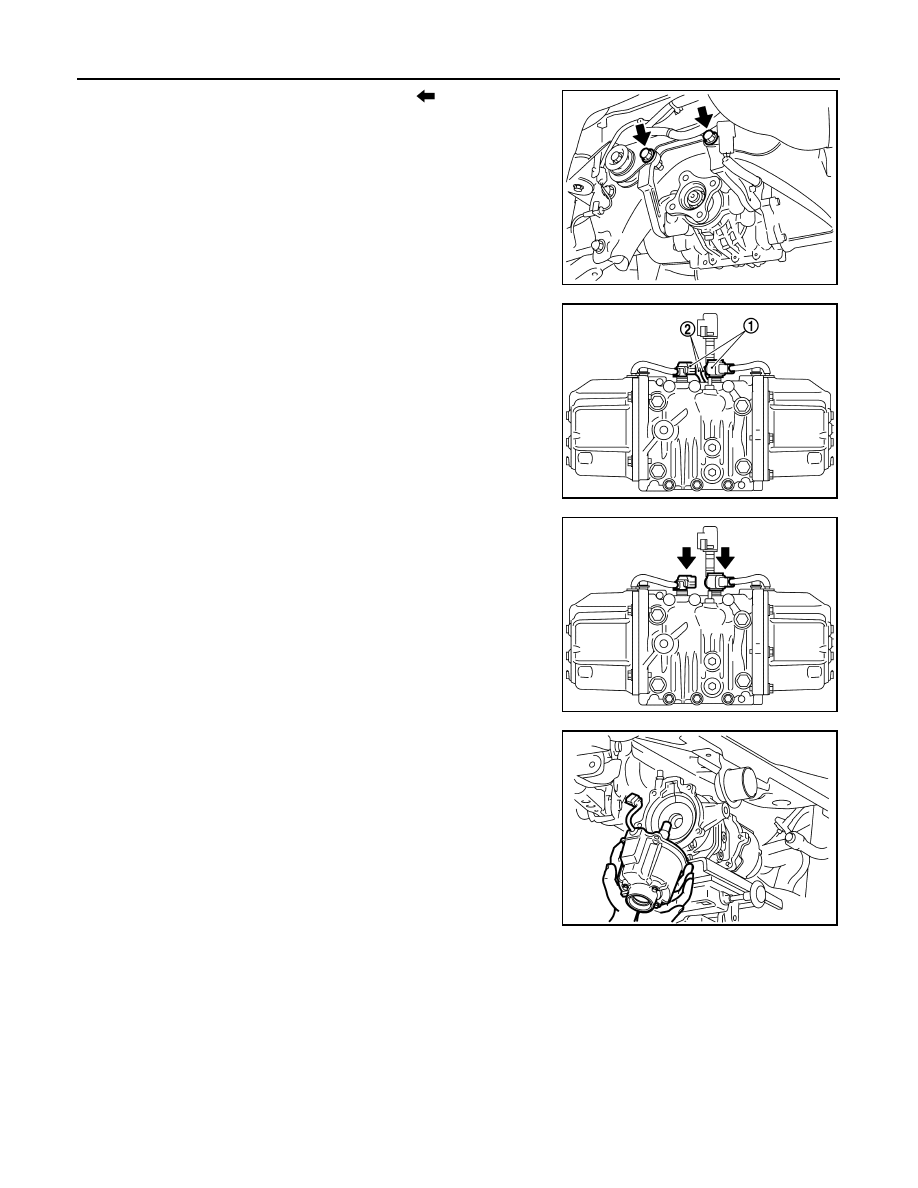

ELECTRIC CONTROLLED COUPLING DLN-145 < REMOVAL AND INSTALLATION > [REAR FINAL DRIVE: RTVS] C E F G H I J K L M A B DLN N O P ELECTRIC CONTROLLED COUPLING Exploded View INFOID:0000000012199507 Removal and Installation INFOID:0000000012199508 REMOVAL 1. Remove rear drive shaft. Refer to RAX-19, "Removal and Installation" 2. Disconnect sub-harness connector (1). 4. Support rear final drive assembly with a suitable jack. 5. Remove rear final drive mounting bolt ( ) at rear suspension member. 1. Sub-harness 2. Band clip 3. Rear final drive assembly 4. Connector clip 5. Electric controlled coupling (right) 6. Reamer bolt 7. Electric controlled coupling (left) A. Gear carrier mounting face : Always replace after every disassembly. : N·m (kg-m, ft-lb) JSDIA2237GB JSDIA2135ZZ JSDIA2136ZZ |
