Roof (Standard Roof Models)

INFOID:0000000012199861

1.

Body sealing

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.
: Sealing portion apply to both side of the vehicle.

Replacement parts

z

Roof

z

Roof bow No. 1

z

Roof bow No. 2

z

Roof bow No. 3

JSKIA2190ZZ

BRM-74

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Roof (Sunroof Models)

INFOID:0000000012199862

1.

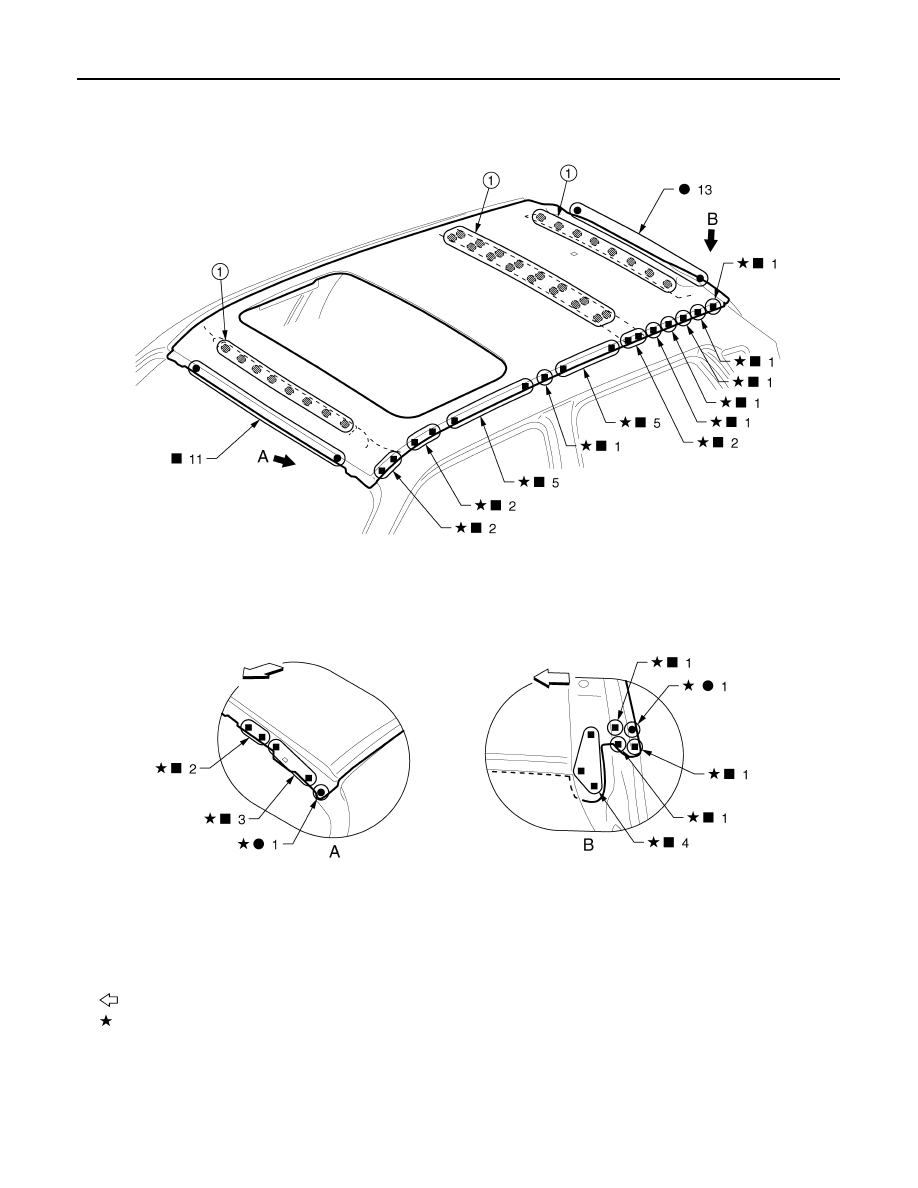

Body sealing

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement parts

z

Roof

z

Roof bow No. 3

JSKIA5910ZZ

BODY ALIGNMENT

BRM-75

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

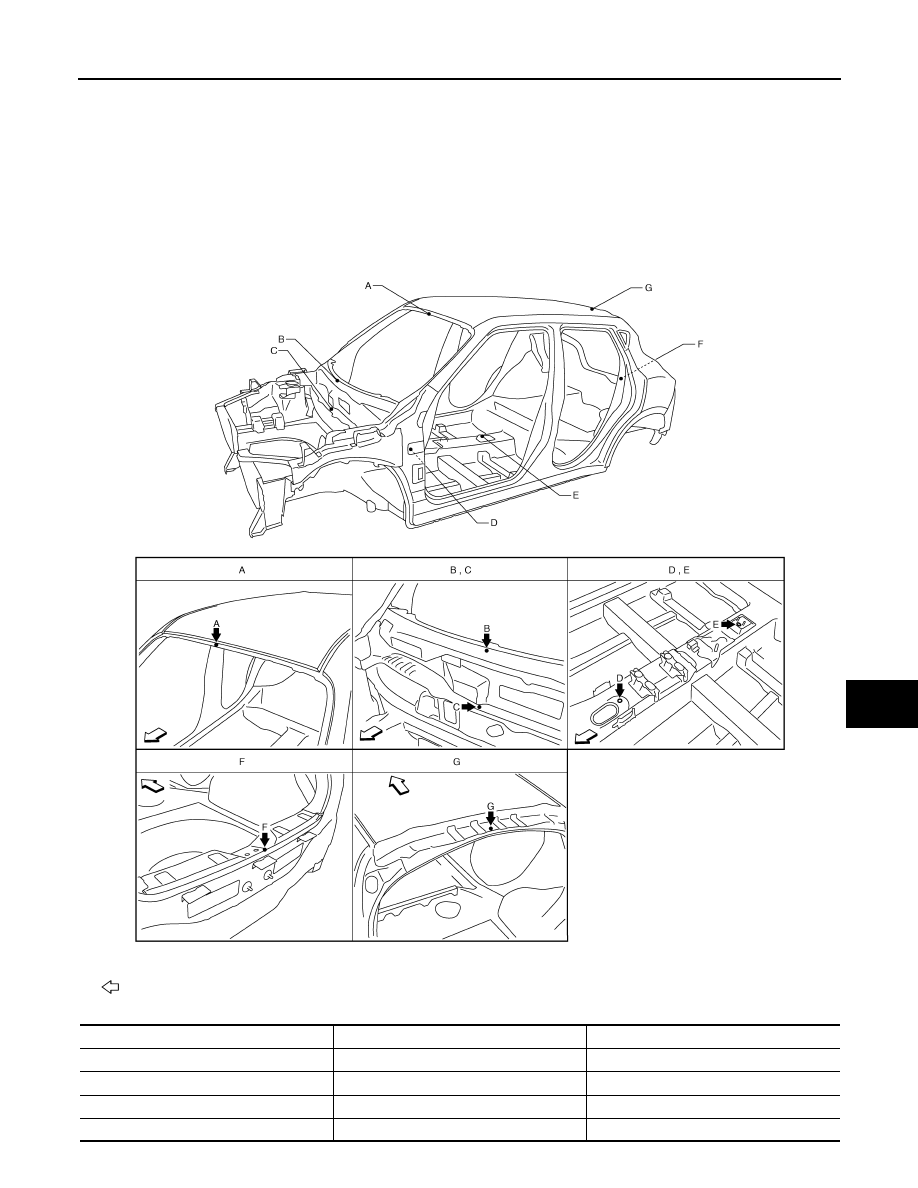

Body Center Marks

INFOID:0000000012199863

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame

(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using

these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

Embossment

C

Upper dash

Embossment

D

Trans control reinforcement

Hole

φ16 (0.63)

JSKIA2144ZZ

BRM-76

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Description

INFOID:0000000012199864

• All dimensions indicated in the figures are actual.

• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″X″, ″Y″

and

″Z″.

•

″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]

Engine Compartment

INFOID:0000000012199865

MEASUREMENT

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

E

Parking brake reinforcement

Hole

φ12 (0.47)

F

Rear panel

Indent

G

Rear roof

Embossment

Points

Portion

Marks

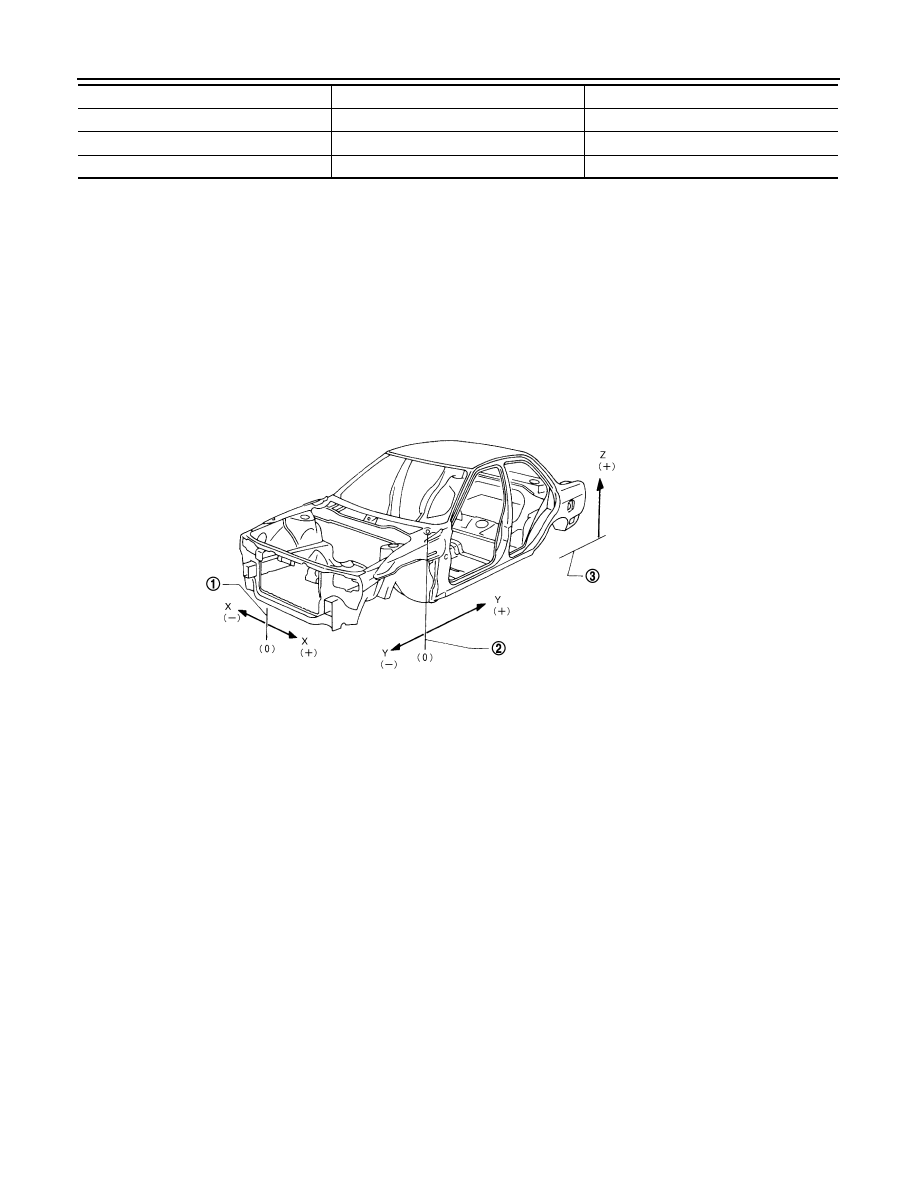

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB
