BODY ALIGNMENT

BRM-77

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

«The others»

Unit: mm (in)

MEASUREMENT POINTS

Unit: mm (in)

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - C

729 (28.70)*

B - E

298 (11.73)*

D - d

1429 (56.26)

G - h

1192 (46.93)*

A - D

729 (28.70)*

B - e

1233 (48.54)*

E - e

1037 (40.83)

J - j

958 (37.72)

A - F

798 (31.42)*

C - c

1441 (56.73)

F - f

1366 (53.78)

JSKIA2151GB

BRM-78

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit: mm (in)

: Vehicle front

JSKIA2152ZZ

Point

Material

Point

Material

A

Upper dash positioning mark of center position-
ing mark

G, g, H, h

Upper radiator core support hole center
G, g:

φ12 (0.47)

H, h: 14

×12 (0.55×0.47)

B, b

Hoodledge reinforcement hole center 14

×10

(0.55

×0.39)

J

Front side member hole center

φ7 (0.28)

C, c, F, f

Front fender installing hole center

φ7 (0.28)

j

Engine mounting bracket hole center

φ11 (0.43)

D, d

Front combination lamp installing hole center

φ7

(0.28)

K, k, M, m

Front bumper stay installing hole center

φ15

(0.59)

E, e

Front strut installing hole center 16

×10

(0.63

×0.39)

BODY ALIGNMENT

BRM-79

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Underbody (2WD Models)

INFOID:0000000012199866

MEASUREMENT

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

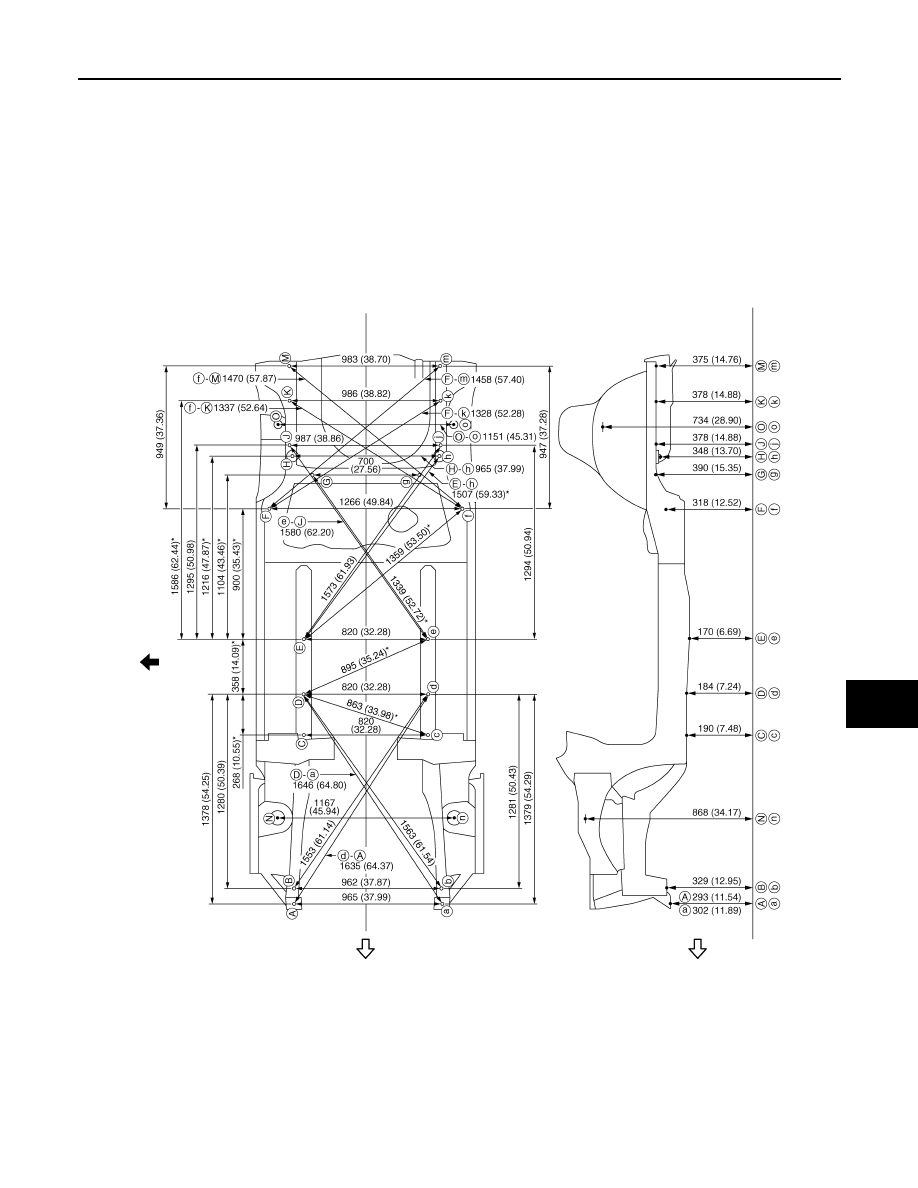

The following figure shows a bottom view and a side view of the vehicle.

JSKIA1991GB

BRM-80

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

MEASUREMENT POINTS

Unit: mm (in)

Unit: mm (in)

: Vehicle front
: Vehicle left side

: Vehicle front

Points

Coordinates

Remarks

Points

Coordinates

Remarks

X

Y

Z

X

Y

Z

A

473.5

(18.642)

−557.0

(

−21.929)

293.0

(11.535)

Hole

φ11 (0.43)

H, h

±482.3

(

±18.988)

2374.2

(93.472)

348.3

(13.713)

Hole

φ12 (0.47)

a

−491.0

(

−19.331)

−557.0

(

−21.929)

301.9

(11.886)

Hole

φ11 (0.43)

J

499.5

(19.665)

2448.0

(96.378)

378.0

(14.882)

Hole

φ21 (0.83)

B

472.4

(18.598)

−455.0

(

−17.913)

328.9

(12.949)

Hole

φ18 (0.71)

j

−487.5

(

−19.193)

2448.0

(96.378)

378.0

(14.882)

Hole

φ21 (0.83)

JSKIA2153ZZ
