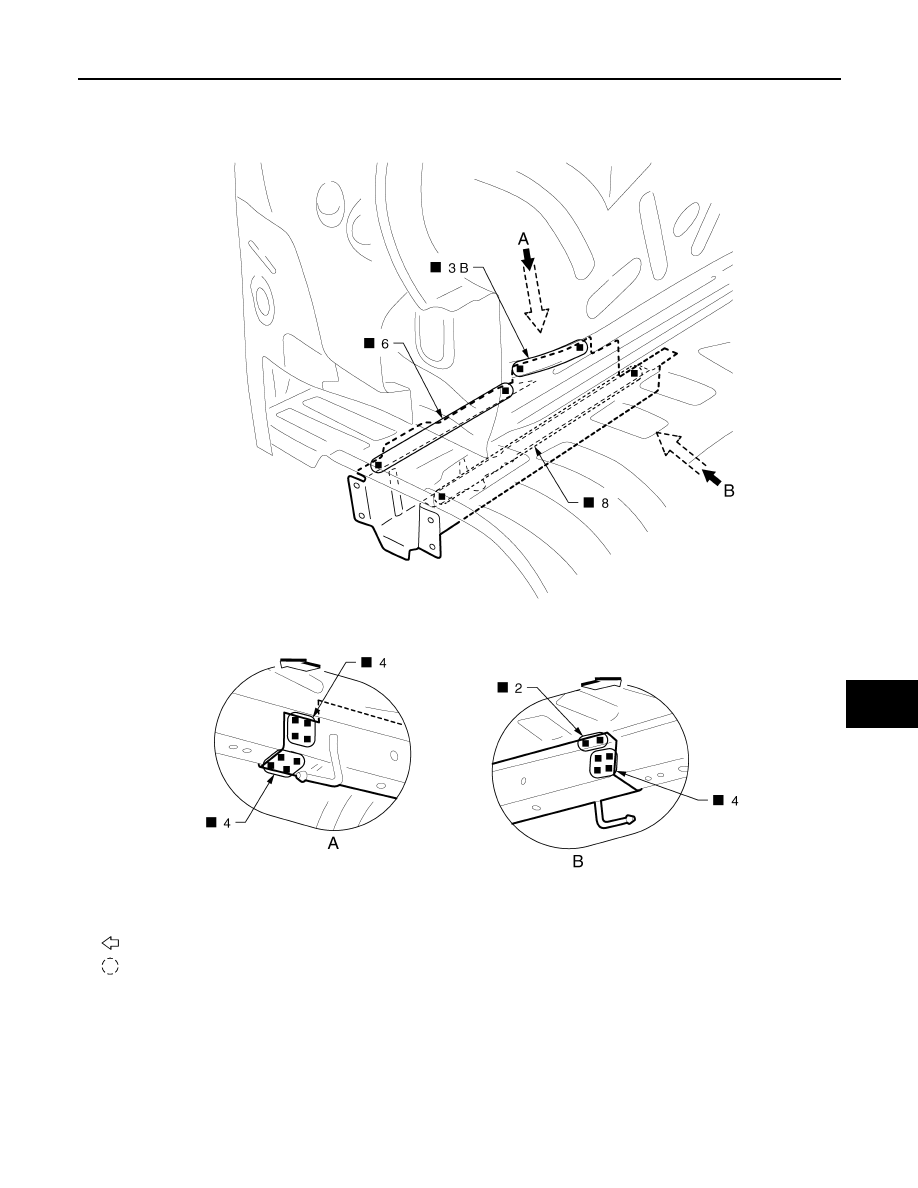

Rear Side Member (AWD Models Partial Replacement)

INFOID:0000000012199858

Work after rear panel and rear floor rear are removed.

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement parts

z

Rear floor rear

z

Spare tire clamp bracket

z

Jack mounting bracket

z

Canister bracket

z

Spare wheel clamp reinforcement

JSKIA2209ZZ

BRM-70

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

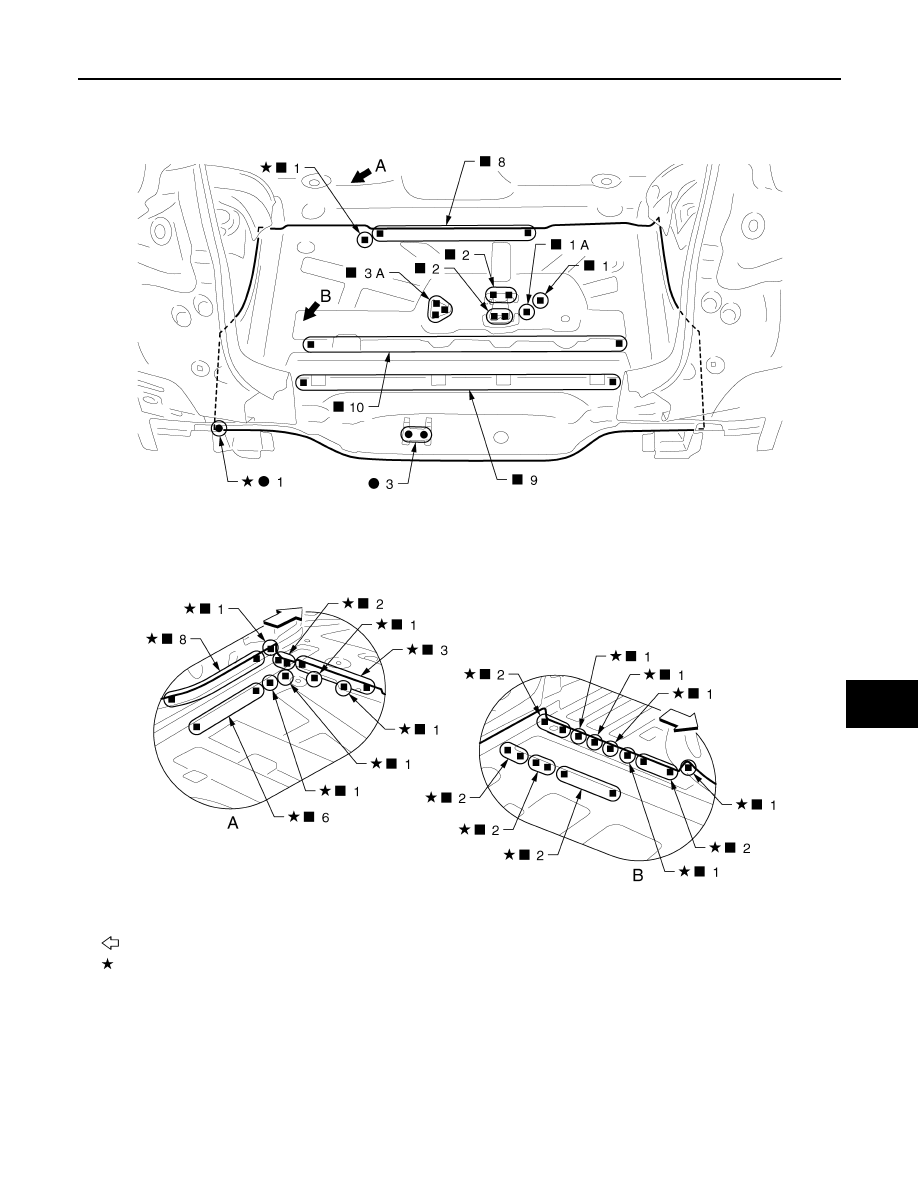

Rear Side Member Extension (2WD Models)

INFOID:0000000012199859

Work after rear panel is removed.

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Rear side member (LH)

JSKIA2188GB

REPLACEMENT OPERATIONS

BRM-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

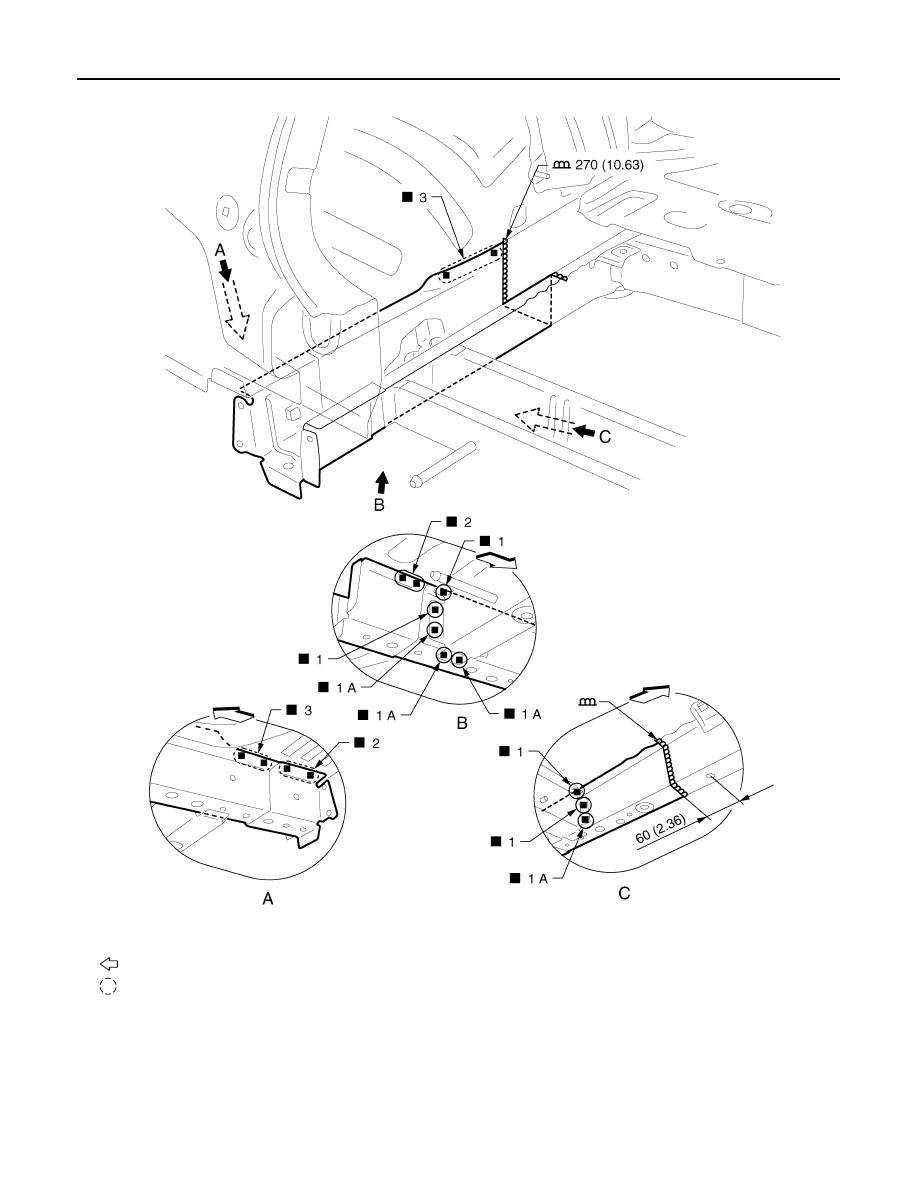

Rear Side Member Extension (AWD Models)

INFOID:0000000012199860

Work after rear panel is removed.

: Vehicle front
: Weld the parts onto the back of the component part.

Replacement parts

z

Rear side member extension (LH)

JSKIA2032ZZ

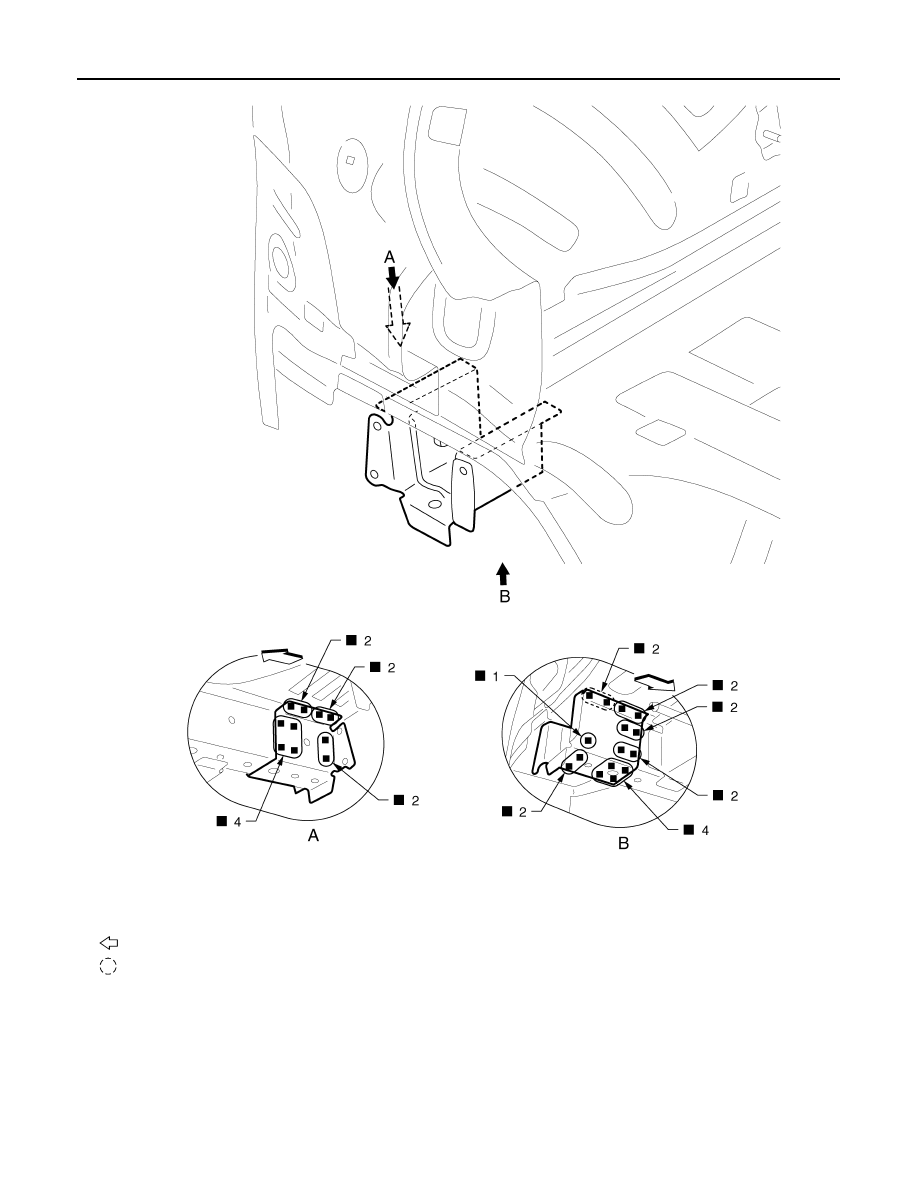

BRM-72

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Rear side member extension (LH)

JSKIA2189ZZ
