Nissan Juke F15. Manual - part 158





REPLACEMENT OPERATIONS

BRM-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

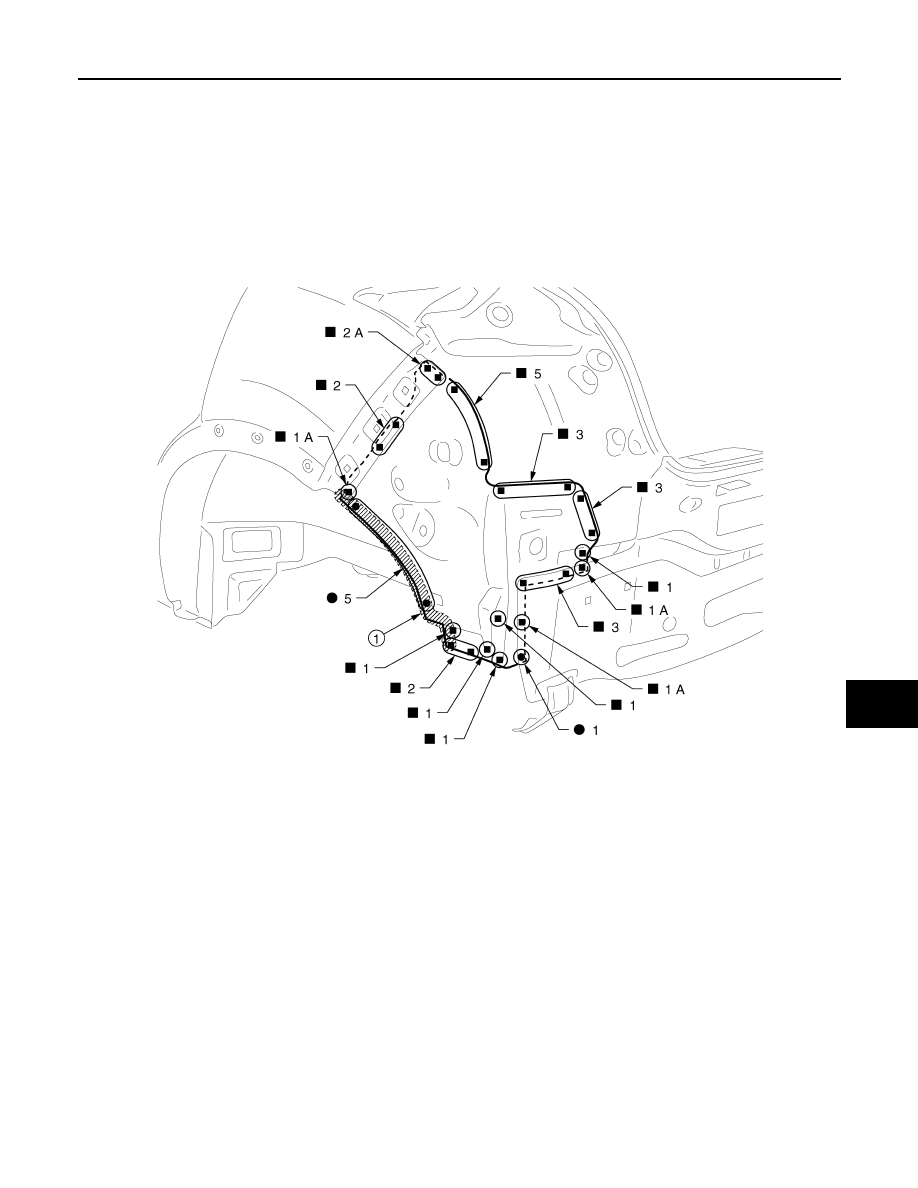

Rear Fender Extension (AWD Models)

INFOID:0000000012199853

1.

Body sealing

Replacement parts

z

Rear fender corner (LH)

JSKIA2180ZZ

BRM-66

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

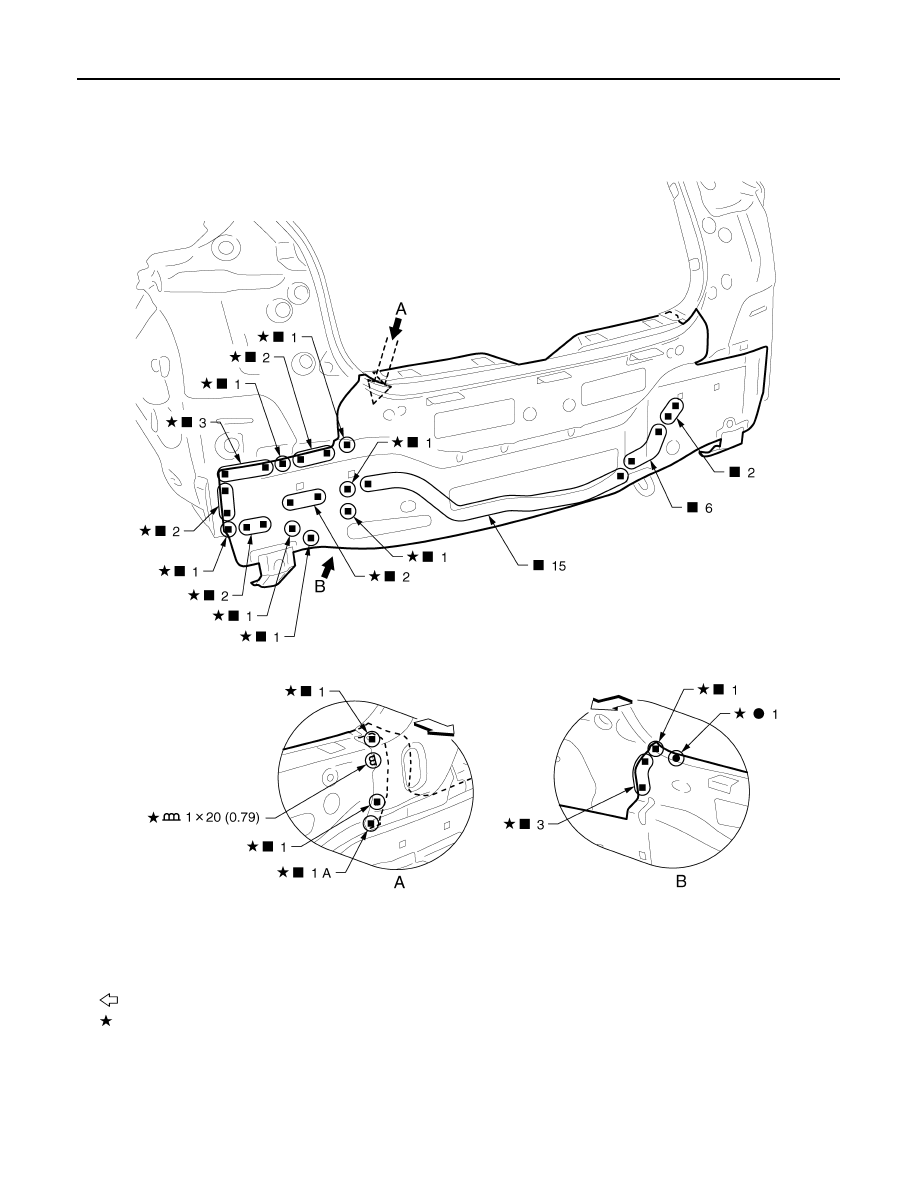

Rear Panel (2WD Models)

INFOID:0000000012199854

Unit: mm (in)

: Vehicle front

: Welding method, the number of welding points, and the distance in the figure apply to both side of the vehicle.

Replacement parts

z

Upper rear panel

JSKIA2522GB

REPLACEMENT OPERATIONS

BRM-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

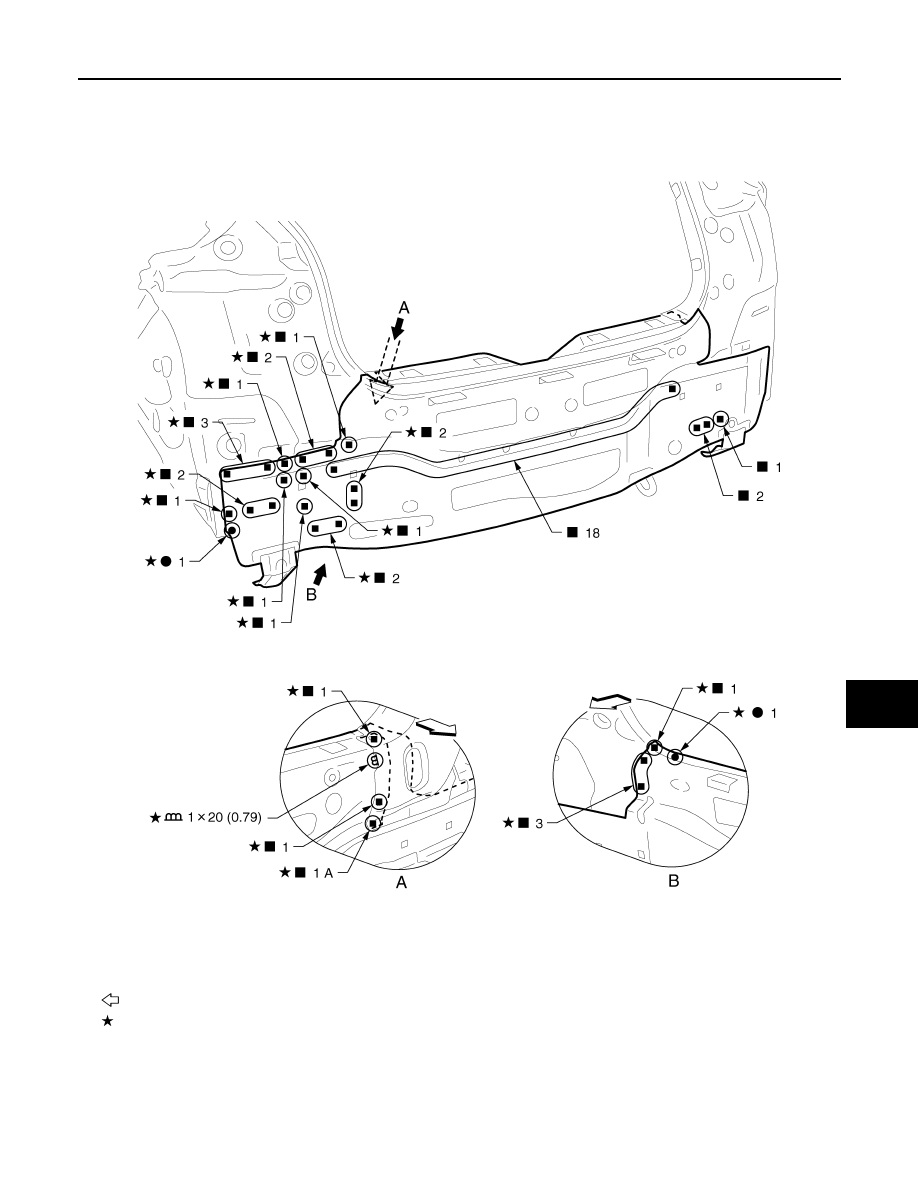

Rear Panel (AWD Models)

INFOID:0000000012199855

Rear Floor Rear (2WD Models)

INFOID:0000000012199856

Work after rear panel is removed.

Unit: mm (in)

: Vehicle front

: Welding method, the number of welding points, and the distance in the figure apply to both side of the vehicle.

Replacement parts

z

Upper rear panel

JSKIA2523GB

BRM-68

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

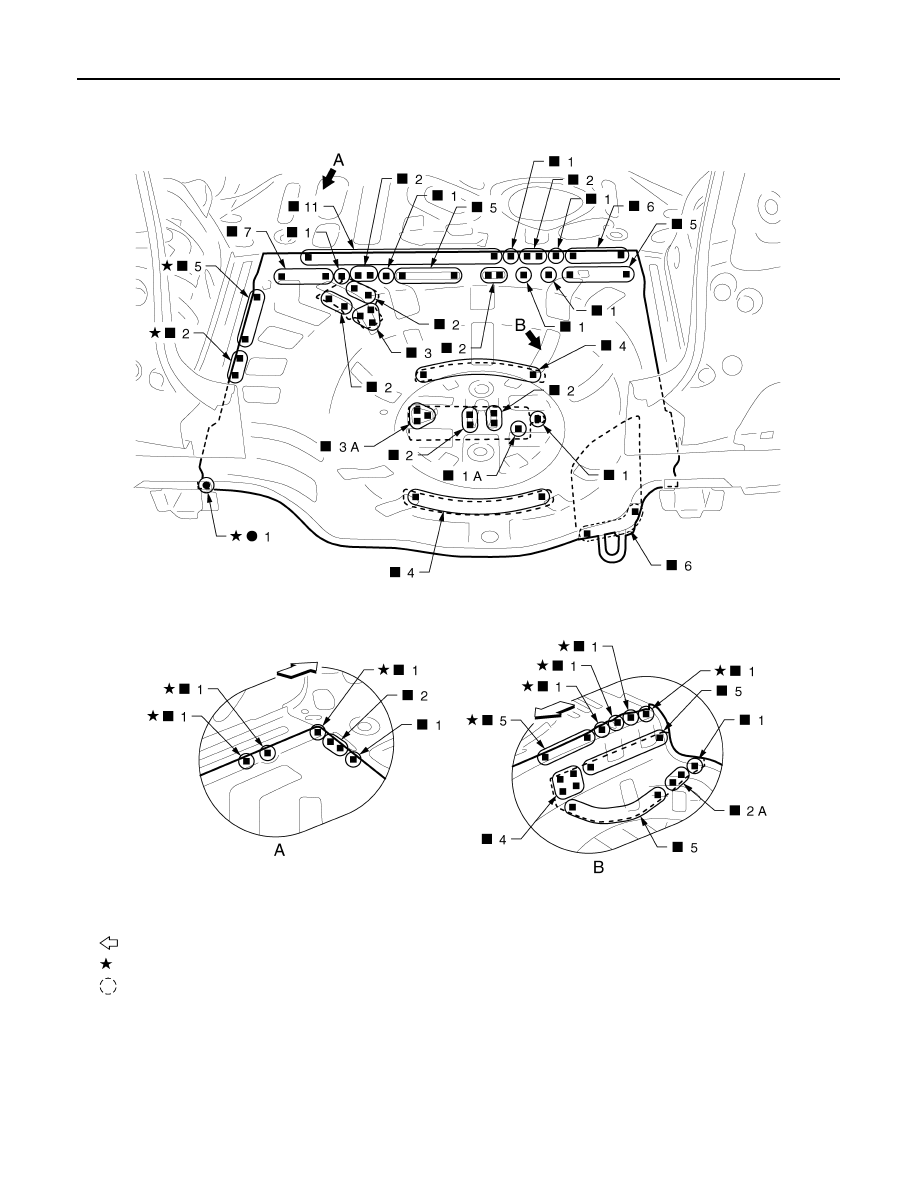

Rear Floor Rear (AWD Models)

INFOID:0000000012199857

Work after rear panel is removed.

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

Replacement parts

z

Rear floor rear

z

Spare tire clamp bracket

z

Rear towing hook bracket

z

Muffler mounting bracket

z

Canister bracket (rear)

z

Spare wheel clamp reinforcement

z

Canister mounting bracket

JSKIA2208ZZ
