REPLACEMENT OPERATIONS

BRM-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

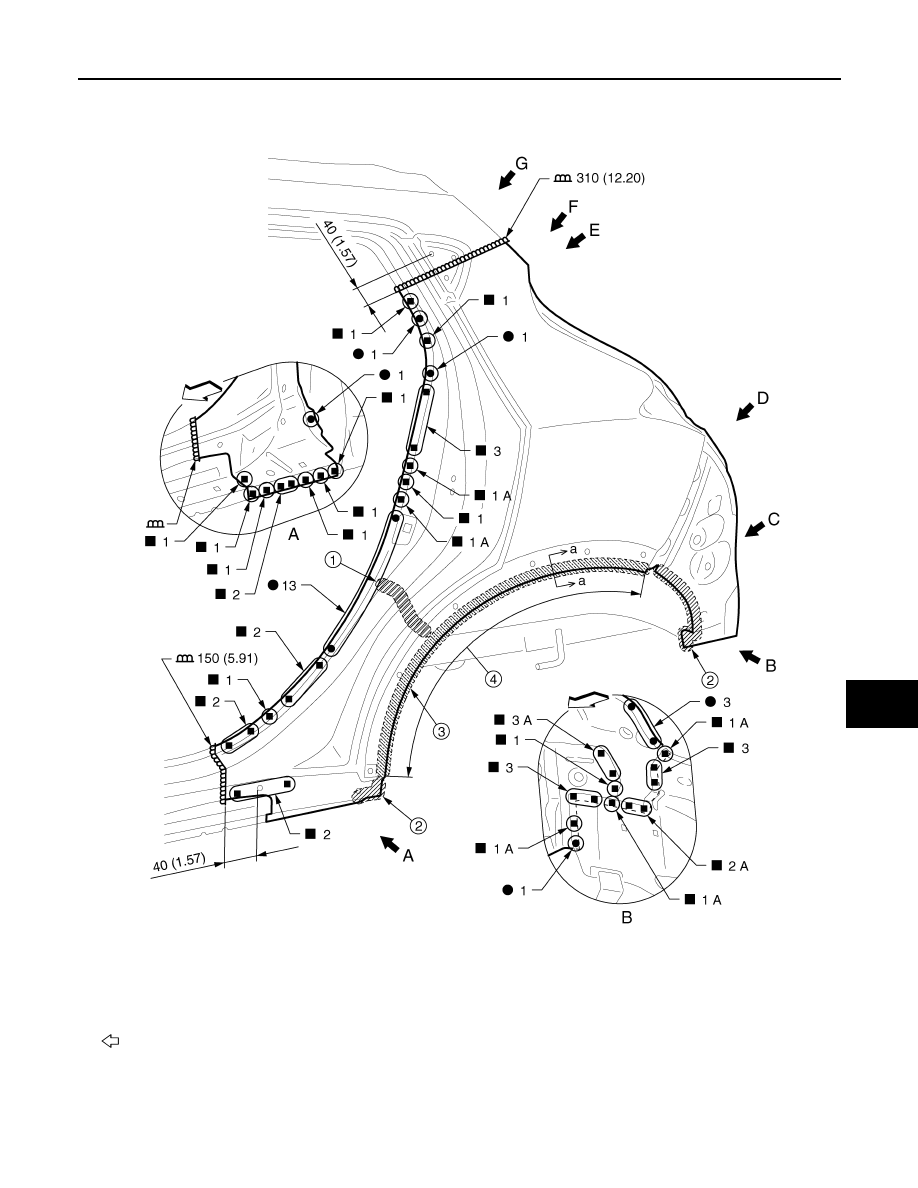

Rear Fender (AWD Models)

INFOID:0000000012199851

1.

Urethane foam

2.

Body sealing

3.

Adhesive

4.

Hemming portion

Unit: mm (in)

: Vehicle front

Replacement parts

z

Rear fender (LH)

z

Rear fender extension (LH)

z

Rear fender corner (LH)

JSKIA2178GB

BRM-62

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

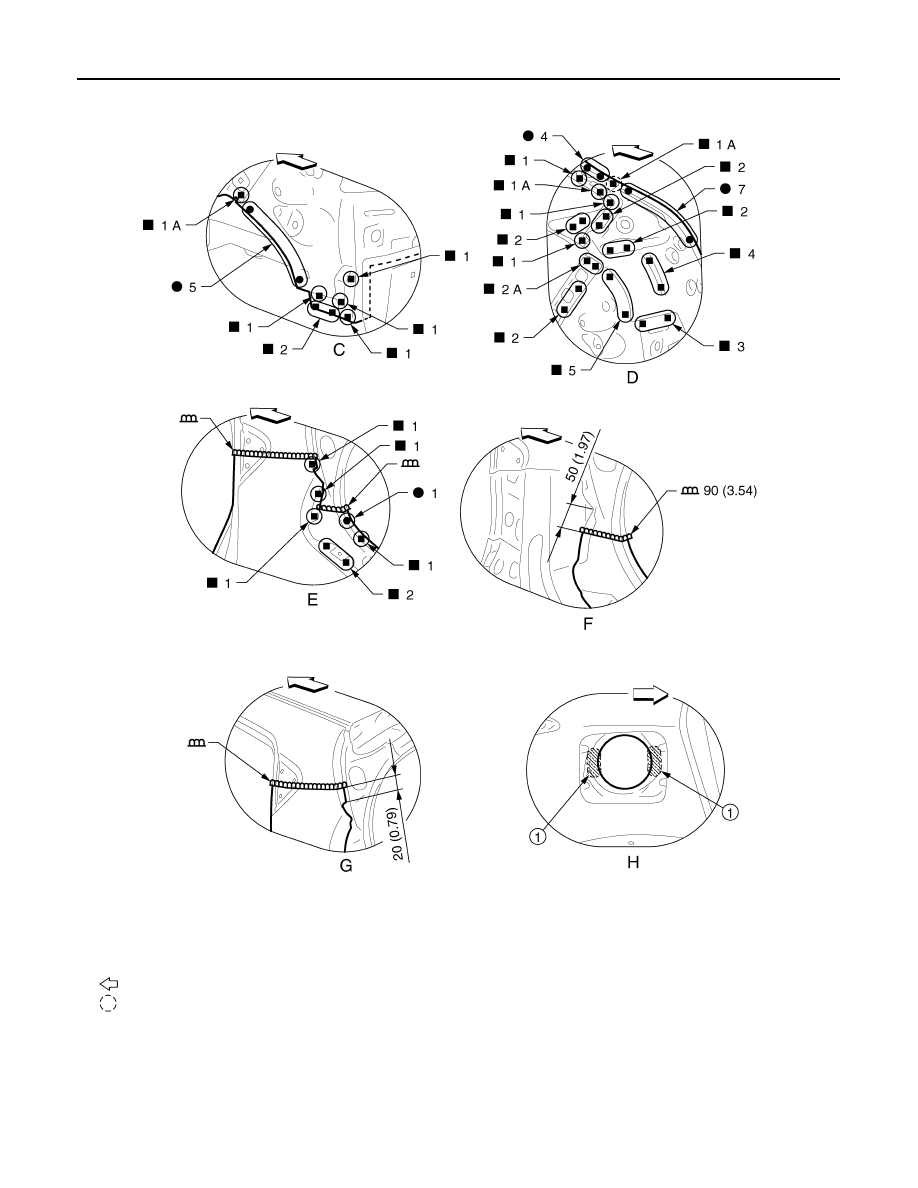

View F: Before installing rear fender

View H: Right side rear fender

POINT

1.

Adhesive

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA2617GB

REPLACEMENT OPERATIONS

BRM-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• Perform the hemming to the flange of wheelarch after applying the

adhesive.

• Apply the sealing to the flange end.

• Refer to

BRM-34, "Rear Fender Hemming Process"

.

1. Outer rear wheelhouse
2. Rear fender
3. Adhesive
4. Sealant

JSKIA0204GB

BRM-64

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

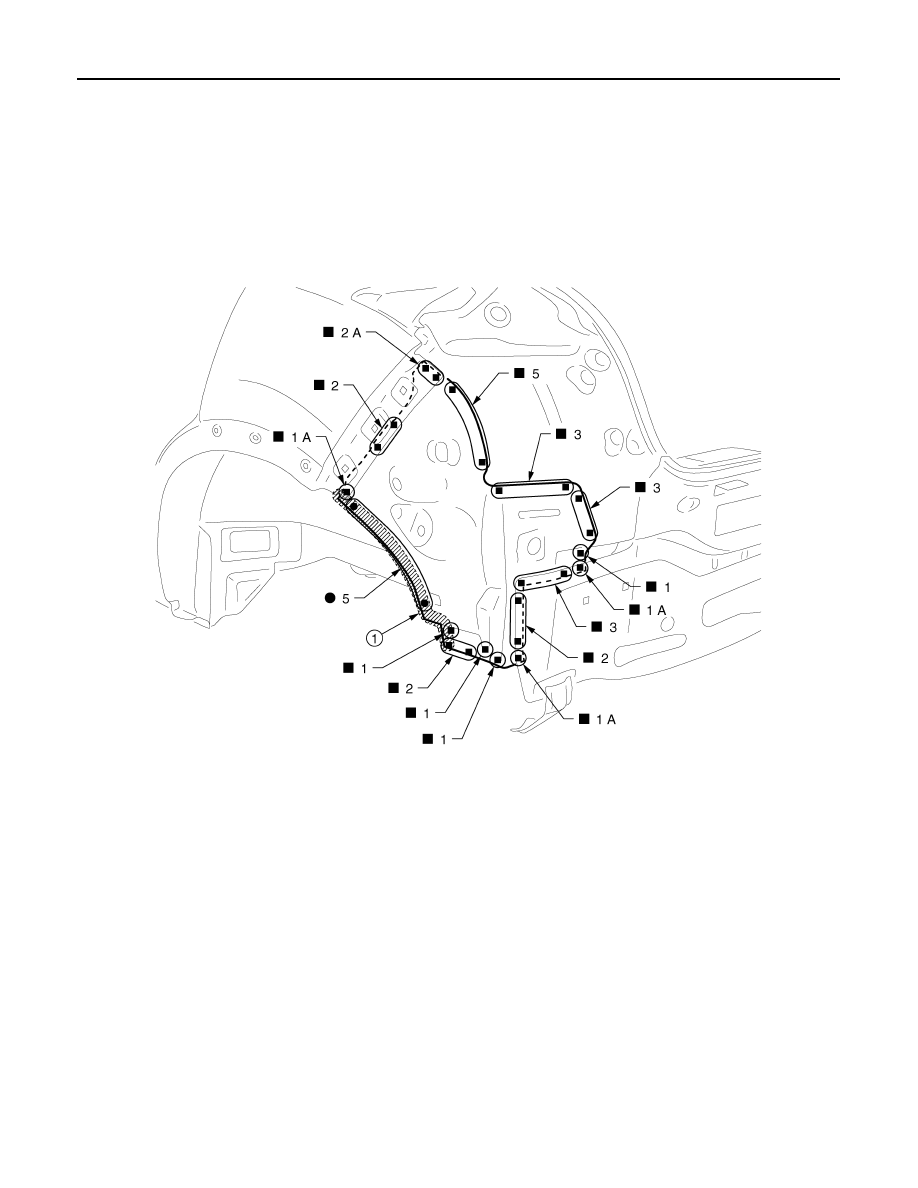

Rear Fender Extension (2WD Models)

INFOID:0000000012199852

1.

Body sealing

Replacement parts

z

Rear fender corner (LH)

JSKIA2025ZZ
