Nissan Juke F15. Manual - part 155

REPLACEMENT OPERATIONS

BRM-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

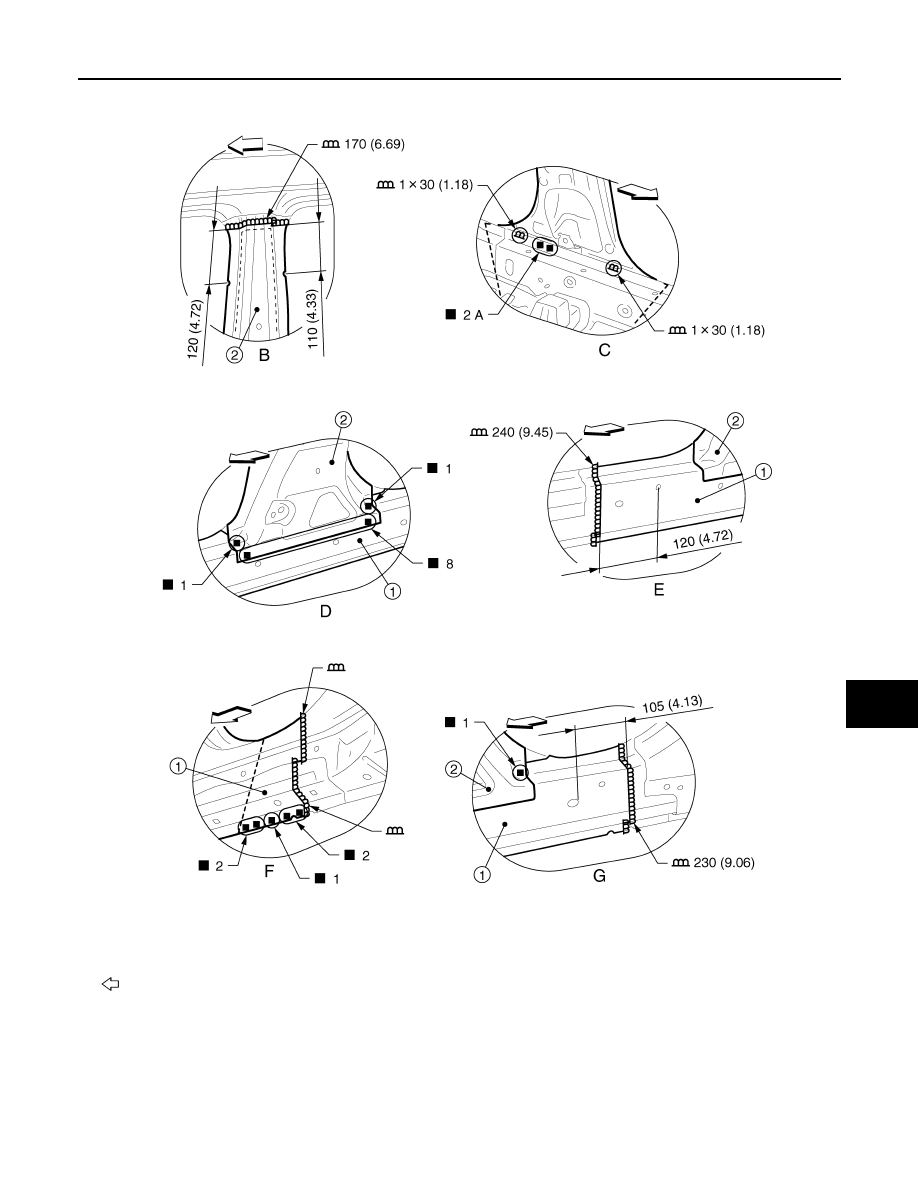

View B, D, E, and G: Before installing outer front side body

1.

Outer sill reinforcement (reusable)

2.

Lower center pillar brace

Unit: mm (in)

: Vehicle front

JSKIA2172GB

BRM-54

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Outer Sill (Partial Replacement)

INFOID:0000000012199848

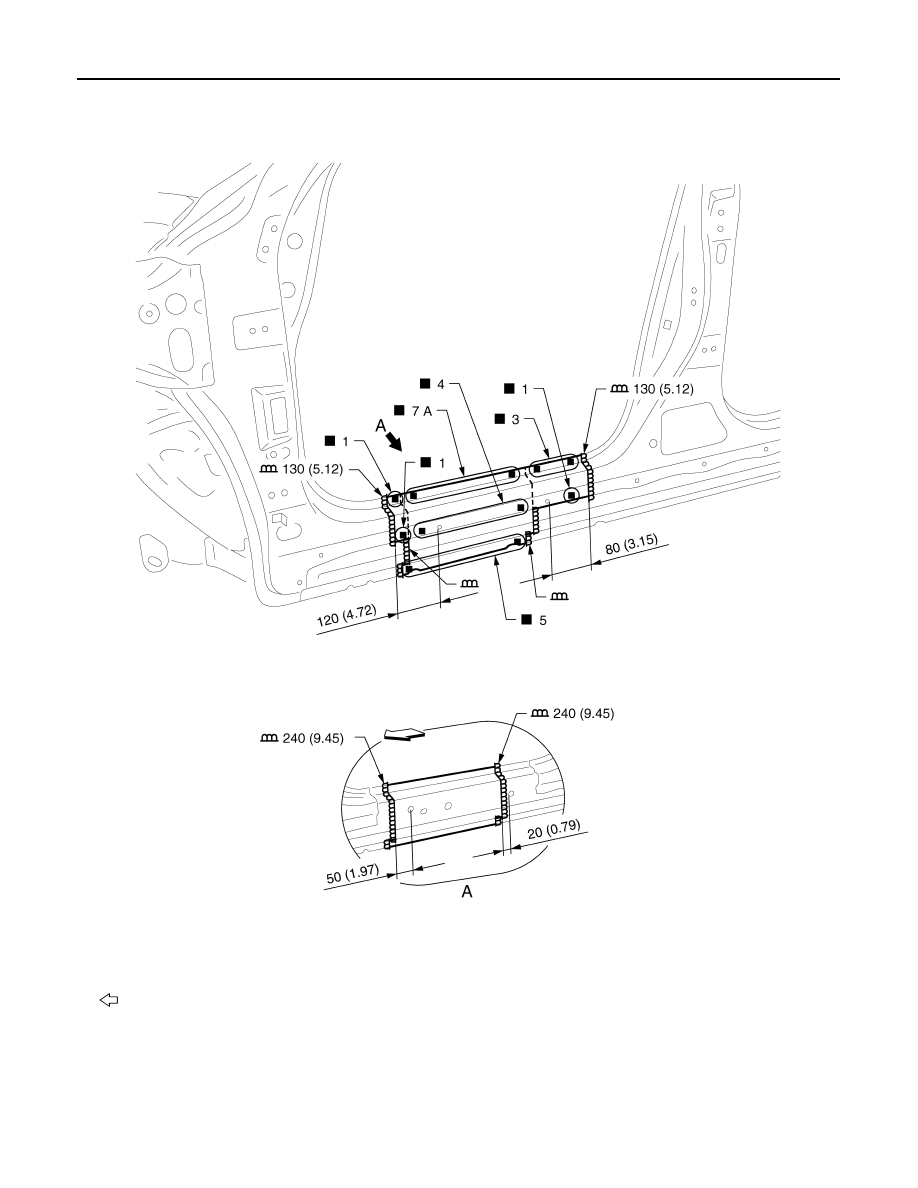

View A: Before installing outer sill

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer sill (LH)

z

Outer sill reinforcement (LH)

JSKIA2020GB

REPLACEMENT OPERATIONS

BRM-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Outer Sill

INFOID:0000000012199849

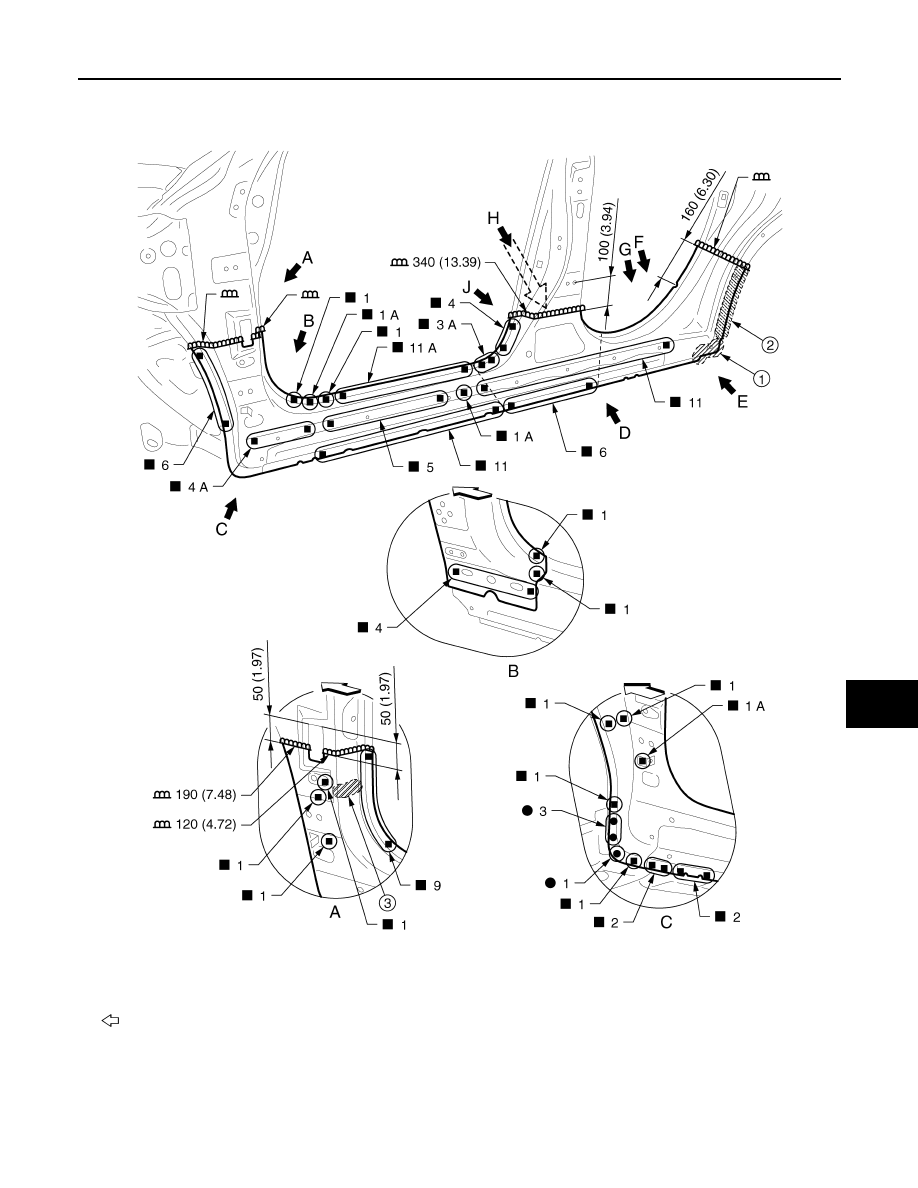

View B: Before installing outer sill and front fender bracket assembly

1.

Body sealing

2.

Adhesive

3.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer sill (LH)

z

Outer sill reinforcement (LH)

z

Front fender bracket assembly (LH)

JSKIA2175GB

BRM-56

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

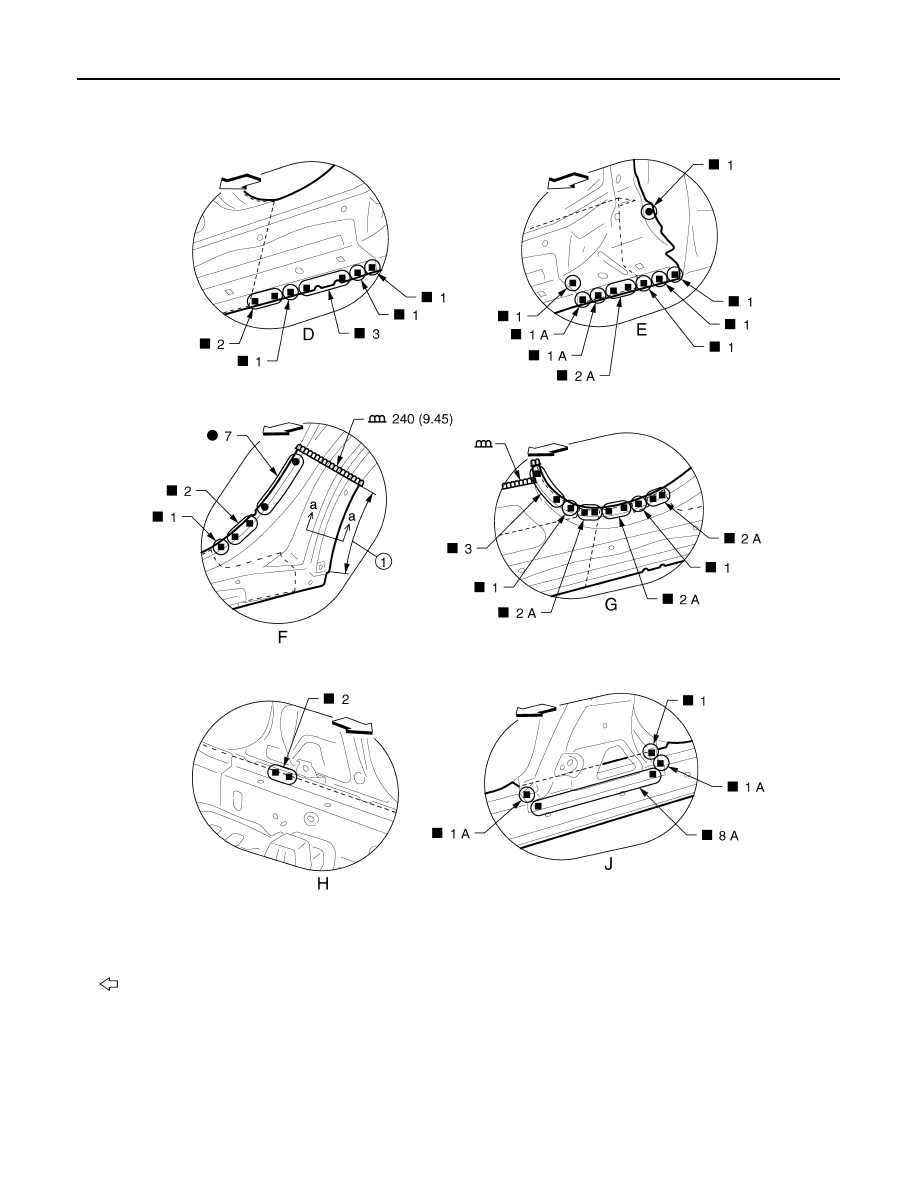

View J: Before installing outer sill

POINT

1.

Hemming portion

Unit: mm (in)

: Vehicle front

JSKIA2174GB
