REPLACEMENT OPERATIONS

BRM-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

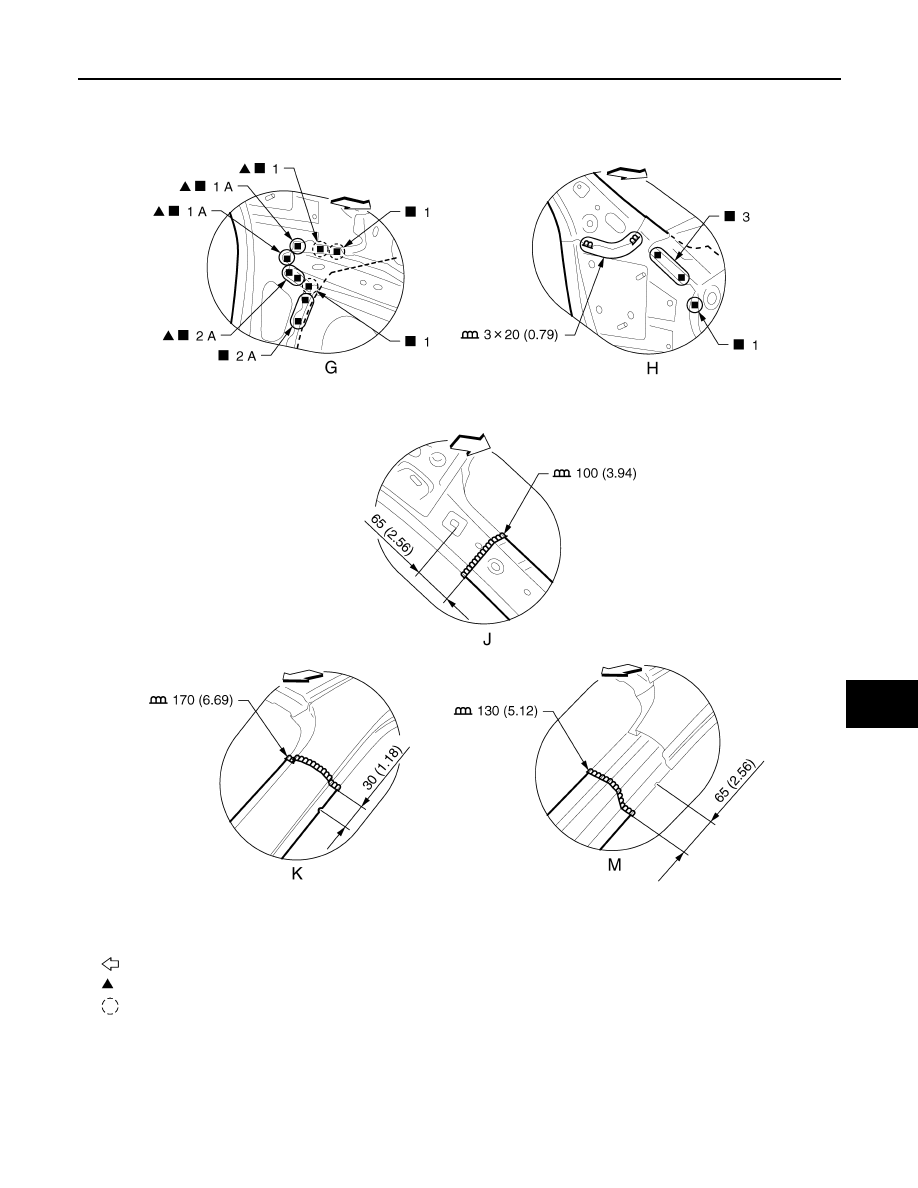

View G: Before installing outer front side body, front fender bracket assembly, and front pillar brace

View M: Before installing outer front side body

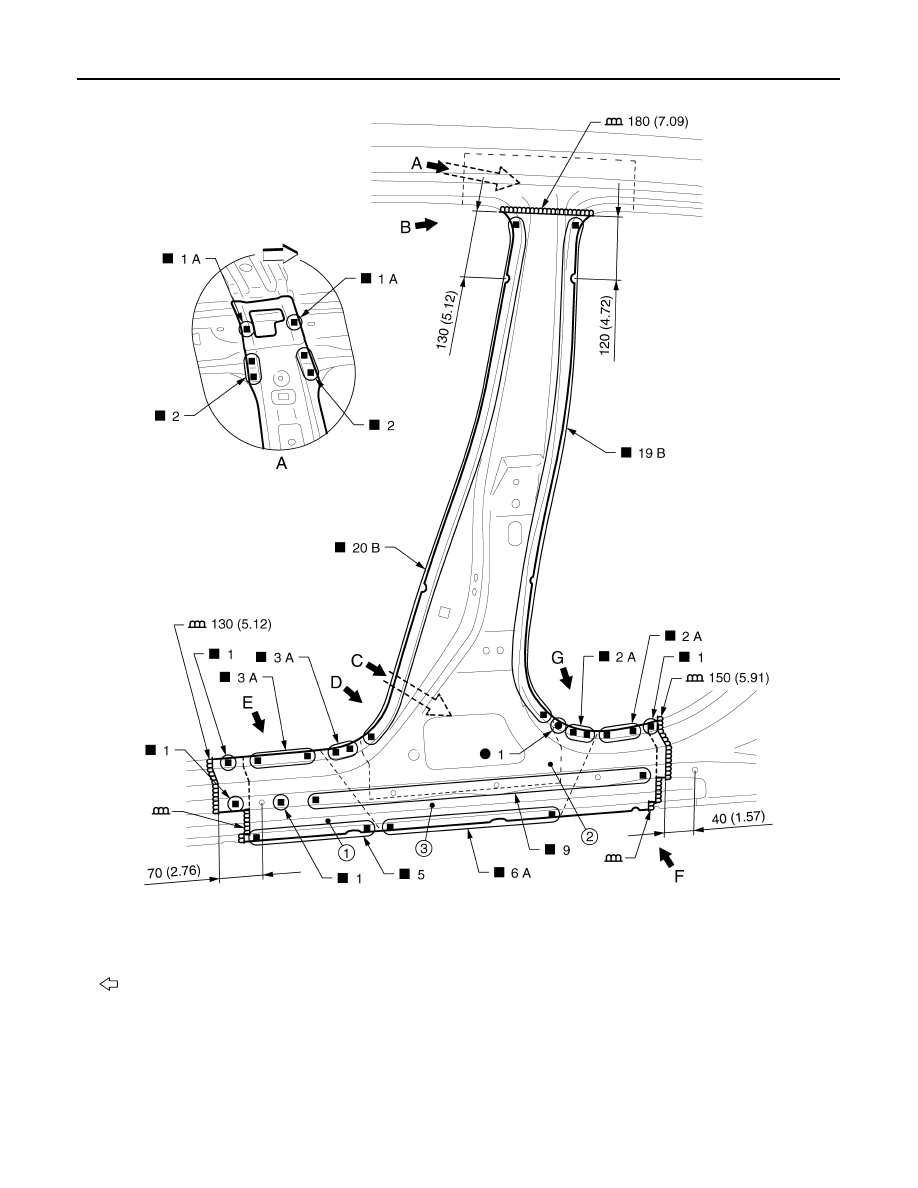

Center Pillar (Standard Roof Models)

INFOID:0000000012199846

Remove the outer sill reinforcement (reusable).

Unit: mm (in)

: Vehicle front

: Drill

φ9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel plate).

: Weld the parts onto the back of the component part.

JSKIA2170GB

BRM-50

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

1.

Outer sill reinforcement (reusable)

2.

Lower center pillar brace

3.

Inner center pillar

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer front side body (LH)

z

Lower center pillar brace (LH)

z

Inner center pillar (LH)

JSKIA2171GB

REPLACEMENT OPERATIONS

BRM-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

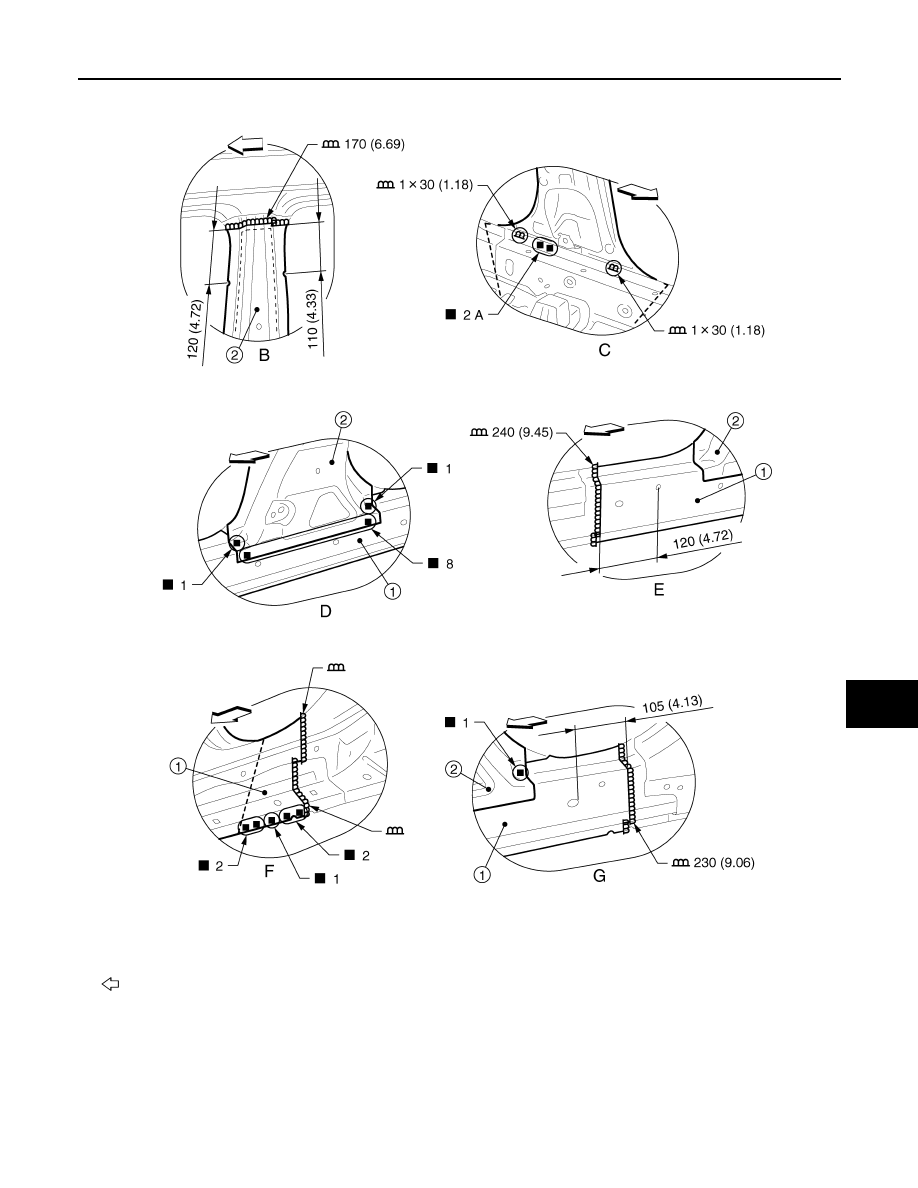

View B, D, E, and G: Before installing outer front side body

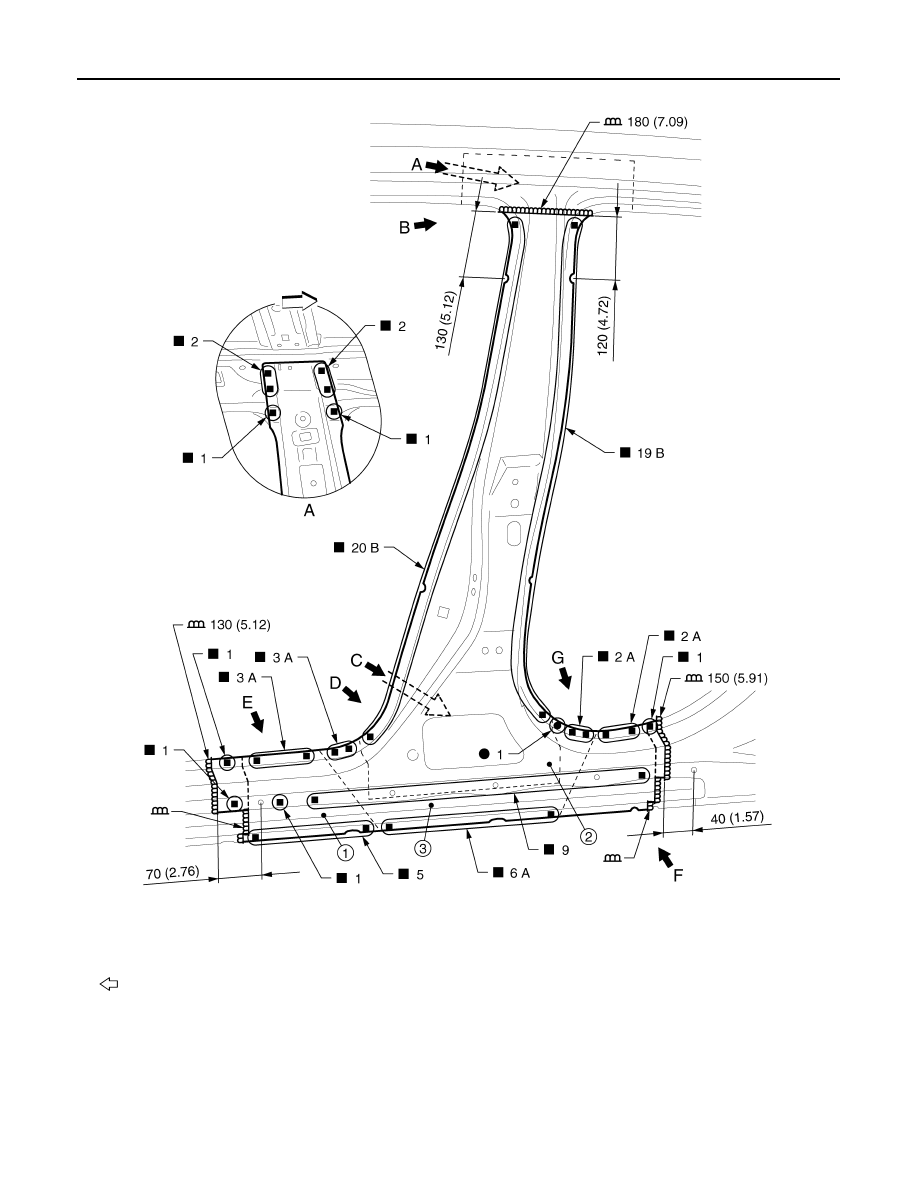

Center Pillar (With Sunroof Models)

INFOID:0000000012199847

Remove the outer sill reinforcement (reusable).

1.

Outer sill reinforcement (reusable)

2.

Lower center pillar brace

Unit: mm (in)

: Vehicle front

JSKIA2172GB

BRM-52

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

1.

Outer sill reinforcement (reusable)

2.

Lower center pillar brace

3.

Inner center pillar

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer front side body (LH)

z

Lower center pillar brace (LH)

z

Inner center pillar (LH)

JSKIA2018GB
