Nissan Juke F15. Manual - part 152

REPLACEMENT OPERATIONS

BRM-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

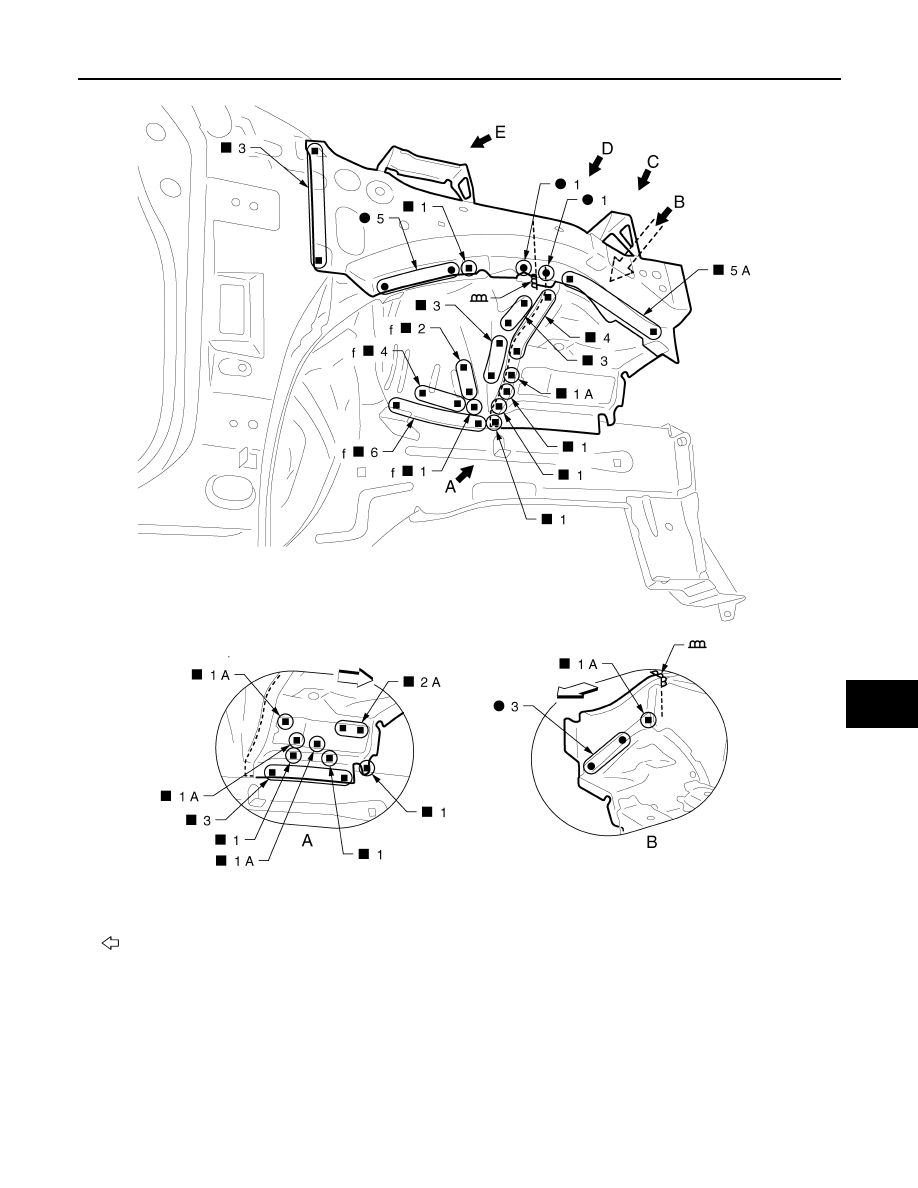

View B: Before installing hoodledge reinforcement

: Vehicle front

Replacement parts

z

Upper hoodledge (RH)

z

Lower front hoodledge (RH)

z

Hoodledge reinforcement (RH)

JSKIA2158ZZ

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

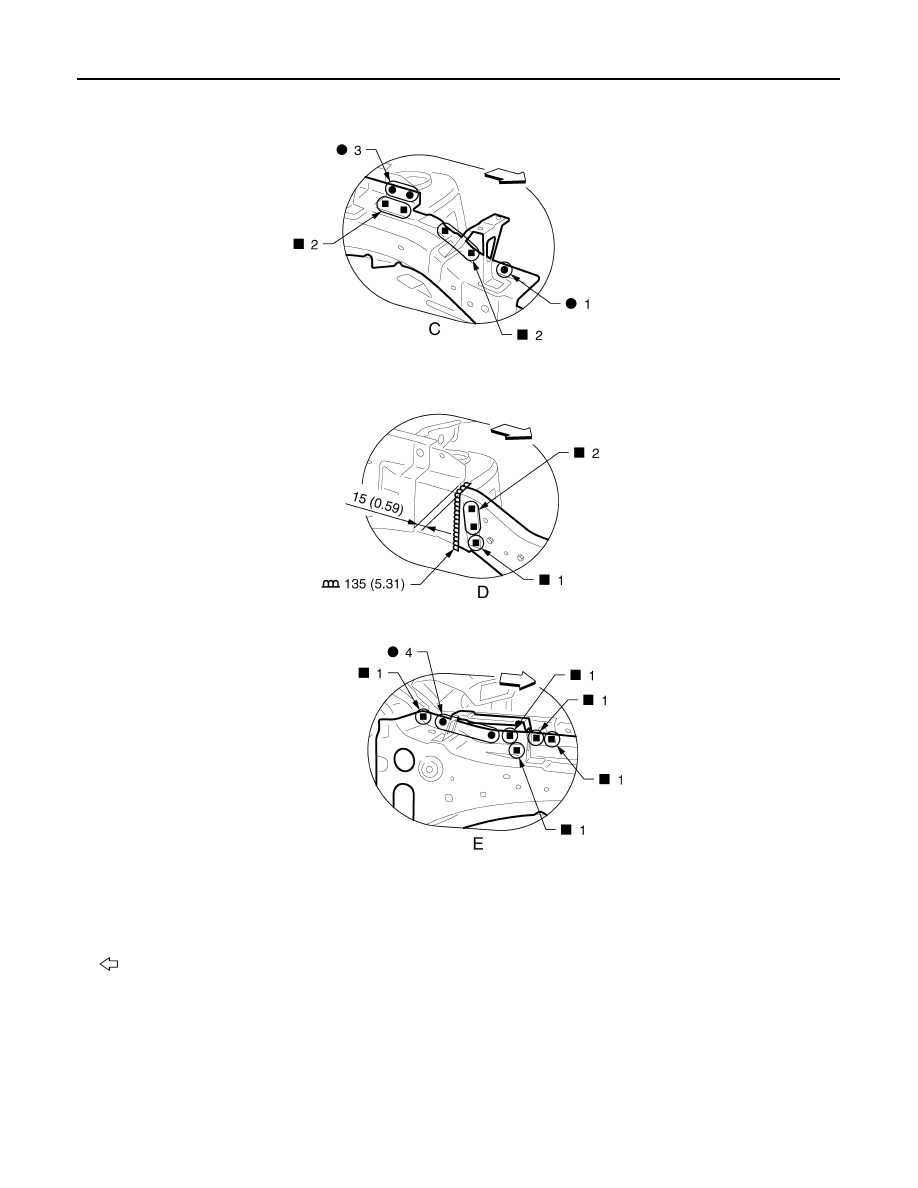

View D: Before installing hoodledge reinforcement

Front Side Member

INFOID:0000000012199843

Work after radiator core support and hoodledge are removed.

Unit: mm (in)

: Vehicle front

JSKIA2159GB

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

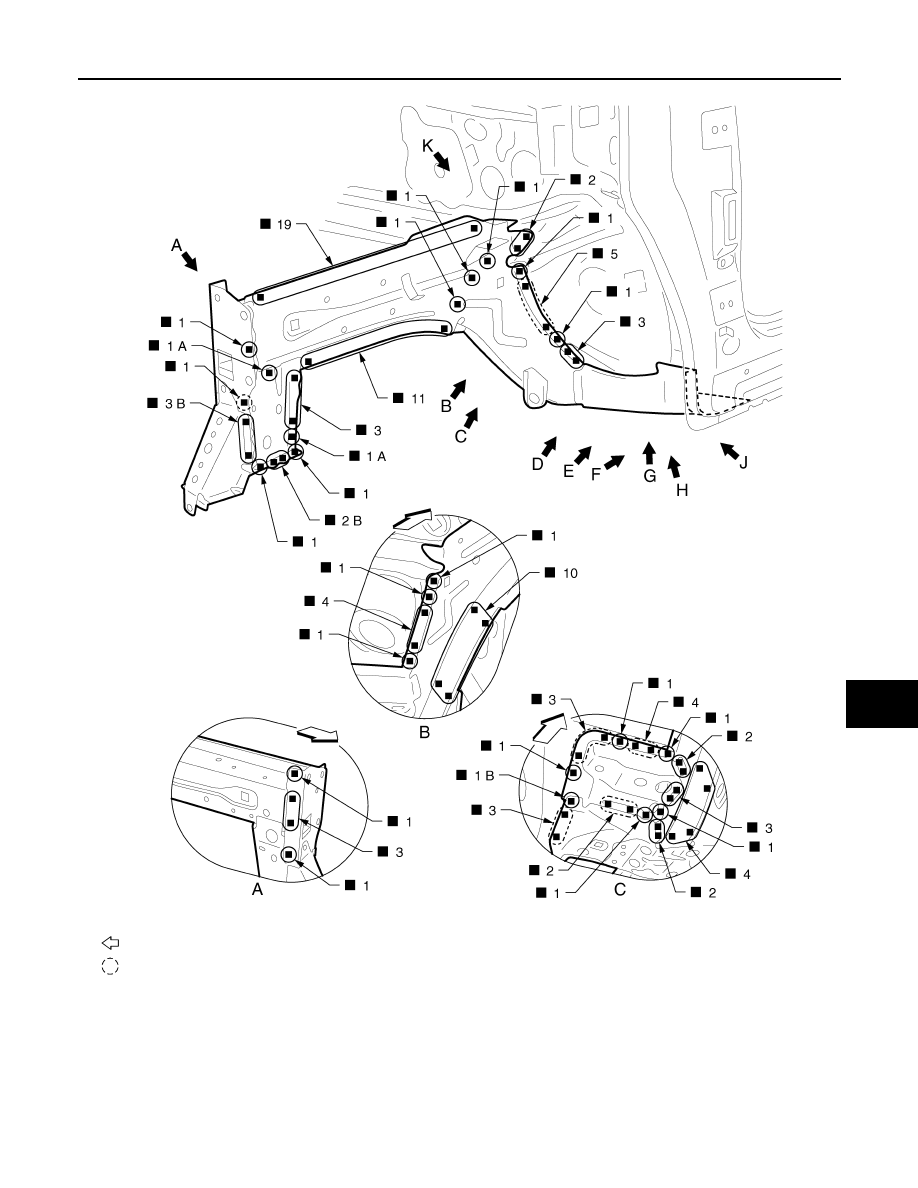

: Vehicle front
: Weld the parts onto the back of the component part.

Replacement parts

z

Front side member assembly (LH)

z

Front side member closing plate as-
sembly (LH)

z

Front suspension mounting bracket
(LH Rear)

JSKIA2165ZZ

BRM-44

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

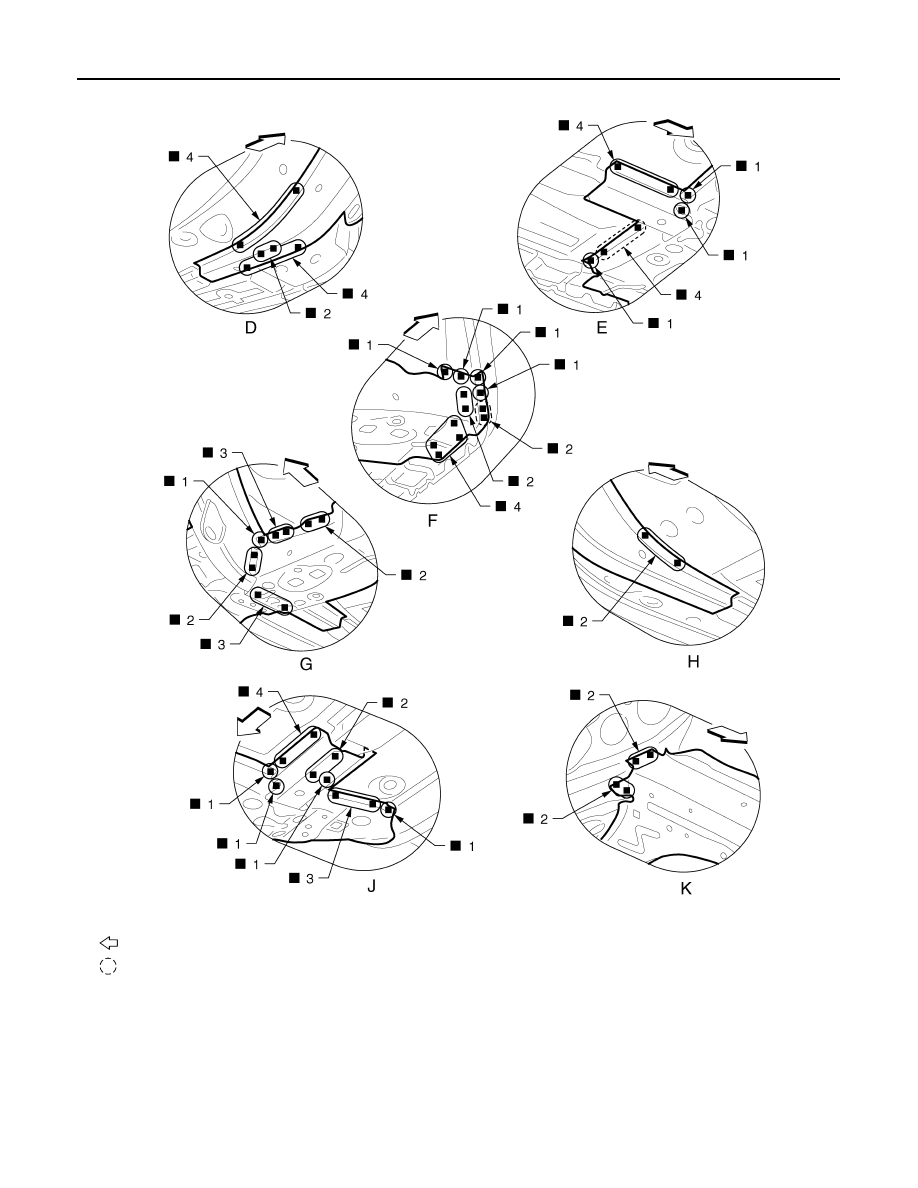

View D and H: Before installing front suspension mounting bracket (Rear)

Front Side Member (Partial Replacement)

INFOID:0000000012199844

Work after radiator core support is removed.

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA2164ZZ
