REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

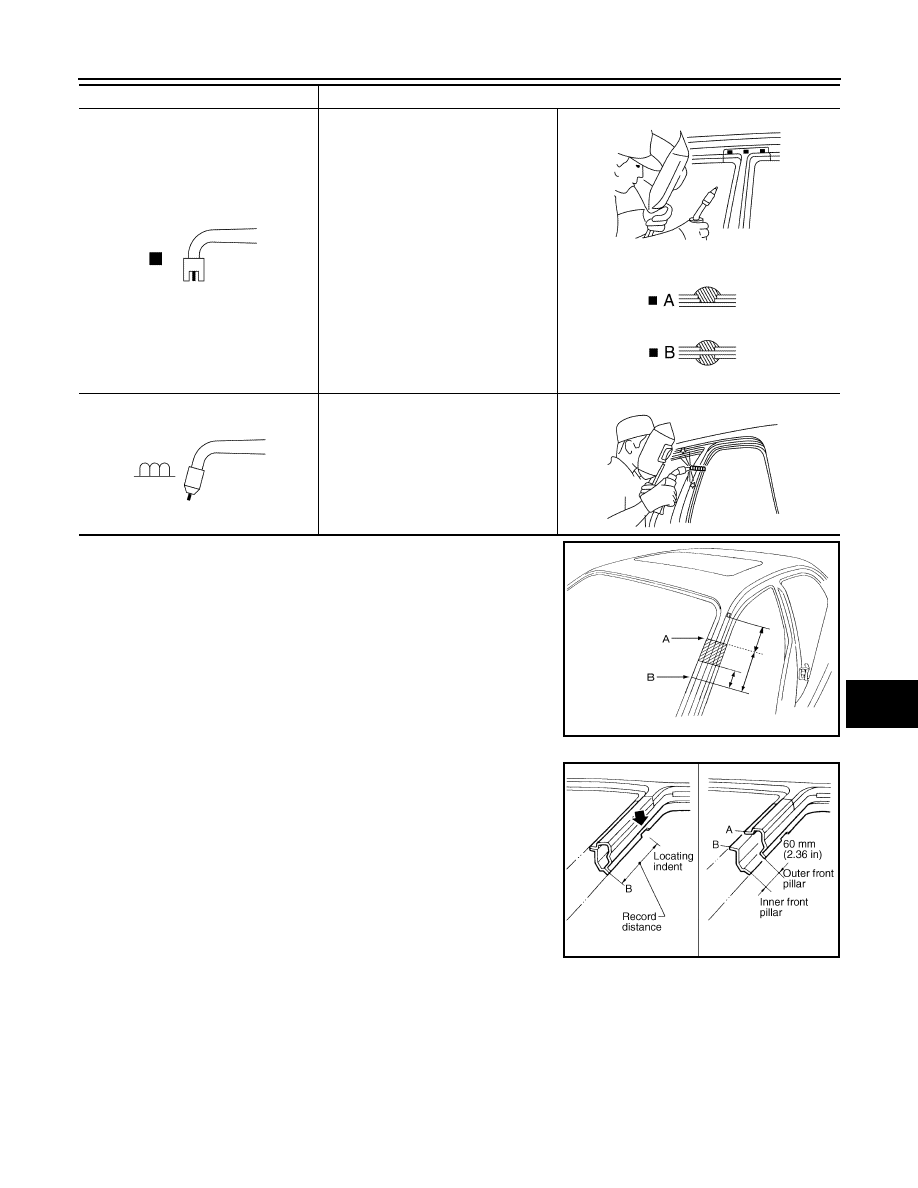

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at

position A due to the construction of the vehicle.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer

front pillar over 60 mm (2.36 in) above the inner front pillar cut

position.

MIG plug weld

For 3-panel plug weld method

MIG seam weld / Point weld

Symbol marks

Description

JSKIA0051ZZ

JSKIA0054ZZ

JSKIA0055ZZ

JSKIA0052ZZ

JSKIA0056ZZ

PIIA0150E

JSKIA0104GB

BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

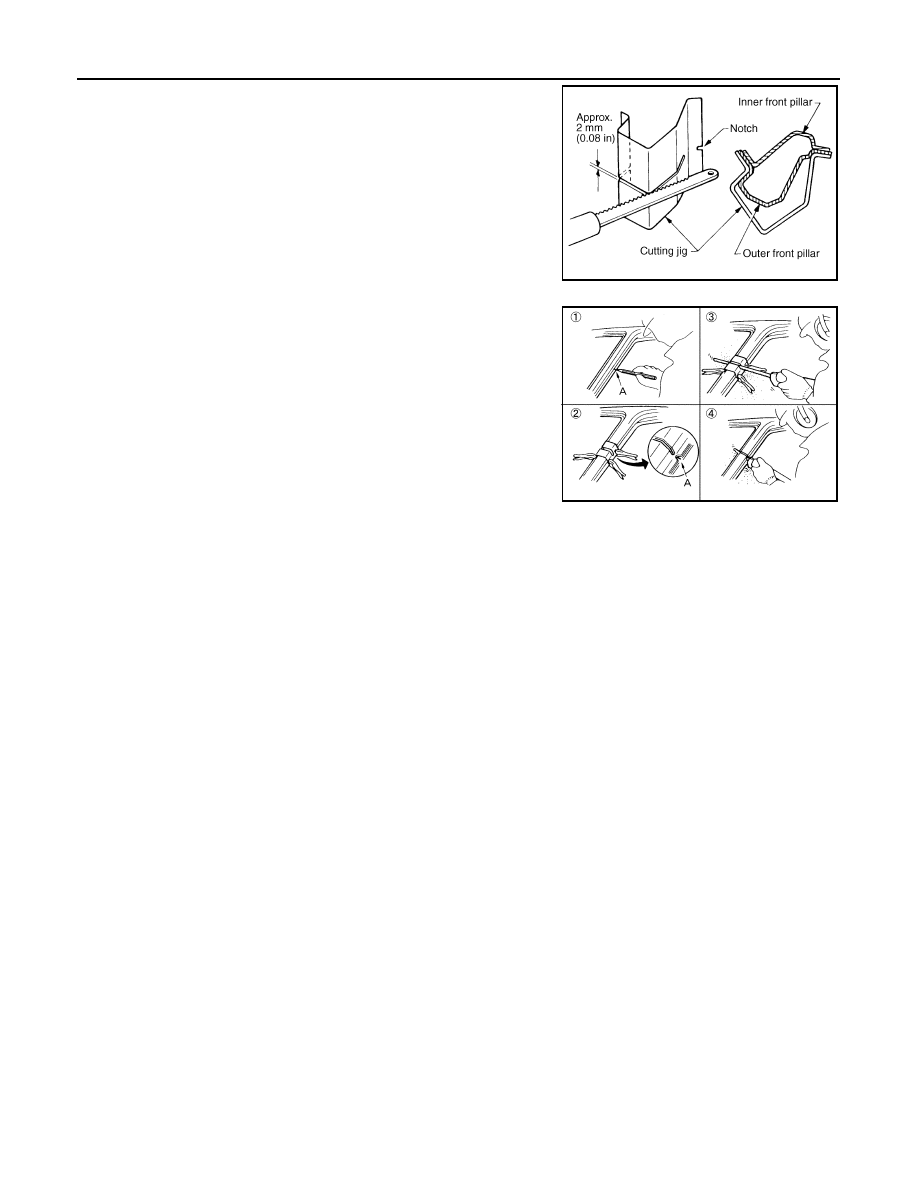

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit the service part to be accurately cut at the joint position.

• An example of cutting operation using a cutting jig is as per the fol-

lowing.

1. Mark cutting lines.

A: Cut position of outer pillar

B: Cut position of inner pillar

2. Align cutting line with notch on jig. Clamp jig to pillar.

3. Cut outer pillar along groove of jig (at position A).

4. Remove jig and cut remaining portions.

5. Cut inner pillar at position B in same manner.

JSKIA0105GB

PIIA0153E

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Radiator Core Support

INFOID:0000000012199840

Hoodledge

INFOID:0000000012199841

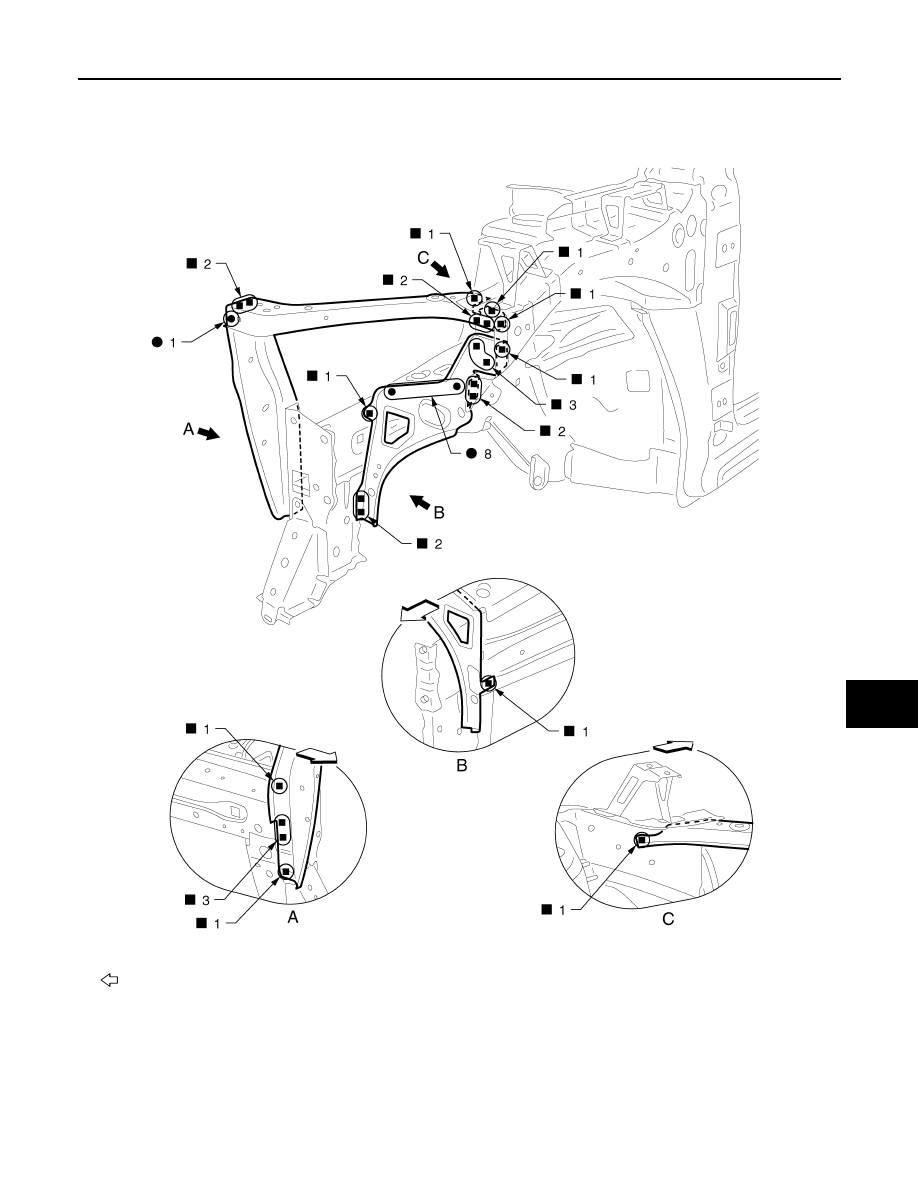

Work after radiator core support is removed.

: Vehicle front

Replacement parts

z

Side radiator core support (LH Up-
per)

z

Side radiator core support (LH Low-
er)

z

Hoodledge connector (LH)

JSKIA2008ZZ

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View B: Before installing hoodledge reinforcement

Hoodledge (Partial Replacement)

INFOID:0000000012199842

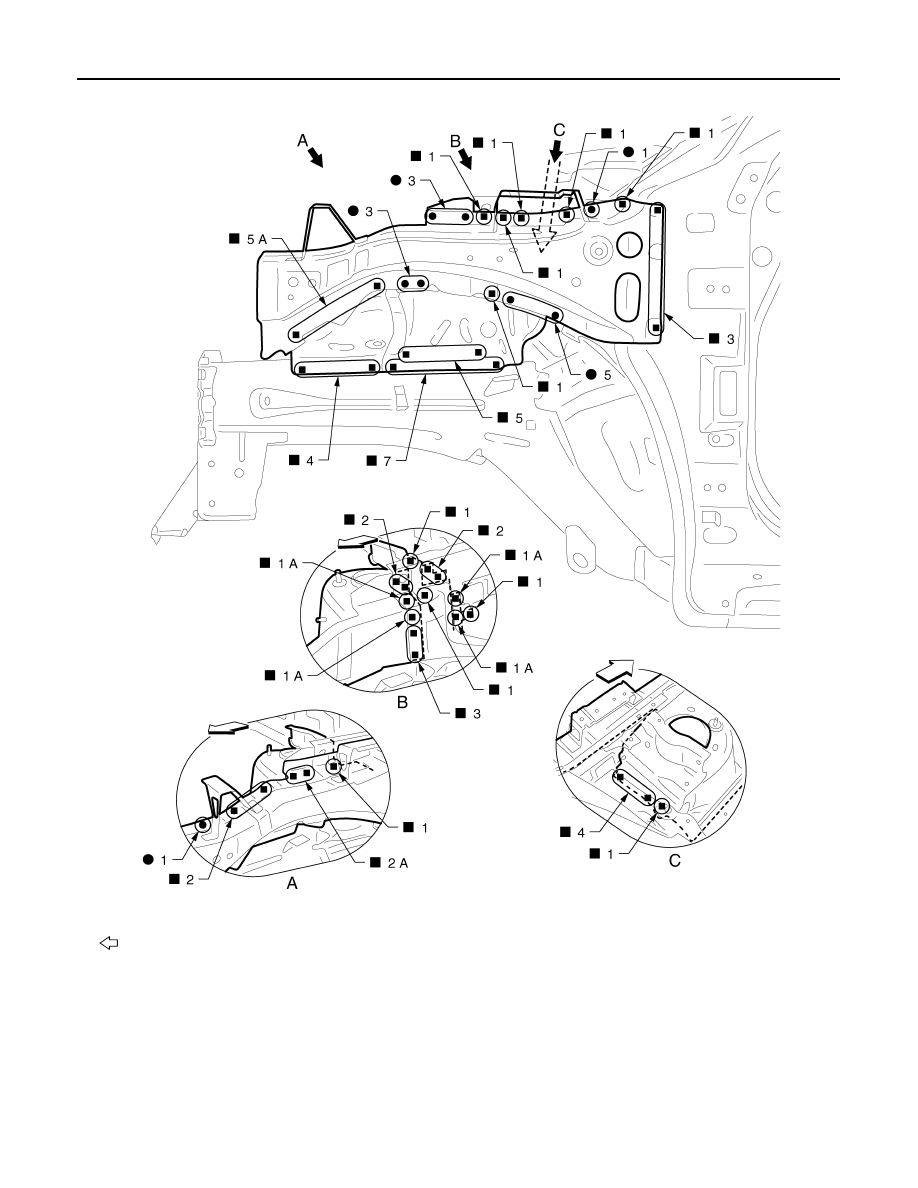

Work after radiator core support is removed.

Remove the welding points

″f″ for easier installation.

: Vehicle front

Replacement parts

z

Front strut housing (LH)

z

Hoodledge reinforcement (LH)

JSKIA2157ZZ
