CORROSION PROTECTION

BRM-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

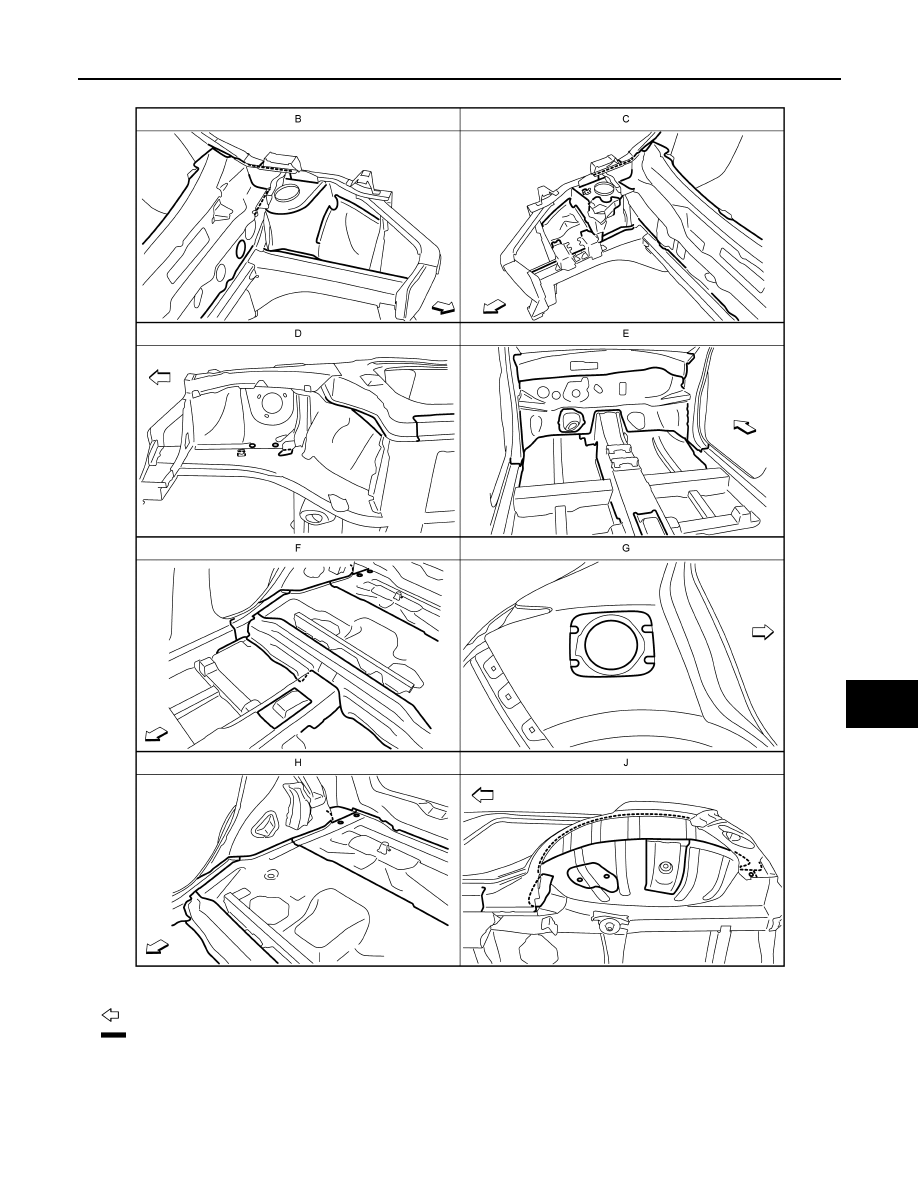

: Vehicle front

: Sealed portions

JSKIA5309ZZ

BRM-30

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

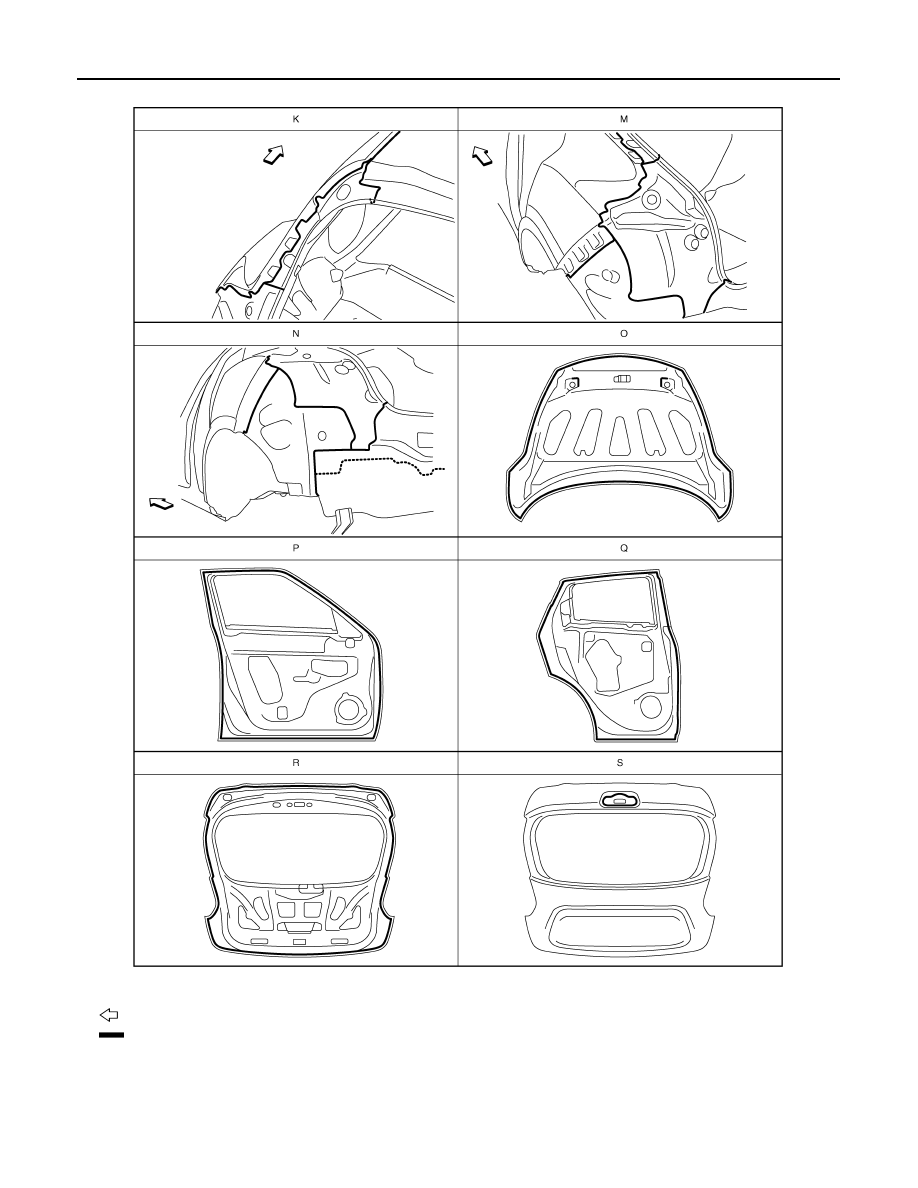

: Vehicle front

: Sealed portions

JSKIA2202ZZ

BODY CONSTRUCTION

BRM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY CONSTRUCTION

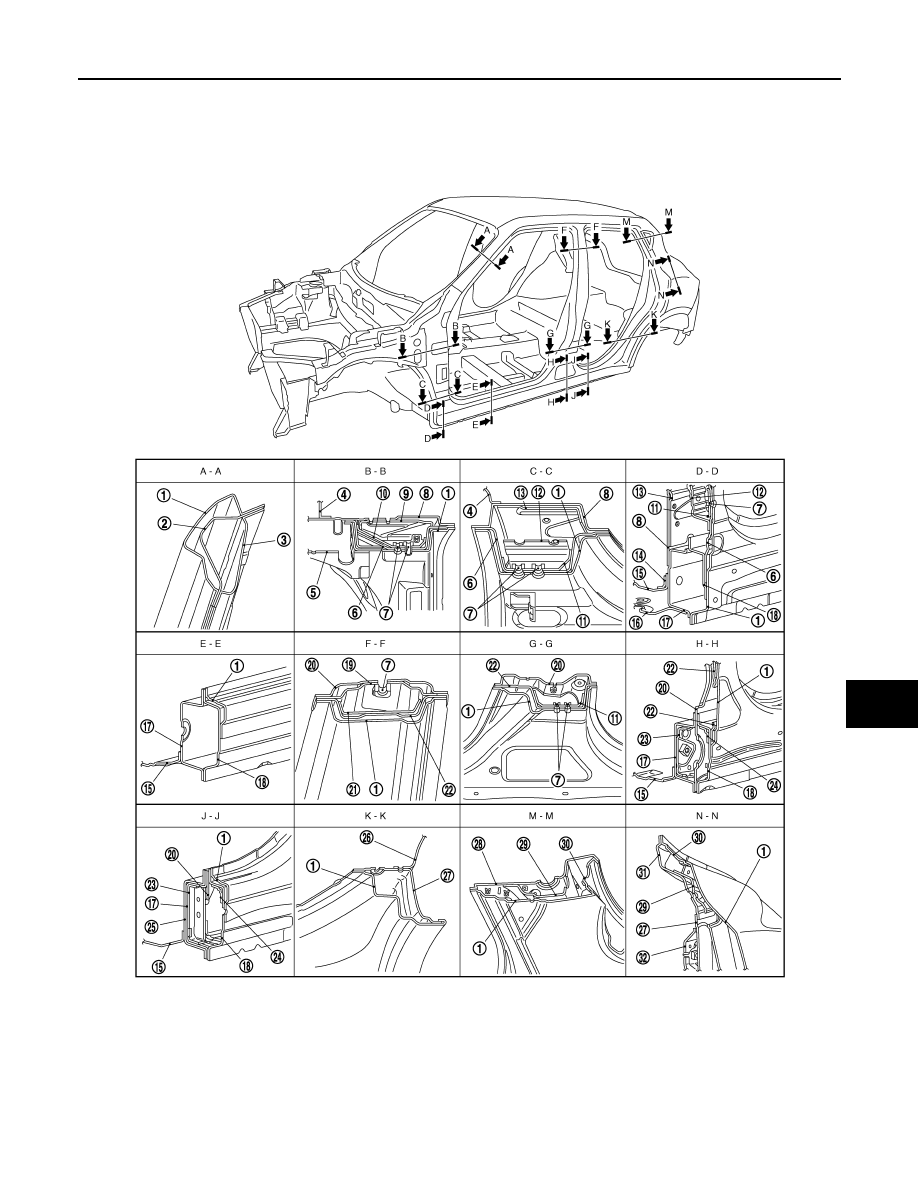

Body Construction (Standard roof Models)

INFOID:0000000012199836

1.

Outer side body

2.

Outer front pillar reinforcement

3.

Upper inner front pillar

4.

Lower dash

5.

Hoodledge reinforcement

6.

Lower front pillar hinge brace

7.

Weld nut

8.

Side dash

9.

Inner front pillar reinforcement

JSKIA2203ZZ

BRM-32

< REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

10. Upper hinge plate

11. Lower hinge plate

12. Lower front pillar bulkhead

13. Inner front pillar reinforcement

14. Front floor reinforcement

15. Front floor

16. Front outrigger

17. Inner sill

18. Outer sill reinforcement

19. Inner center pillar reinforcement

20. Inner center pillar

21. Center pillar reinforcement

22. Center pillar hinge brace

23. Inner sill reinforcement

24. Center sill reinforcement

25. Inner sill extension

26. Inner rear wheelhouse

27. Outer rear wheelhouse

28. Rear roof rail brace

29. Inner rear pillar reinforcement

30. Rear fender extension

31. Inner rear pillar

32. Inner rear wheelhouse reinforce-

ment
