CORROSION PROTECTION

BRM-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

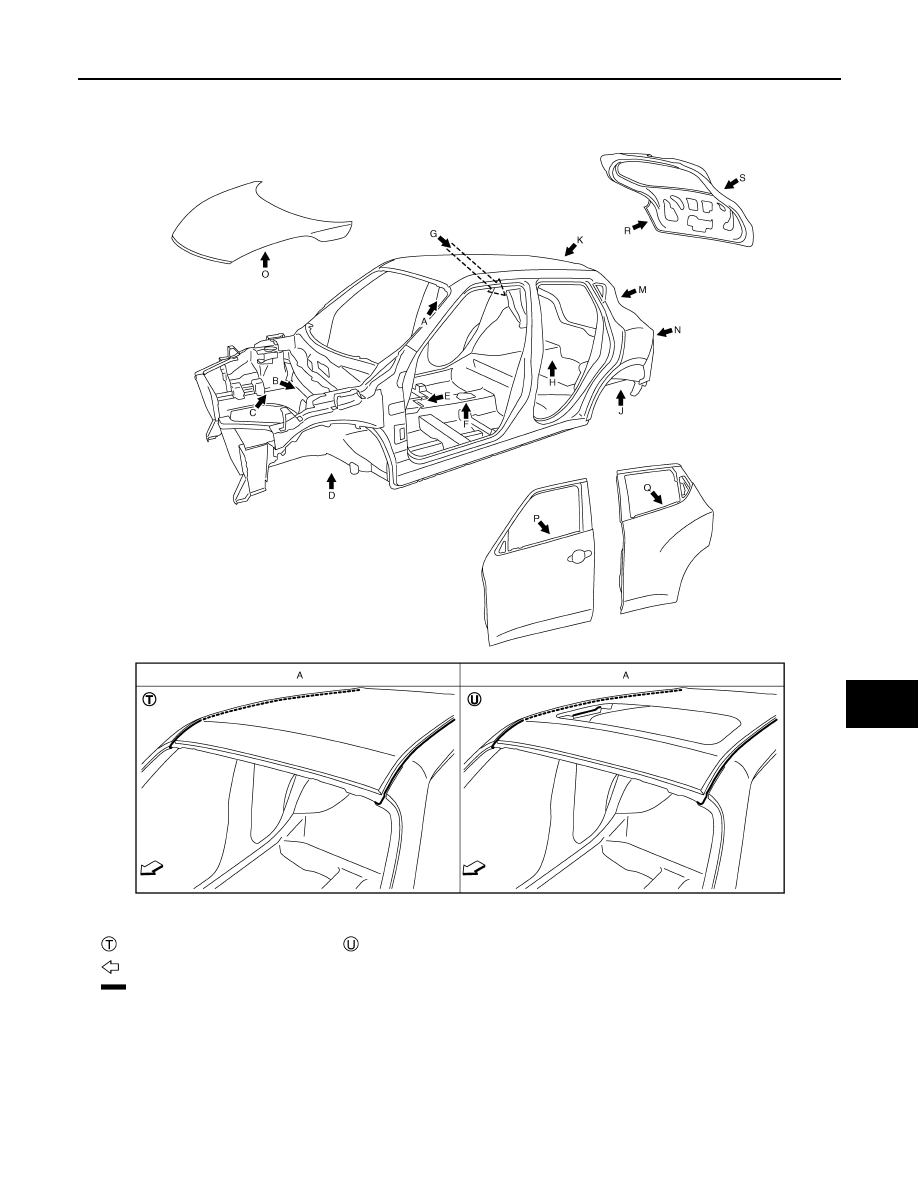

Standard roof models

With sunroof models

: Vehicle front

: Sealed portions

JSKIA2199ZZ

BRM-26

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

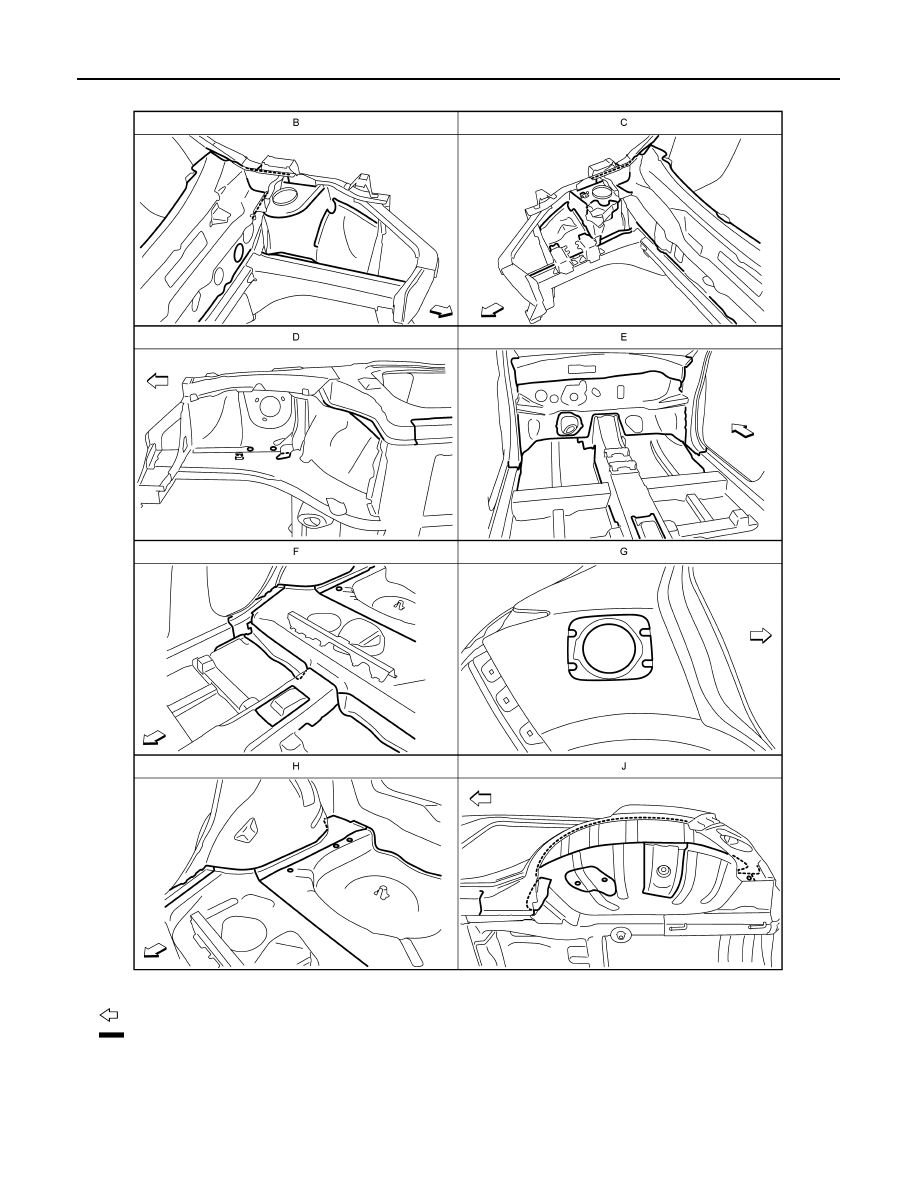

: Vehicle front

: Sealed portions

JSKIA5307ZZ

CORROSION PROTECTION

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

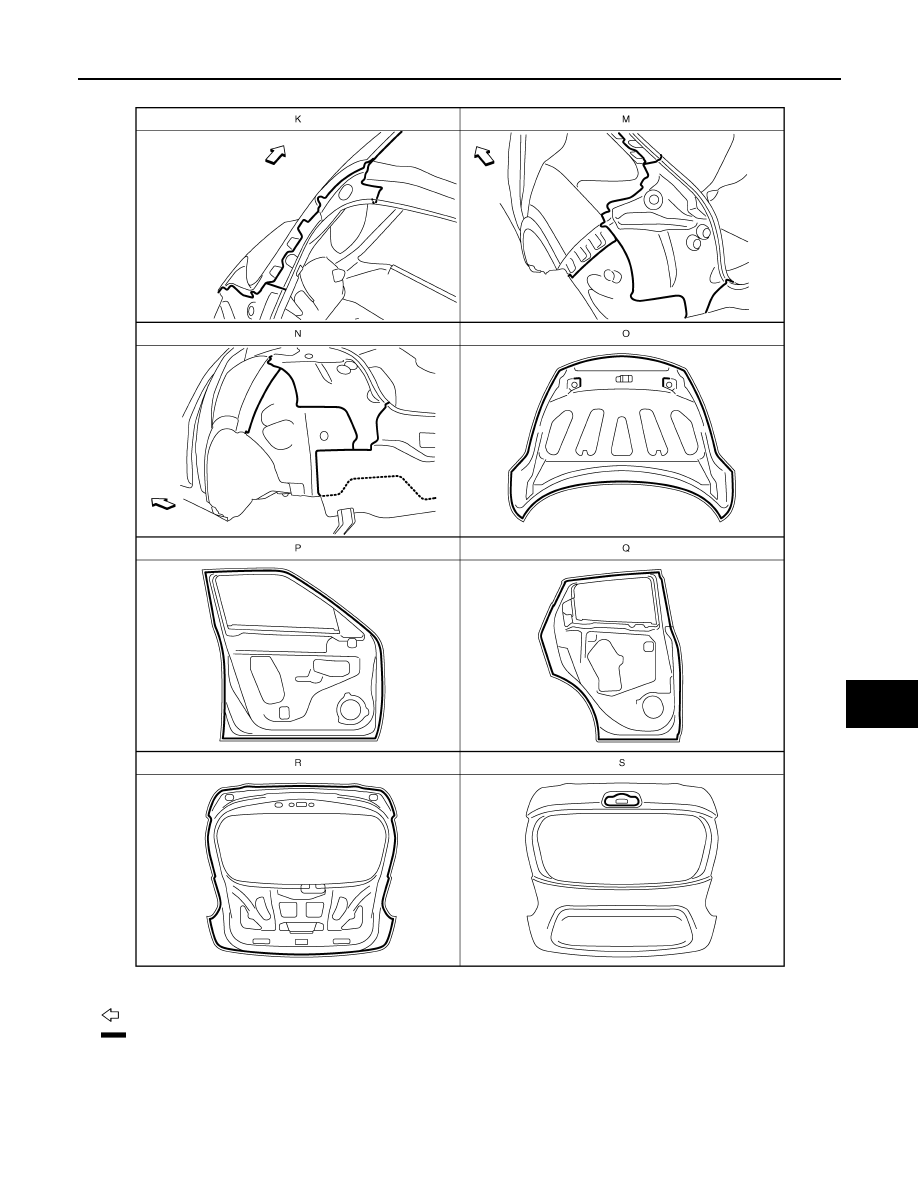

: Vehicle front

: Sealed portions

JSKIA2135ZZ

BRM-28

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

Body Sealing (AWD Models)

INFOID:0000000012199835

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas

should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant

and not to allow other unaffected parts to come into contact with the sealant.

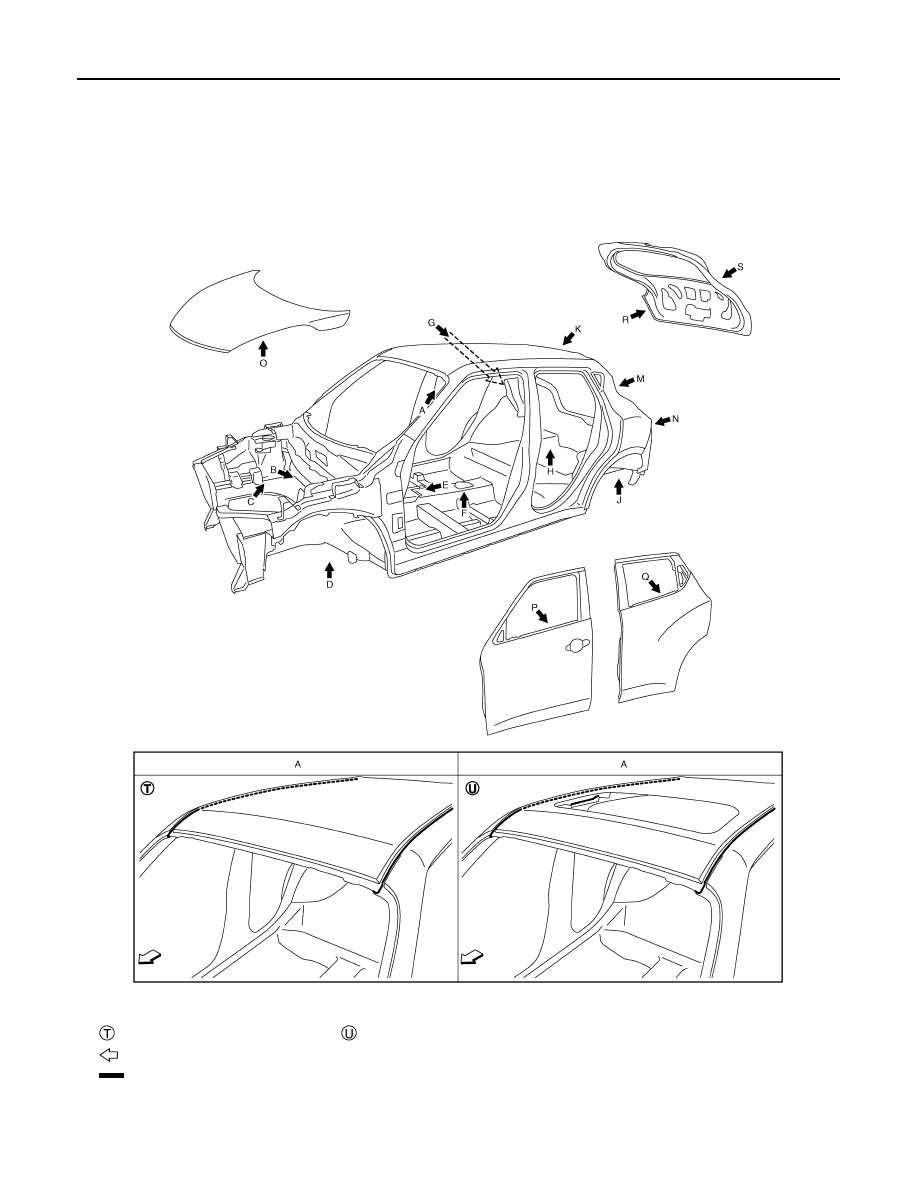

Standard roof models

With sunroof models

: Vehicle front

: Sealed portions

JSKIA2199ZZ
