BODY COMPONENT PARTS

BRM-17

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided anti-corrosive

precoated steel sections

1.

Hood

Under 440

×

2.

Inner center front bumper reinforcement

T=1.2 mm
(0.047 in)

1310

caution

3.

Front side member front assembly (RH & LH)

590

×

4.

Front fender (RH & LH)

Under 440

×

5.

Inner side roof rail (RH & LH)

590

6.

Upper inner front pillar (RH & LH)

780

7.

Inner center pillar (RH & LH)

590

×

8.

Side body assembly (RH & LH)

Refer to No.9

−15

9.

Outer side roof rail reinforcement (RH & LH)

590

10.

Lower center pillar brace (RH & LH)

590

11.

Front pillar brace (RH & LH)

590

12.

Lower front pillar hinge brace (RH & LH)

590

13.

Outer front side body (RH & LH)

Under 440

×

14.

Front fender bracket assembly (RH & LH)

Under 440

×

15.

Outer sill reinforcement (RH & LH)

780

×

16.

Outer sill (RH & LH)

Under 440

×

17.

Front door (RH & LH)

Under 440

×

18.

Outer front door panel (RH & LH)

Under 440

×

19.

Rear door (RH & LH)

Under 440

×

20.

Outer rear door panel (RH & LH)

Under 440

×

21.

Inner rear pillar reinforcement (RH & LH)

440

22.

Rear pillar reinforcement (RH & LH)

Under 440

23.

Inner rear pillar (RH & LH)

Under 440

24.

Inner rear wheelhouse (RH & LH)

440

×

25.

Outer rear wheelhouse (RH & LH)

Under 440

×

26.

Outer rear wheelhouse extension (RH & LH)

Under 440

×

27.

Roof

Under 440

28.

Front roof rail

780

29.

Roof bow No.1

Under 440

30.

Roof bow No.2

590

31.

Roof bow No.3

Under 440

32.

Rear roof rail

Under 440

33.

Rear fender (RH & LH)

Under 440

×

34.

Rear fender extension (RH & LH)

Under 440

35.

Rear fender corner (RH & LH)

Under 440

×

36.

Fuel filler lid

Under 440

×

37.

Back door

Under 440

×

38.

Upper rear panel

Under 440

×

39.

Upper rear bumper retainer

Under 440

×

40.

Rear side bumper bracket

Under 440

×

41.

Rear bumper stay (RH & LH)

590

×

42.

Inner center rear bumper reinforcement

T=1.2 mm
(0.047 in)

1310

caution

BRM-18

< PREPARATION >

BODY COMPONENT PARTS

NOTE:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
• Tensile strength column shows the largest strength value of a part in the component part.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

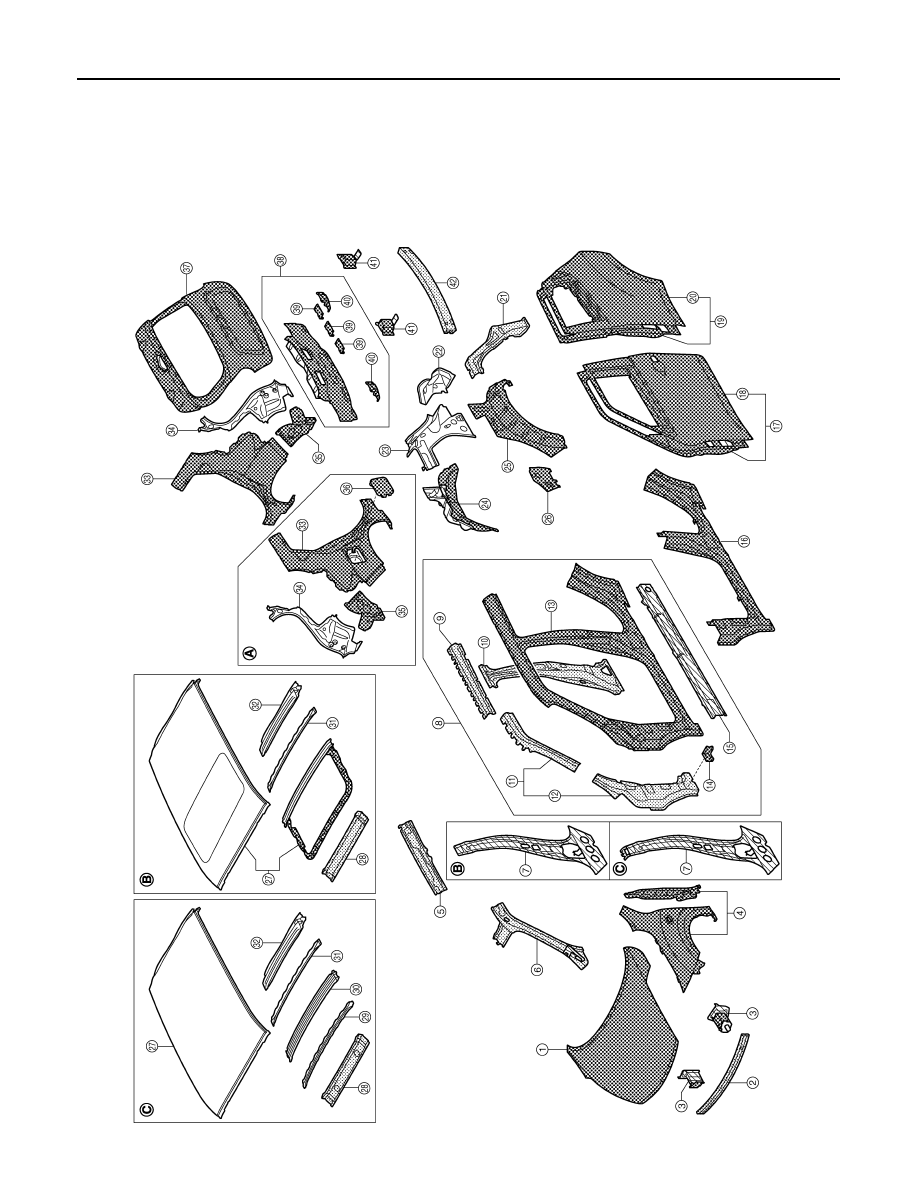

Body Component Parts (AWD Models)

INFOID:0000000012199829

JSKIA2196ZZ

BODY COMPONENT PARTS

BRM-19

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

A.

Right side

B.  With sunroof models

C.  Standard roof models

: Both sided anti-corrosive precoated steel sections
: High strength steel (HSS) sections
: Both sided anti-corrosive steel and HSS sections

No.

Parts name

Tensile strength

(MPa)

Both sided anti-corrosive

precoated steel sections

1.

Hood

Under 440

×

2.

Inner center front bumper reinforcement

T=1.2 mm
(0.047 in)

1310

caution

3.

Front side member front assembly (RH & LH)

590

×

4.

Front fender (RH & LH)

Under 440

×

5.

Inner side roof rail (RH & LH)

590

6.

Upper inner front pillar (RH & LH)

780

7.

Inner center pillar (RH & LH)

590

×

8.

Side body assembly (RH & LH)

Refer to No.9

−15

9.

Outer side roof rail reinforcement (RH & LH)

590

10.

Lower center pillar brace (RH & LH)

590

11.

Front pillar brace (RH & LH)

590

12.

Lower front pillar hinge brace (RH & LH)

590

13.

Outer front side body (RH & LH)

Under 440

×

14.

Front fender bracket assembly (RH & LH)

Under 440

×

15.

Outer sill reinforcement (RH & LH)

780

×

16.

Outer sill (RH & LH)

Under 440

×

17.

Front door (RH & LH)

Under 440

×

18.

Outer front door panel (RH & LH)

Under 440

×

19.

Rear door (RH & LH)

Under 440

×

20.

Outer rear door panel (RH & LH)

Under 440

×

21.

Inner rear pillar reinforcement (RH & LH)

440

22.

Rear pillar reinforcement (RH & LH)

Under 440

23.

Inner rear pillar (RH & LH)

Under 440

24.

Inner rear wheelhouse (RH & LH)

440

×

25.

Outer rear wheelhouse (RH & LH)

Under 440

×

26.

Outer rear wheelhouse extension (RH & LH)

Under 440

×

27.

Roof

Under 440

28.

Front roof rail

780

29.

Roof bow No.1

Under 440

30.

Roof bow No.2

590

31.

Roof bow No.3

Under 440

32.

Rear roof rail

Under 440

33.

Rear fender (RH & LH)

Under 440

×

34.

Rear fender extension (RH & LH)

Under 440

35.

Rear fender corner (RH & LH)

Under 440

×

36.

Fuel filler lid

Under 440

×

37.

Back door

Under 440

×

38.

Upper rear panel

Under 440

×

BRM-20

< PREPARATION >

BODY COMPONENT PARTS

NOTE:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
• Tensile strength column shows the largest strength value of a part in the component part.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

39.

Upper rear bumper retainer

Under 440

×

40.

Rear side bumper bracket

Under 440

×

41.

Rear bumper stay (RH & LH)

440

×

42.

Inner center rear bumper reinforcement

T=1.2 mm
(0.047 in)

1310

caution

No.

Parts name

Tensile strength

(MPa)

Both sided anti-corrosive

precoated steel sections
