BODY COMPONENT PARTS

BRM-13

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
• Tensile strength column shows the largest strength value of a part in the component part.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

No.

Parts name

Tensile strength

(MPa)

Both sided anti-corrosive

precoated steel sections

1.

Center front floor

590

×

2.

Front floor (RH & LH)

a.

T=1.8 mm
(0.071 in)

980

caution

×

3.

Inner sill (RH & LH)

b.

T=1.4 mm
(0.055 in)

980

caution

×

4.

Inner cowl top

Under 440

×

5.

Upper dash

Under 440

×

6.

Side dash (RH & LH)

590

×

7.

Lower dash

c.

T=1.4 mm
(0.055 in)

980

caution

×

8.

Lower dash crossmember

780

×

9.

Front strut housing (RH & LH)

590

×

10.

Lower front hoodledge (RH & LH)

Under 440

×

11.

Upper hoodledge (RH & LH)

Under 440

×

12.

Hoodledge reinforcement (RH & LH)

Under 440

×

13.

Hoodledge connector (RH & LH)

Under 440

×

14.

Side radiator core support (RH & LH Upper)

Under 440

×

15.

Side radiator core support (RH & LH Lower)

Under 440

×

16.

Front side member closing plate assembly (RH & LH)

590

×

17.

Add on frame bracket (RH & LH)

Under 440

×

18.

Front side member assembly (RH & LH)

590

×

19.

Front suspension mounting bracket (RH & LH Front)

440

×

20.

Front suspension mounting bracket (RH & LH Rear)

Under 440

×

21.

Rear crossmember center assembly

780

×

22.

Rear seat crossmember

440

×

23.

Rear floor front

Under 440

×

24.

Rear floor rear cover

Under 440

×

25.

Rear side member (RH & LH)

780

×

26.

Rear side member extension (RH & LH)

440

×

27.

Upper rear seat crossmember

440

—

28.

Muffler mounting bracket

Under 440

×

29.

Canister mounting bracket

Under 440

×

30.

Spare wheel clamp reinforcement

Under 440

×

31.

Canister bracket (Front)

Under 440

×

32.

Rear floor rear side (RH & LH)

440

×

33.

Rear floor rear

Under 440

×

34.

Rear towing hook bracket

440

×

35.

Canister bracket (Rear)

Under 440

—

36.

Spare tire clamp bracket

Under 440

—

BRM-14

< PREPARATION >

BODY COMPONENT PARTS

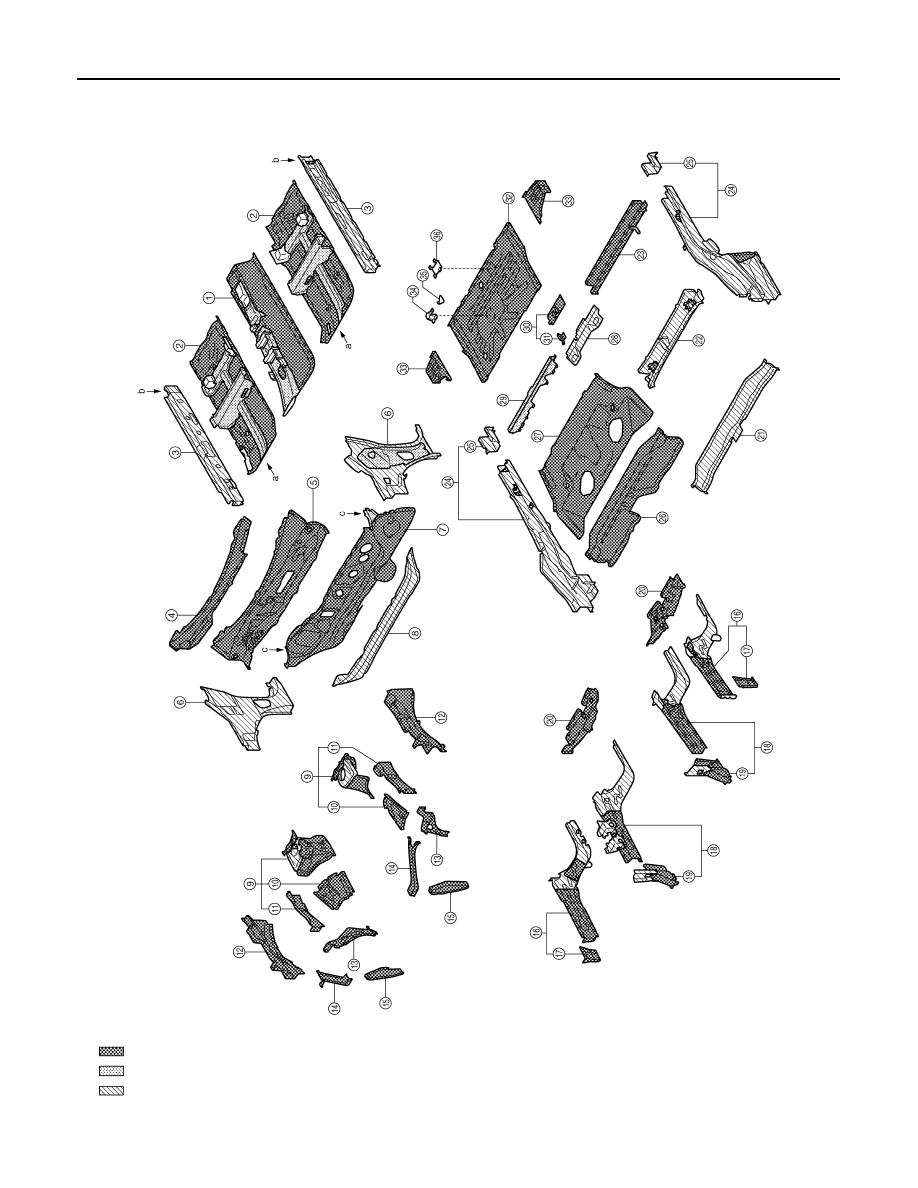

Underbody Component Parts (AWD Models)

INFOID:0000000012199827

: Both sided anti-corrosive precoated steel sections
: High strength steel (HSS) sections
: Both sided anti-corrosive steel and HSS sections

JSKIA2194ZZ

BODY COMPONENT PARTS

BRM-15

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
• Tensile strength column shows the largest strength value of a part in the component part.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

No.

Parts name

Tensile strength

(MPa)

Both sided anti-corrosive

precoated steel sections

1.

Center front floor

590

×

2.

Front floor (RH & LH)

a.

T=1.8 mm
(0.071 in)

980

caution

×

3.

Inner sill (RH & LH)

b.

T=1.4 mm
(0.055 in)

980

caution

×

4.

Inner cowl top

Under 440

×

5.

Upper dash

Under 440

×

6.

Side dash (RH & LH)

590

×

7.

Lower dash

c.

T=1.4 mm
(0.055 in)

980

caution

×

8.

Lower dash crossmember

780

×

9.

Front strut housing (RH & LH)

590

×

10.

Lower front hoodledge (RH & LH)

Under 440

×

11.

Upper hoodledge (RH & LH)

Under 440

×

12.

Hoodledge reinforcement (RH & LH)

Under 440

×

13.

Hoodledge connector (RH & LH)

Under 440

×

14.

Side radiator core support (RH & LH Upper)

Under 440

×

15.

Side radiator core support (RH & LH Lower)

Under 440

×

16.

Front side member closing plate assembly (RH & LH)

590

×

17.

Add on frame bracket (RH & LH)

Under 440

×

18.

Front side member assembly (RH & LH)

590

×

19.

Front suspension mounting bracket (RH & LH Front)

440

×

20.

Front suspension mounting bracket (RH & LH Rear)

Under 440

×

21.

Rear seat crossmember

440

×

22.

Rear crossmember center assembly

590

×

23.

7th crossmember

Under 440

×

24.

Rear side member (RH & LH)

780

×

25.

Rear side member extension (RH & LH)

590

×

26.

Rear floor front extension

Under 440

×

27.

Rear floor front

Under 440

×

28.

Rear floor belt anchor reinforcement

590

×

29.

Upper rear seat crossmember

440

—

30.

Spare wheel clamp reinforcement

Under 440

×

31.

Canister bracket (Front)

Under 440

×

32.

Rear floor rear

Under 440

×

33.

Rear floor rear side (RH & LH)

Under 440

×

34.

Spare tire clamp bracket

Under 440

—

35.

Canister bracket (Rear)

Under 440

—

36.

Jack mounting bracket

Under 440

—

BRM-16

< PREPARATION >

BODY COMPONENT PARTS

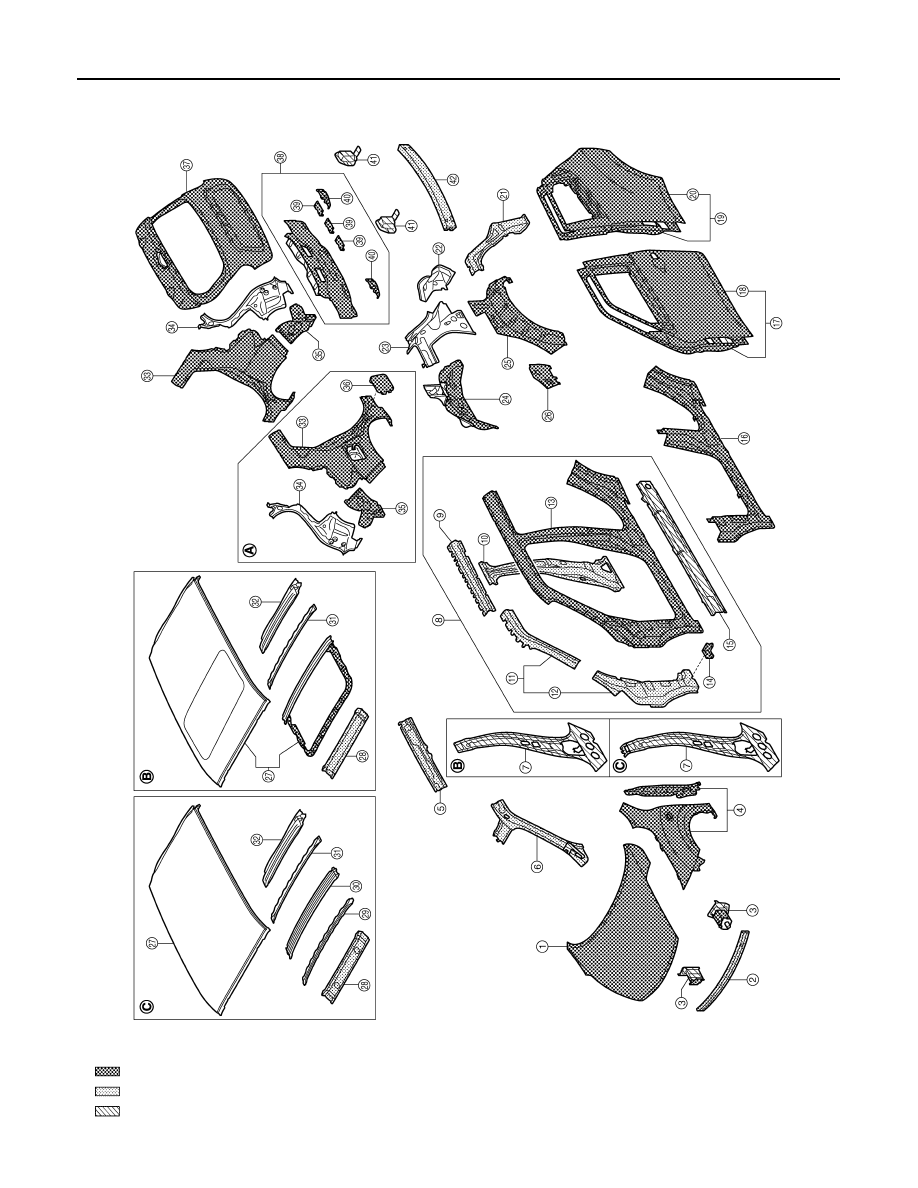

Body Component Parts (2WD Models)

INFOID:0000000012199828

A.

Right side

B.  With sunroof models

C.  Standard roof models

: Both sided anti-corrosive precoated steel sections
: High strength steel (HSS) sections
: Both sided anti-corrosive steel and HSS sections

JSKIA2195ZZ
