CVT OIL WARMER

CVT OIL WARMER

Exploded View

INFOID:0000000012201272

Removal and Installation

INFOID:0000000012201273

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to

allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid/coolant

from spilling.
1. Remove ECM and bracket as a set. Refer to

EC-1256, "Removal and Installation"

.

2. Pull out water hoses from CVT oil warmer. Refer to

TM-570, "Removal and Installation"

.

3. Pull out fluid cooler hoses from CVT oil warmer. Refer to

TM-572, "Removal and Installation"

.

4. Remove mounting bolt (

) and remove CVT oil warmer from

transaxle assembly.

INSTALLATION

Installation is in the reverse order of removal.

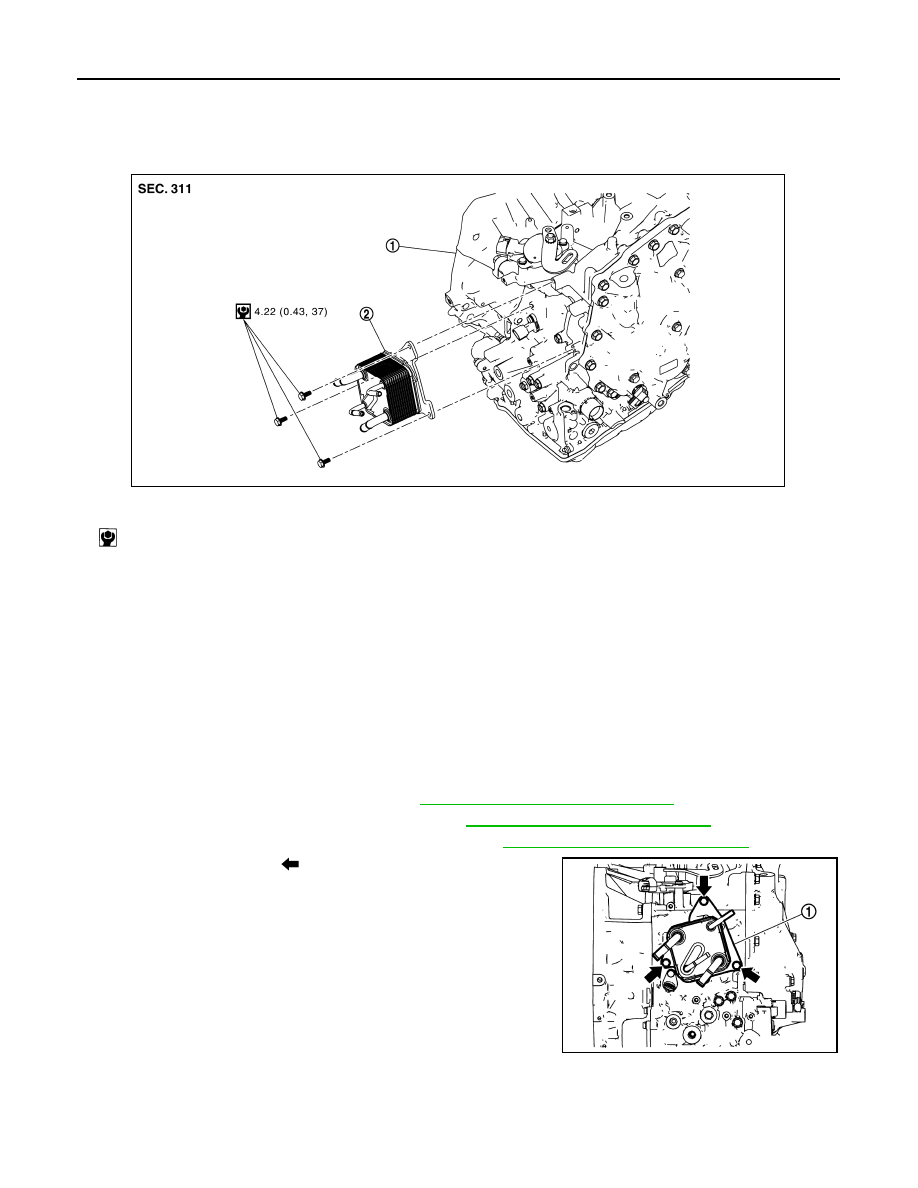

1.

Transaxle assembly

2.

CVT oil warmer

: N·m (kg-m, in-lb)

JSDIA6066GB

JSDIA6620ZZ

CVT OIL WARMER

TM-575

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Inspection

INFOID:0000000012201274

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid and engine coolant.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-441, "Adjustment"

.

TM-576

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

PLUG

PLUG

Description

INFOID:0000000012201275

Replace the O-ring if oil leakage or exudes from the plug.

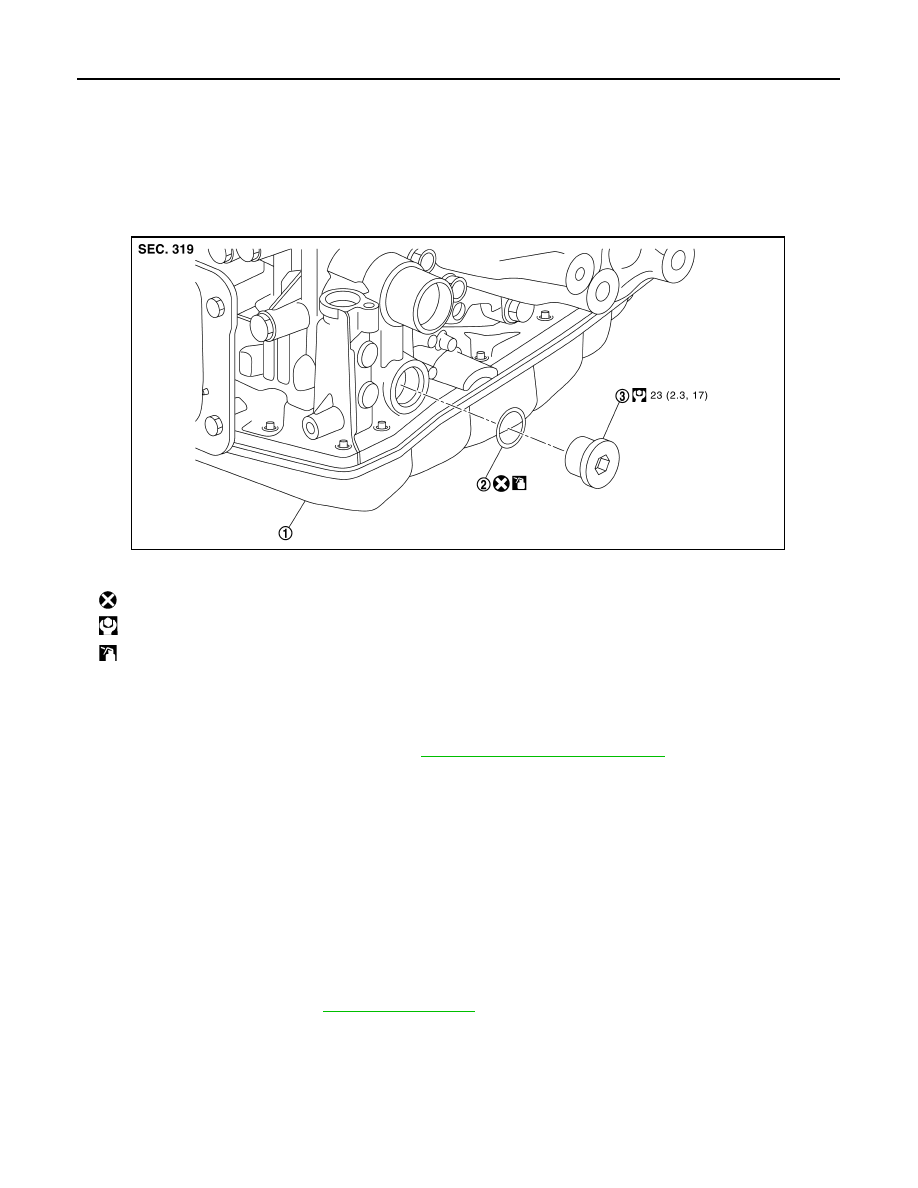

Exploded View

INFOID:0000000012201276

Removal and Installation

INFOID:0000000012201277

REMOVAL

1. Remove front fender protector (LH). Refer to

EXT-31, "Removal and Installation"

.

2. Remove the plug and O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.

• Apply CVT fluid to O-ring.

Inspection and Adjustment

INFOID:0000000012201278

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-441, "Adjustment"

.

1.

Transaxle assembly

2.

O-ring

3.

Plug

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Apply CVT fluid

JSDIA3622GB

TRANSAXLE ASSEMBLY

TM-577

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000012201279

Removal and Installation

INFOID:0000000012201280

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn a quarter turn to

allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

• Perform when the engine is cold.

• When replacing TCM and transaxle assembly simultaneously, perform “ADDITIONAL SERVICE

WHEN REPLACING TCM AND TRANSAXLE ASSEMBLY” before work. Refer to

TM-433, "Work Proce-

dure"

.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove the battery. Refer to

PG-105, "Removal and Installation"

.

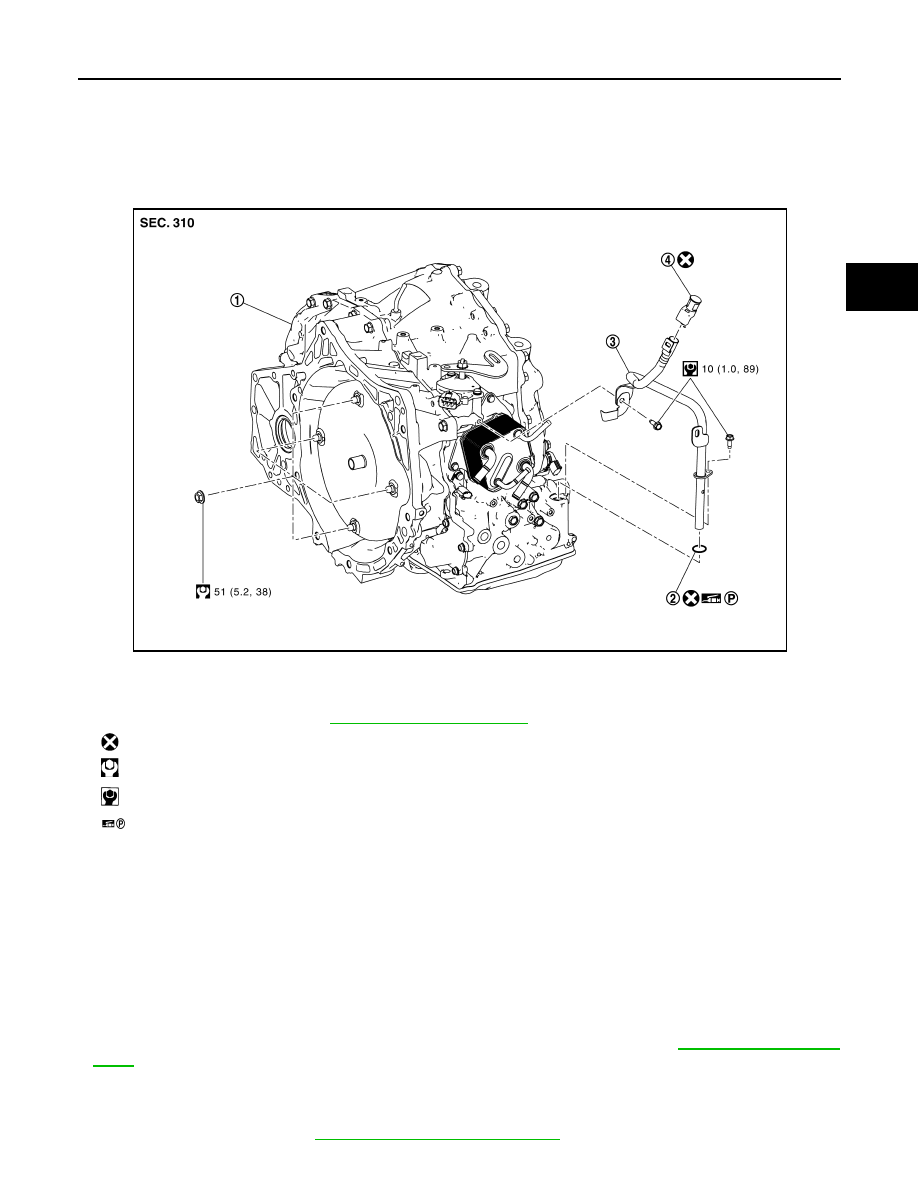

1.

Transaxle assembly

2.

O-ring

3.

CVT fluid charging pipe

4.

CVT fluid charging pipe cap

A.

: For the tightening torque, refer to

TM-577, "Removal and Installation"

.

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply petroleum jelly

JSDIA6067GB
