TM-566

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

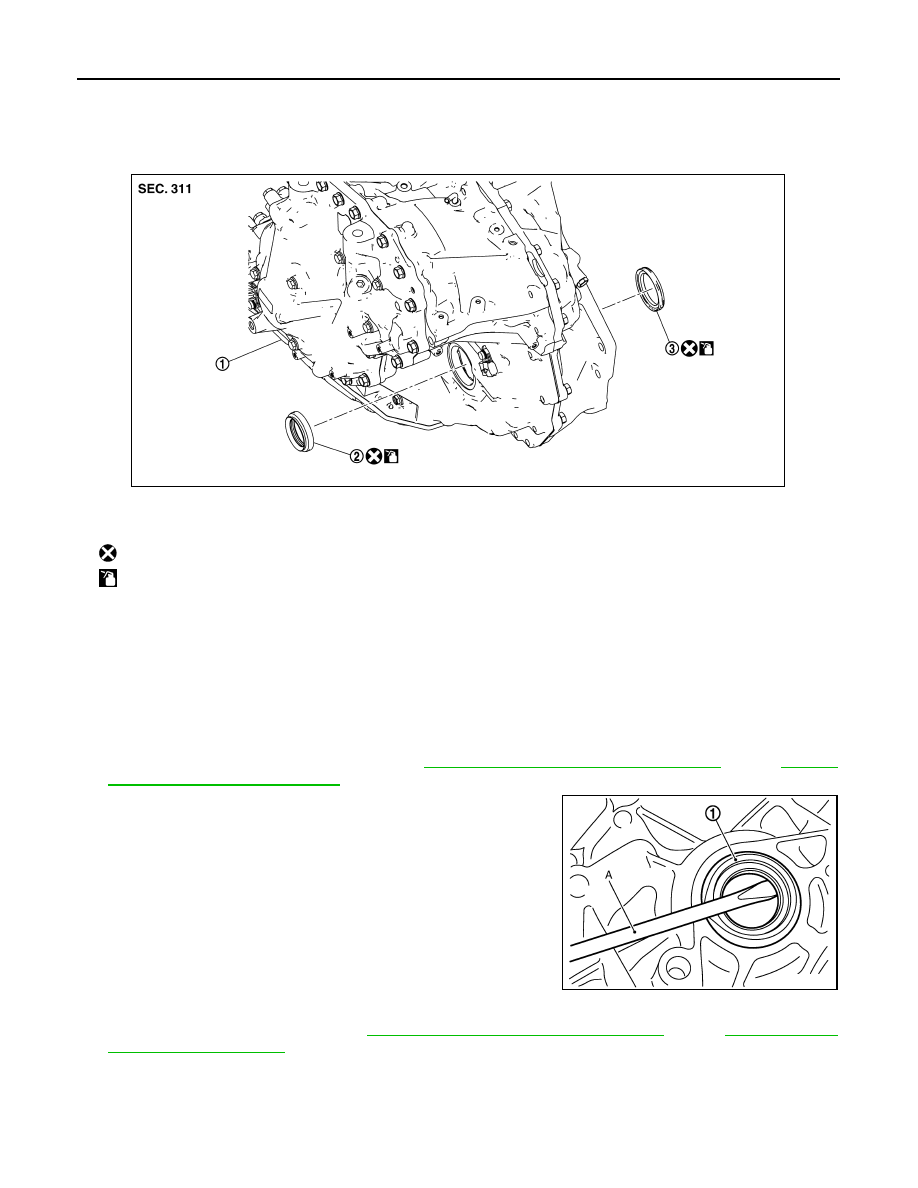

Exploded View

INFOID:0000000012201263

Removal and Installation

INFOID:0000000012201264

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

Differential Side Oil Seal (Left Side)

1. Remove front drive shaft (left side). Refer to

FAX-83, "2WD : Removal and Installation"

 (2WD),

FAX-97,

"AWD : Removal and Installation"

 (AWD).

2. Remove differential side oil seal (1) using an oil seal remover

(commercial service tool) (A).

CAUTION:

Be careful not to scratch transaxle case and converter

housing.

Differential Side Oil Seal (Right Side)

1. Remove transfer assembly. Refer to

FAX-83, "2WD : Removal and Installation"

 (2WD),

FAX-97, "AWD :

Removal and Installation"

 (AWD).

1.

Transaxle assembly

2.

Differential side oil seal (transaxle
case side)

3.

Differential side oil seal (converter
housing side)

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA6062ZZ

JPDIA0118ZZ

DIFFERENTIAL SIDE OIL SEAL

TM-567

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

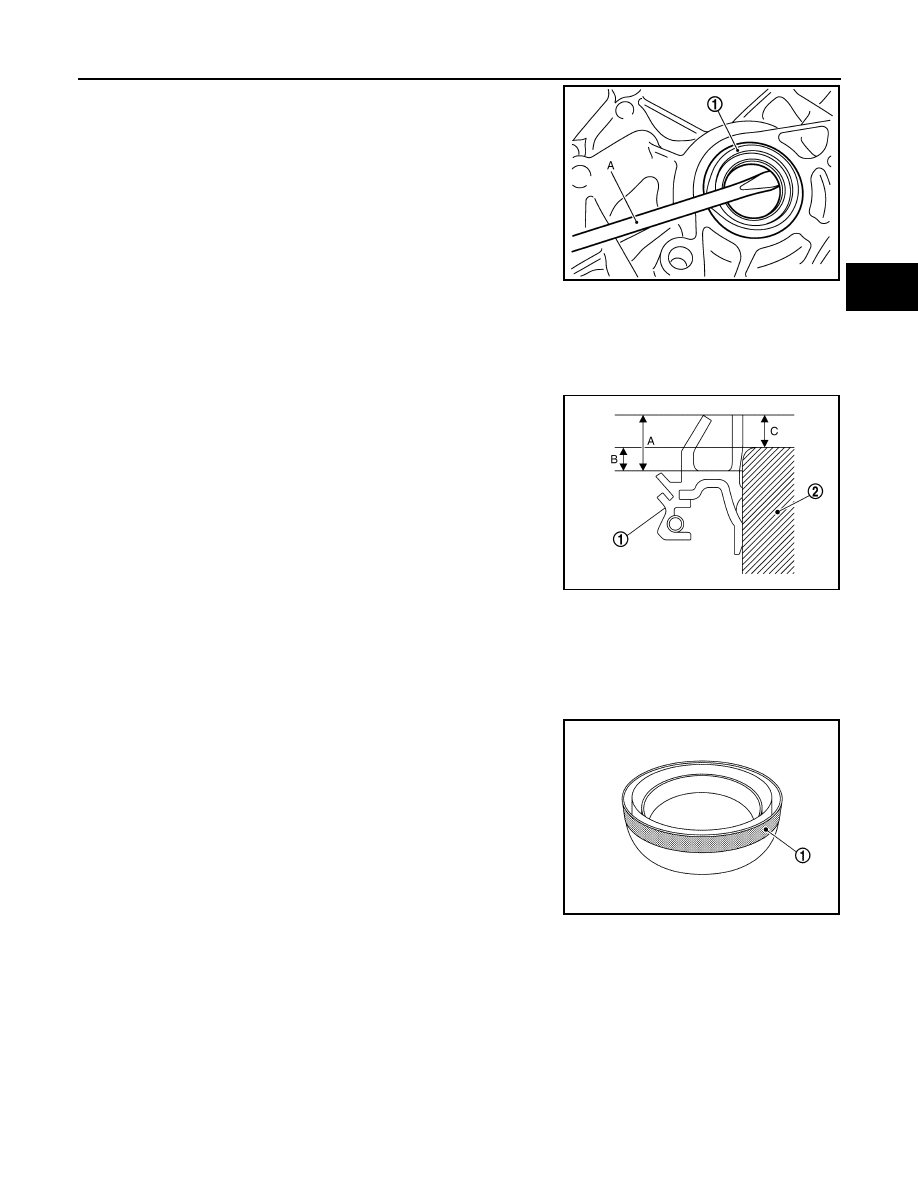

2. Remove differential side oil seal (1) using an oil seal remover

(commercial service tool) (A).

CAUTION:

Be careful not to scratch transaxle case and converter

housing.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

Differential Side Oil Seal  (Transaxle Case Side)

CAUTION:

When inserting the drive shaft, be sure to use protector (SST: KV38107900).
1. Measure height (A) of seal lip. Calculate protrusion (C) of oil

seal lip according to measured height (A) of seal lip and refer-

ence value (B) of side oil insertion.

CAUTION:

• Never reuse differential side oil seal.

• Put a mark on the measurement area and measure height of seal lip at four points diagonally

using suitable tool.

NOTICE:

Since seal lips have a tolerance of

± 0.3 mm (± 0.012 in) at maximum due to manufacturing tolerances or

packing conditions, it is necessary to measure the seal lip height beforehand to clarify the tolerance.

2. As an indicator of the parallelism and insertion depth, cut a

masking tape (1) to specified width [add 1 mm (0.04 in) to the

value calculated from the tip of differential side oil seal lip] and

affix to the differential side oil seal.

3. Install the differential side oil seal using a drift [outer diameter:

53 mm (2.09 in), inner diameter: 50 mm (1.97 in)] according to

the guide of the masking tape.

CAUTION:

• If differential side oil seal is inserted deeper than the ref-

erence value, use a new differential side oil seal and per-

form the steps again.

• Apply ATF to the differential side oil seal lip and around

the oil seal.

NOTE:

A hub cap (Part No. 43234 1HA0A) can be used as a substitute for drift. To use a hub cap, be sure to pre-

pare a new one specifically for patting seal.

4. Remove masking tape.
5. Adjust as instructed below to optimize the protrusion size and parallelism.

CAUTION:

If differential side oil seal is inserted deeper than the reference value, use a new differential side

oil seal and perform the steps again.

JPDIA0118ZZ

(1)

: Differential side oil seal

(2)

: Transaxle case

Lip protrusion (C)

: C=A–B

Differential side oil seal insertion
reference value (B)

: 1.8 mm (0.071 in)

JSDIA4816ZZ

JSDIA4817ZZ

TM-568

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

DIFFERENTIAL SIDE OIL SEAL

• Protrusion size (A)

CAUTION:

Protrusion must fall within

± 0.5mm (0.020 in) of calcu-

lated size.

• Parallelism at four diagonal points (

)

CAUTION:

The difference among four diagonal points must be within

0.3 mm (0.012 in).

NOTE:

If differential side oil seal is uneven while installing, tilt suitable

tool.

6. Check that the protrusion size and parallelism are adequate.

Differential Side Oil Seal (Converter housing Side) (2WD Models)

CAUTION:

When inserting the drive shaft, be sure to use protector (SST: KV38107900).

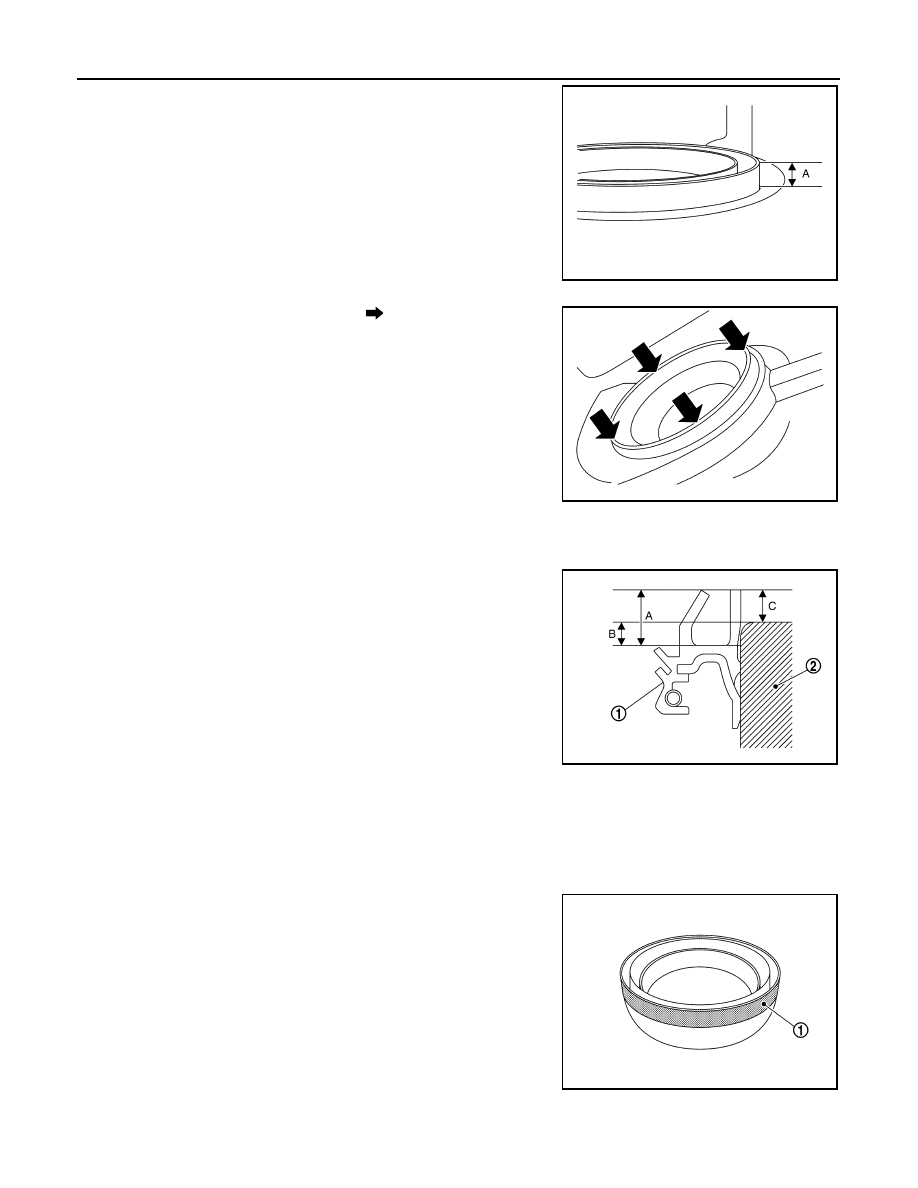

1. Measure height (A) of seal lip. Calculate protrusion (C) of oil

seal lip according to measured height (A) of seal lip and refer-

ence value (B) of side oil insertion.

CAUTION:

• Never reuse differential side oil seal.

• Put a mark on the measurement area and measure height of seal lip at four points diagonally

using suitable tool.

NOTICE:

Since seal lips have a tolerance of

± 0.3 mm (± 0.012 in) at maximum due to manufacturing tolerances or

packing conditions, it is necessary to measure the seal lip height beforehand to clarify the tolerance.

2. As an indicator of the parallelism and insertion depth, cut a

masking tape (1) to specified width [add 1 mm (0.04 in) to the

value calculated from the tip of differential side oil seal lip] and

affix to the differential side oil seal.

3. Install the differential side oil seal using a drift [outer diameter:

53 mm (2.09 in), inner diameter: 50 mm (1.97 in)] according to

the guide of the masking tape.

CAUTION:

• If differential side oil seal is inserted deeper than the ref-

erence value, use a new differential side oil seal and per-

form the steps again.

• Apply ATF to the differential side oil seal lip and around

the oil seal.

NOTE:

JSDIA4815ZZ

JSDIA4814ZZ

(1)

: Differential side oil seal

(2)

: Transaxle case

Lip protrusion (C)

: C=A–B

Differential side oil seal insertion
reference value (B)

: 2.2 mm (0.087 in)

JSDIA4816ZZ

JSDIA4817ZZ

DIFFERENTIAL SIDE OIL SEAL

TM-569

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

A hub cap (Part No. 43234 1HA0A) can be used as a substitute for drift. To use a hub cap, be sure to pre-

pare a new one specifically for patting seal.

4. Remove masking tape.
5. Adjust as instructed below to optimize the protrusion size and parallelism.

CAUTION:

If differential side oil seal is inserted deeper than the reference value, use a new differential side

oil seal and perform the steps again.

• Protrusion size (A)

CAUTION:

Protrusion must fall within

± 0.5mm (0.020 in) of calcu-

lated size.

• Parallelism at four diagonal points (

)

CAUTION:

The difference among four diagonal points must be within

0.3 mm (0.012 in).

NOTE:

If differential side oil seal is uneven while installing, tilt suitable

tool.

6. Check that the protrusion size and parallelism are adequate.

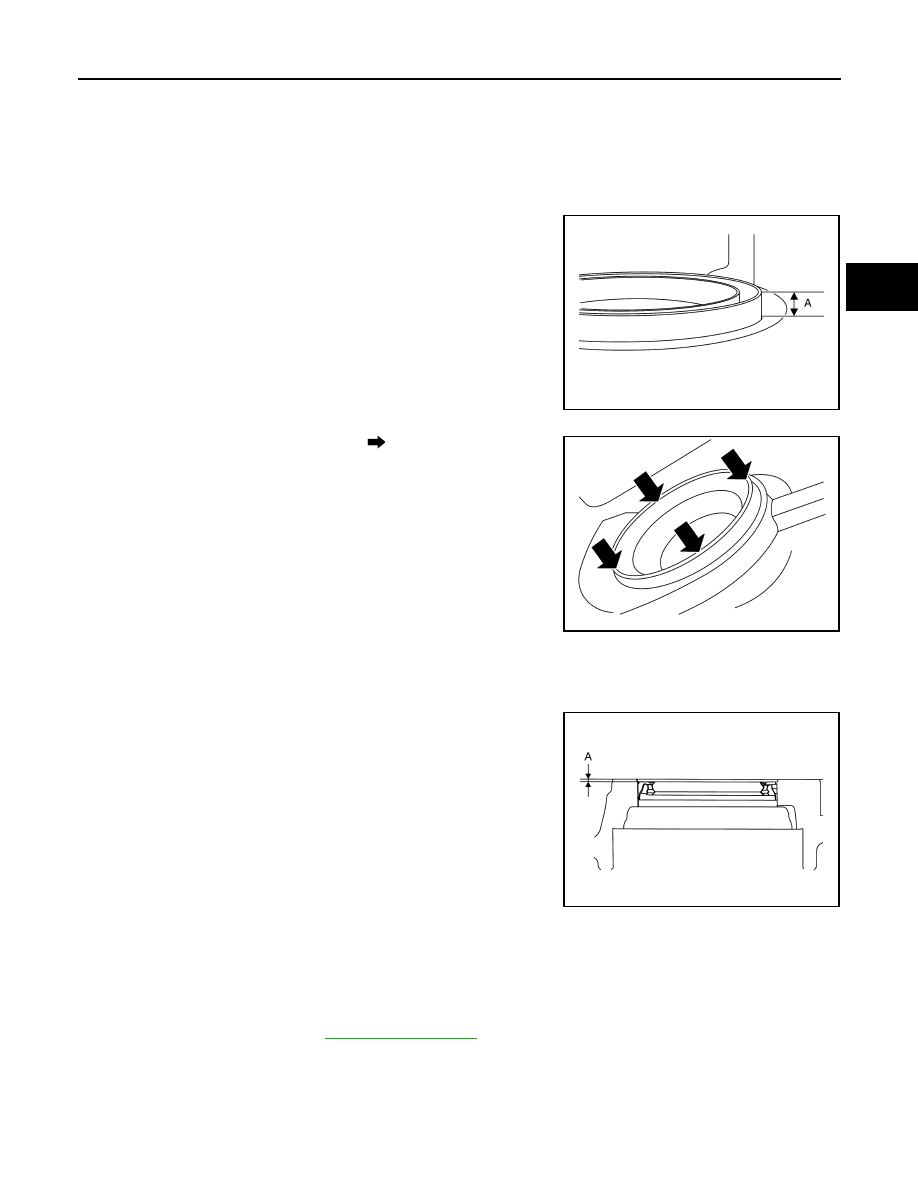

Differential Side Oil Seal (Converter housing Side) (AWD Models)

CAUTION:

• Never reuse differential side oil seal.

• Apply ATF to the differential side oil seal lip and around the oil seal.

Install differential side oil seal evenly using a drift [outer diameter: 60

mm (2.36 in)] so that differential side oil seal protrudes by the dimen-

sion (A) respectfully.

NOTE:

The reference is the installation direction of the differential side oil

seal.

Inspection and Adjustment

INFOID:0000000012201265

INSPECTION AFTER INSTALLATION

Drive the vehicle and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-441, "Adjustment"

.

JSDIA4815ZZ

JSDIA4814ZZ

Dimension (A)

: Height difference from case end sur-
face is within 1.0

± 0.5 mm (0.039 ±

0.020 in).

JSDIA6885ZZ
