WATER HOSE

WATER HOSE

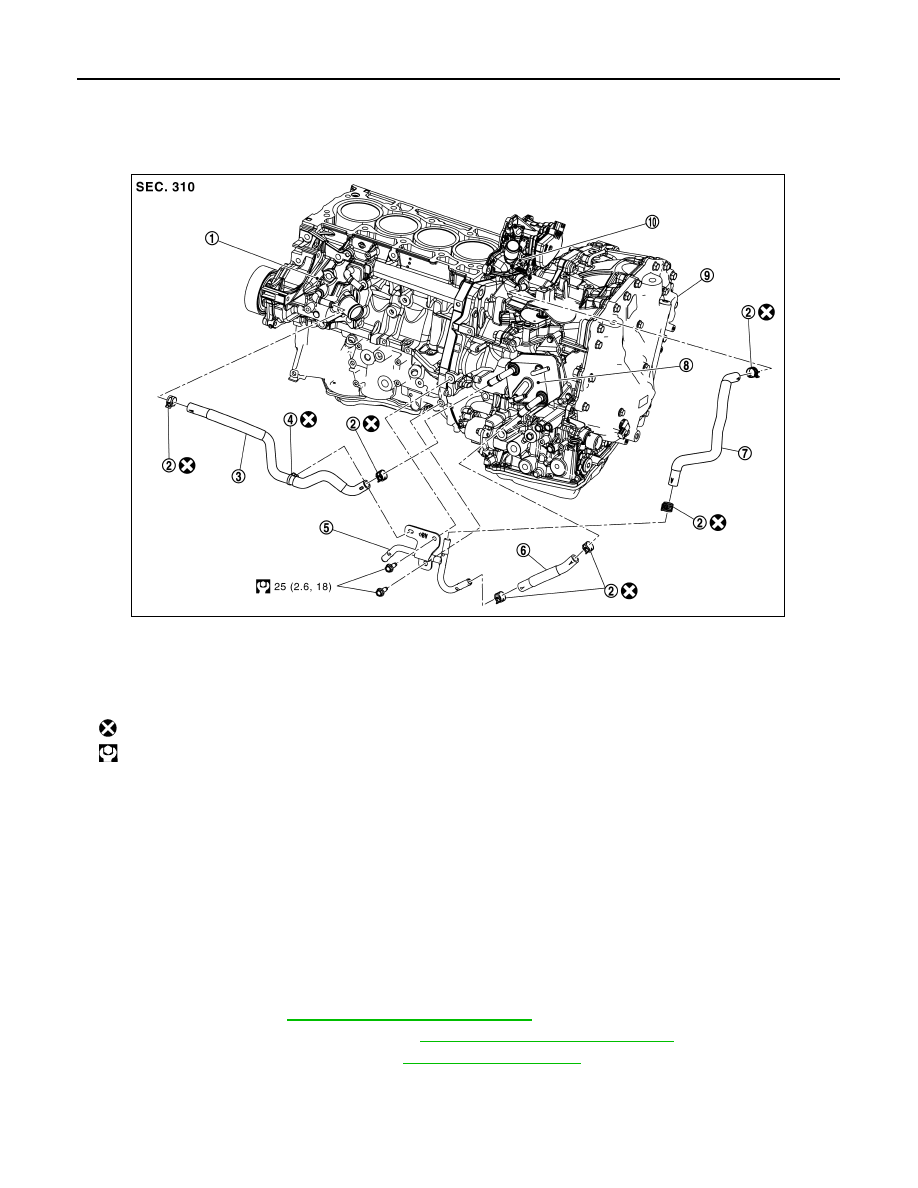

Exploded View

INFOID:0000000012201266

Removal and Installation

INFOID:0000000012201267

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to

allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove battery. Refer to

PG-105, "Removal and Installation"

.

2. Remove ECM and bracket as a set. Refer to

EC-1256, "Removal and Installation"

.

3. Remove CVT fluid charging pipe. Refer to

TM-577, "Exploded View"

.

4. Remove water hoses.
5. Remove water tube assembly

INSTALLATION

1.

Thermostat housing

2.

Hose clamp

3.

Water hose A

4.

Clip

5.

Water tube assembly

6.

Water hose B

7.

Water hose C

8.

CVT oil warmer

9.

Transaxle assembly

10. Water outlet

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JSDIA6063GB

WATER HOSE

TM-571

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

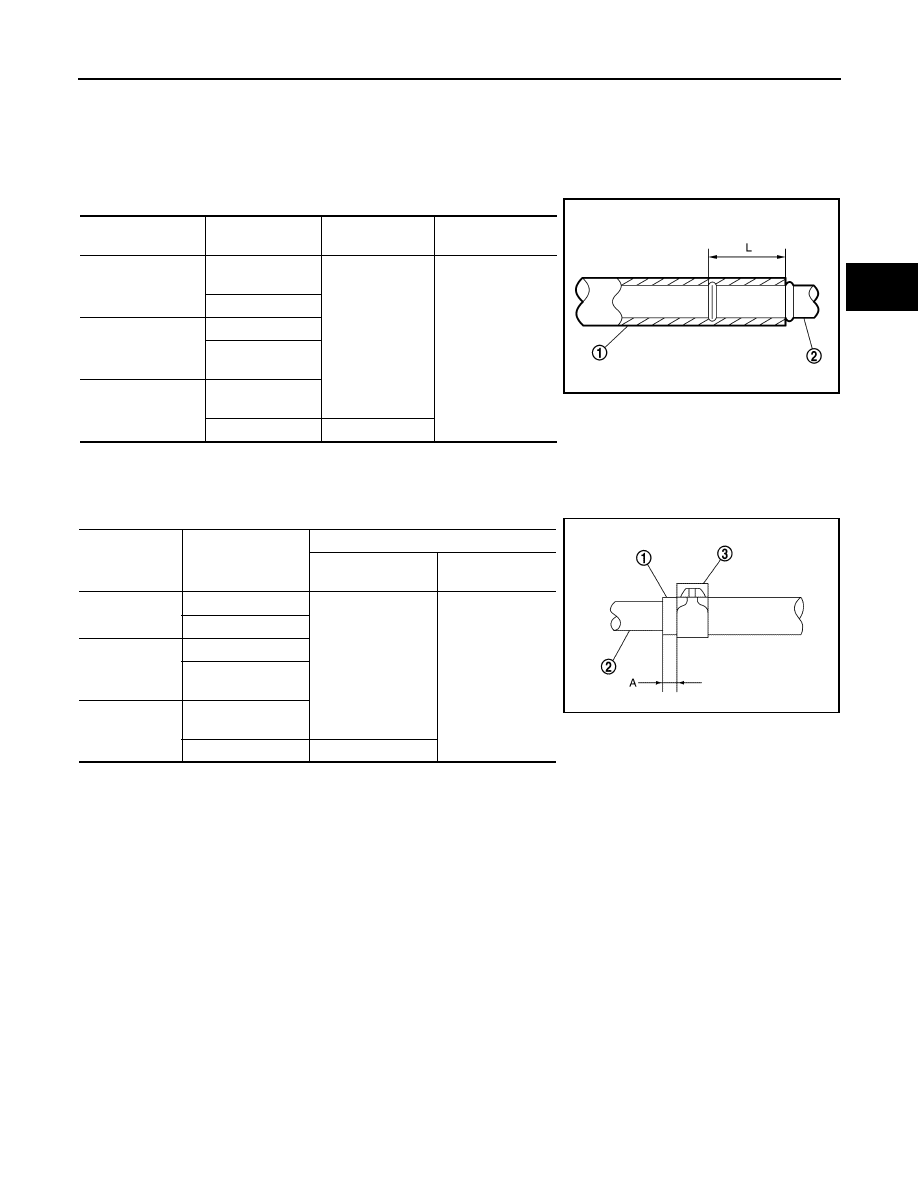

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse hose clamp and clip.

• Securely install the water hose clip to the converter housing.

• Refer to the following when installing water hoses.

• Refer to the followings when installing hose clamp.

CAUTION:

Hose clamp should not interfere with the bulge of tube.

Inspection

INFOID:0000000012201268

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of engine coolant.

Hose (1)

Installation side

tube (2)

Direction of paint

mark

Hose insertion

depth (L)

Water hose A

Thermostat hous-
ing

Frontward

Hose end reaches
the 2-stage bulge.

CVT oil warmer

Water hose B

CVT oil warmer

Water tube as-
sembly

Water hose C

Water tube as-
sembly

Water outlet

Leftward

JSDIA2459ZZ

Hose (1)

Installation side tube

(2)

Hose clamp (3)

Direction of tab

Clamping position

(A)

Water hose A

Thermostat housing

Frontward

5 – 7 mm (0.20 –
0.28 in) from hose
end

CVT oil warmer

Water hose B

CVT oil warmer

Water tube assem-
bly

Water hose C

Water tube assem-
bly

Water outlet

Leftward

JSDIA2424ZZ

TM-572

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

FLUID COOLER HOSE

FLUID COOLER HOSE

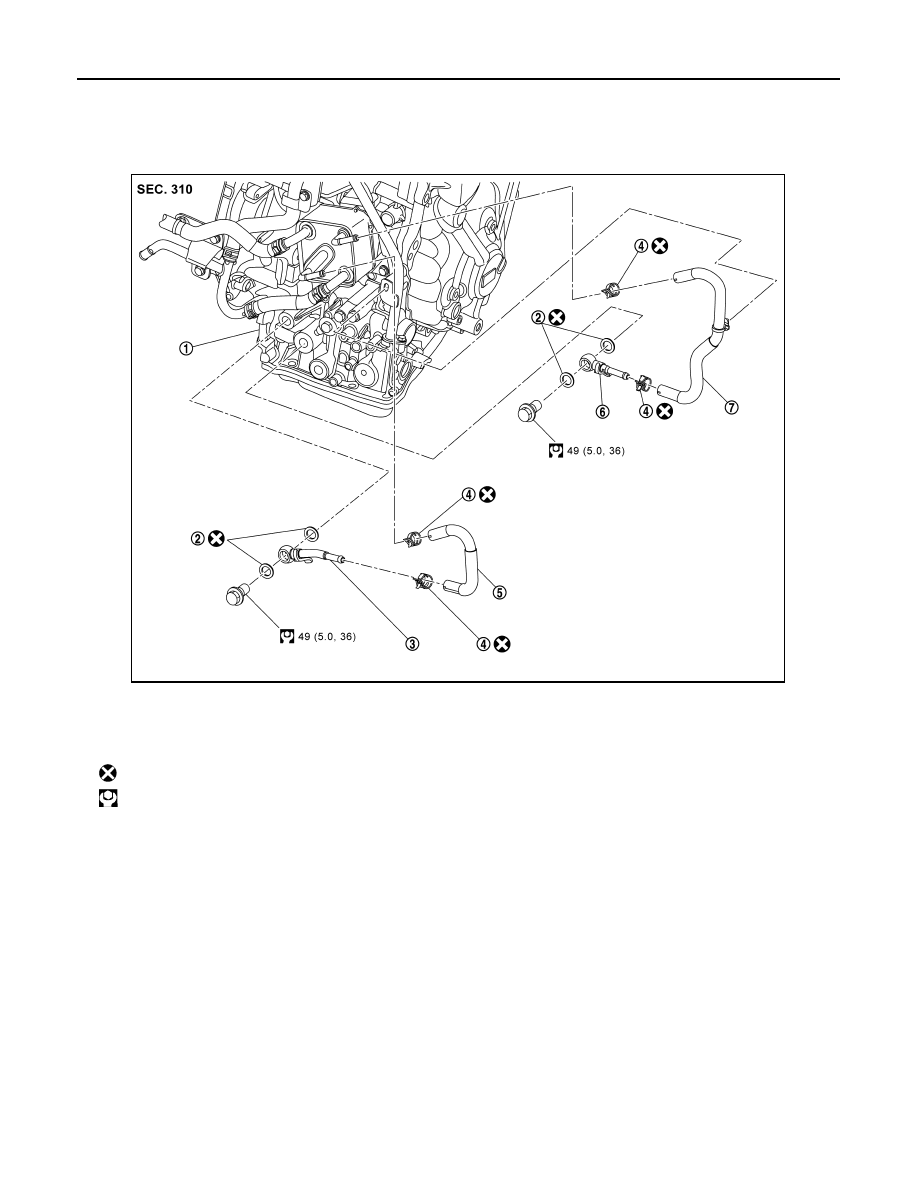

Exploded View

INFOID:0000000012201269

Removal and Installation

INFOID:0000000012201270

REMOVAL

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove fluid cooler hose A and B.
2. Remove fluid cooler tube A and B.

INSTALLATION

Note the followings and Installation is in the reverse order of removal.

CAUTION:

Never reuse hose clamp, and copper washer.

1.

Transaxle assembly

2.

Copper washer

3.

Fluid cooler tube B

4.

Hose clamp

5.

Fluid cooler hose B

6.

Fluid cooler tube A

7.

Fluid cooler hose A
: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JSDIA6978GB

FLUID COOLER HOSE

TM-573

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

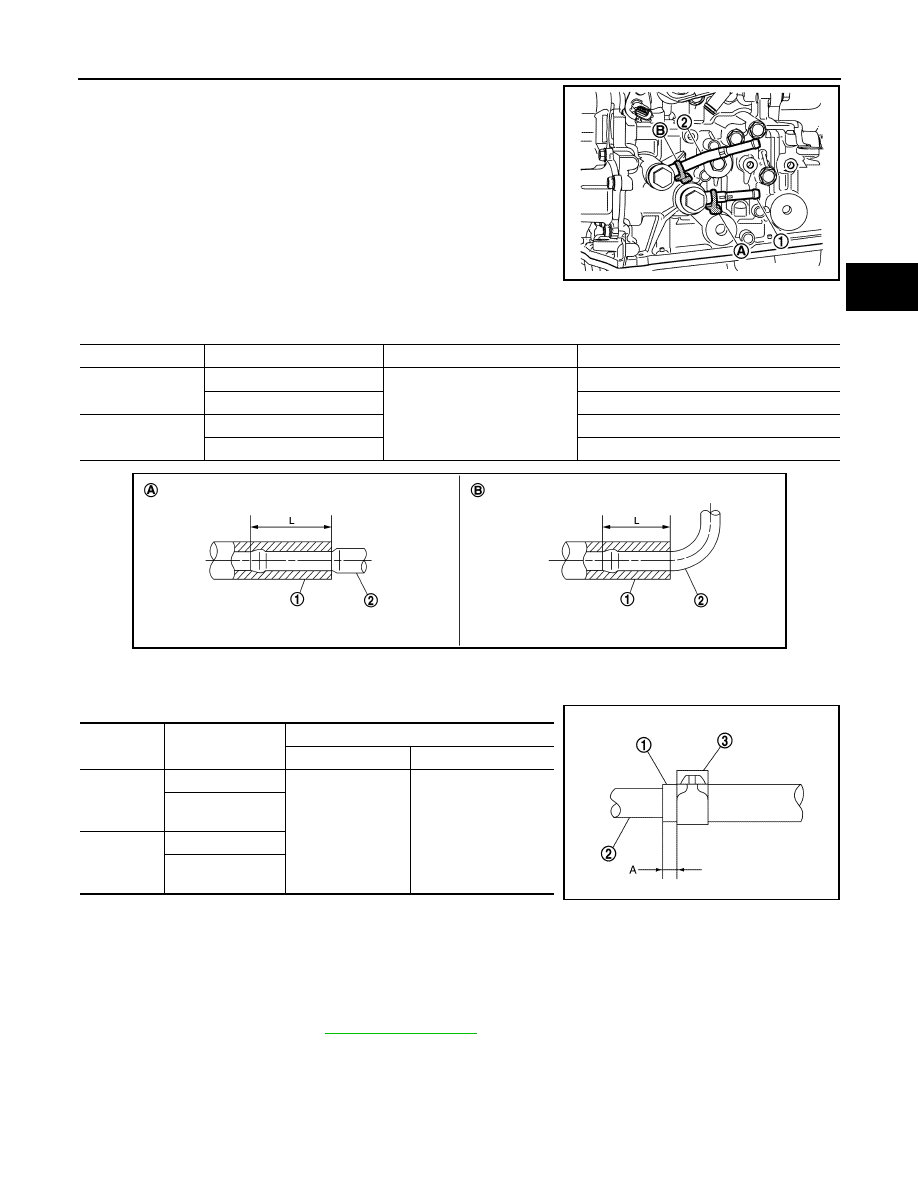

Refer to the followings when installing CVT fluid cooler tubes.

• When installing fluid cooler tube A (1) and fluid cooler tube B (2) to

transaxle assembly, contact fluid cooler tubes stopper (A) and (B)

to transaxle case.

• Refer to the followings when installing fluid cooler hose.

• Refer to the followings when installing hose clamp.

CAUTION:

Hose clamp should not interfere with the bulge of tube.

Inspection

INFOID:0000000012201271

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-441, "Adjustment"

.

JSDIA6070ZZ

Hose (1)

Installation side tube (2)

Direction of paint mark

Hose insertion depth (L)

Fluid cooler hose A

CVT fluid cooler tube A

Frontward

(A): Hose end reaches the 2-stage bulge.

CVT oil warmer

(B): Hose end reaches the end of tube.

Fluid cooler hose B

CVT fluid cooler tube B

(A): Hose end reaches the 2-stage bulge.

CVT oil warmer

(B): Hose end reaches the end of tube.

JSDIA2355ZZ

Hose (1)

Installation side

tube (2)

Hose clamp (3)

Direction of tab

Clamping position

Fluid cooler
hose A

CVT oil warmer

Frontward

5 - 9 mm. (0.20 - 0.35
in) (A) from hose end

CVT fluid cooler
tube A

Fluid cooler
hose B

CVT oil warmer

CVT fluid cooler
tube B

JSDIA2424ZZ
