TM-562

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

PRIMARY SPEED SENSOR

PRIMARY SPEED SENSOR

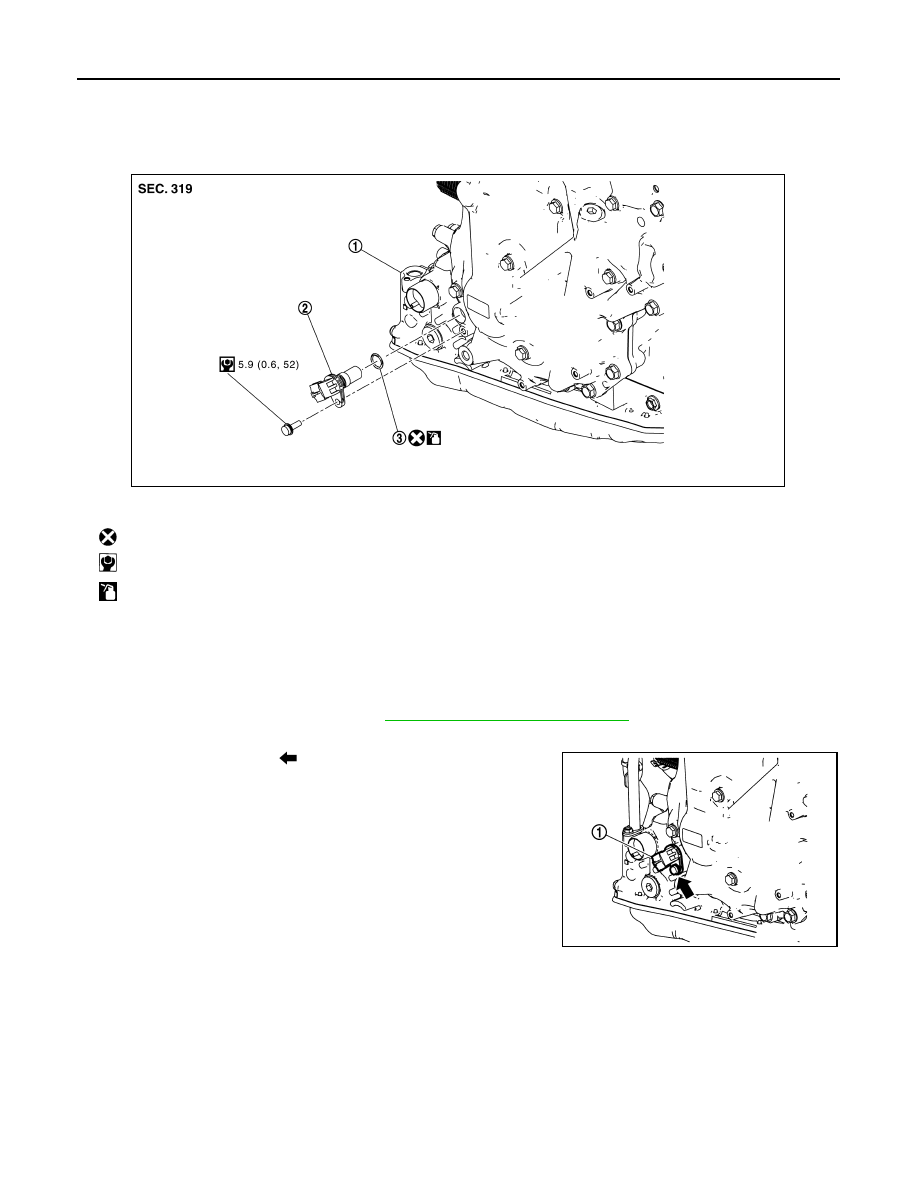

Exploded View

INFOID:0000000012201257

Removal and Installation

INFOID:0000000012201258

REMOVAL

1. Turn ignition switch OFF.
2. Remove fender protector (LH). Refer to

EXT-31, "Removal and Installation"

.

3. Disconnect primary speed sensor.
4. Remove mounting bolt (

) and remove primary speed sensor

(1) from transaxle assembly.

1.

Transaxle assembly

2.

Primary speed sensor

3.

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA6060GB

JSDIA6618ZZ

PRIMARY SPEED SENSOR

TM-563

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

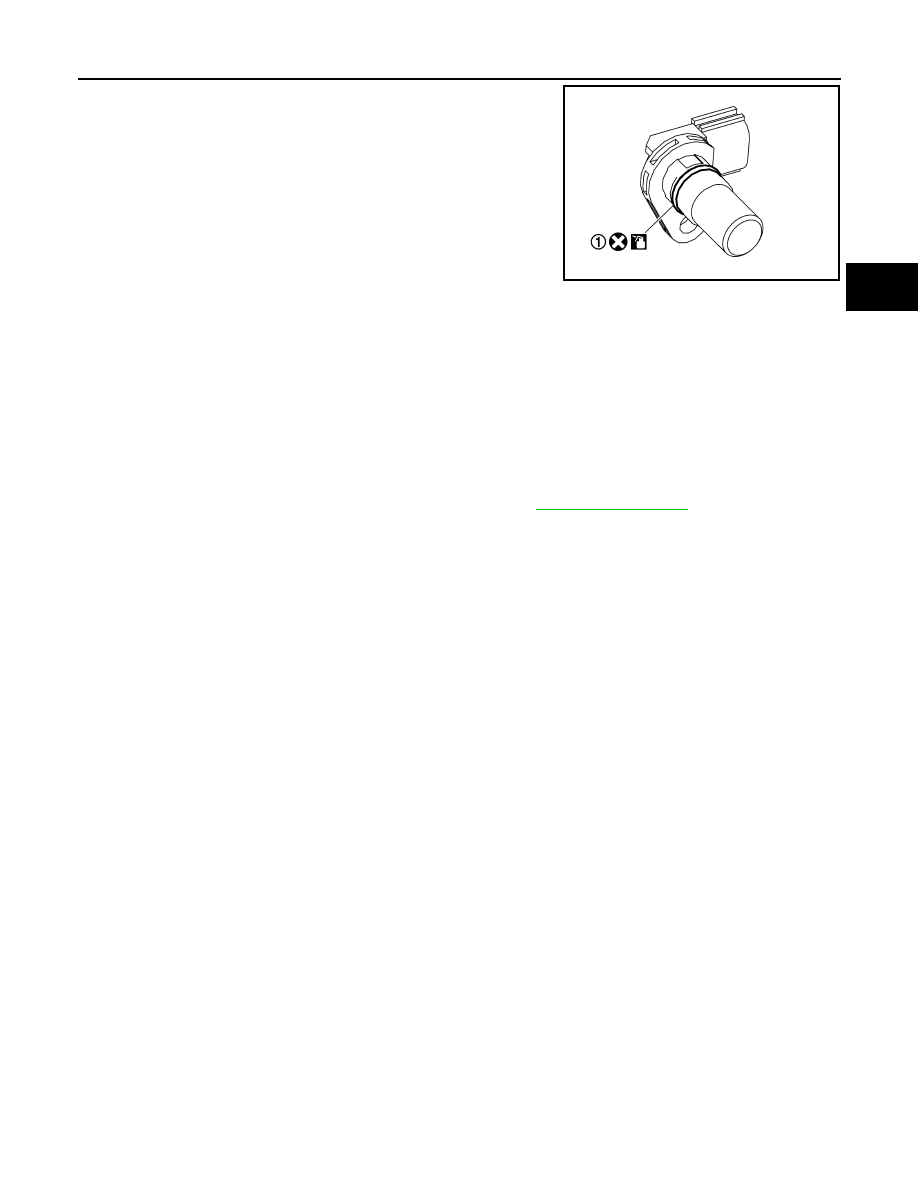

5. Remove O-ring (1) from primary speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.

• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000012201259

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-441, "Adjustment"

.

JSDIA5199ZZ

TM-564

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

OUTPUT SPEED SENSOR

OUTPUT SPEED SENSOR

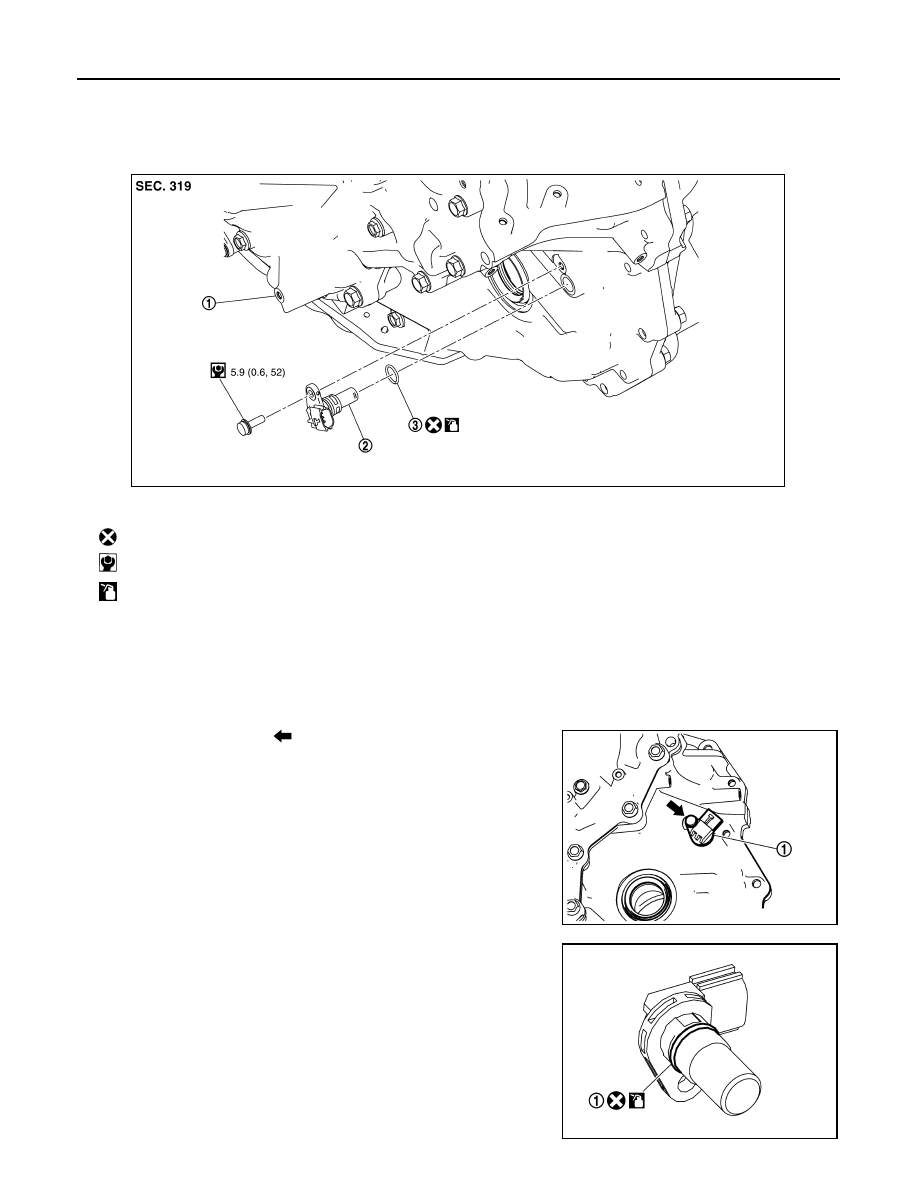

Exploded View

INFOID:0000000012201260

Removal and Installation

INFOID:0000000012201261

REMOVAL

1. Turn ignition switch OFF.
2. Disconnect output speed sensor connector.
3. Remove mounting bolt (

) and remove output speed sensor (1)

from transaxle assembly.

4. Remove O-ring (1) from output speed sensor.

1.

Transaxle assembly

2.

Output speed sensor

3.

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5033GB

JSDIA5201ZZ

JSDIA5199ZZ

OUTPUT SPEED SENSOR

TM-565

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.

• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000012201262

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-441, "Adjustment"

.
