TM-338

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

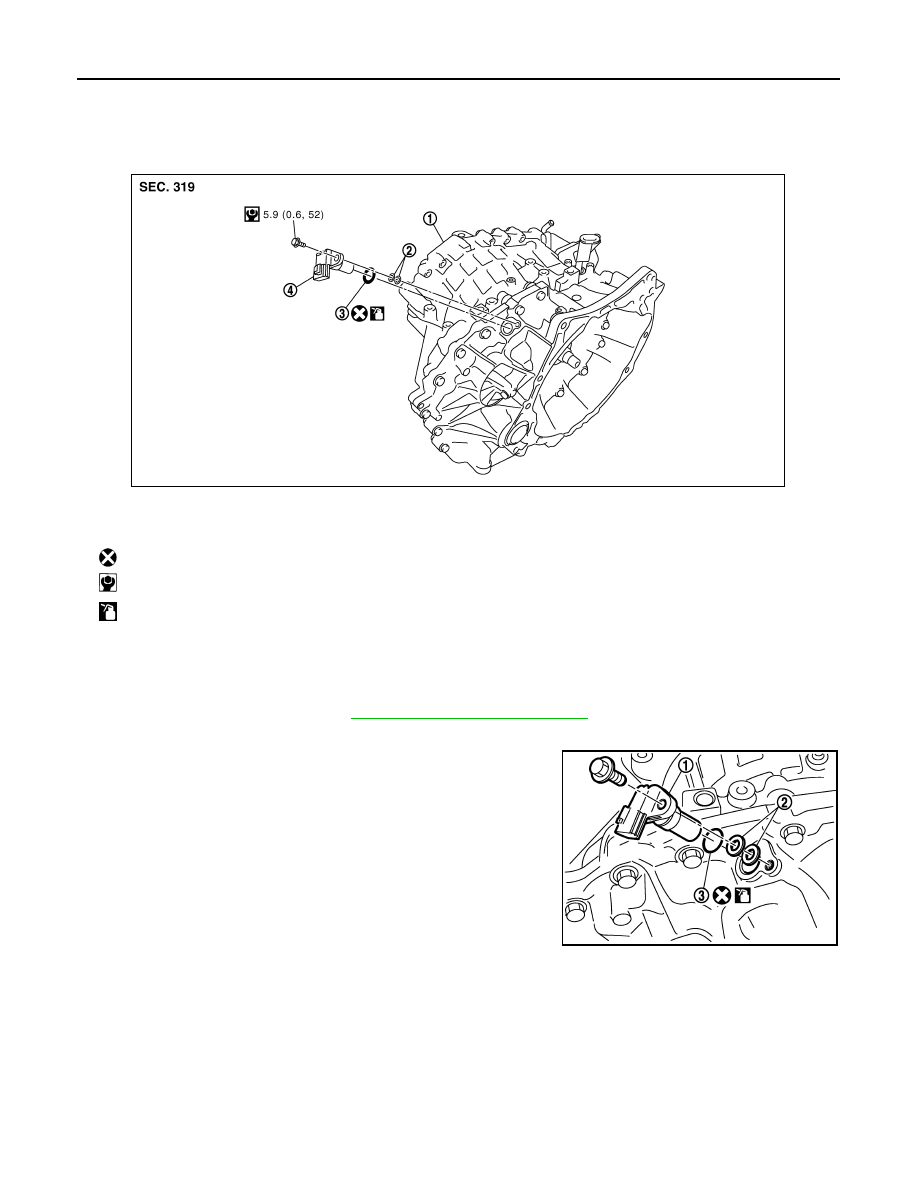

SECONDARY SPEED SENSOR

SECONDARY SPEED SENSOR

Exploded View

INFOID:0000000012201034

Removal and Installation

INFOID:0000000012201035

REMOVAL

1. Remove air cleaner case. Refer to

EM-27, "Removal and Installation"

.

2. Remove secondary speed sensor connector.
3. Remove secondary speed sensor (1) and shims (2).
4. Remove O-ring (3) from secondary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.

• Apply CVT fluid to O-ring.

• Install two pieces of shims.

Inspection

INFOID:0000000012201036

INSPECTION AFTER INSTALLATION

1.

Transaxle assembly

2.

Shim

3.

O-ring

4.

Secondary speed sensor
: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JPDIA0352GB

JPDIA0353ZZ

SECONDARY SPEED SENSOR

TM-339

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Check for CVT fluid leakage and CVT fluid level. Refer to

TM-314, "Inspection"

.

TM-340

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

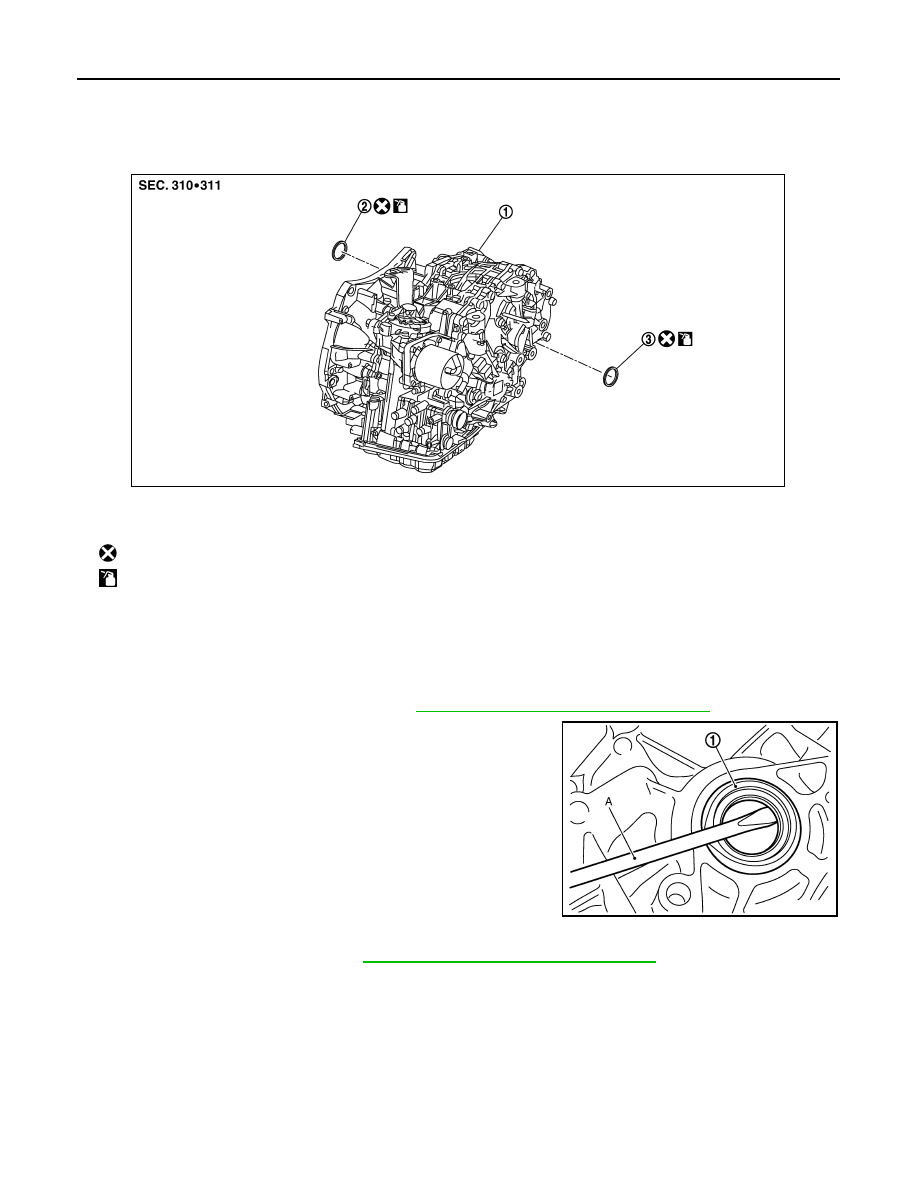

DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000012201037

Removal and Installation

INFOID:0000000012201038

REMOVAL

Differential Side Oil Seal (Left Side)

1. Remove front drive shaft (left side). Refer to

FAX-45, "AWD : Removal and Installation"

.

2. Remove differential side oil seal (1) using an oil seal remover

(commercial service tool) (A).

CAUTION:

Be careful not to scratch transaxle case and converter

housing.

Differential Side Oil Seal (Right Side)

1. Remove transfer assembly. Refer to

FAX-45, "AWD : Removal and Installation"

.

1.

Transaxle assembly

2.

Differential side oil seal (Converter
housing side)

3.

Differential side oil seal (Transaxle
case side)

: Always replace after every disassembly.

: Genuine CVT fluid

SCIA7594J

JPDIA0118ZZ

DIFFERENTIAL SIDE OIL SEAL

TM-341

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

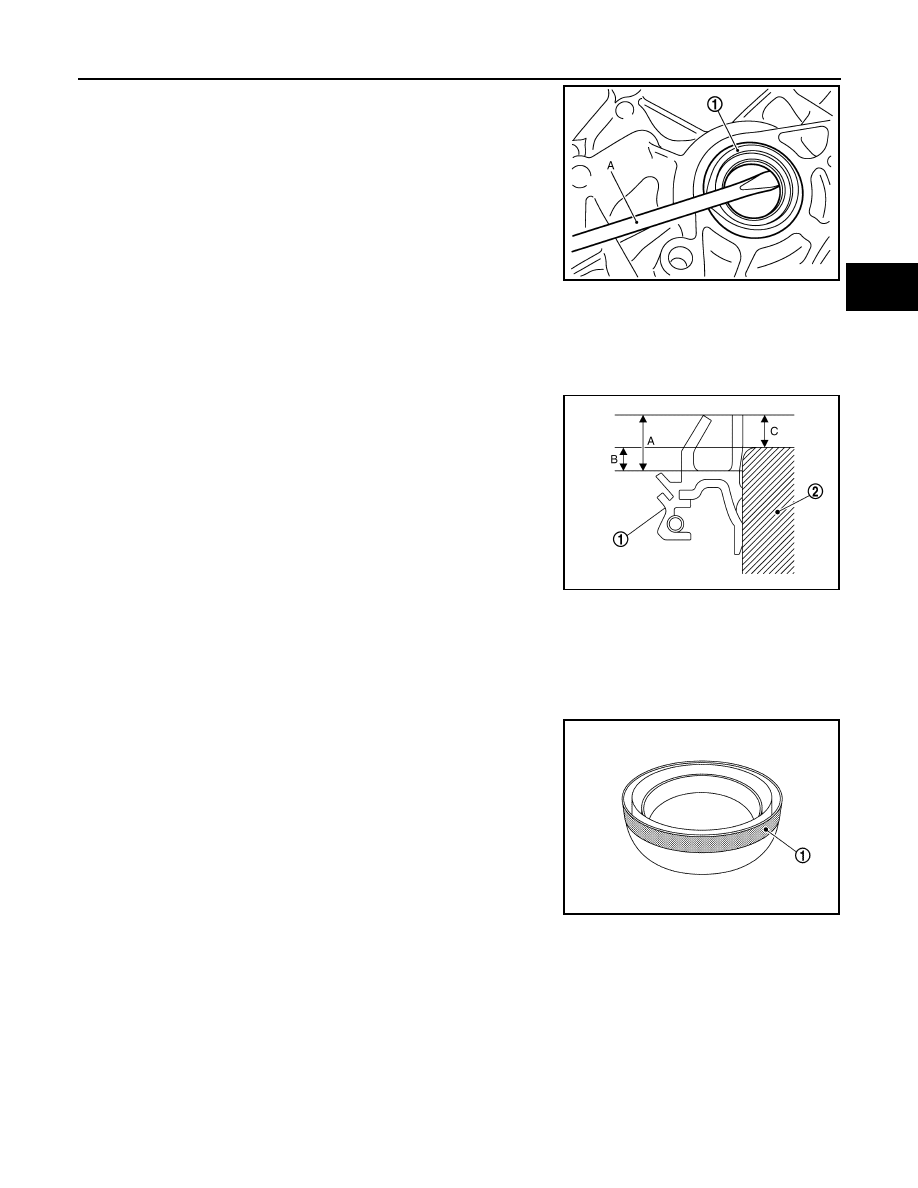

2. Remove differential side oil seal (1) using an oil seal remover

(commercial service tool) (A).

CAUTION:

Be careful not to scratch transaxle case and converter

housing.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

Differential Side Oil Seal  (Transaxle Case Side)

CAUTION:

When inserting the drive shaft, be sure to use protector (SST: KV38107900).
1. Measure height (A) of seal lip. Calculate protrusion (C) of oil

seal lip according to measured height (A) of seal lip and refer-

ence value (B) of side oil insertion.

CAUTION:

• Never reuse differential side oil seal.

• Put a mark on the measurement area and measure height of seal lip at four points diagonally

using suitable tool.

NOTICE:

Since seal lips have a tolerance of

± 0.3 mm (± 0.012 in) at maximum due to manufacturing tolerances or

packing conditions, it is necessary to measure the seal lip height beforehand to clarify the tolerance.

2. As an indicator of the parallelism and insertion depth, cut a

masking tape (1) to specified width [add 1 mm (0.04 in) to the

value calculated from the tip of differential side oil seal lip] and

affix to the differential side oil seal.

3. Install the differential side oil seal using a drift [outer diameter:

53 mm (2.09 in), inner diameter: 50 mm (1.97 in)] according to

the guide of the masking tape.

CAUTION:

• If differential side oil seal is inserted deeper than the ref-

erence value, use a new differential side oil seal and per-

form the steps again.

• Apply ATF to the differential side oil seal lip and around

the oil seal.

NOTE:

A hub cap (Part No. 43234 1HA0A) can be used as a substitute for drift. To use a hub cap, be sure to pre-

pare a new one specifically for patting seal.

4. Remove masking tape.
5. Adjust as instructed below to optimize the protrusion size and parallelism.

CAUTION:

If differential side oil seal is inserted deeper than the reference value, use a new differential side

oil seal and perform the steps again.

JPDIA0118ZZ

(1)

: Differential side oil seal

(2)

: Transaxle case

Lip protrusion (C)

: C=A–B

Differential side oil seal insertion
reference value (B)

: 1.8 mm (0.071 in)

JSDIA4816ZZ

JSDIA4817ZZ
