DIFFERENTIAL SIDE OIL SEAL

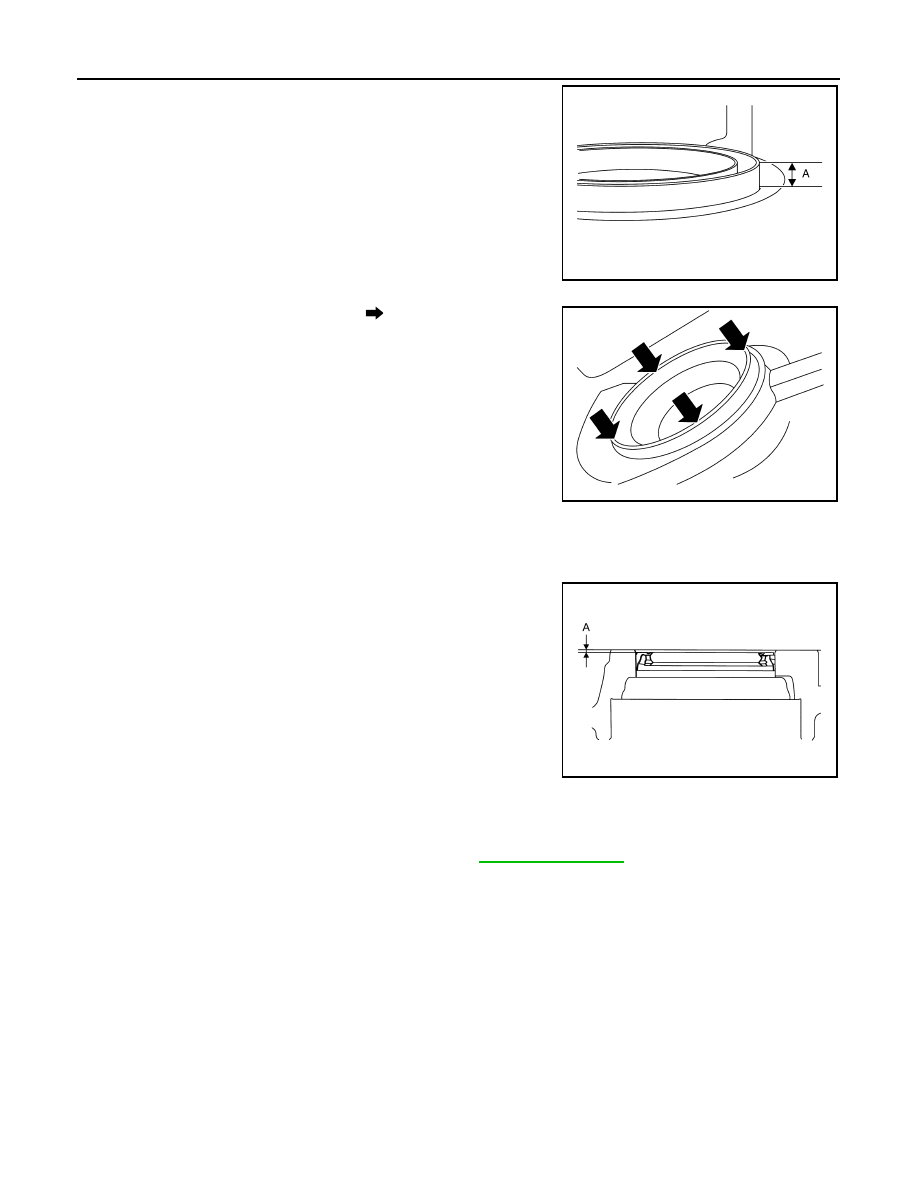

• Protrusion size (A)

CAUTION:

Protrusion must fall within

± 0.5mm (0.020 in) of calcu-

lated size.

• Parallelism at four diagonal points (

)

CAUTION:

The difference among four diagonal points must be within

0.3 mm (0.012 in).

NOTE:

If differential side oil seal is uneven while installing, tilt suitable

tool.

6. Check that the protrusion size and parallelism are adequate.

Differential Side Oil Seal (Converter housing Side)

CAUTION:

• Never reuse differential side oil seal.

• Apply ATF to the differential side oil seal lip and around the oil seal.

Install differential side oil seal evenly using a drift [outer diameter: 60

mm (2.36 in)] so that differential side oil seal protrudes by the dimen-

sion (A) respectfully.

NOTE:

The reference is the installation direction of the differential side oil

seal.

Inspection

INFOID:0000000012201039

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and CVT fluid level. Refer to

TM-314, "Inspection"

.

JSDIA4815ZZ

JSDIA4814ZZ

Dimension (A)

: Height difference from case end sur-
face is within 1.0

± 0.5 mm (0.039 ±

0.020 in).

JSDIA6885ZZ

OIL PUMP FITTING BOLT

TM-343

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PUMP FITTING BOLT

Description

INFOID:0000000012201040

Replace the oil pump fitting bolt and the O-ring if oil leakage or exudes from the oil pump fitting bolt.

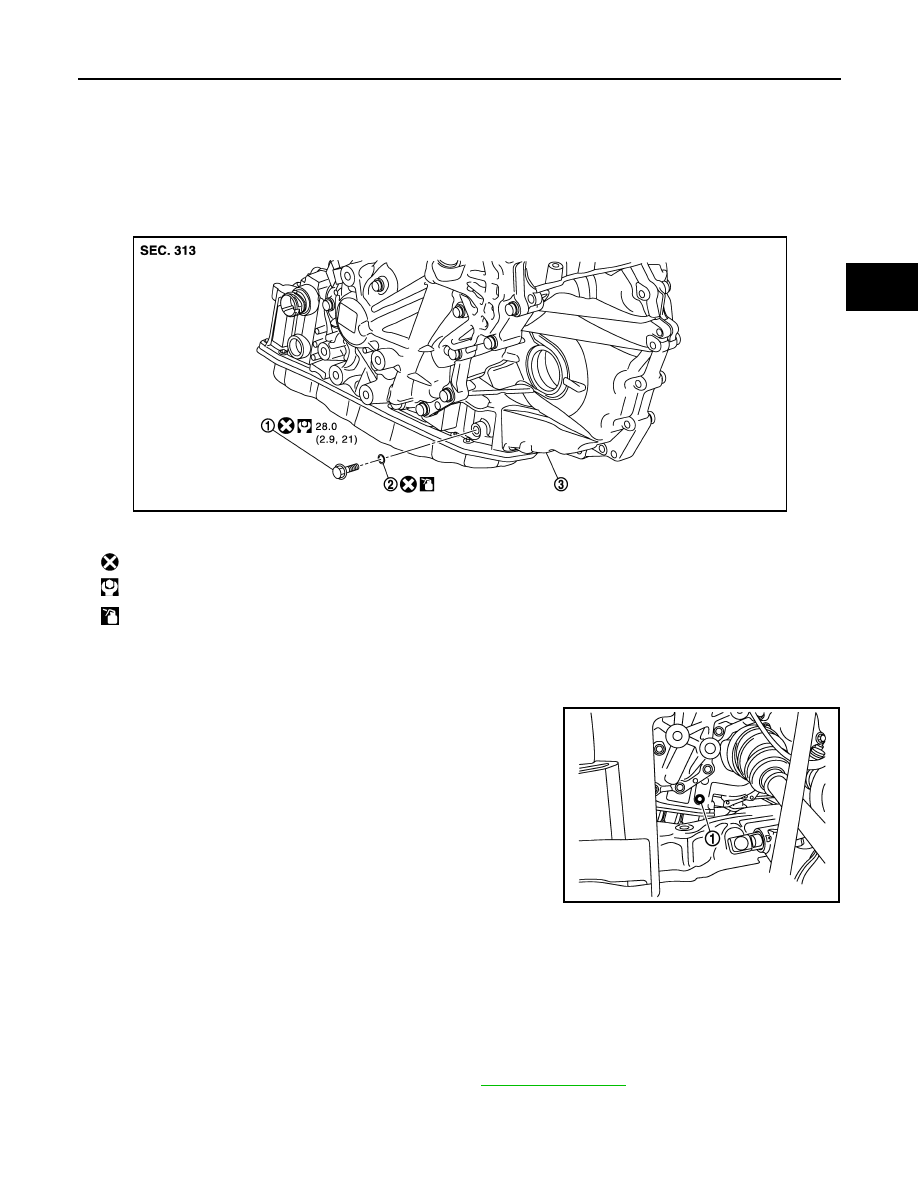

Exploded View

INFOID:0000000012201041

Removal and Installation

INFOID:0000000012201042

REMOVAL

1. Remove Oil pump fitting bolt (1) from transaxle assembly.
2. Remove O-ring from oil pump fitting bolt.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.

• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000012201043

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and CVT fluid level. Refer to

TM-314, "Inspection"

.

1.

Oil pump fitting bolt

2.

O-ring

3.

Transaxle assembly

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Apply CVT fluid

JPDIA0829GB

JPDIA0077ZZ

TM-344

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

WATER HOSE

WATER HOSE

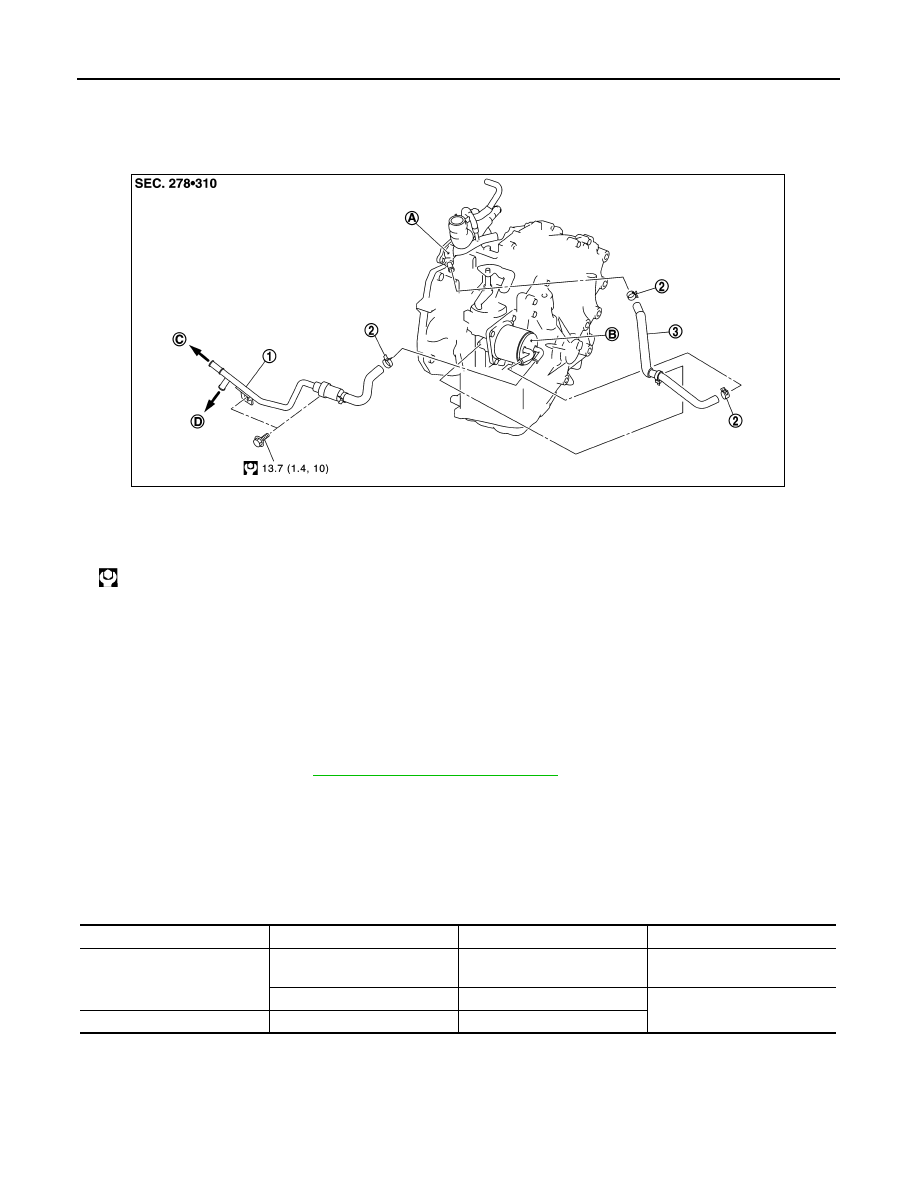

Exploded View

INFOID:0000000012201044

Removal and Installation

INFOID:0000000012201045

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

coolant escaping from the radiator.

CAUTION:

Perform these steps after the coolant temperature has cooled sufficiently.
1. Remove the battery. Refer to

PG-105, "Removal and Installation"

.

2. Remove the ECM and bracket as a set.
3. Remove the water hose.
4. Remove the heater thermostat.

INSTALLATION

Note the following, and Install in the reverse order of removal.

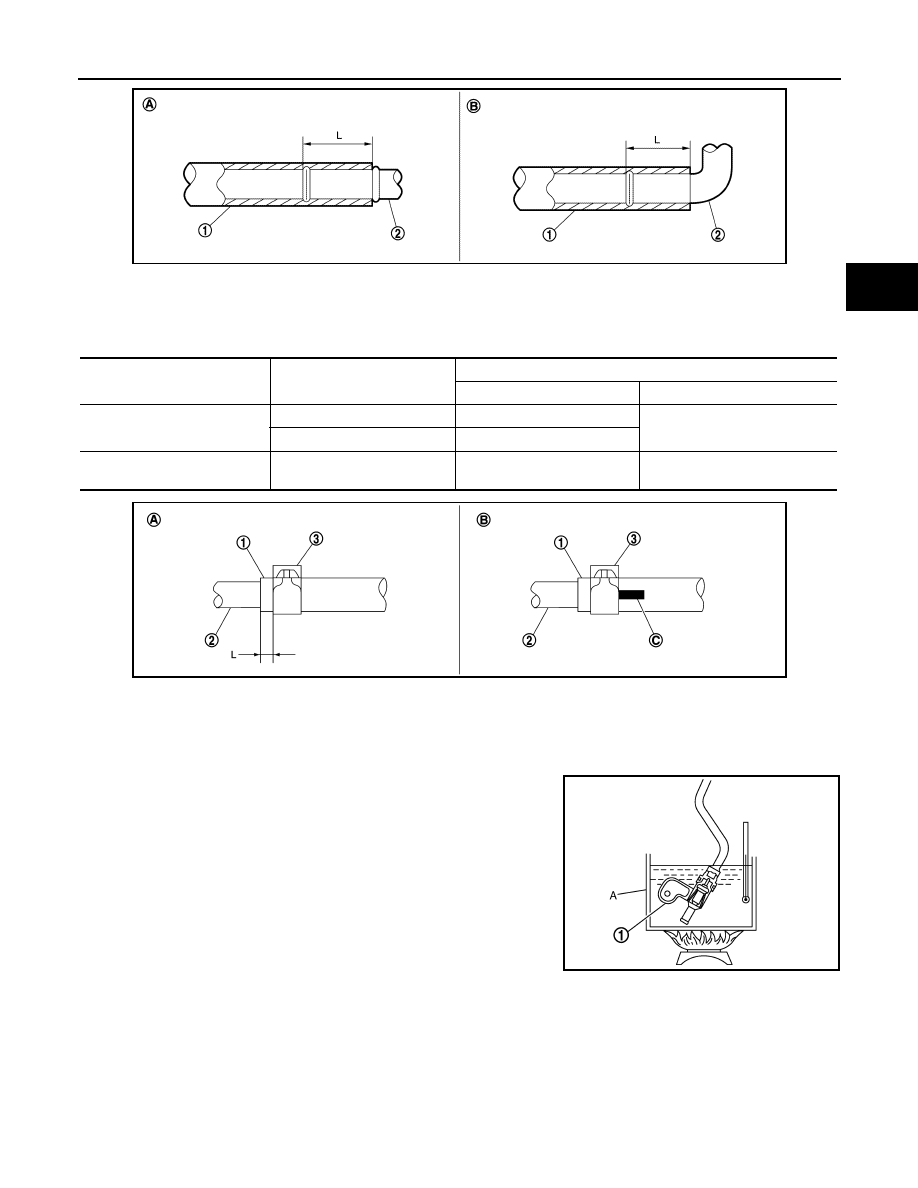

• Refer to the following when installing water hoses.

1.

Heater thermostat assembly

2.

Hose clamp

3.

Water hose

A. Water outlet

B. CVT oil warmer

C. To thermostat housing

D. To oil cooler

: N·m (kg-m, ft-lb)

JSDIA2776GB

Water hose (1)

Installation side tube (2)

Direction of paint mark

Hose insertion depth “L”

Water hose

Water outlet

Upward

A: 27 mm (1.06 in)  [End reach-
es the 2-stage bulge.]

CVT oil warmer

Leftward

B: 27 mm (1.06 in) [End reach-
es the tube bend R position).]

Heater thermostat assembly

CVT oil warmer

Leftward

WATER HOSE

TM-345

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Refer to the followings when installing hose clamp.

CAUTION:

Hose clamp should not interfere with the bulge of fluid cooler tube.

Inspection

INFOID:0000000012201046

INSPECTION AFTER REMOVAL

Heater Thermostat

• Fully immerse the heater thermostat (1) in a container (A) filled

with water. Continue heating the water while stirring.

• Continue heating the heater thermostat for 5 minutes or more after

bringing the water to a boil.

• Quickly take the heater thermostat out of the hot water, measure

the heater thermostat within 10 seconds.

JSDIA2407ZZ

Water hose (1)

Installation side tube (2)

Hose clamp (3)

Direction of tab

Clamping position

Water hose

Water outlet

Backward

A: 5 – 7 mm (0.20 – 0.28 in) (L)
from hose end

CVT oil warmer

Upward

Heater thermostat assembly

CVT oil warmer

Upward

B: Align with the end of paint
mark (C)

JSDIA2499ZZ

JPBIA0318ZZ
