TM-334

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

CONTROL VALVE

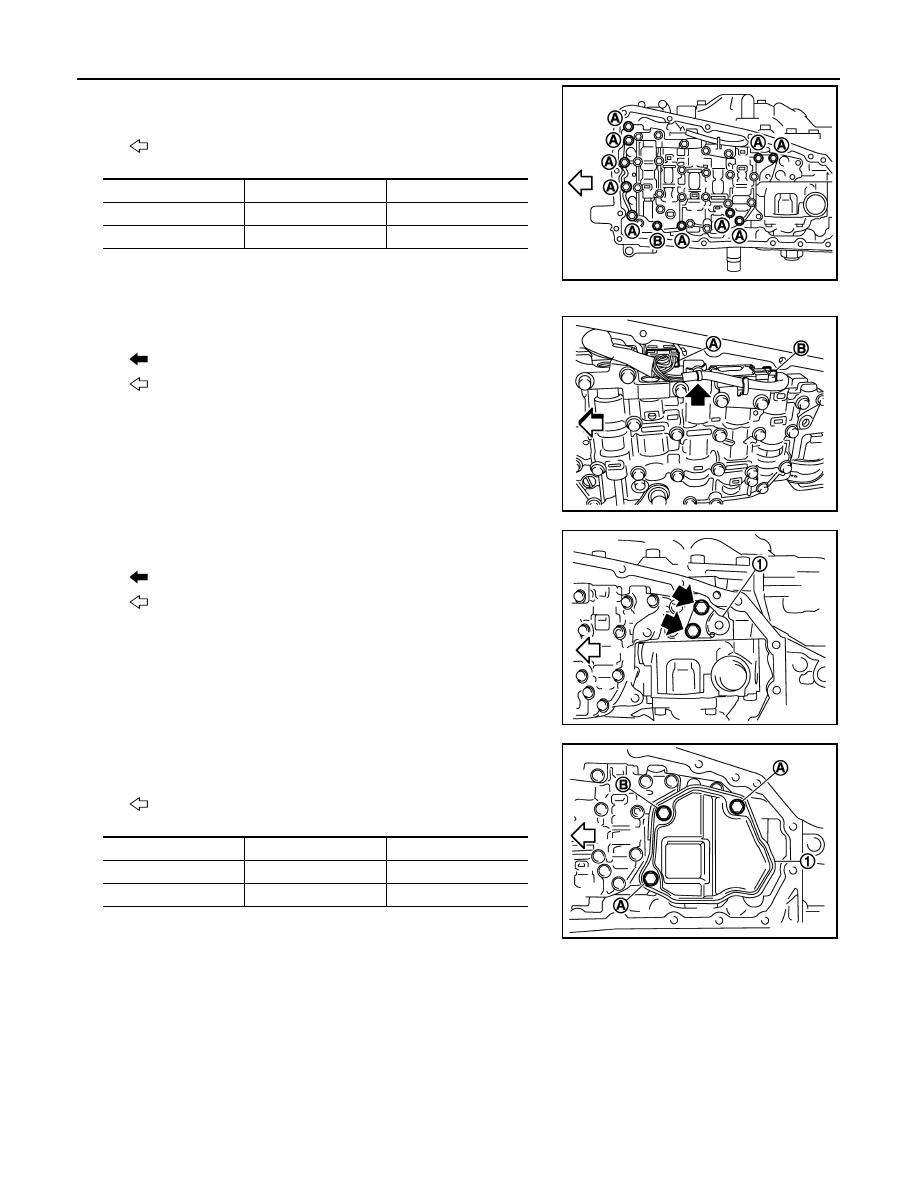

6. Fix the control valve using the control valve mounting bolts (A)

and (B).

7. Pull the linkage fixing pin out.
8. Connect the control valve connectors (A) and (B).

CAUTION:

• Never pinch the harness into between the control valve

and the transaxle case.

• Securely insert the connector until it clicks and locks.

9. Install the bracket (1).

10. Install O-ring to oil strainer assembly.

CAUTION:

• Never reuse O-ring.

• Apply CVT fluid to O-ring.

11. Install the oil strainer assembly (1) using the oil strainer assem-

bly mounting bolts (A) and (B).

NOTE:

Remove the bracket and adjust the position again if the bolt hole

positions are not aligned.

12. Install the collar to the manual shaft.

CAUTION:

Never drop the collar.

: Vehicle front

Bolt

Bolt length (mm)

Number of bolts

A

54

10

B

44

1

JPDIA0659ZZ

: Clip

: Vehicle front

JPDIA0656ZZ

: Bolt

: Vehicle front

JPDIA0658ZZ

: Vehicle front

Bolt

Bolt length (mm)

Number of bolts

A

12

2

B

44

1

JPDIA0657ZZ

CONTROL VALVE

TM-335

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

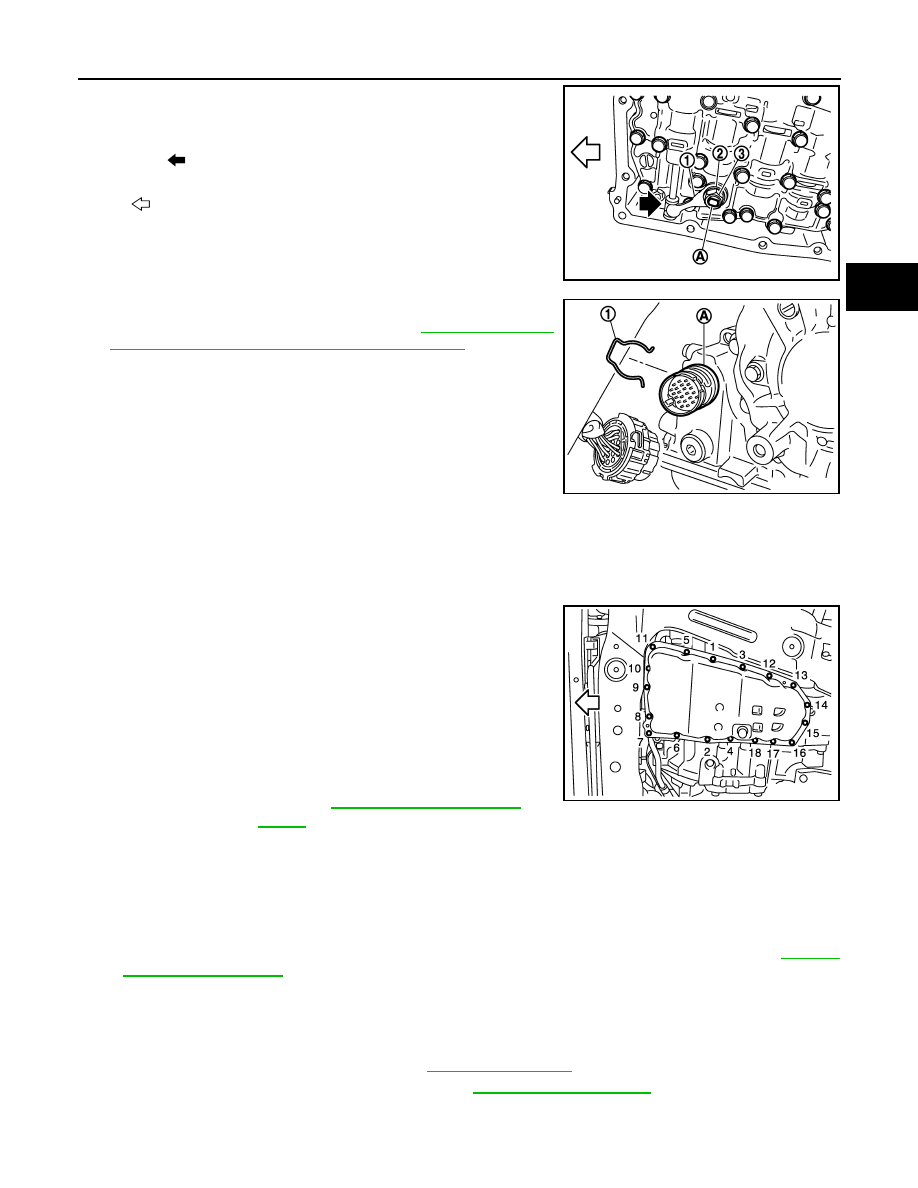

13. Install the manual plate (1) while aligning with the groove (A) of

the manual valve.

CAUTION:

Assemble the manual plate while aligning its end with the
cutout (

) of the manual valve.

14. Install the washer (2) and the lock-nut (3), and then tighten to

the specified torque.

15. Install the snap ring (1) to the CVT unit connector (A).
16. Connect the CVT unit connector. Refer to

TM-150, "Removal

and Installation Procedure for CVT Unit Connector"

.

17. Install the magnet while aligning it with the convex side of oil

pan.

CAUTION:

Completely eliminate the iron powder from the magnet

mounting area of oil pan and the magnet.

18. Install the oil pan to the transaxle case with the following proce-

dure.

1. Install the oil pan gasket to the oil pan.

CAUTION:

• Completely wipe out any moisture, oil, and old gasket from the oil pan gasket mounting sur-

face and bolt mounting hole of oil pan and transaxle case.

• Never reuse oil pan gasket.

2. Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan mounting

bolt.

3. Tighten the oil pan mounting bolts in the order shown in the

figure to the specified torque.

4. Tighten the oil pan mounting bolts again clockwise from (1)

shown in the figure to the specified torque.

19. Install drain plug gasket to drain plug.

CAUTION:

Never reuse drain plug gasket.

20. Install drain plug to oil pan.
21. Fill CVT fluid from CVT fluid charging pipe to the specified level.

CAUTION:

• Use only Genuine CVT fluid. Never mix with other fluid.

• Using CVT fluid other than Genuine CVT fluid will deteriorate in driveability and CVT durability,

and may damage the CVT, which is not covered by the warranty.

• When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.

• Sufficiently shake the container of CVT fluid before using.

• Delete CVT fluid deterioration date with CONSULT after changing CVT fluid. Refer to

TM-190,

"CONSULT Function"

.

22. With the engine warmed up, drive the vehicle in an urban area.

NOTE:

When ambient temperature is 20

°C (68°F), it takes about 10 minutes for the CVT fluid to warm up to 50

to80

°C (122 to 176°F).

23. Check CVT fluid level and condition. Refer to

TM-314, "Inspection"

.

24. Connect battery cable to negative terminal. Refer to

PG-105, "Exploded View"

.

: Vehicle front

JPDIA0962ZZ

CVT fluid

: Refer to

MA-11, "Fluids and Lubri-

cants"

.

Fluid capacity

JPDIA0654ZZ

JPDIA0664ZZ

TM-336

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

CONTROL VALVE

Inspection and Adjustment

INFOID:0000000012201030

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.

• If a large amount of worn material is found, clutch plate may be worn.

• If iron powder is found, bearings, gears, or clutch plates may be worn.

• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.

Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Check the CVT fluid level and leakage. Refer to

TM-314, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Perform “ADDITIONAL SERVICE WHEN REPLACING CONTROL VALVE OR TRANSAXLE ASSEMBLY”.

Refer to

TM-221, "Description"

.

PRIMARY SPEED SENSOR

TM-337

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

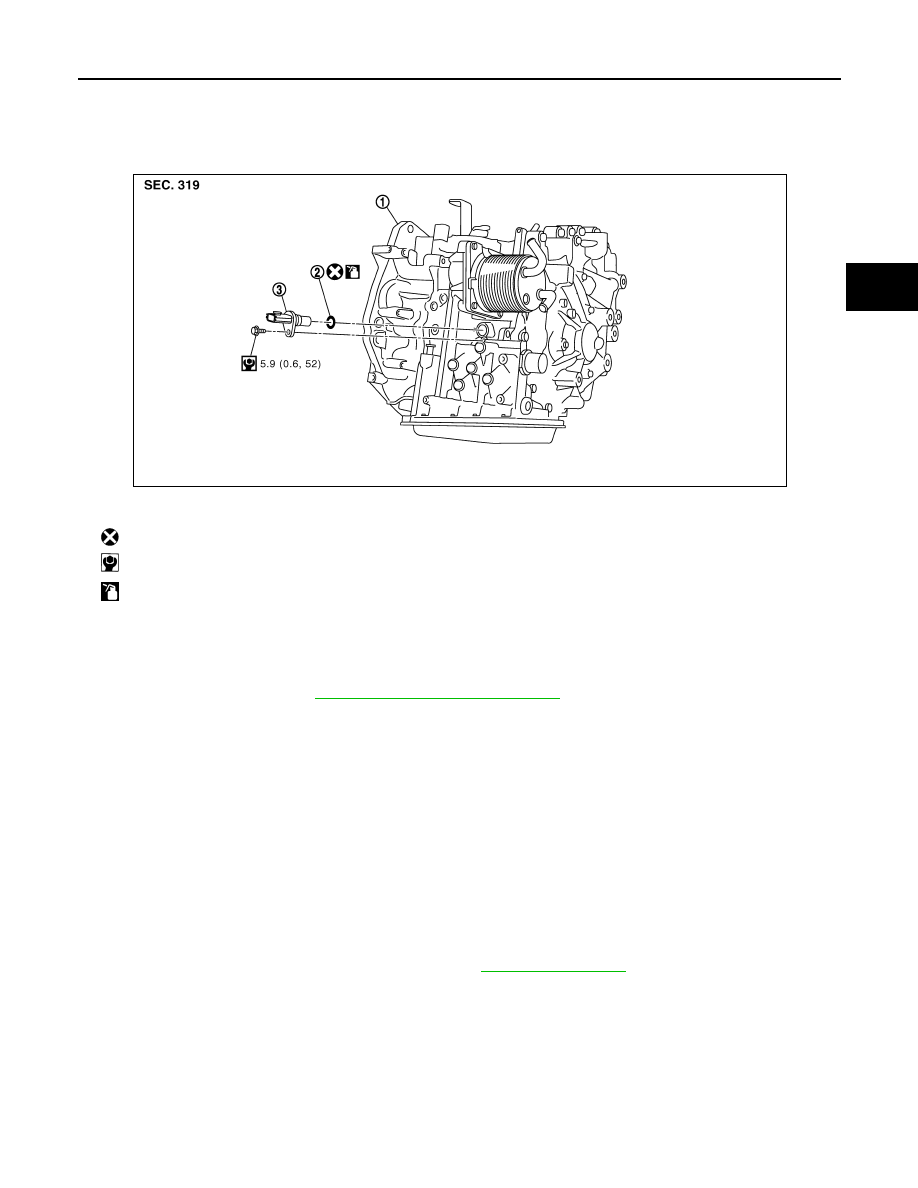

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000012201031

Removal and Installation

INFOID:0000000012201032

REMOVAL

1. Remove the battery. Refer to

PG-105, "Removal and Installation"

.

2. Remove ECM and bracket as a set.
3. Remove primary speed sensor connector.
4. Remove primary speed sensor.
5. Remove O-ring from primary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.

• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000012201033

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and CVT fluid level. Refer to

TM-314, "Inspection"

.

1.

Transaxle assembly

2.

O-ring

3.

Primary speed sensor

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

SCIA7901J
