Nissan Juke F15. Manual - part 1238

TM-142

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

SHIFT CONTROL

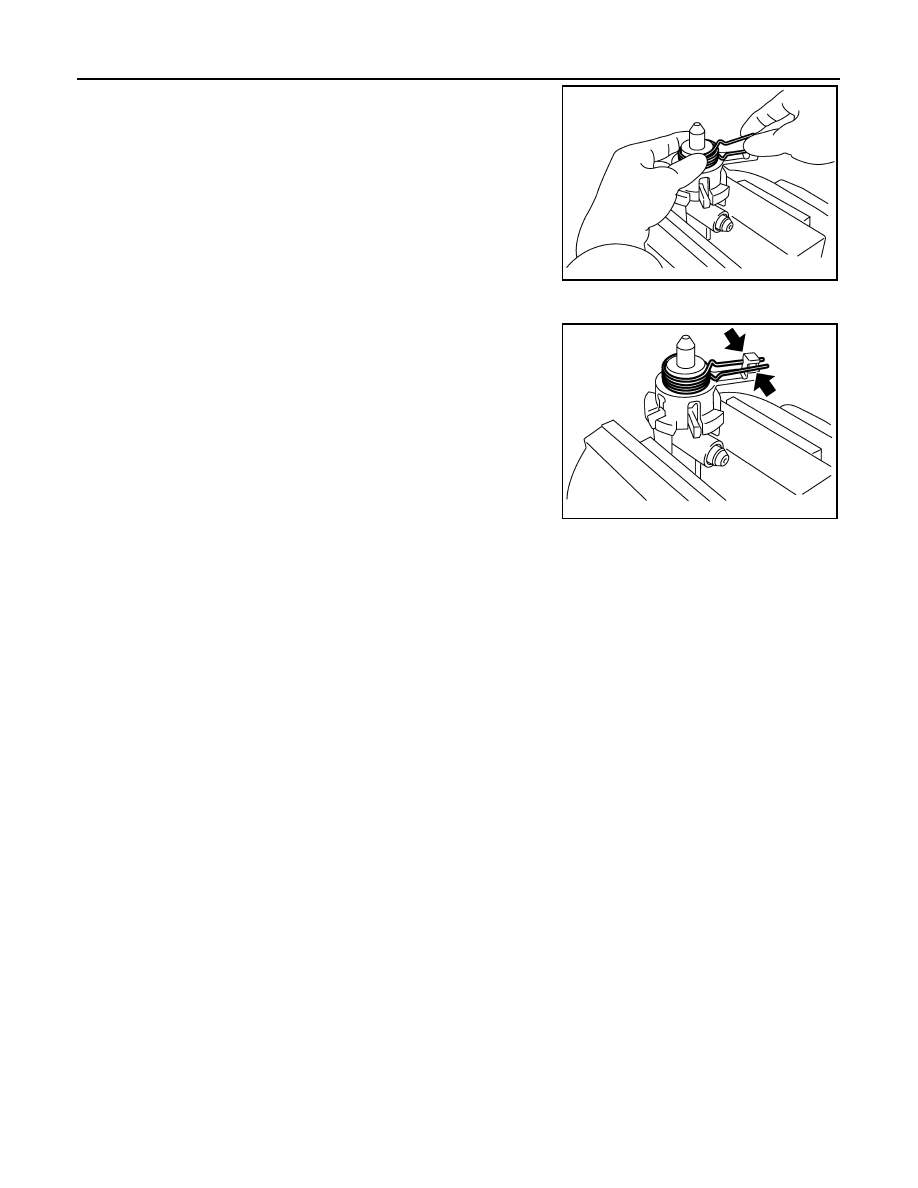

2. Attach one end of the return spring to striking interlock of striking

rod assembly while holding return spring.

CAUTION:

• When installing, check that return spring is securely

seated in the groove of striking interlock of striking rod

assembly.

PCIB1831E

PCIB1833E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-143

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000012200833

TRANSAXLE

Engine type

MR16DDT

Transaxle model

RS6F52H

Model code number

3YW0D

Number of speed

6

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.727

2nd

2.043

3rd

1.392

4th

1.055

5th

0.865

6th

0.732

Reverse

3.641

Number of teeth

Input gear

1st

11

2nd

23

3rd

28

4th

36

5th

52

6th

56

Reverse

11

Main gear

1st

41

2nd

47

3rd

39

4th

38

5th

45

6th

41

Reverse

38

Reverse idler gear

Front

37

Rear

39

Oil level

mm (in)

38.5 - 45.5 (1.516 - 1.791)

Oil capacity (Reference)

 (US pt, Imp pt)

1.9 (4, 3-3/8)

Remarks

Reverse synchronizer

Installed

Double-cone synchronizer

3rd

Triple-cone synchronizer

1st and 2nd

PCIB1769E

TM-144

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52H]

SERVICE DATA AND SPECIFICATIONS (SDS)

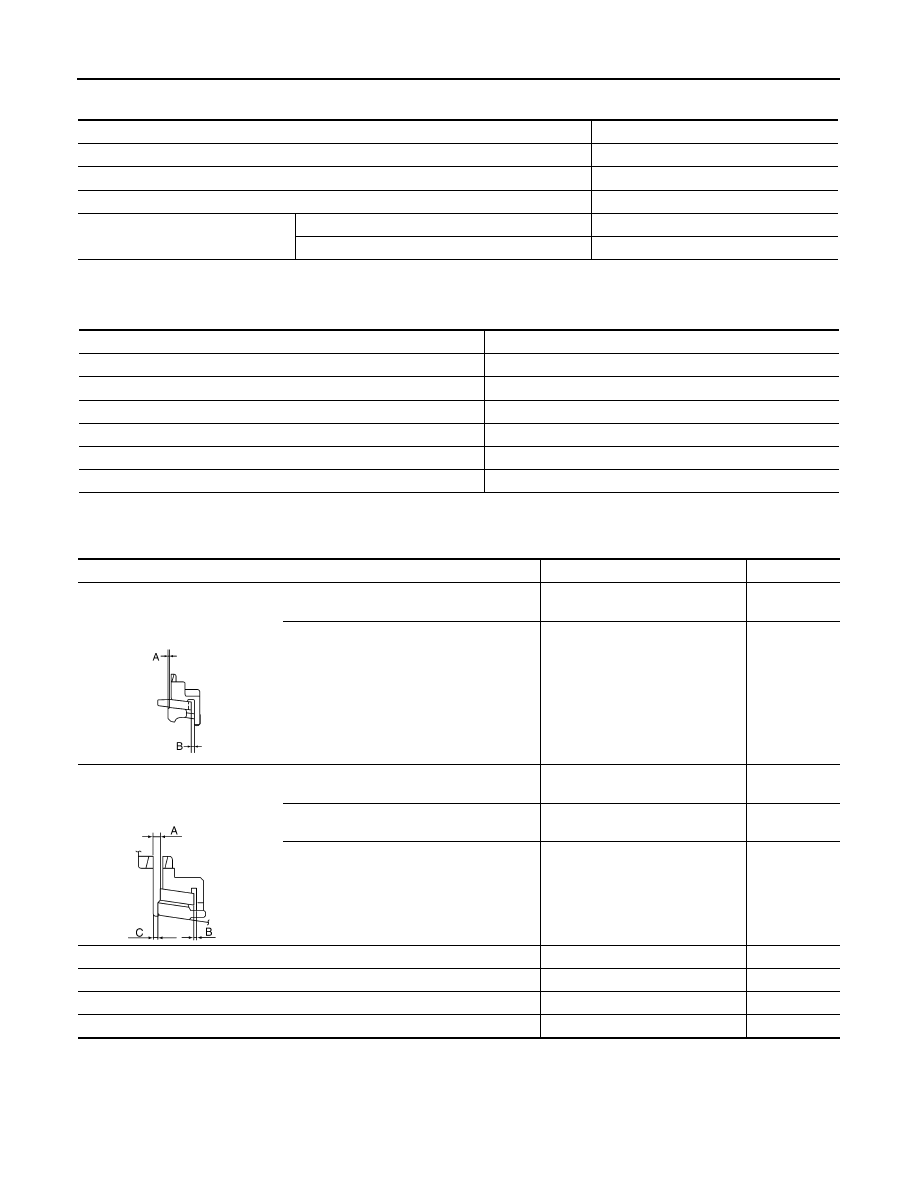

FINAL GEAR

Gear End Play

INFOID:0000000012200834

Unit: mm (in)

Baulk Ring Clearance

INFOID:0000000012200835

Unit: mm (in)

Available Snap Rings

INFOID:0000000012200836

6TH INPUT GEAR BUSHING

Engine type

MR16DDT

Transaxle model

RS6F52H

Model code number

3YW0D

Final gear ratio

4.428

Number of teeth

Final gear/Pinion

62/14

Side gear/Pinion mate gear

—

Gear

Standard value

1st main gear

0.20 - 0.30 (0.0079 - 0.0118)

2nd main gear

0.06 - 0.16 (0.0024 - 0.0063)

3rd input gear

0.18 - 0.31 (0.0071 - 0.0122)

4th input gear

0.20 - 0.30 (0.0079 - 0.0118)

5th input gear

0.06 - 0.16 (0.0024 - 0.0063)

6th input gear

0.06 - 0.16 (0.0024 - 0.0063)

Measurement point

Standard value

Limit value

3rd
(Double-cone synchronizer)

Clearance between synchronizer cone and
inner baulk ring end face (A)

0.6 - 0.8 (0.024 - 0.031)

0.2 (0.008)

Clearance between outer baulk ring pawl
and synchronizer cone (B)

0.6 - 1.1 (0.024 -0.043)

0.2 (0.008)

1st and 2nd
(Triple-cone synchronizer)

Clearance between synchronizer cone and
clutch gear end face (A)

0.6 - 1.2 (0.024 - 0.047)

0.3 (0.012)

Clearance between outer baulk ring pawl
and synchronizer cone (B)

0.6 - 1.1 (0.024 - 0.043)

0.2 (0.008)

Clearance between inner baulk ring and
clutch gear end face (C)

0.7 - 1.1 (0.028 - 0.043)

0.3 (0.012)

4th

0.9 - 1.45 (0.035 - 0.057)

0.7 (0.028)

5th

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

6th

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

Reverse

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

PCIB0249E

PCIB0835J

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-145

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: Always check with the Parts Department for the latest parts information.

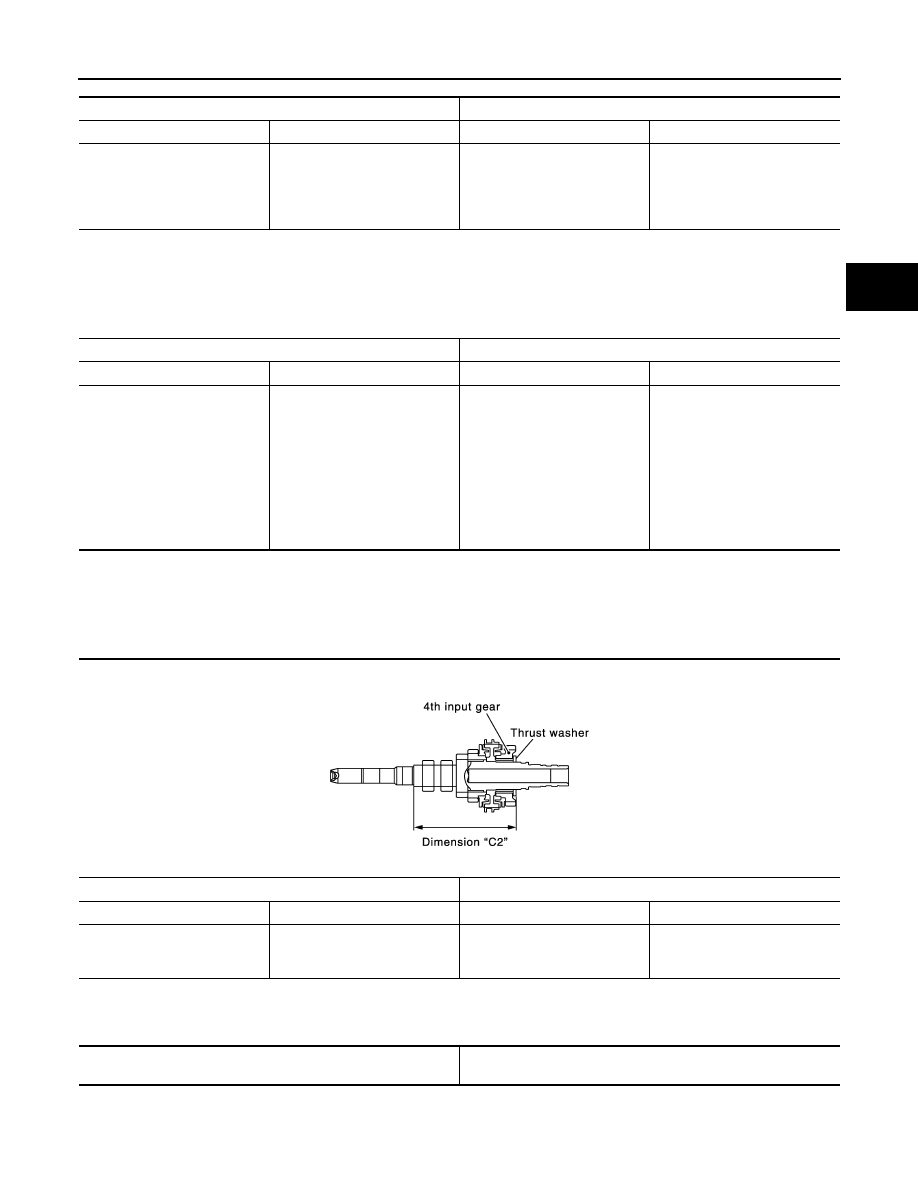

Available C-Rings

INFOID:0000000012200837

MAINSHAFT C-RING

*: Always check with the Parts Department for the latest parts information.

Available Thrust Washer

INFOID:0000000012200838

INPUT SHAFT THRUST WASHER

*: Always check with the Parts Department for the latest parts information.

DIFFERENTIAL SIDE GEAR THRUST WASHER

End play standard value

0 - 0.1 mm (0 - 0.004 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

1.76 (0.0693)
1.81 (0.0713)
1.86 (0.0732)
1.91 (0.0752)
1.96 (0.0772)

32204 8H511

32204 8H512
32204 8H513
32204 8H514
32204 8H515

2.01 (0.0791)

2.06 (0.0811)
2.11 (0.0831)

2.16 (0.0850)
2.21 (0.0870)

32204 8H516
32204 8H517
32204 8H518
32204 8H519
32204 8H520

End play standard value

0 - 0.06 mm (0 - 0.0024 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

2.535 (0.0998)
2.565 (0.1010)
2.595 (0.1022)
2.625 (0.1033)
2.655 (0.1045)
2.685 (0.1057)
2.715 (0.1069)
2.745 (0.1081)
2.775 (0.1093)

2.805 (0.1104)

32348 8H800
32348 8H801
32348 8H802
32348 8H803
32348 8H804
32348 8H805
32348 8H806
32348 8H807
32348 8H808
32348 8H809

2.835 (0.1116)

2.865 (0.1128)
2.895 (0.1140)
2.925 (0.1152)
2.955 (0.1163)
2.985 (0.1175)
3.015 (0.1187)
3.045 (0.1199)
3.075 (0.1211)

32348 8H810

32348 8H811

32348 8H812
32348 8H813
32348 8H814
32348 8H815
32348 8H816
32348 8H817
32348 8H818

Standard value for dimension “C2”

154.7 - 154.8 mm (6.091 - 6.094 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

3.84 (0.1512)
3.90 (0.1535)
3.96 (0.1559)

32347 8H500
32347 8H501
32347 8H502

4.02 (0.1583)
4.08 (0.1606)
4.14 (0.1630)

32347 8H503
32347 8H504
32347 8H505

SCIA1008E

Allowable Clearance between side gear and differential case with
thrust washer

0.1 - 0.2 mm (0.004 - 0.008 in)
