Nissan Juke F15. Manual - part 1239

TM-146

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52H]

SERVICE DATA AND SPECIFICATIONS (SDS)

*: Always check with the Parts Department for the latest parts information.

Available Adjusting Shims

INFOID:0000000012200839

4TH MAIN GEAR ADJUSTING SHIM

*: Always check with the Parts Department for the latest parts information.

INPUT SHAFT REAR BEARING ADJUSTING SHIM

*: Always check with the Parts Department for the latest parts information.

MAINSHAFT REAR BEARING ADJUSTING SHIM

Thickness mm (in)

Part number*

0.75 (0.0295)
0.80 (0.0315)
0.85 (0.0335)
0.90 (0.0354)
0.95 (0.0374)

38424 81X00
38424 81X01
38424 81X02
38424 81X03
38424 81X04

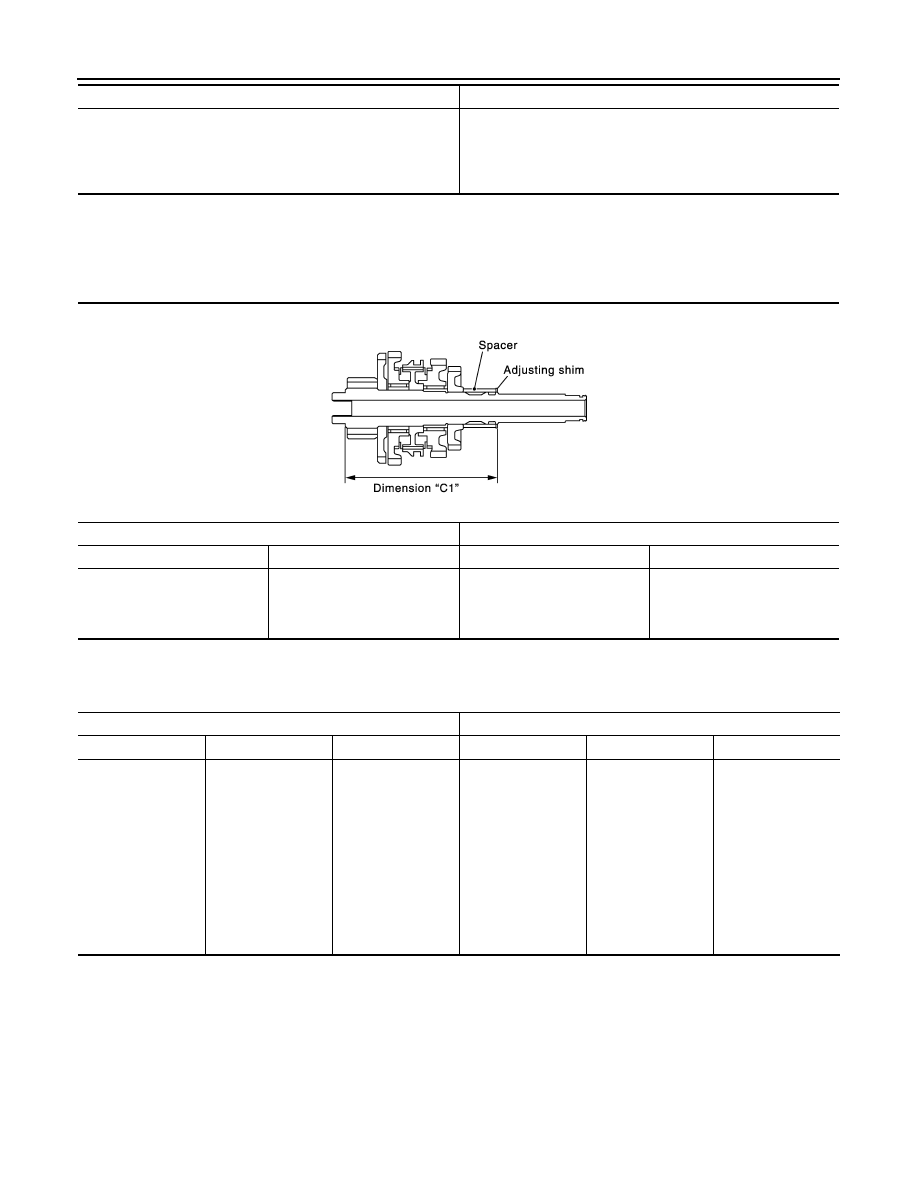

Standard value for dimension “C1”

173.85 - 173.95 mm (6.844 - 6.848 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.52 (0.0205)
0.60 (0.0236)
0.68 (0.0268)
0.76 (0.0299)

32238 8H500
32238 8H501
32238 8H502
32238 8H503

0.84 (0.0331)
0.92 (0.0362)
1.00 (0.0394)
1.08 (0.0425)

32238 8H504
32238 8H505
32238 8H506
32238 8H507

SCIA1009E

End play standard value

0 - 0.06 mm (0 - 0.0024 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)

32225 8H500
32225 8H501
32225 8H502
32225 8H503
32225 8H504
32225 8H505
32225 8H506
32225 8H507
32225 8H508
32225 8H509
32225 8H510

32225 8H511

0.88 (0.0346)
0.92 (0.0362)
0.96 (0.0378)
1.00 (0.0394)
1.04 (0.0409)
1.08 (0.0425)
1.12 (0.0441)
1.16 (0.0457)
1.20 (0.0472)
1.24 (0.0488)
1.28 (0.0504)
1.32 (0.0520)

32225 8H512
32225 8H513
32225 8H514
32225 8H515
32225 8H516
32225 8H517
32225 8H518
32225 8H519
32225 8H520
32225 8H521
32225 8H522
32225 8H523

1.36 (0.0535)
1.40 (0.0551)
1.44 (0.0567)
1.48 (0.0583)
1.52 (0.0598)
1.56 (0.0614)
1.60 (0.0630)
1.64 (0.0646)

32225 8H524
32225 8H560
32225 8H561
32225 8H562
32225 8H563
32225 8H564
32225 8H565
32225 8H566

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-147

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52H]

*: Always check with the Parts Department for the latest parts information.

REVERSE IDLER GEAR ADJUSTING SHIM

*: Always check with the Parts Department for the latest parts information.

6TH MAIN GEAR ADJUSTING SHIM

*: Always check with the Parts Department for the latest parts information.

STRIKING ROD ADJUSTING SHIM

*: Always check with the Parts Department for the latest parts information.

Available Shims

INFOID:0000000012200840

— Differential Side Bearing Preload and Adjusting Shim

BEARING PRELOAD

End play standard value

0 - 0.06 mm (0 - 0.0024 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)

32238 8H510

32238 8H511

32238 8H512
32238 8H513
32238 8H514
32238 8H515
32238 8H516
32238 8H517
32238 8H518

0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)
0.96 (0.0378)
1.00 (0.0394)
1.04 (0.0409)
1.08 (0.0425)

32238 8H519
32238 8H520
32238 8H521
32238 8H522
32238 8H523
32238 8H524
32238 8H560
32238 8H561

End play standard value

0.04 - 0.10 mm (0.0016 - 0.0039 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

1.76 (0.0693)
1.80 (0.0709)
1.84 (0.0724)
1.88 (0.0740)
1.92 (0.0756)
1.96 (0.0772)
2.00 (0.0787)
2.04 (0.0803)
2.08 (0.0819)
2.12 (0.0835)
2.16 (0.0850)
2.20 (0.0866)

32237 8H800
32237 8H801
32237 8H802
32237 8H803
32237 8H804
32237 8H805
32237 8H806
32237 8H807
32237 8H808
32237 8H809
32237 8H810

32237 8H811

2.24 (0.0882)
2.28 (0.0898)
2.32 (0.0913)
2.36 (0.0929)
2.40 (0.0945)
2.44 (0.0961)
2.48 (0.0976)
2.52 (0.0992)
2.56 (0.1008)
2.60 (0.1024)
2.64 (0.1039)

32237 8H812
32237 8H813
32237 8H814
32237 8H815
32237 8H816
32237 8H817
32237 8H818
32237 8H819
32237 8H820
32237 8H821
32237 8H822

End play standard value

0 - 0.1 mm (0 - 0.004 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.88 (0.0346)
0.96 (0.0378)
1.04 (0.0409)
1.12 (0.0441)

32237 8H560
32237 8H561
32237 8H562
32237 8H563

1.20 (0.0472)
1.28 (0.0504)
1.36 (0.0535)

32237 8H564
32237 8H565
32237 8H566

End play standard value

0.05 - 0.152 mm (0.0020 - 0.0060 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

1.12 (0.0441)
1.20 (0.0472)
1.28 (0.0504)
1.36 (0.0535)
1.44 (0.0567)

33761 JA60A
33761 JA61A
33761 JA62A
33761 JA63A
33761 JA64A

1.52 (0.0598)
1.60 (0.0630)
1.68 (0.0661)
1.76 (0.0693)
1.84 (0.0724)

33761 JA65A
33761 JA66A
33761 JA67A
33761 JA68A
33761 JA69A

Differential side bearing preload: L*

0.15 - 0.21 mm (0.0059 - 0.0083 in)

TM-148

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52H]

SERVICE DATA AND SPECIFICATIONS (SDS)

*: Install shims which are “deflection of differential case” + “L” in thickness.

DIFFERENTIAL SIDE BEARING ADJUSTING SHIM(S)

*: Always check with the Parts Department for the latest parts information.

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)

31438 80X00
31438 80X01
31438 80X02
31438 80X03
31438 80X04
31438 80X05

0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)

31438 80X06
31438 80X07
31438 80X08
31438 80X09
31438 80X10

31438 80X11

PRECAUTIONS

TM-149

< PRECAUTION >

[CVT: RE0F10B]

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012200841

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000012200842

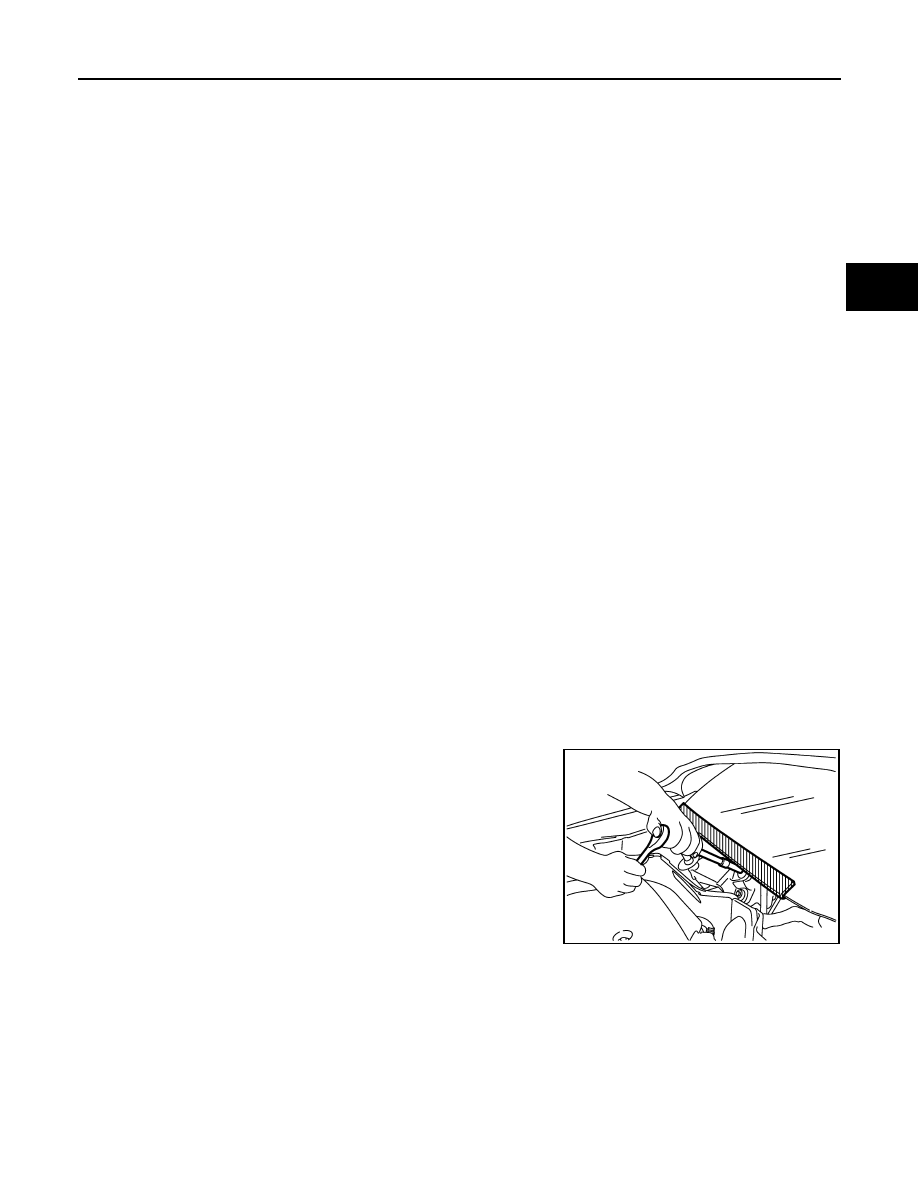

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precautions for Removing Battery Terminal

INFOID:0000000012990842

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

PIIB3706J
