TM-138

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

FINAL DRIVE

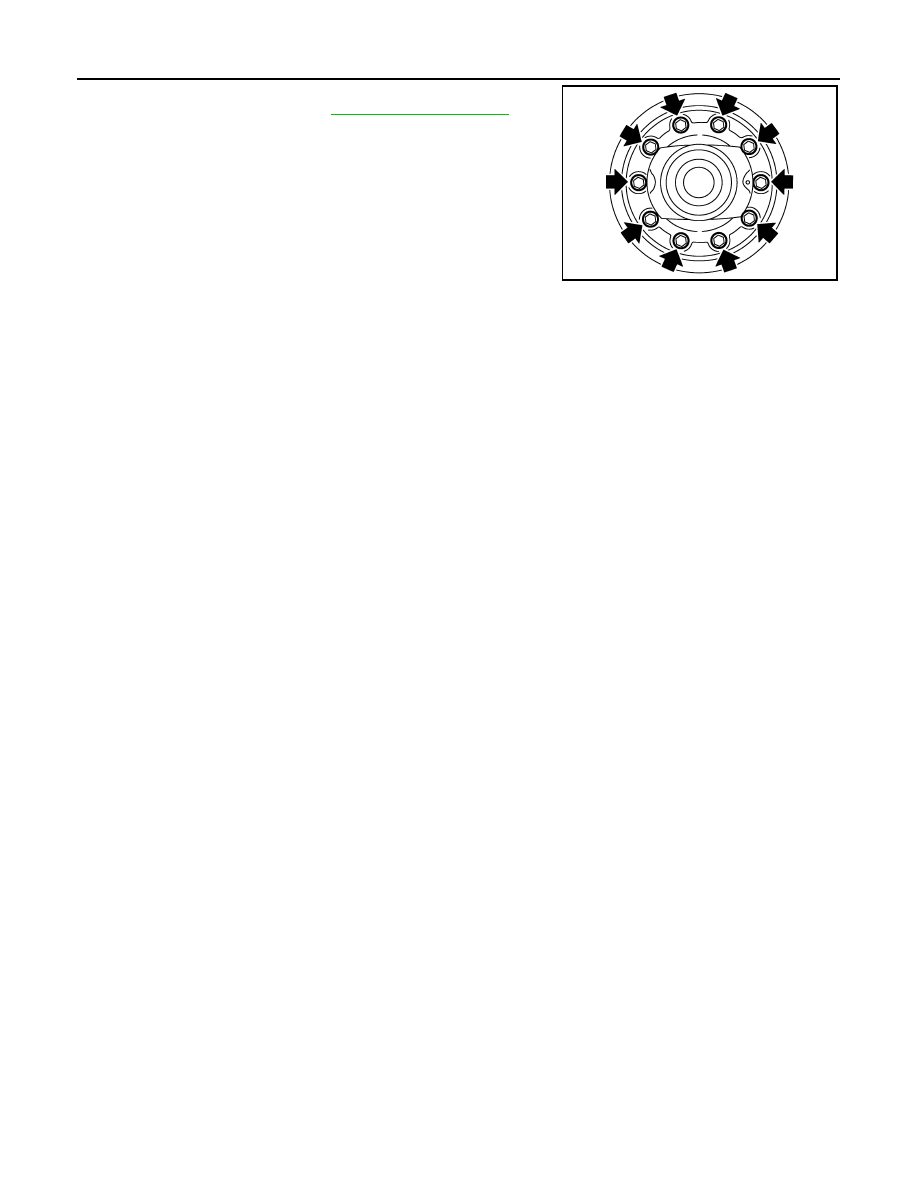

3. Install final gear into differential case and tighten final gear bolts

to the specified torque. Refer to

TM-136, "Exploded View"

.

SCIA0912E

SHIFT CONTROL

TM-139

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT CONTROL

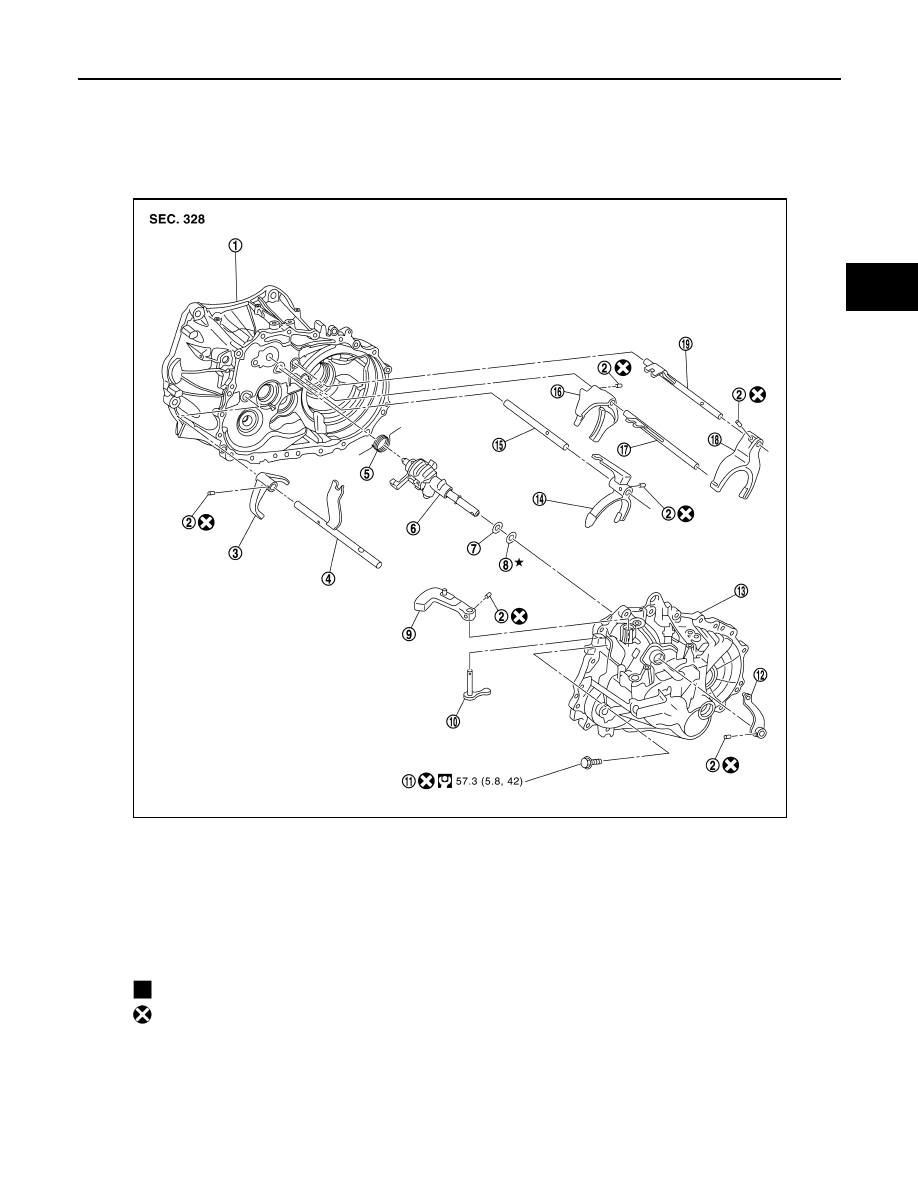

Exploded View

INFOID:0000000012200831

SHIFT CONTROL

Disassembly and Assembly

INFOID:0000000012200832

DISASSEMBLY

1.

Clutch housing

2.

Retaining pin

3.

Reverse shift fork

4.

Reverse fork rod

5.

Return spring

6.

Striking rod assembly

7.

Striking rod shim

8.

Striking rod adjusting shim

9.

Shifter lever A

10. Shifter lever B

11. Guide bolt

12. Selector lever

13. Transaxle case

14. 3rd-4th shift fork

15. 3rd-4th fork rod

16. 1st-2nd shift fork

17. 1st-2nd fork rod

18. 5th-6th shift fork

19. 5th-6th fork rod

 : Replace the parts as a set.

 : Always replace after every disassembly.

JSDIA5279GB

TM-140

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

SHIFT CONTROL

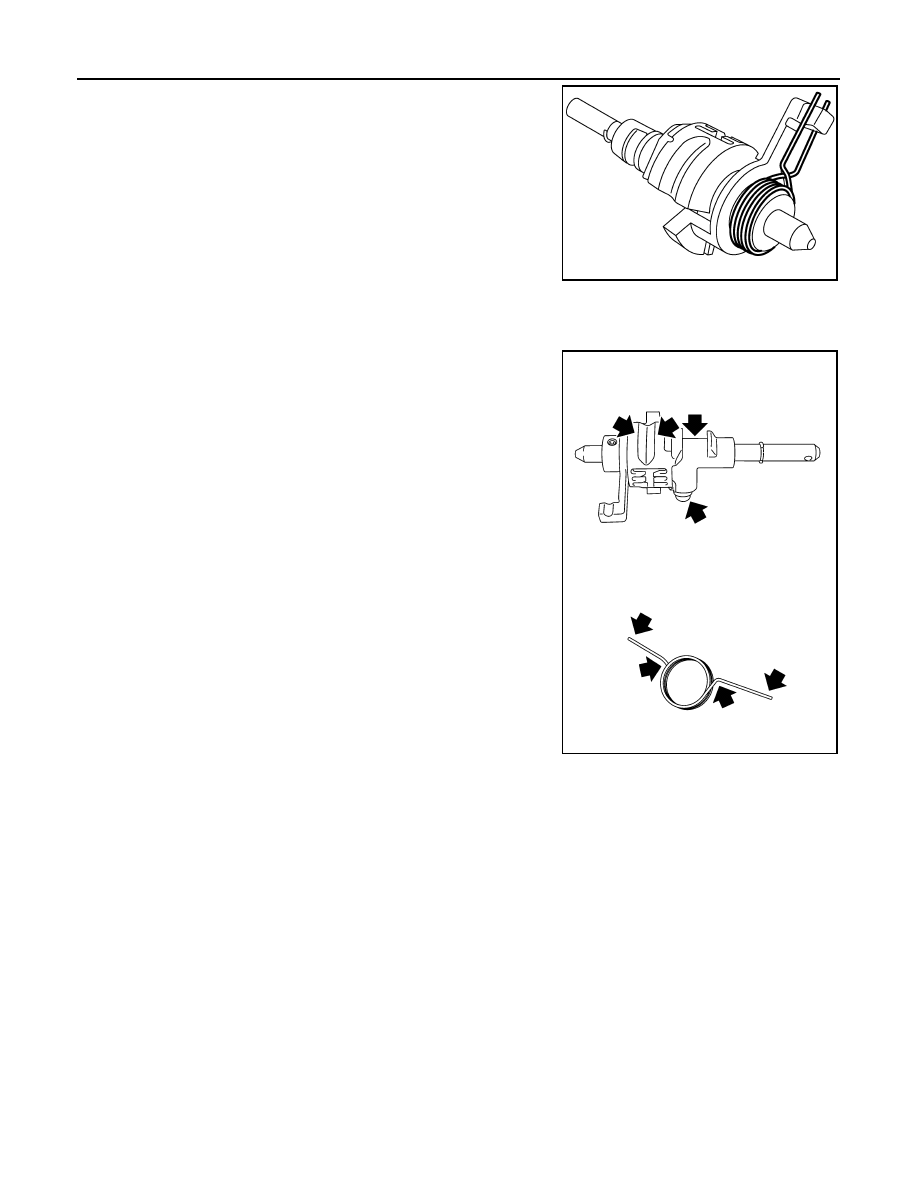

1. Remove return spring to striking rod assembly.

INSPECTION AFTER DISASSEMBLY

Striking Rod Assembly and Return Spring

• Check contact surfaces and sliding area for wear, damage, bend-

ing, etc. If necessary, replace parts.

Fork Rod and Shift Fork

PCIB1867E

PCIB1868E

SHIFT CONTROL

TM-141

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

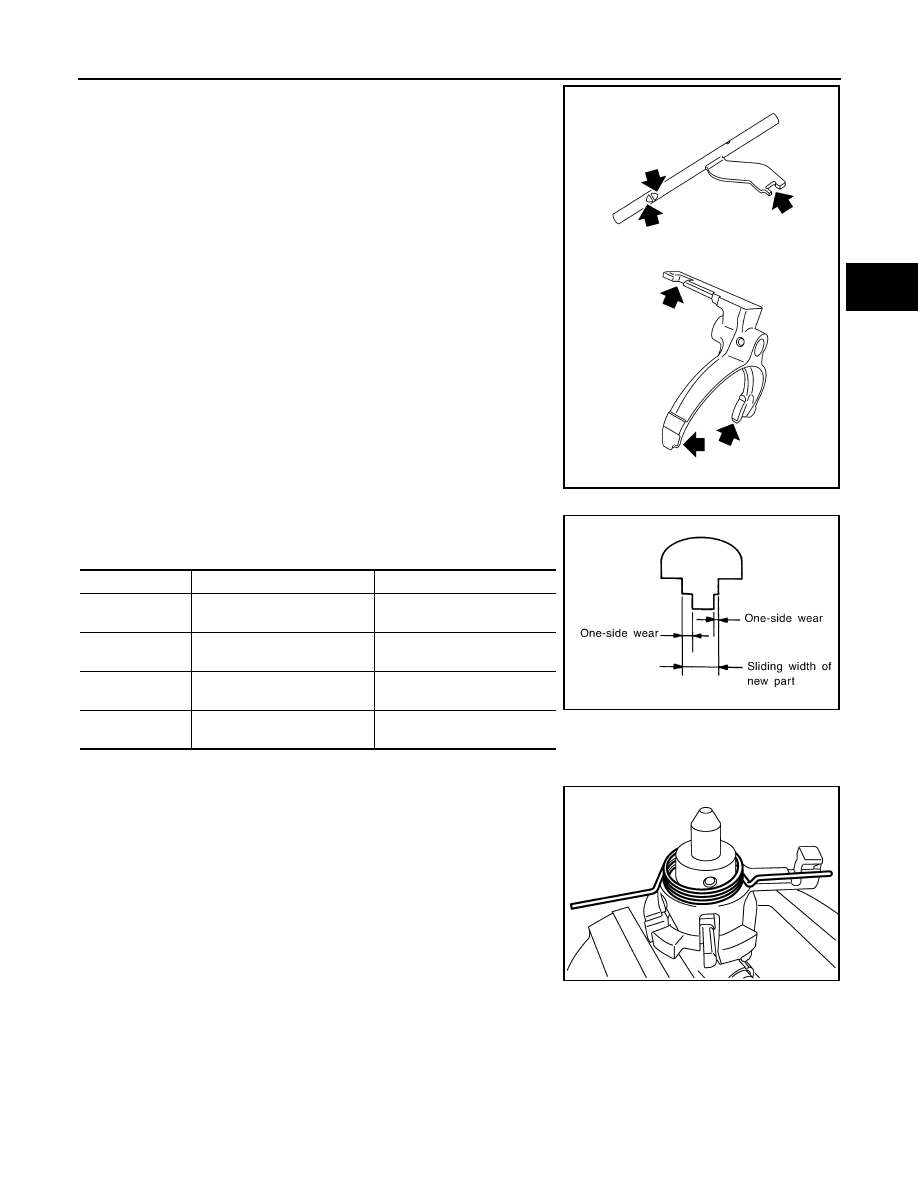

• Check contact surfaces and sliding area for wear, damage, bend-

ing, etc. If necessary, replace parts.

• Check if the width of shift fork hook (sliding area with coupling

sleeve) is within allowable specification below.

ASSEMBLY

1. Temporarily install return spring to striking rod assembly.

CAUTION:

Be careful with the orientation of return spring.

PCIB1869E

Item

One-side wear specification

Sliding width of new part

1st-2nd

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

3rd-4th

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

5th-6th

0.2 mm (0.008 in)

6.10 - 6.23 mm

(0.2402 - 0.2453 in)

Reverse

0.2 mm (0.008 in)

12.80 - 12.93 mm

(0.5039 - 0.5091 in)

SMT801D

PCIB1830E
