TRANSAXLE ASSEMBLY

SHIFT FORK AND FORK ROD

1.

Mainshaft front bearing

2.

Mainshaft bearing retainer

3.

Mainshaft

4.

Reverse main gear

5.

1st main gear

6.

1st main gear bushing

7.

1st needle bearing

8.

1st inner baulk ring

9.

1st synchronizer cone

10. 1st outer baulk ring

11. 1st-2nd spread spring

12. 1st-2nd shifting insert

13. 1st-2nd synchronizer hub

14. 2nd outer baulk ring

15. 2nd synchronizer cone

16. 2nd inner baulk ring

17. 1st-2nd coupling sleeve

18. 2nd main gear bushing

19. 2nd needle bearing

20. 2nd main gear

21. 3rd main gear

22. 3rd-4th mainshaft spacer

23. 4th main gear adjusting shim

24. 4th main gear

25. 5th main gear

26. 5th-6th mainshaft spacer

27. 6th main gear

28. 6th main gear adjusting shim 29. Mainshaft rear bearing

30. Mainshaft C-ring

31. C-ring holder

32. Snap ring

33. Mainshaft rear bearing adjust-

ing shim

 : Apply gear oil.

: Replace the parts as a set.

 : Always replace after every disassembly.

 : N·m (kg-m, ft-lb)

PCIB1889E

TRANSAXLE ASSEMBLY

TM-91

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

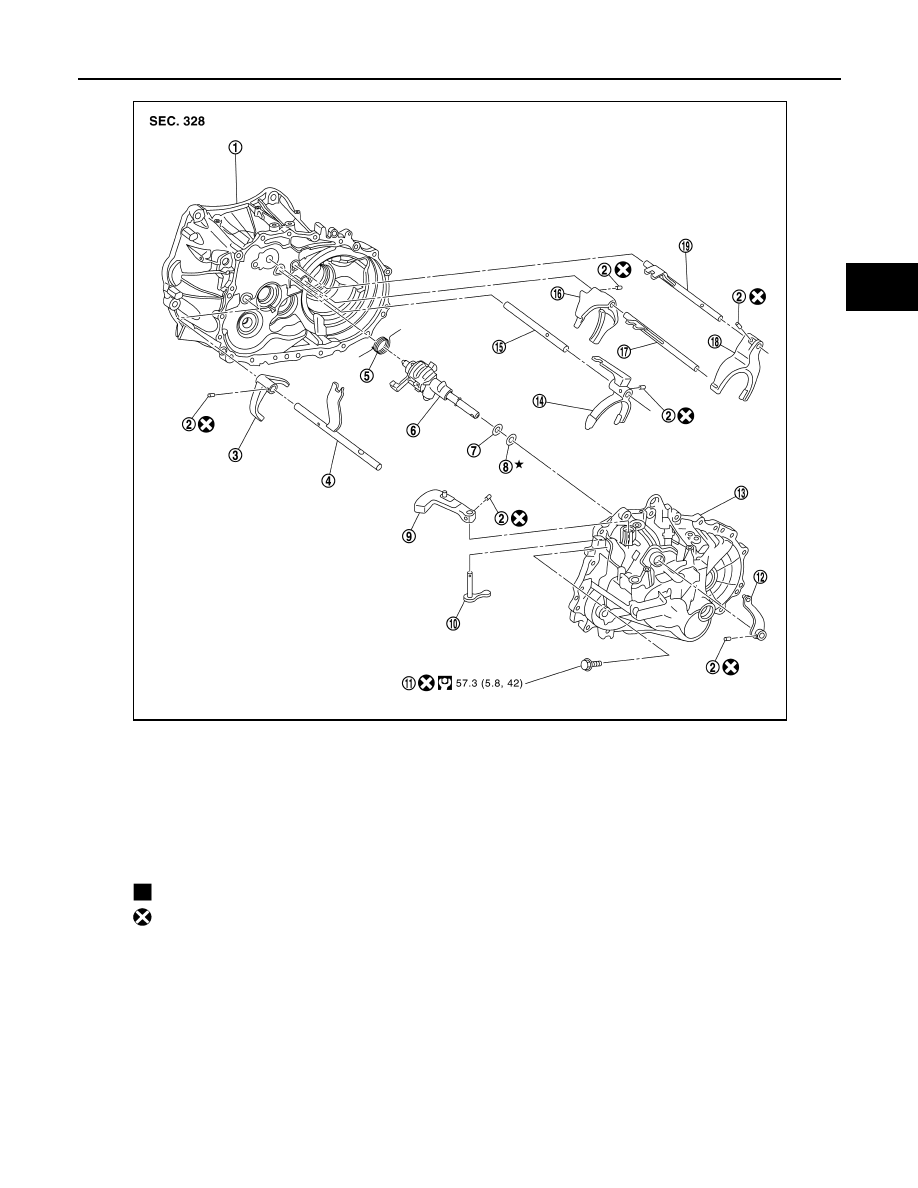

FINAL DRIVE

1.

Clutch housing

2.

Retaining pin

3.

Reverse shift fork

4.

Reverse fork rod

5.

Return spring

6.

Striking rod assembly

7.

Striking rod shim

8.

Striking rod adjusting shim

9.

Shifter lever A

10. Shifter lever B

11. Guide bolt

12. Selector lever

13. Transaxle case

14. 3rd-4th shift fork

15. 3rd-4th fork rod

16. 1st-2nd shift fork

17. 1st-2nd fork rod

18. 5th-6th shift fork

19. 5th-6th fork rod

 : Replace the parts as a set.

 : Always replace after every disassembly.

JSDIA5279GB

TM-92

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

TRANSAXLE ASSEMBLY

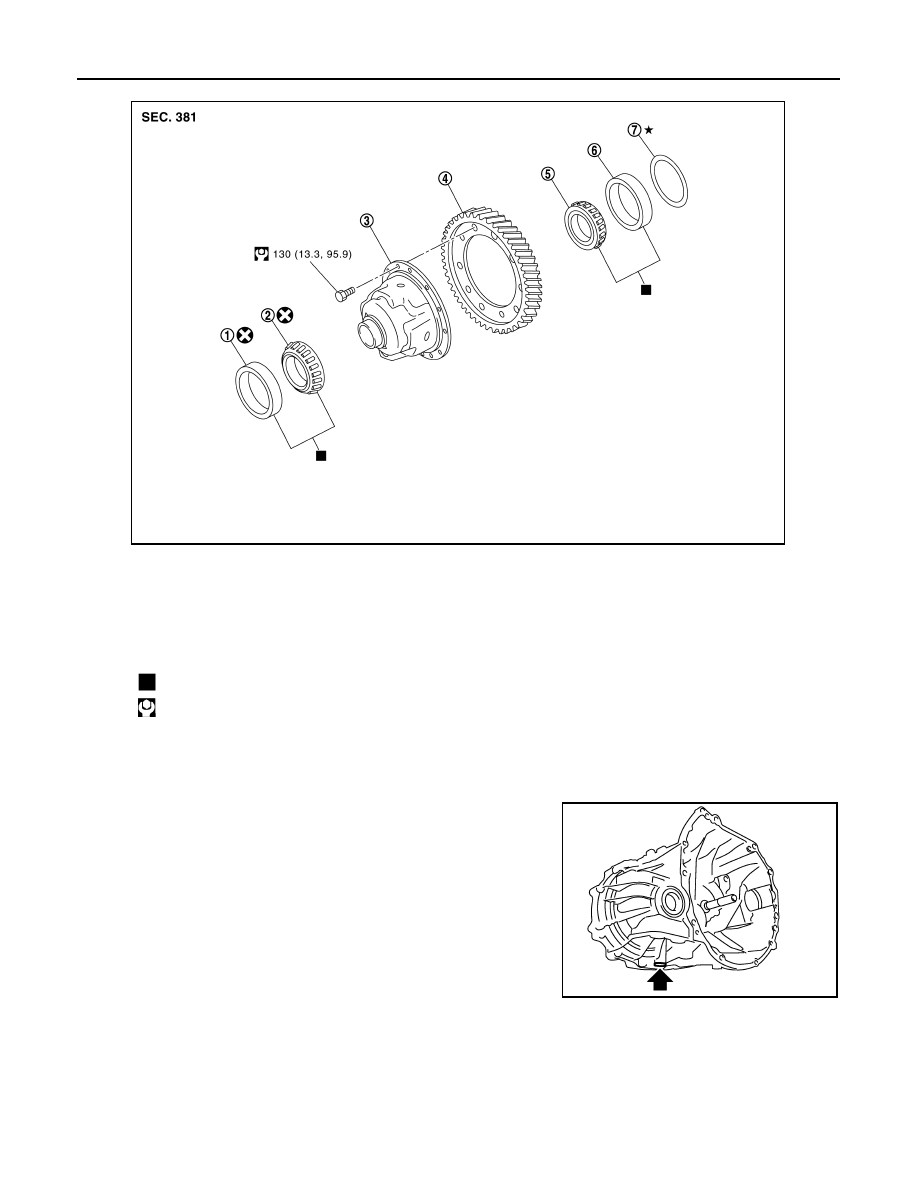

Disassembly

INFOID:0000000012200821

DISASSEMBLY

1. Remove drain plug and gasket from clutch housing.

1.

Differential side bearing outer
race (clutch housing side)

2.

Differential side bearing (clutch
housing side)

3.

Differential case assembly

4.

Final gear

5.

Differential side bearing (tran-
saxle case side)

6.

Differential side bearing outer
race (transaxle case side)

7.

Differential side bearing adjust-
ing shim

 : Replace the parts as a set.

 : N·m (kg-m, ft-lb)

JSDIA5268GB

PCIB1834E

TRANSAXLE ASSEMBLY

TM-93

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

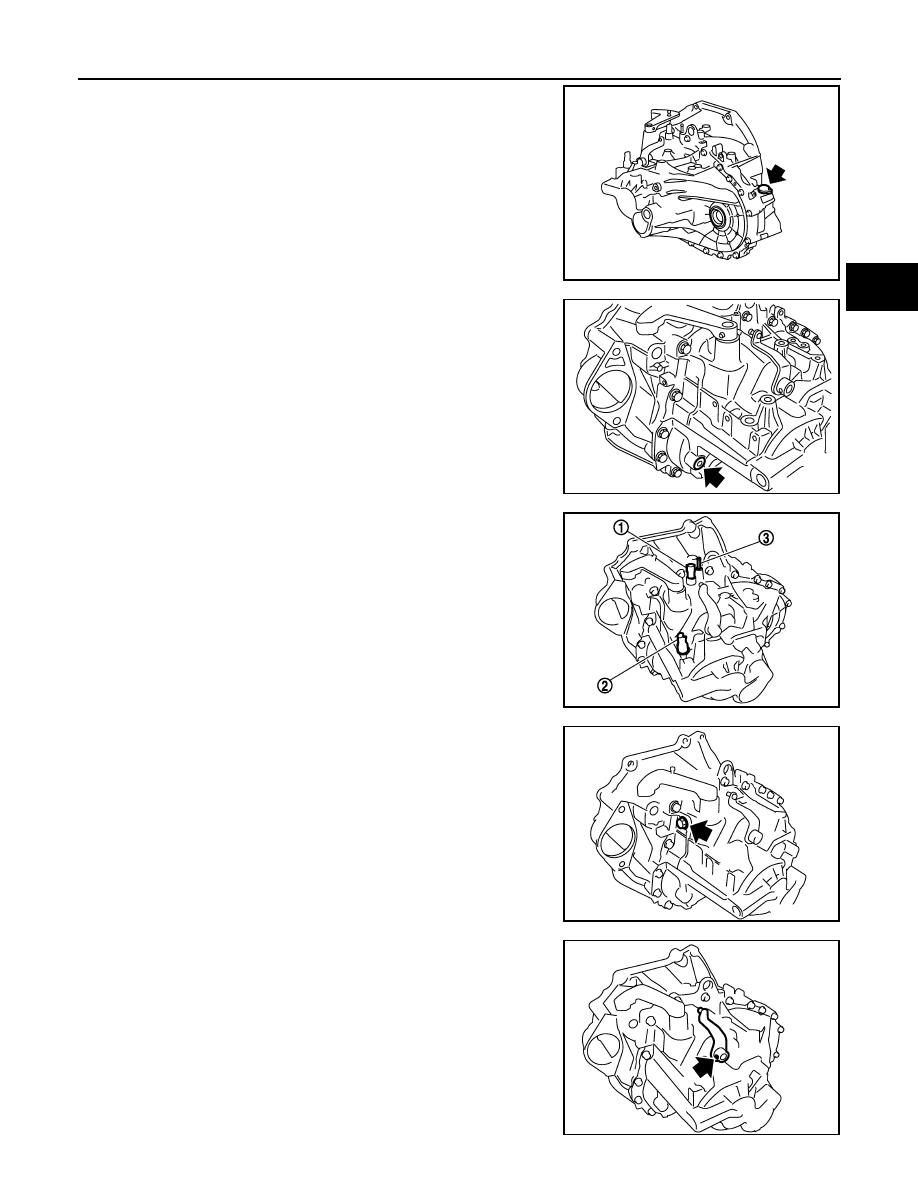

2. Remove plug bolt and then plug and O-ring from clutch housing.

3. Remove plug and gasket from transaxle case.

4. Remove park/neutral position (PNP) switch (1) from transaxle

case.

5. Remove back-up lamp switch (2) and plunger from transaxle

case.

CAUTION:

Do not lose plunger.

6. Remove air breather tube (3) from transaxle case.

7. Remove guide bolt from transaxle case.

8. Remove retaining pin using suitable tool and then remove selec-

tor lever from transaxle case.

PCIB1969E

PCIB1865E

PCIB1835E

PCIB1836E

PCIB1837E
