Nissan Juke F15. Manual - part 1224





TM-86

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F52H]

TRANSAXLE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

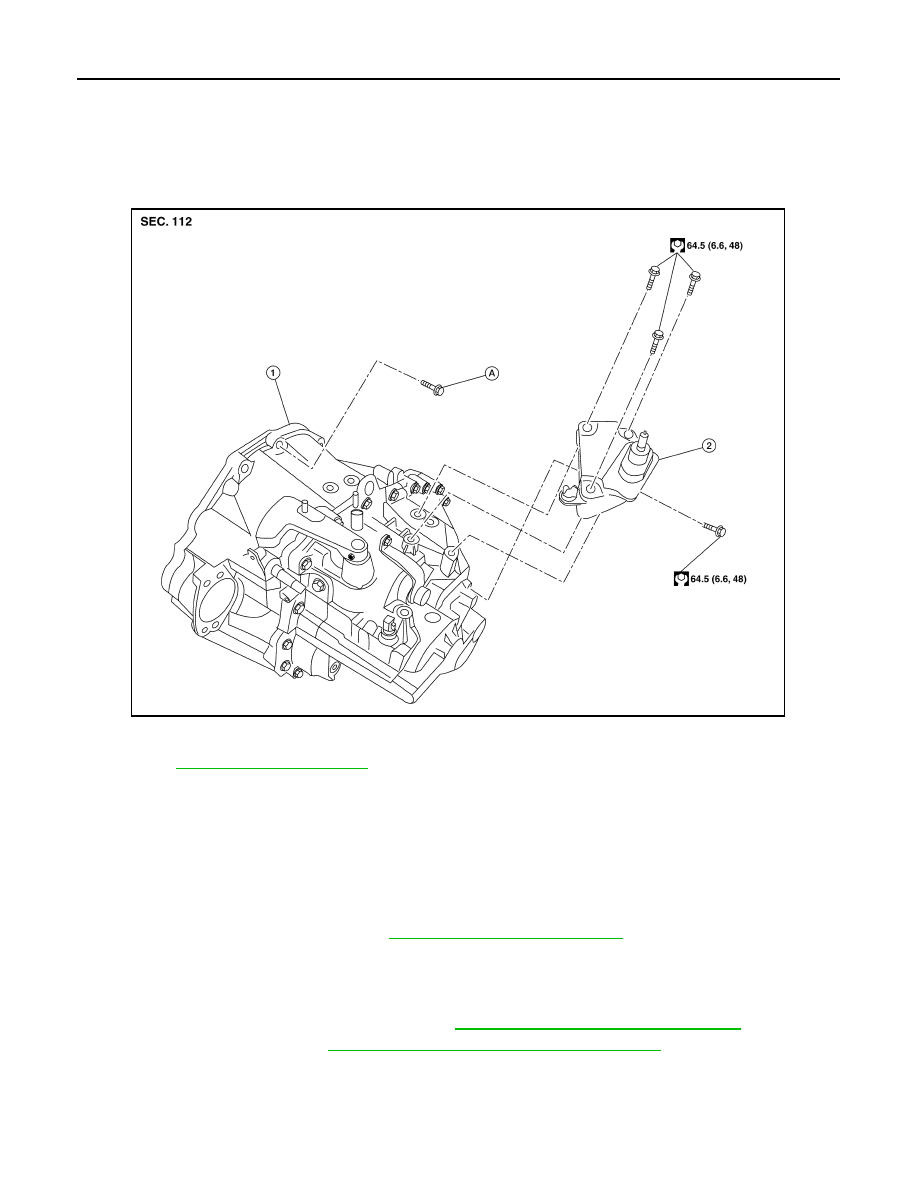

Exploded View

INFOID:0000000012200818

Removal and Installation

INFOID:0000000012200819

CAUTION:

If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).

Inserted CSC returns to the original position when removing transaxle assembly. Dust on clutch disc

sliding parts may damage CSC seal, and may cause clutch fluid leakage.

REMOVAL

1. Remove clutch tube from CSC. Refer to

CL-17, "Removal and Installation"

.

CAUTION:

Do not depress clutch pedal during removal procedure.

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

2. Remove engine and transaxle assembly. Refer to

EM-64, "2WD : Removal and Installation"

.

3. Remove starter motor. Refer to

STR-28, "MR16DDT : Removal and Installation"

.

4. Remove transaxle assembly to engine bolts.
5. Separate transaxle assembly from engine.

INSTALLATION

Installation is in the reverse order of removal.

1.

Transaxle assembly

2.

LH engine mount bracket

A.

Refer to

TM-86, "Removal and Installation"

.

LCIA0413E

TRANSAXLE ASSEMBLY

TM-87

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• If transaxle assembly is removed from the vehicle, always replace CSC. Refer to

CL-17, "Removal and

Installation"

.

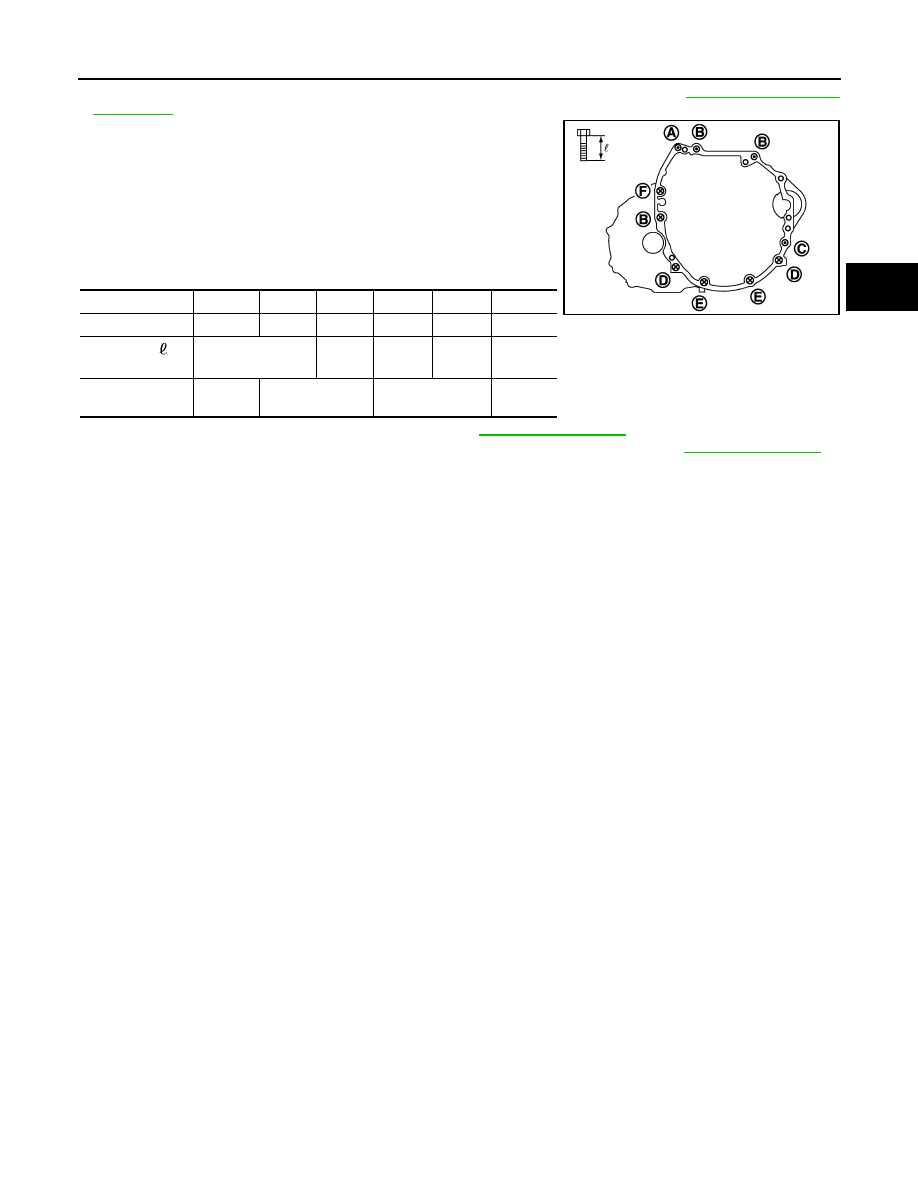

• When installing the transaxle assembly to the engine, use the

specified tightening torque in the numerical sequence shown:

CAUTION:

When installing transaxle assembly, do not allow the tran-

saxle input shaft to make contact with the clutch cover.

• Bleed the air from the clutch hydraulic system. Refer to

CL-10, "Air Bleeding"

.

• After installation, check oil level and check for leaks and loose mechanisms. Refer to

TM-80, "Inspection"

.

z

: Transaxle to engine

X

: Engine to transaxle

Bolt symbol

A

B

C

D

E

F

Quantity

1

3

1

2

2

1

Bolt length “ ”
mm (in)

45

(1.77)

80

(3.15)

45

(1.77)

35

(1.38)

45

(1.77)

Tightening torque
N·m (kg-m, ft-lb)

35.3

(3.6, 26)

74.5

 (7.6, 55)

42.6

 (4.3, 31)

48.0

 (4.9, 35)

PCIB1972E

TM-88

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

TRANSAXLE ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

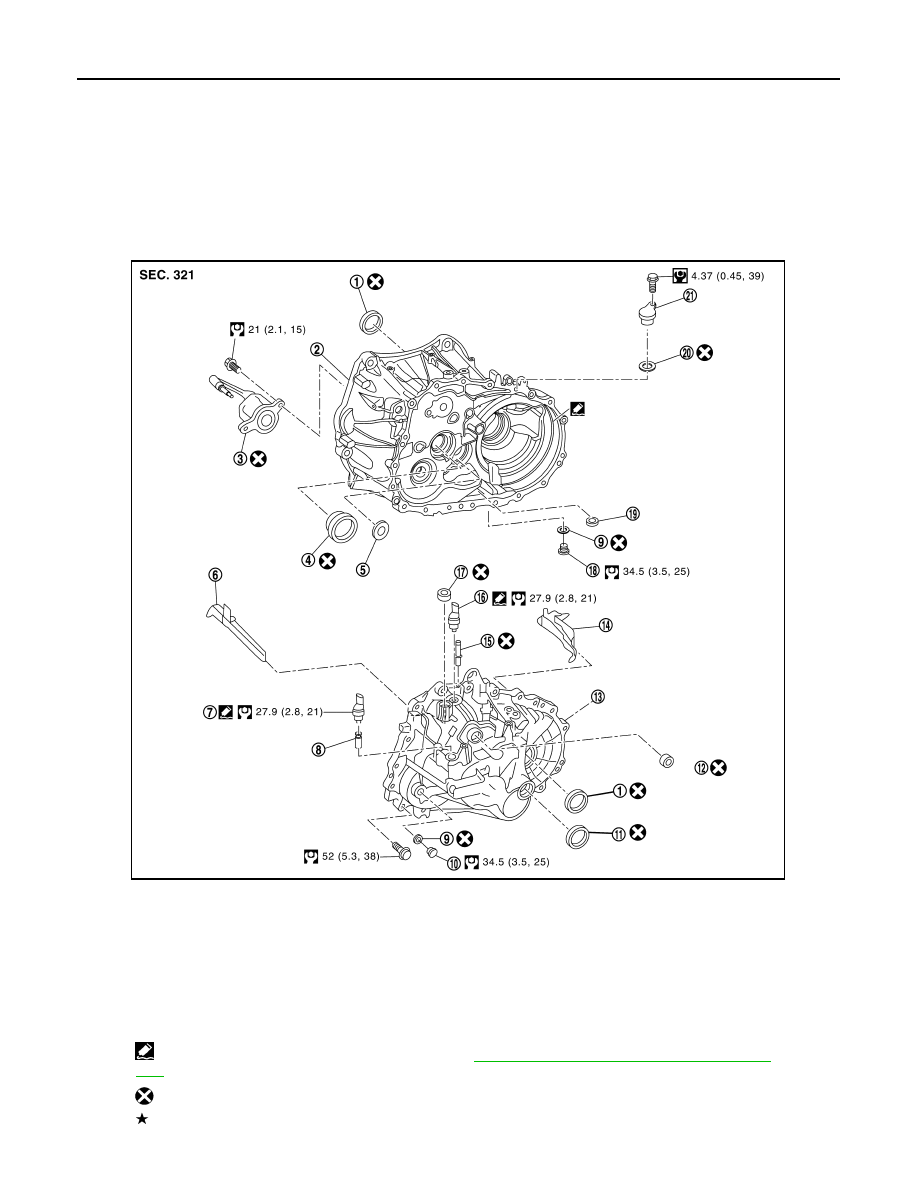

Exploded View

INFOID:0000000012200820

CASE AND HOUSING

1.

Differential side oil seal

2.

Clutch housing

3.

CSC (Concentric Slave Cylinder)

4.

Input shaft oil seal

5.

Oil channel

6.

Oil gutter A

7.

Back-up lamp switch

8.

Plunger

9.

Gasket

10. Plug

11. Bore plug

12. Striking rod oil seal

13. Transaxle case

14. Oil gutter B

15. Air breather tube

16. Park/Neutral position (PNP) switch 17. Shifter lever oil seal

18. Drain plug

19. Magnet

20. O-ring

21. Plug

 : Apply Genuine Silicone RTV or an equivalent. Refer to

GI-22, "Recommended Chemical Products and Seal-

ants"

.

 : Always replace after every disassembly.

 : Select with proper thickness.

JSDIA5278GB

TRANSAXLE ASSEMBLY

TM-89

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

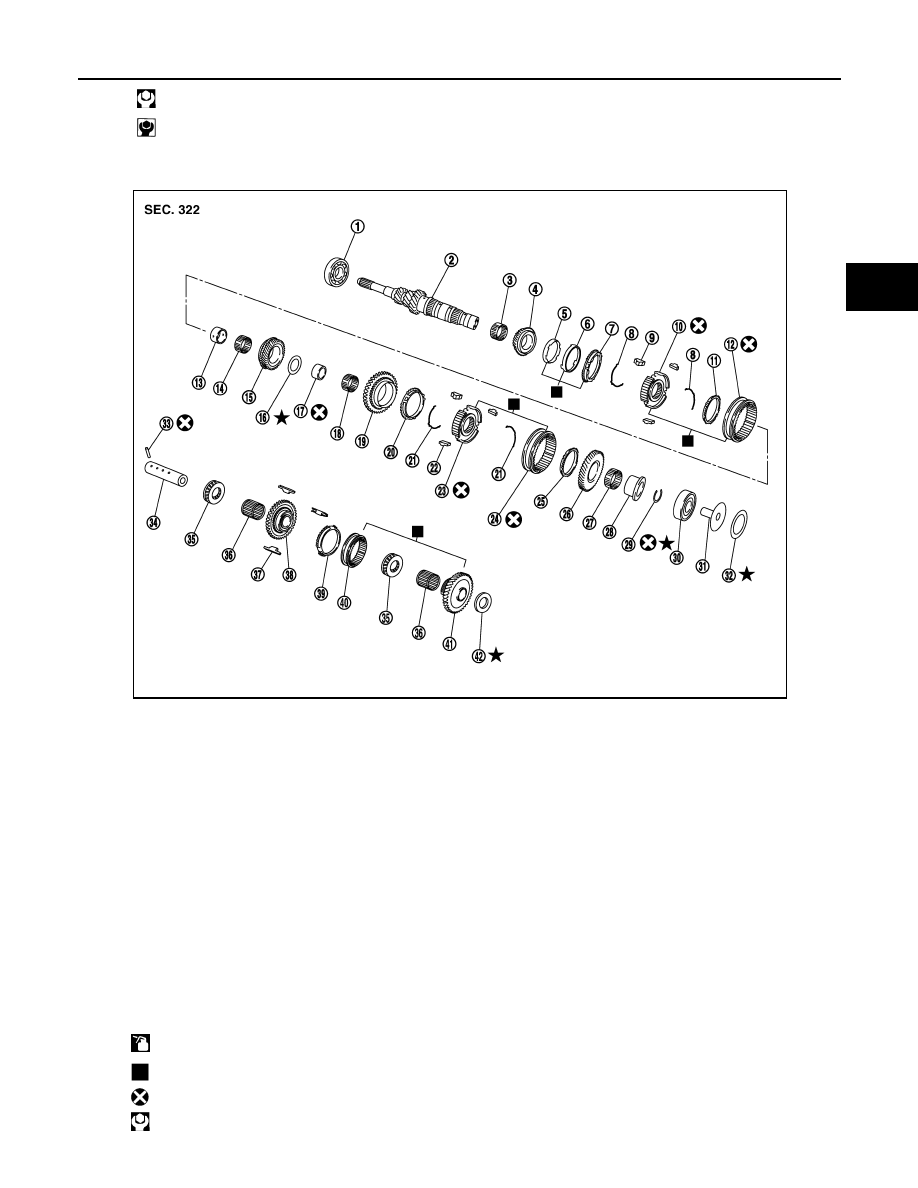

SHAFT AND GEAR

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

1.

Input shaft front bearing

2.

Input shaft

3.

3rd needle bearing

4.

3rd input gear

5.

3rd inner baulk ring

6.

3rd synchronizer cone

7.

3rd outer baulk ring

8.

3rd-4th spread spring

9.

3rd-4th shifting insert

10. 3rd-4th synchronizer hub

11. 4th baulk ring

12. 3rd-4th coupling sleeve

13. 4th input gear bushing

14. 4th needle bearing

15. 4th input gear

16. Thrust washer

17. 5th input gear bushing

18. 5th needle bearing

19. 5th input gear

20. 5th baulk ring

21. 5th-6th spread spring

22. 5th-6th shifting insert

23. 5th-6th synchronizer hub

24. 5th-6th coupling sleeve

25. 6th baulk ring

26. 6th input gear

27. 6th needle bearing

28. 6th input gear bushing

29. Snap ring

30. Input shaft rear bearing

31. Oil channel

32. Input shaft rear bearing adjusting

shim

33. Retaining pin

34. Reverse idler shaft

35. Thrust needle bearing

36. Reverse idler gear needle bear-

ing

37. Reverse insert spring

38. Reverse idler gear (front)

39. Reverse baulk ring

40. Reverse coupling sleeve

41. Reverse idler gear (rear)

42. Reverse idler gear adjusting shim

 : Apply gear oil.

: Replace the parts as a set.

 : Always replace after every disassembly.

 : N·m (kg-m, ft-lb)

PCIB1888E
