POSITION SWITCH

DTC/CIRCUIT DIAGNOSIS

POSITION SWITCH

BACK-UP LAMP SWITCH
BACK-UP LAMP SWITCH : Component Inspection

INFOID:0000000012200805

1.

CHECK BACK-UP LAMP SWITCH

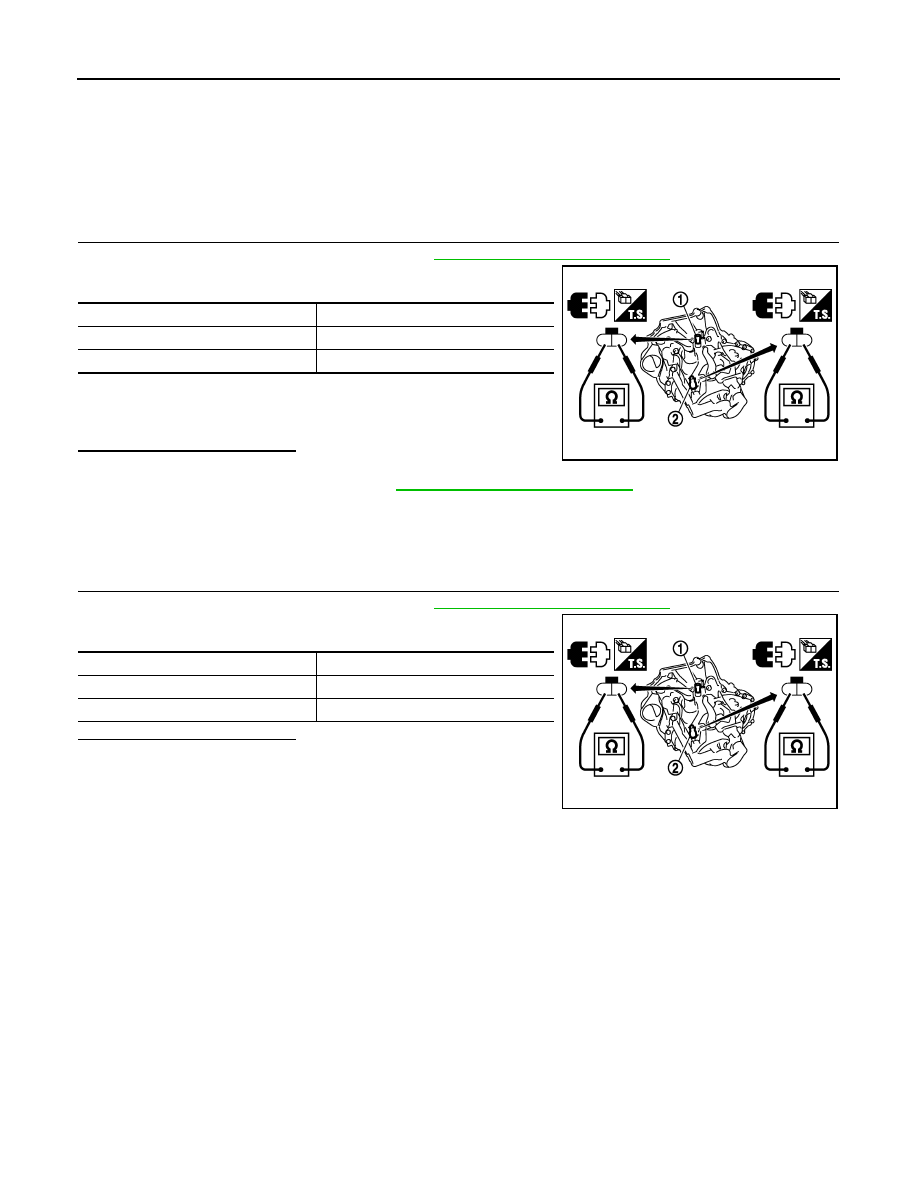

1. Disconnect position switch connector. Refer to

TM-82, "Removal and Installation"

.

2. Check continuity between position switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-82, "Removal and Installation"

.

PARK/NEUTRAL POSITION (PNP) SWITCH
PARK/NEUTRAL POSITION (PNP) SWITCH : Component Inspection

INFOID:0000000012200806

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

1. Disconnect position switch connector. Refer to

TM-82, "Removal and Installation"

.

2. Check continuity between position switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch.

Gear position

Continuity

Reverse

Yes

Except reverse

No

1

: Park/Neutral position (PNP) switch

2

: Back-up lamp switch

PCIB1970E

Gear position

Continuity

Neutral

Yes

Except neutral

No

PCIB1970E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

TM-79

< SYMPTOM DIAGNOSIS >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000012200807

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-

tion. If necessary, repair or replace these parts.

SUSPECTED PARTS
(Possible cause)

OI

L

(O

il le

ve

l i

s l

o

w

.)

O

IL (W

ro

ng

 oi

l.)

OI

L

(O

il le

ve

l i

s h

ig

h

.)

GASKET (Damaged)

OIL SEAL

(W

orn or

damaged)

SHIFT

 CON

T

ROL LINKAGE (W

orn)

STRIKI

NG

ROD

ASSEMBL

Y (W

orn or damaged)

SHIFT

 FORK (W

orn

)

G

EAR (W

orn

 or

da

ma

ge

d)

BEARING (W

orn or damaged)

BAULK

 RING

 (W

orn

 or

da

ma

ge

d)

INSER

T SPRI

N

G

(D

amaged)

Reference page

TM-80

TM-88

TM-83

TM-125

TM-88

,

TM-1

17

,

TM

-1

25

,

TM-136

,

TM-136

Symptoms

Noise

1

2

3

3

Oil  leakage

3

1

2

2

Hard to shift or will not shift

1

1

2

3

3

Jumps out of gear

1

2

3

3

TM-80

< PERIODIC MAINTENANCE >

[6MT: RS6F52H]

GEAR OIL

PERIODIC MAINTENANCE

GEAR OIL

Inspection

INFOID:0000000012200808

OIL LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

OIL LEVEL

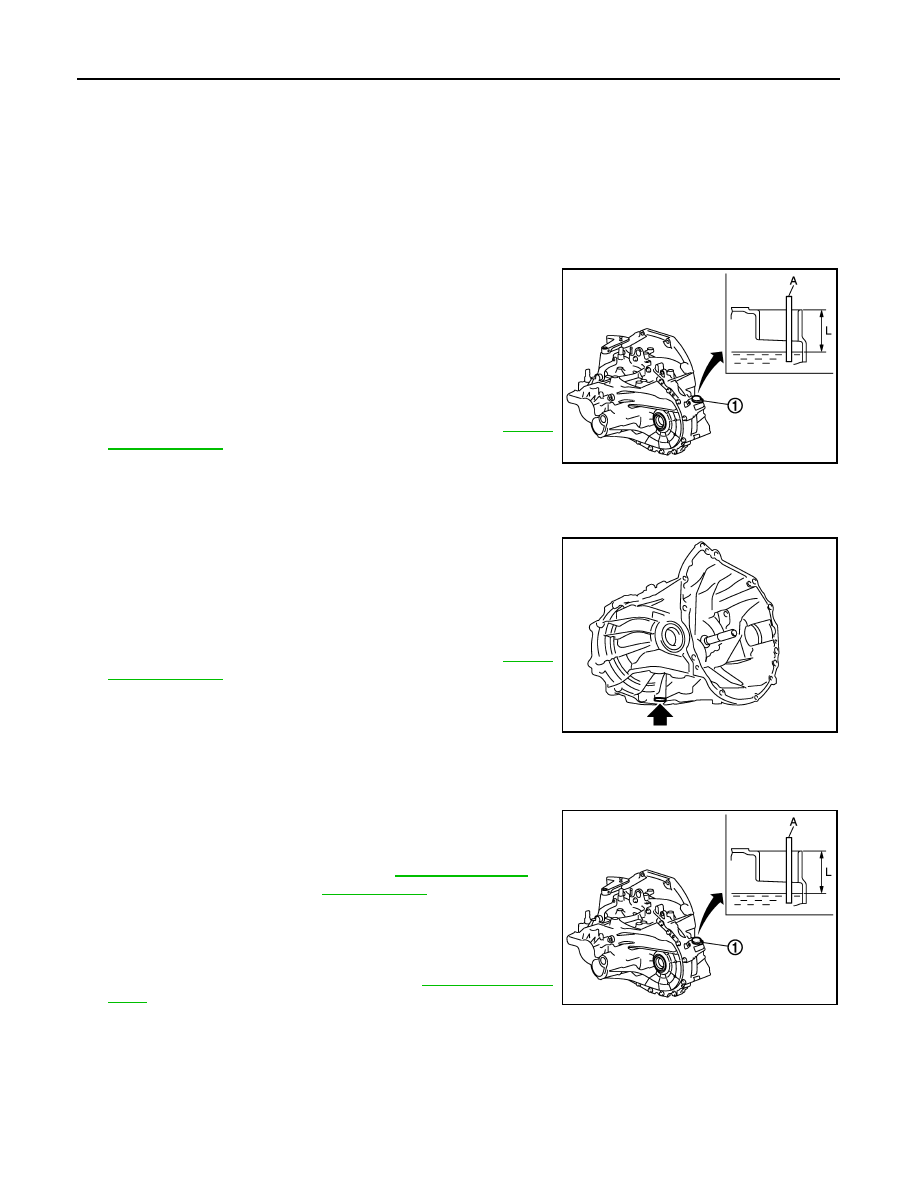

1. Remove filler plug (1) and gasket from transaxle case.
2. Check the oil level from filler plug mounting hole as shown in the

figure.

CAUTION:

Never start engine while checking oil level.

3. Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4. Tighten filler plug to the specified torque. Refer to

TM-88,

"Exploded View"

.

Draining

INFOID:0000000012200809

1. Start engine and let it run to warm up transaxle.
2. Stop engine. Remove drain plug (1) and gasket, using a socket

[Commercial service tool] and then drain gear oil.

3. Set a gasket on drain plug and install it to clutch housing, using

a socket [Commercial service tool].

CAUTION:

Never reuse gasket.

4. Tighten drain plug to the specified torque. Refer to

TM-86,

"Exploded View"

.

Refilling

INFOID:0000000012200810

Refilling

1. Remove plug (1). Fill the transaxle with new oil and check the oil

level (L) using suitable gauge (A) as shown.

2. Install a new O-ring onto plug (1) and then install it to transaxle.

Tighten to the specified torque. Refer to

TM-88, "Exploded

View"

.

CAUTION:

Do not reuse O-ring.

PCIB1968E

PCIB1834E

Oil grade and capacity

: Refer to

TM-143, "General

Specification"

.

Oil level (L)

: 38.5 - 45.5 mm (1.516 - 1.791 in)

PCIB1968E

SIDE OIL SEAL

TM-81

< REMOVAL AND INSTALLATION >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

SIDE OIL SEAL

Removal and Installation

INFOID:0000000012200811

REMOVAL

1. Remove front drive shafts from transaxle assembly. Refer to

FAX-28, "2WD : Removal and Installation"

.

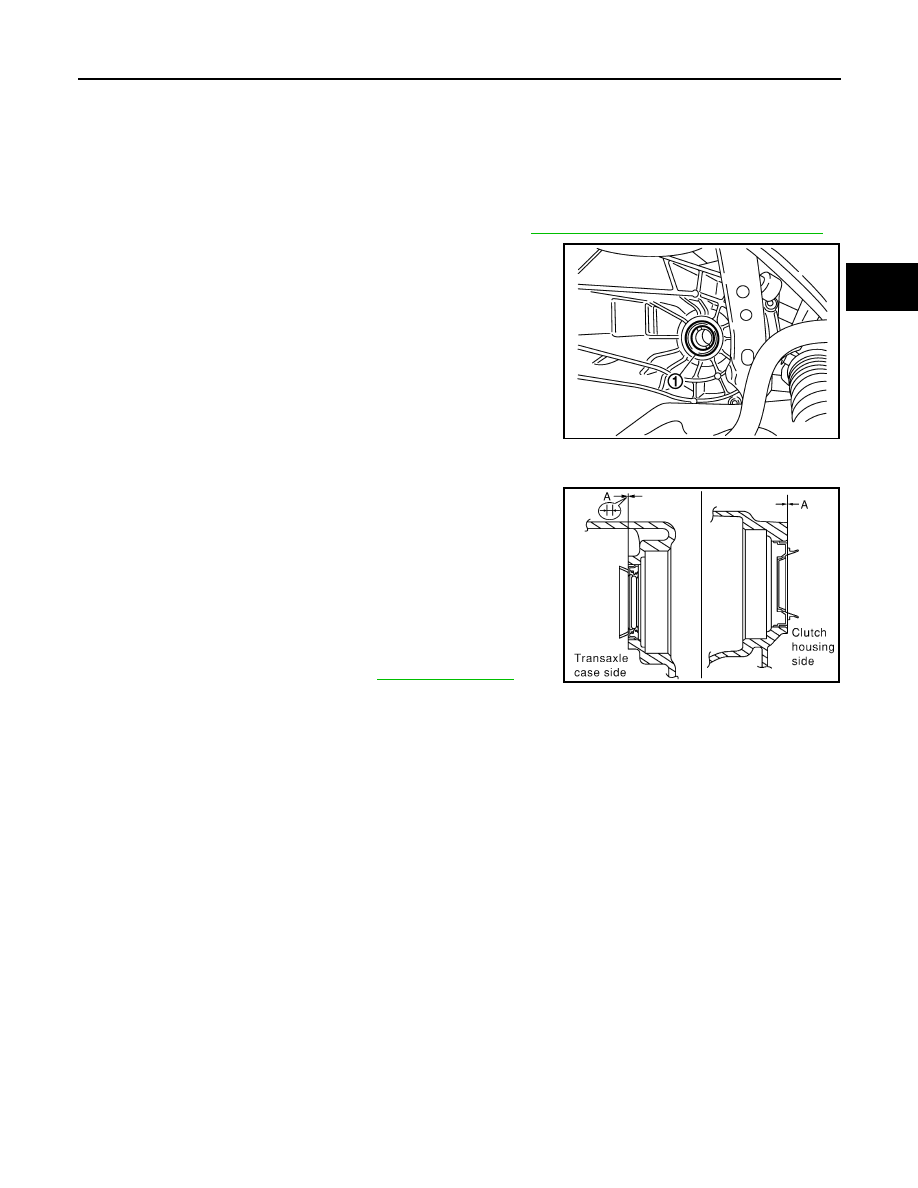

2. Remove differential side oil seal (1) using a suitable tool.

CAUTION:

Do not damage transaxle case and clutch housing.

INSTALLATION

Installation is in the reverse order of removal.

• Install differential side oil seal to clutch housing and transaxle case

to the specified dimension (A) using Tools.

CAUTION:

Do not reuse oil seal.

• Check oil level after installation. Refer to

TM-80, "Inspection"

 .

SCIA7625E

Dimension A)

: -0.5 - 0.5 mm (-0.020 - 0.020 in)

Tool numbers

: ST30720000 (J-25405)
: ST33400001 (J-26082)

SCIA1010E
