Nissan Juke F15. Manual - part 1220





TM-70

< PRECAUTION >

[6MT: RS6F52H]

PRECAUTIONS

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If tight-

ening sequence is specified, use it.

• Be careful not to damage sliding surfaces and mating surfaces.

PREPARATION

TM-71

< PREPARATION >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PREPARATION

PREPARATION

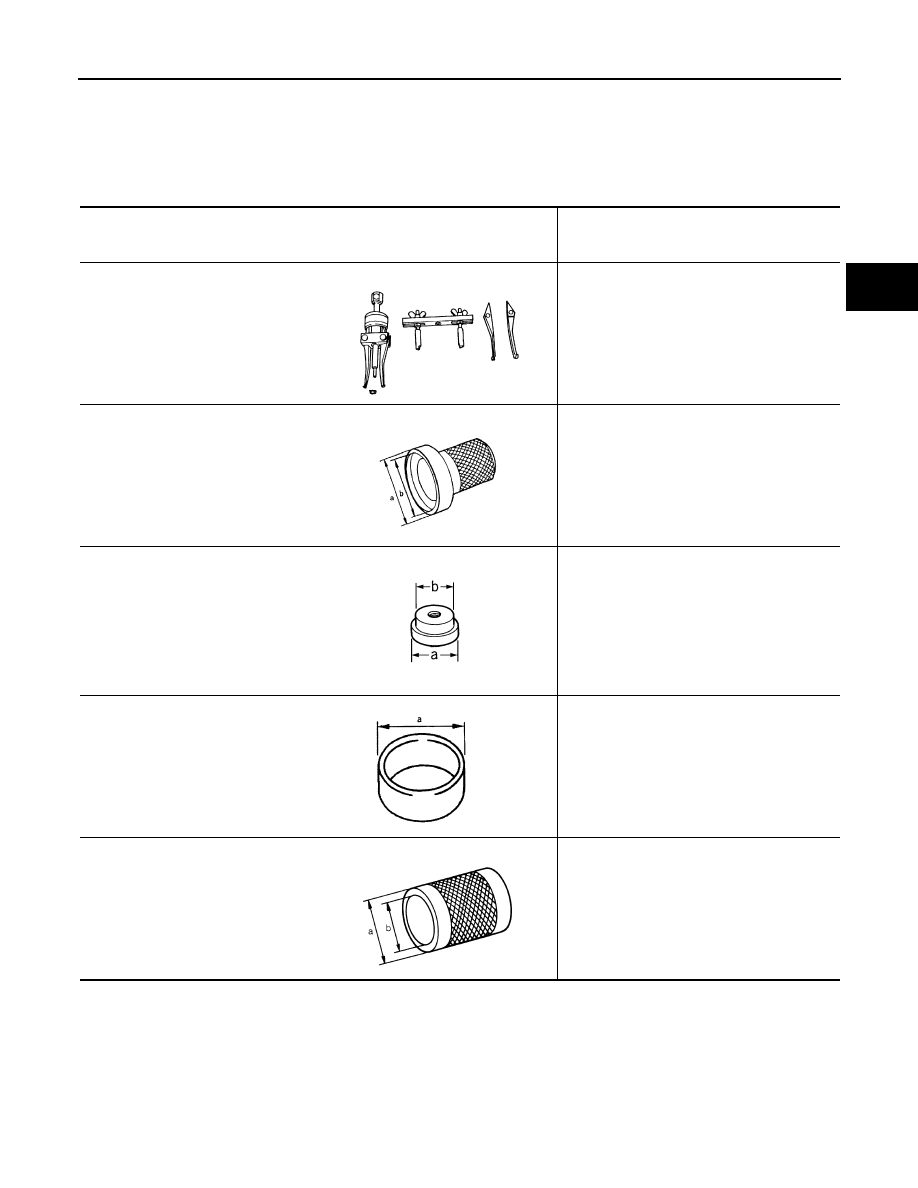

Special Service Tool

INFOID:0000000012200801

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number
(TechMate No.)
Tool name

Description

KV381054S0
(J-34286)
Puller

• Removing differential side bearing outer

race (clutch housing side)

• Removing differential side bearing outer

race (transaxle case side)

• Removing mainshaft front bearing

ST33400001
(J-26082)
Drift

Installing differential side oil seal (clutch hous-
ing side)
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

ST35321000
(

—

)

Drift

• Installing input shaft oil seal
• Installing reverse main gear
• Installing 1st main gear bushing
• Installing 1st-2nd synchronizer hub assem-

bly

• Installing 2nd main gear bushing
• Installing 3rd main gear
a: 49 mm (1.93 in) dia.
b: 41 mm (1.61 in) dia.

KV40105320
(

—

)

Drift

Installing differential side bearing outer race
(clutch housing side)
a: 88 mm (3.46 in) dia.

ST33200000
(J-26082)
Drift

• Installing mainshaft front bearing
• Installing 6th input gear bushing
• Installing 4th main gear
• Installing 5th main gear
• Installing 6th main gear
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

ZZA0601D

ZZA0814D

ZZA1000D

ZZA0898D

ZZA1002D

TM-72

< PREPARATION >

[6MT: RS6F52H]

PREPARATION

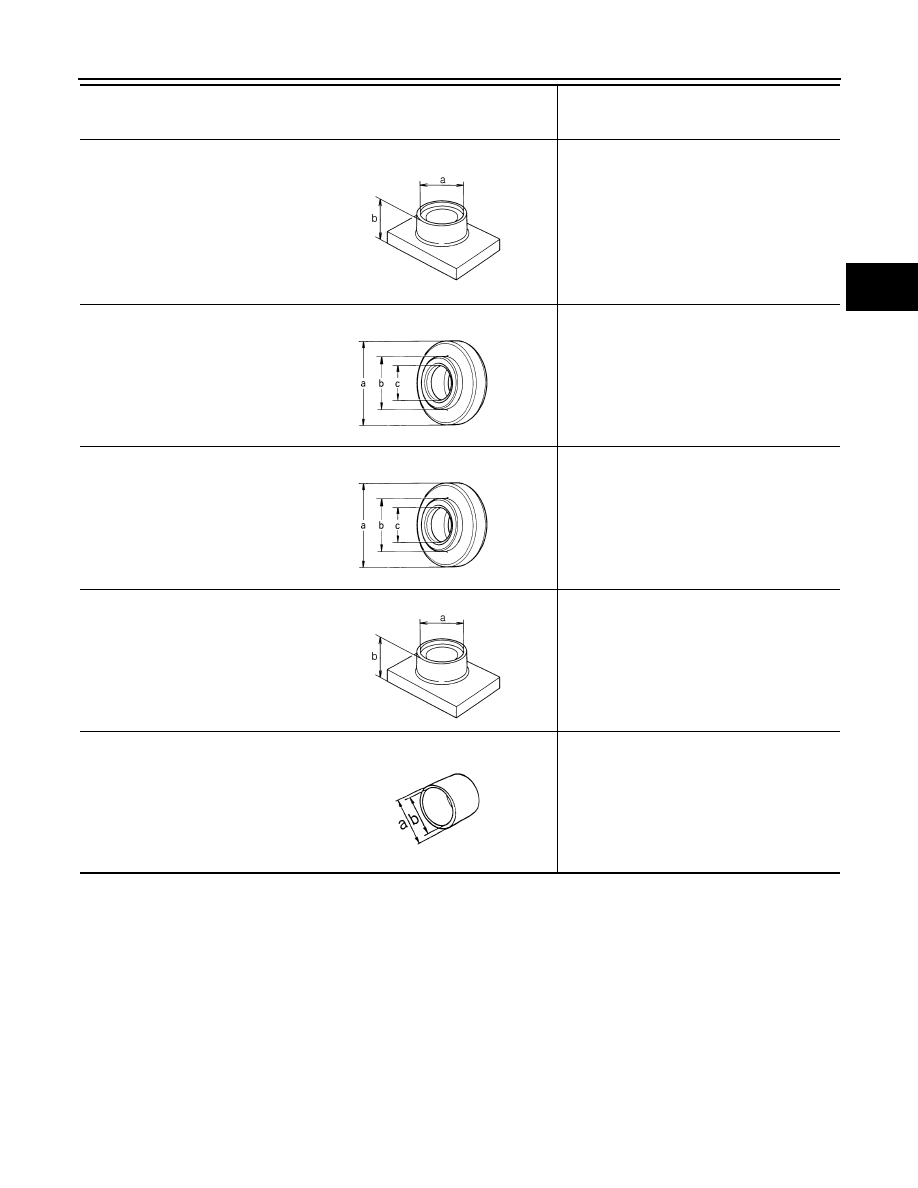

ST30720000
(J-25405)
Drift

• Installing differential side oil seal (transaxle

case side)

• Installing differential side bearing outer race

(clutch housing side)

• Installing differential side bearing outer race

(transaxle case side)

• Installing mainshaft rear bearing
• Installing differential side bearing (clutch

housing side)

• Installing differential side bearing (transaxle

case side)

a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

ST33061000
(J-8107-2)
Drift

• Installing bore plug
• Removing differential side bearing (transax-

le case side)

• Removing differential side bearing (clutch

housing side)

a: 38 mm (1.50 in) dia.
b: 28.5 mm (1.122 in) dia.

ST33052000
(

—

)

Drift

• Removing input shaft rear bearing
• Removing 6th input gear, 6th input gear

bushing, 5th-6th synchronizer hub assem-
bly, and 5th input gear

• Removing 5th input gear bushing, 4th input

gear, 4th input gear bushing, 3rd-4th syn-
chronizer hub assembly, and 3rd input gear

• Installing input shaft front bearing
• Removing mainshaft rear bearing
• Removing 6th main gear
• Removing 4th main gear and 5th main gear
a: 22 mm (0.87 in) dia.
b: 28 mm (1.10 in) dia.

KV40105020
(

—

)

Drift

Removing 3rd main gear, 2nd main gear, 2nd
main gear bushing, 1st-2nd synchronizer hub
assembly, 1st main gear, 1st main gear bush-
ing, and reverse main gear
a: 39.7 mm (1.563 in) dia.
b: 35 mm (1.38 in) dia.
c: 15 mm (0.59 in)

ST30031000
(J-22912-01)
Puller

Measuring wear of inner baulk ring

Tool number
(TechMate No.)
Tool name

Description

ZZA0811D

ZZA1000D

ZZA1023D

ZZA1133D

ZZA0537D

PREPARATION

TM-73

< PREPARATION >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

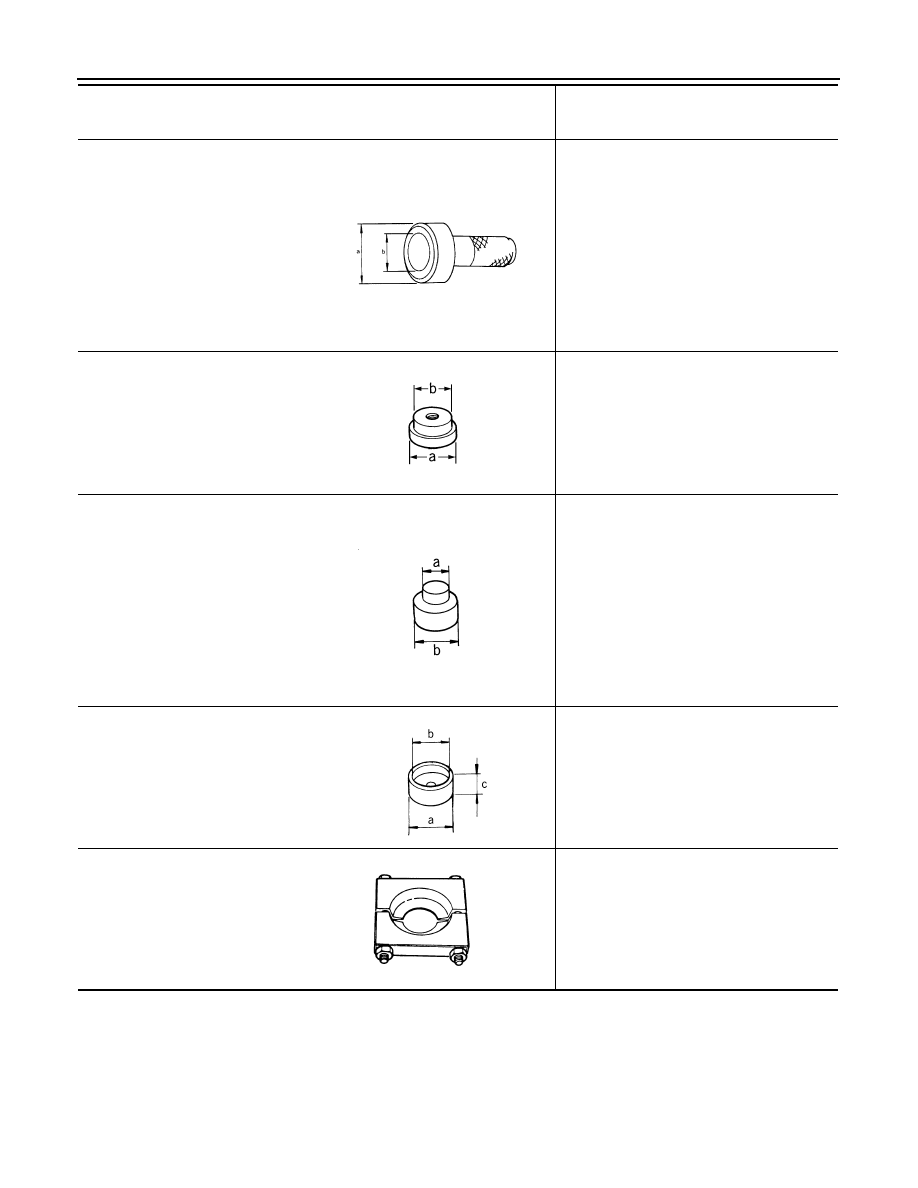

KV40105710
(

—

)

Press stand

• Installing 3rd-4th synchronizer hub assem-

bly

• Installing 4th input gear bushing
• Installing 5th input gear bushing
• Installing 5th-6th synchronizer hub assem-

bly

• Installing 2nd main gear bushing
• Installing 3rd main gear
a: 46 mm (1.81 in) dia.
b: 41 mm (1.61 in)

ST30901000
(J-26010-01)
Drift

• Installing input shaft rear bearing
• Installing 4th main gear
• Installing 5th main gear
• Installing 6th main gear
• Installing mainshaft rear bearing
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

ST30032000
(J-26010-01)
Drift

Installing input shaft front bearing
a: 80 mm (3.15 in) dia.
b: 38 mm (1.50 in) dia.
c: 31 mm (1.22 in) dia.

ST38220000
(

—

)

Press stand

• Installing reverse main gear
• Installing 1st main gear bushing
• Installing 1st-2nd synchronizer hub assem-

bly

a: 63 mm (2.48 in) dia.
b: 65 mm (2.56 in)

KV40101630
(J-35870)
Drift

Installing reverse main gear
a: 68 mm (2.68 in) dia.
b: 60 mm (2.36 in) dia.

Tool number
(TechMate No.)
Tool name

Description

ZZA1058D

ZZA0978D

ZZA0978D

ZZA1058D

ZZA1003D
