Nissan Juke F15. Manual - part 1223





TM-82

< REMOVAL AND INSTALLATION >

[6MT: RS6F52H]

POSITION SWITCH

POSITION SWITCH

Removal and Installation

INFOID:0000000012200812

REMOVAL

1. Remove battery. Refer to

PG-105, "Removal and Installation"

.

2. Disconnect position switch connector.
3. Remove position switch from transaxle case.

INSTALLATION

1. Apply recommended sealant to threads of position switch.

• Use Genuine Silicone RTV or an equivalent. Refer to

GI-22, "Recommended Chemical Products

and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

2. Install position switch to transaxle case.
3. Tighten position switch to the specified torque. Refer to

TM-88, "Exploded View"

.

4. For the next step and after, install in the reverse order of removal.

Inspection

INFOID:0000000012200813

INSPECTION AFTER INSTALLATION

• Check continuity between position switch terminals. Refer to

TM-78, "BACK-UP LAMP SWITCH : Compo-

nent Inspection"

 (Back-up lamp switch) and

TM-78, "PARK/NEUTRAL POSITION (PNP) SWITCH : Compo-

nent Inspection"

 (PNP switch).

• Check the oil leakage. Refer to

TM-80, "Inspection"

.

CONTROL LINKAGE

TM-83

< REMOVAL AND INSTALLATION >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL LINKAGE

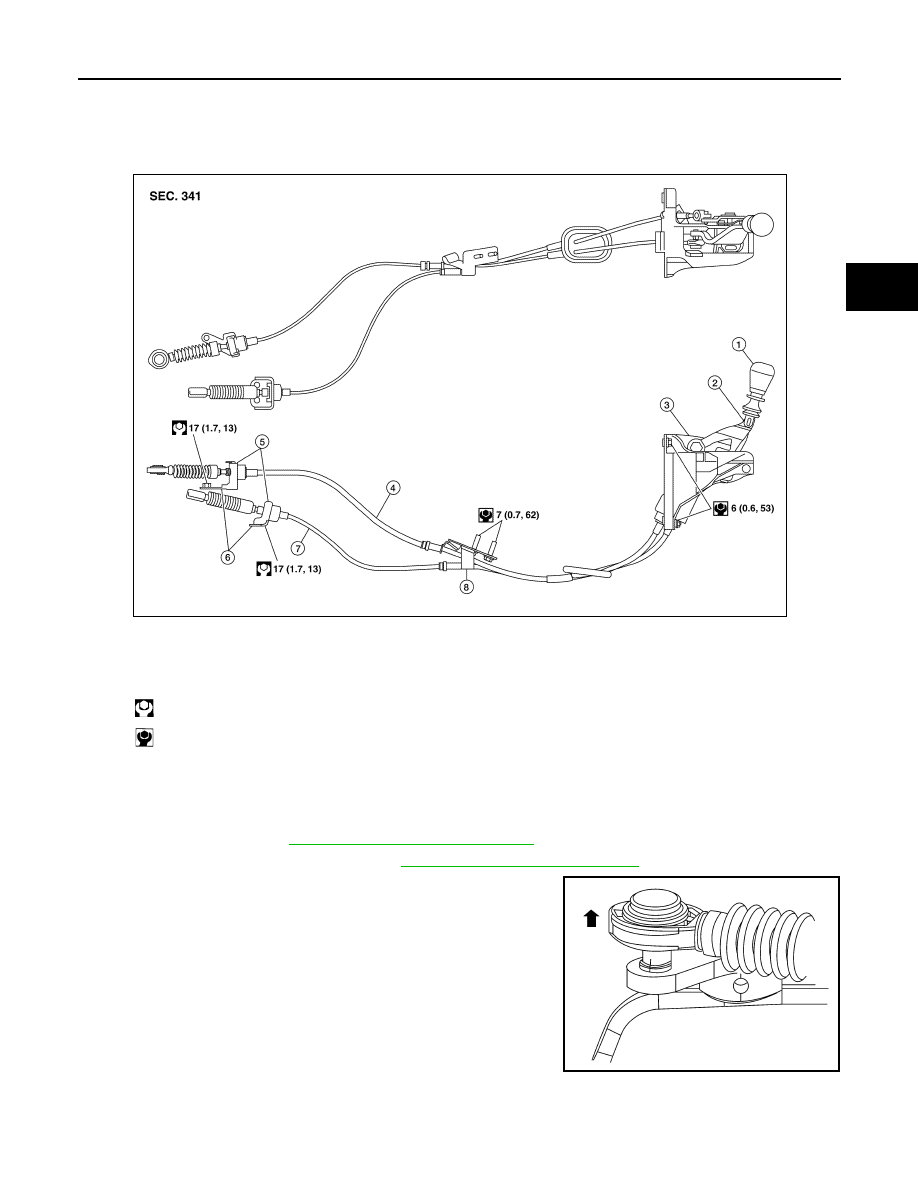

Exploded View

INFOID:0000000012200814

Removal and Installation

INFOID:0000000012200815

REMOVAL

1. Remove battery. Refer to

PG-105, "Removal and Installation"

.

2. Remove air cleaner and air duct. Refer to

EM-27, "Removal and Installation"

.

3. Remove shift cable from shifter lever as shown.

1.

Shift selector knob

2.

Shift selector

3.

Shift selector assembly

4.

Select cable

5.

Lock plate

6.

Cable bracket

7.

Shift cable

8.

Cable support bracket

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

LCIA0414E

BCIA0052E

TM-84

< REMOVAL AND INSTALLATION >

[6MT: RS6F52H]

CONTROL LINKAGE

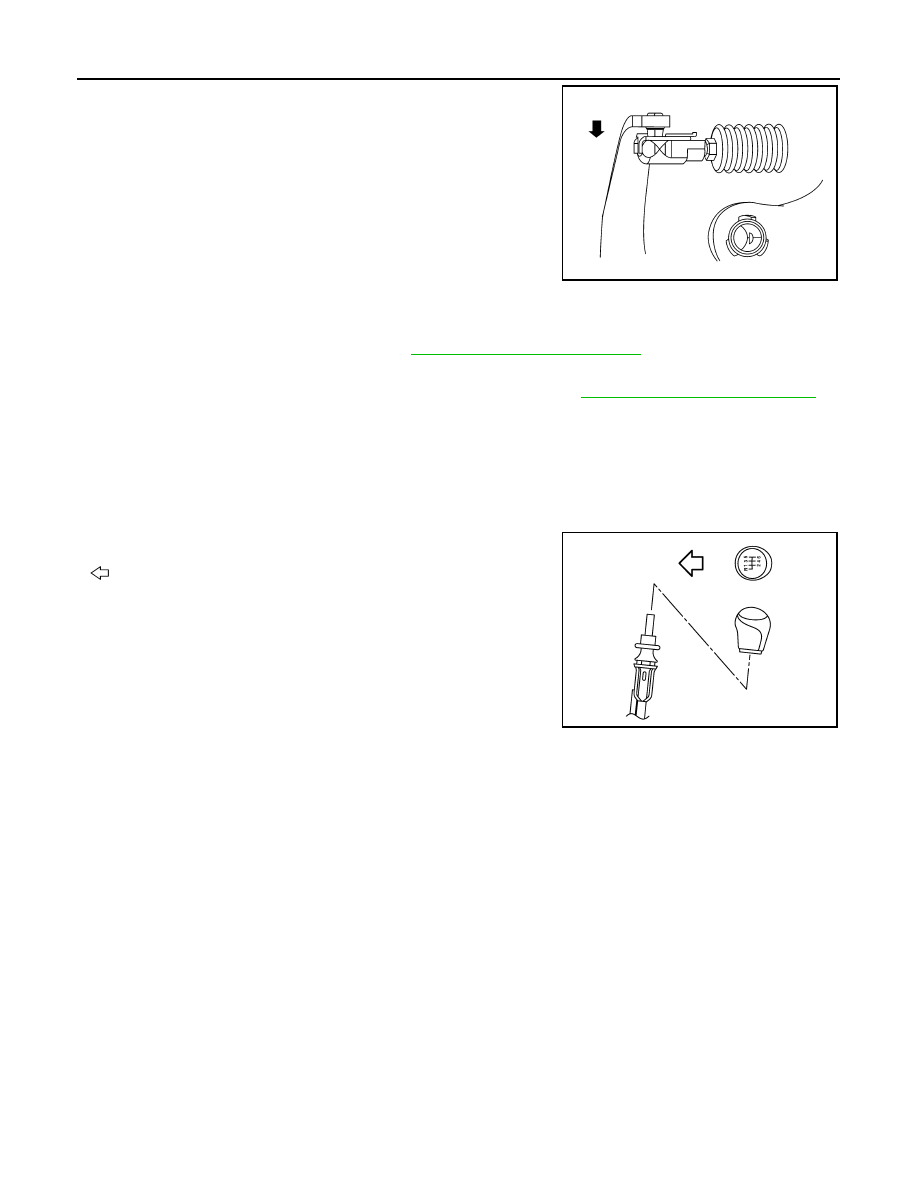

4. Remove select cable from selector lever A as shown.

5. Move shift selector to neutral position.
6. Remove shift selector knob.
7. Remove center console assembly. Refer to

IP-24, "Removal and Installation"

.

8. Remove shift selector assembly nuts.
9. Remove exhaust front tube, center muffler and heat shield. Refer to

EX-10, "Removal and Installation"

.

10. Remove cable support bracket.
11. Remove select cable and shift cable from cable bracket.
12. Remove shift selector assembly from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

• Securely install each cable to shifter lever and selector lever.

• Be careful about the installation direction, and screw shift selector

knob onto shift selector.

: Front

• When shift selector is selected to 1st-2nd side and 5th-6th side, confirm shift selector returns to neutral posi-

tion smoothly.

• When shift selector is shifted to each position, make sure there is no binding or disconnection in each boot.

BCIA0057E

SCIA7630E

AIR BREATHER HOSE

TM-85

< REMOVAL AND INSTALLATION >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

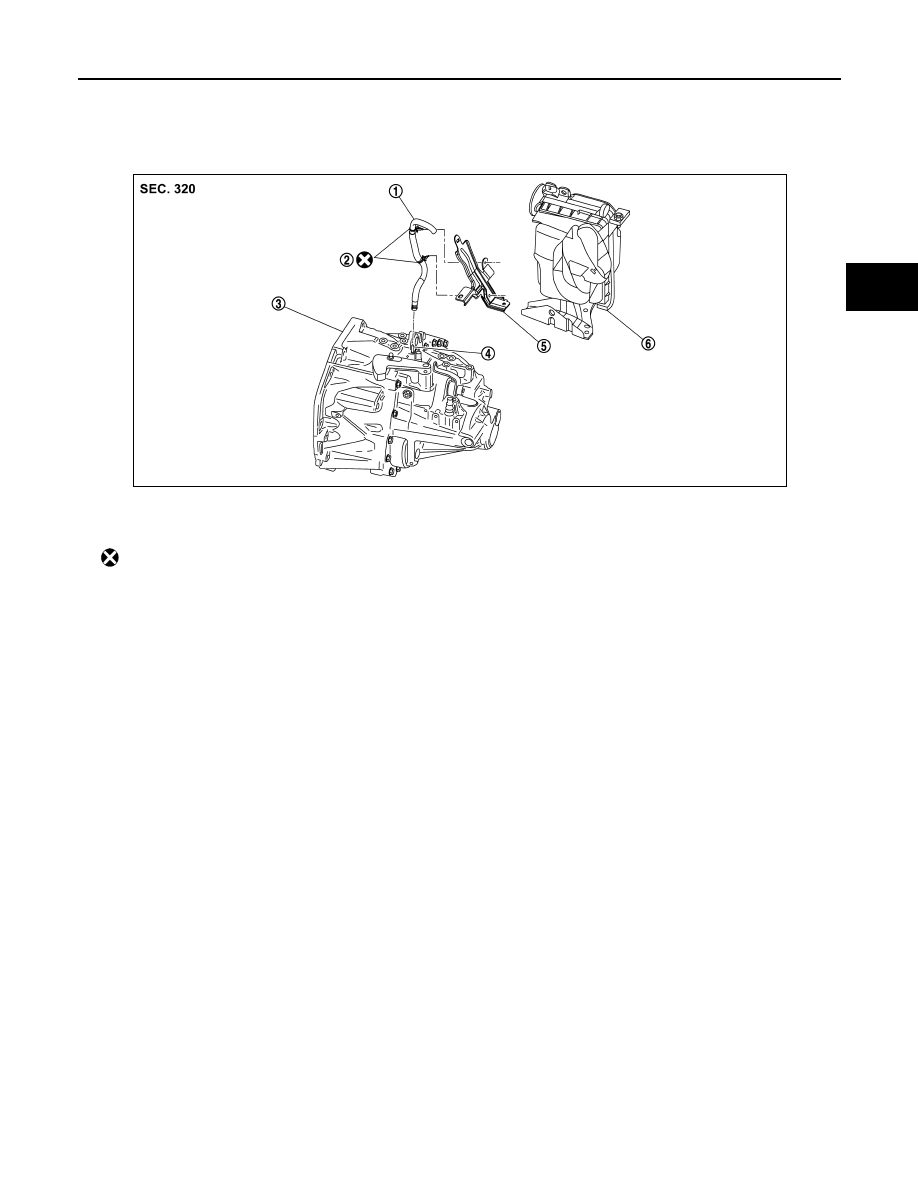

Exploded View

INFOID:0000000012200816

Removal and Installation

INFOID:0000000012200817

REMOVAL

1. Disconnect clip of air breather hose from bracket.
2. Remove air breather hose from air breather tube of transaxle assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Make sure there are no pinched or restricted areas on the air breather hose caused by bending or

winding when installing it.

• Never reuse clip.

• Be sure to insert air breather hose into air breather tube until hose end reaches the tube's base.

• Set air breather hose with painted mark facing forward.

• Install air breather hose to bracket by fully inserting the clip.

1.

Air breather hose

2.

Clip

3.

Transaxle assembly

4.

Air breather tube

5.

Bracket

6

Air cleaner case

: Always replace after every disassembly.

JSDIA7171ZZ
