TM-94

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

TRANSAXLE ASSEMBLY

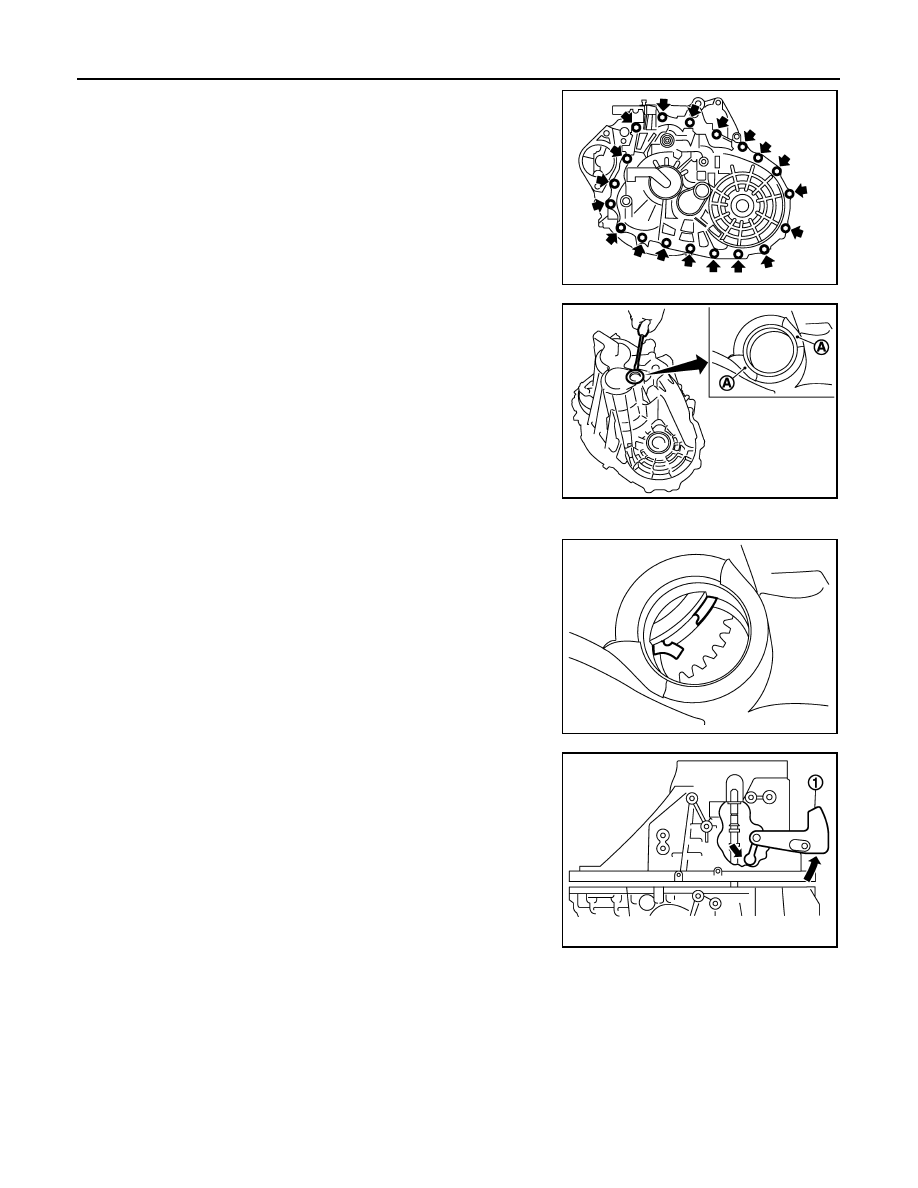

9. Remove transaxle case bolts.

10. Remove bore plug from transaxle case using suitable tool.

CAUTION:

• Do not damage transaxle case.

• Access bore plug from cutout (A) of transaxle case when

removing.

11. Remove transaxle case following the procedures below.
a. Expand snap ring at mainshaft rear bearing accessing from the

bore plug hole. Then pull up transaxle case from clutch housing

until snap ring comes off.

b. With shifter lever A (1) held in the position shown, remove tran-

saxle case from clutch housing.

CAUTION:

Do not drop adjusting shims.

NOTE:

Make sure to hold shifter lever A in the position shown. Other-

wise transaxle case cannot be removed from clutch housing.

PCIB1838E

PCIB1839E

PCIB1840E

PCIB1808E

TRANSAXLE ASSEMBLY

TM-95

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

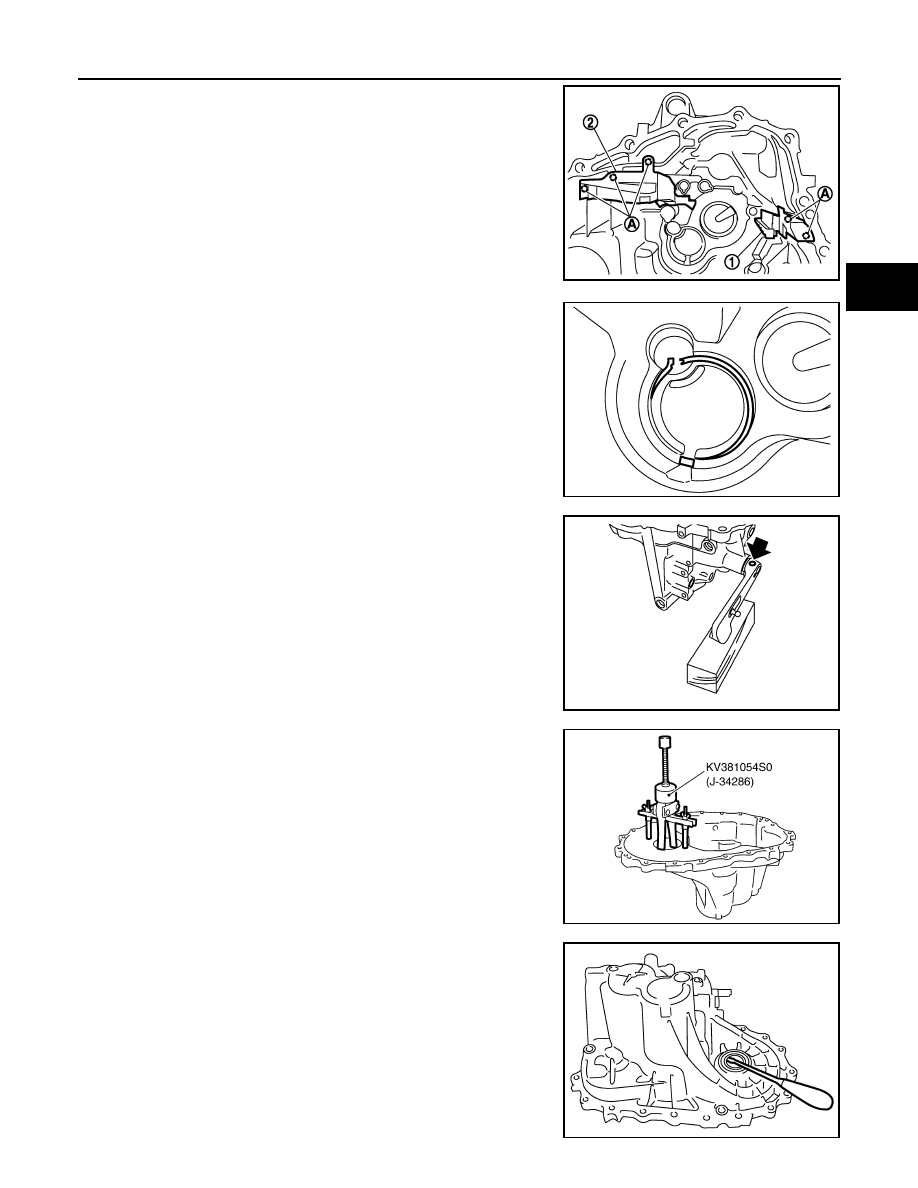

12. Remove oil gutter A (1) and oil gutter B (2) from transaxle case.

13. Remove snap ring from transaxle case.

14. Remove retaining pin using suitable tool and then remove shifter

lever A and shifter lever B from transaxle case.

15. Remove differential side bearing outer race (transaxle case

side) from transaxle case using Tool. Then remove differential

side bearing adjusting shim from transaxle case.

CAUTION:

Do not damage transaxle case or differential side bearing

outer race.

16. Remove differential side oil seal from transaxle case using suit-

able tool.

CAUTION:

Do not damage transaxle case.

A

: Tab of oil gutter

PCIB1841E

PCIB1842E

PCIB1844E

Tool number

: KV381054S0 (J-34286)

PCIB0936E

SCIA0397E

TM-96

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

TRANSAXLE ASSEMBLY

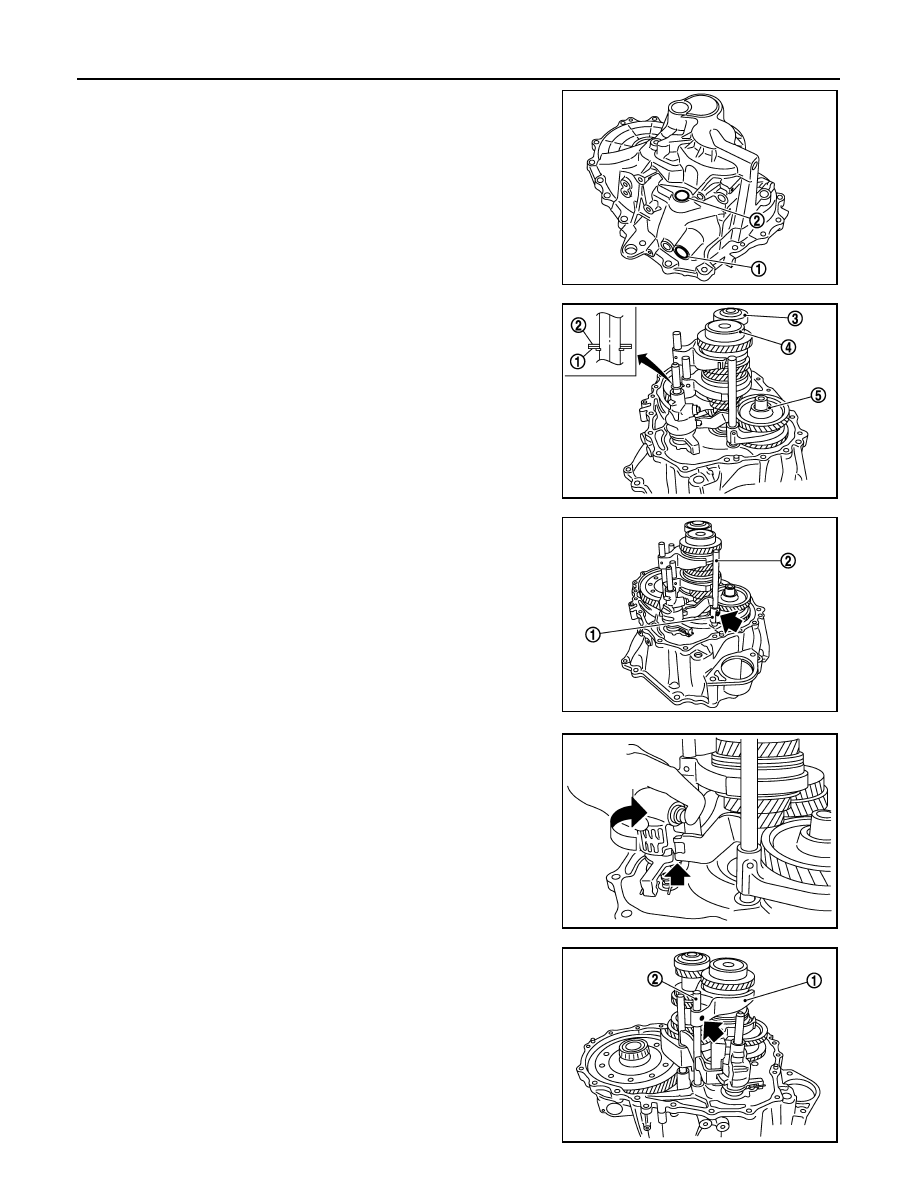

17. Remove shifter lever oil seal (1) and striking rod oil seal (2) from

transaxle case.

CAUTION:

Do not damage transaxle case.

18. Remove striking rod shim (1), striking rod adjusting shim (2),

mainshaft rear bearing adjusting shim (3), input shaft rear bear-

ing adjusting shim (4), and reverse idler gear adjusting shim (5).

19. Remove retaining pin of reverse shift fork (1) using suitable tool.

20. Rotate striking lever of striking rod assembly as shown. Then

rotate reverse fork rod to a position where bracket of reverse

fork rod does not interfere with striking lever of striking rod

assembly.

21. Pull out reverse shift fork and reverse fork rod.

22. Remove retaining pin of 5th-6th shift fork (1) using suitable tool.

PCIB1846E

PCIB1858E

2

: Reverse fork rod

PCIB1850E

PCIB1851E

2

: 5th-6th fork rod

PCIB1852E

TRANSAXLE ASSEMBLY

TM-97

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

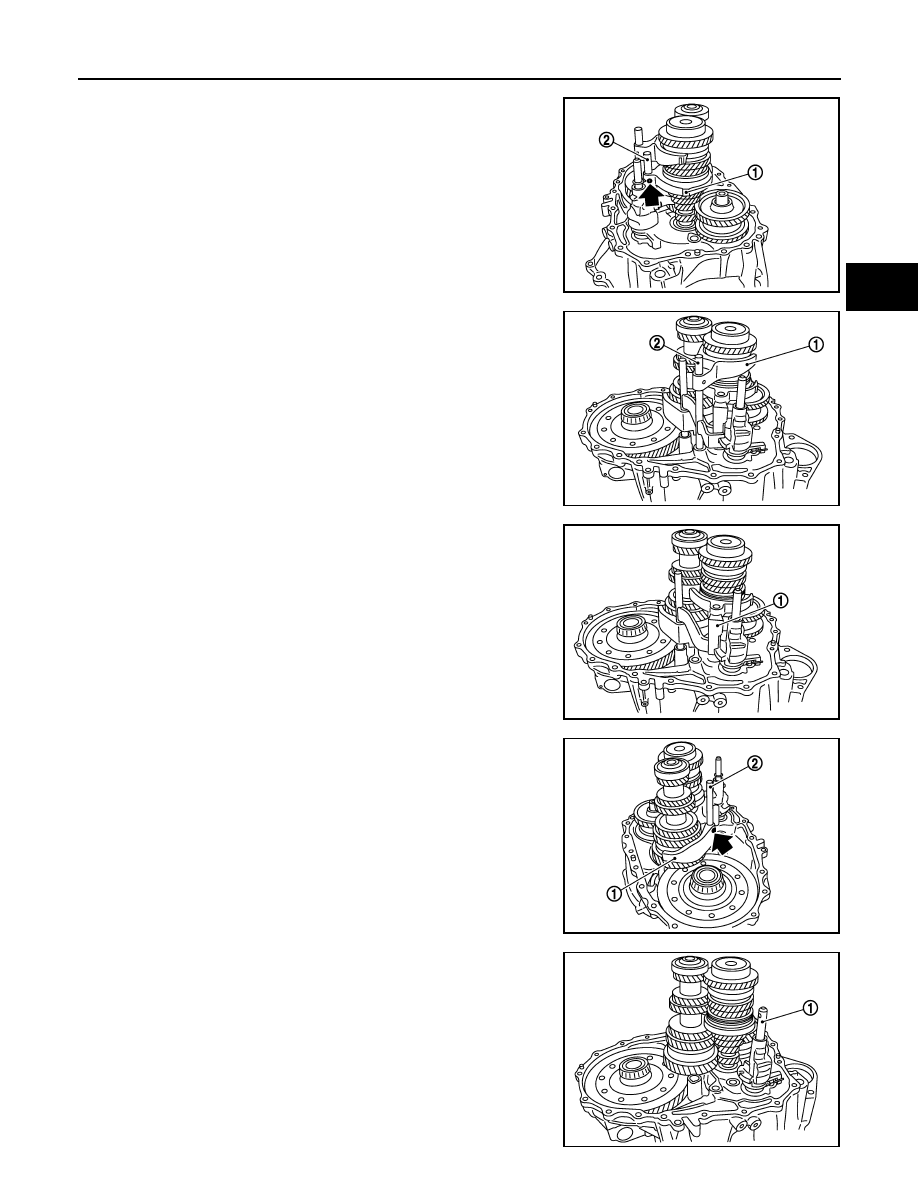

23. Remove retaining pin of 3rd-4th shift fork (1) using suitable tool.
24. Pull out 3rd-4th fork rod (2).

25. Pull out 5th-6th shift fork (1) and 5th-6th fork rod (2).

26. Pull out 3rd-4th shift fork (1).

27. Remove retaining pin of 1st-2nd shift fork (1) using suitable tool.
28. Pull out 1st-2nd shift fork and 1st-2nd fork rod (2).

29. Remove striking rod assembly (1).

PCIB1853E

PCIB1854E

PCIB1855E

PCIB1856E

PCIB1857E
