STR-28

< REMOVAL AND INSTALLATION >

STARTER MOTOR

Type: S114-955

NOTE:

Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the

starter.

MR16DDT : Removal and Installation

INFOID:0000000012201590

REMOVAL

1. Disconnect the battery cable from the negative terminal. Refer to

PG-105, "Removal and Installation"

.

2. Drain engine coolant from radiator. Refer to

CO-10, "Draining"

 (MR for NISMO RS models) or

CO-40,

"Draining and Filling"

 (MR except for NISMO RS models).

CAUTION:

Perform this step when engine is cold.

3. Remove charge air cooler. Refer to

EM-32, "Removal and Installation"

 (MR for NISMO RS models) or

EM-

194, "Removal and Installation"

 (MR except for NISMO RS models).

4. Remove CVT water hose on thermostat housing side (MR for NISMO RS CVT models). Refer to

CO-23,

"Exploded View"

.

5. Remove radiator hose (lower) on thermostat housing side. Refer to

CO-16, "Removal and Installation"

(MR for NISMO RS models) or

CO-46, "Removal and Installation"

 (MR except for NISMO RS models).

6. Move CVT water hose and radiator hose (lower) to a location where they do not inhibit work.

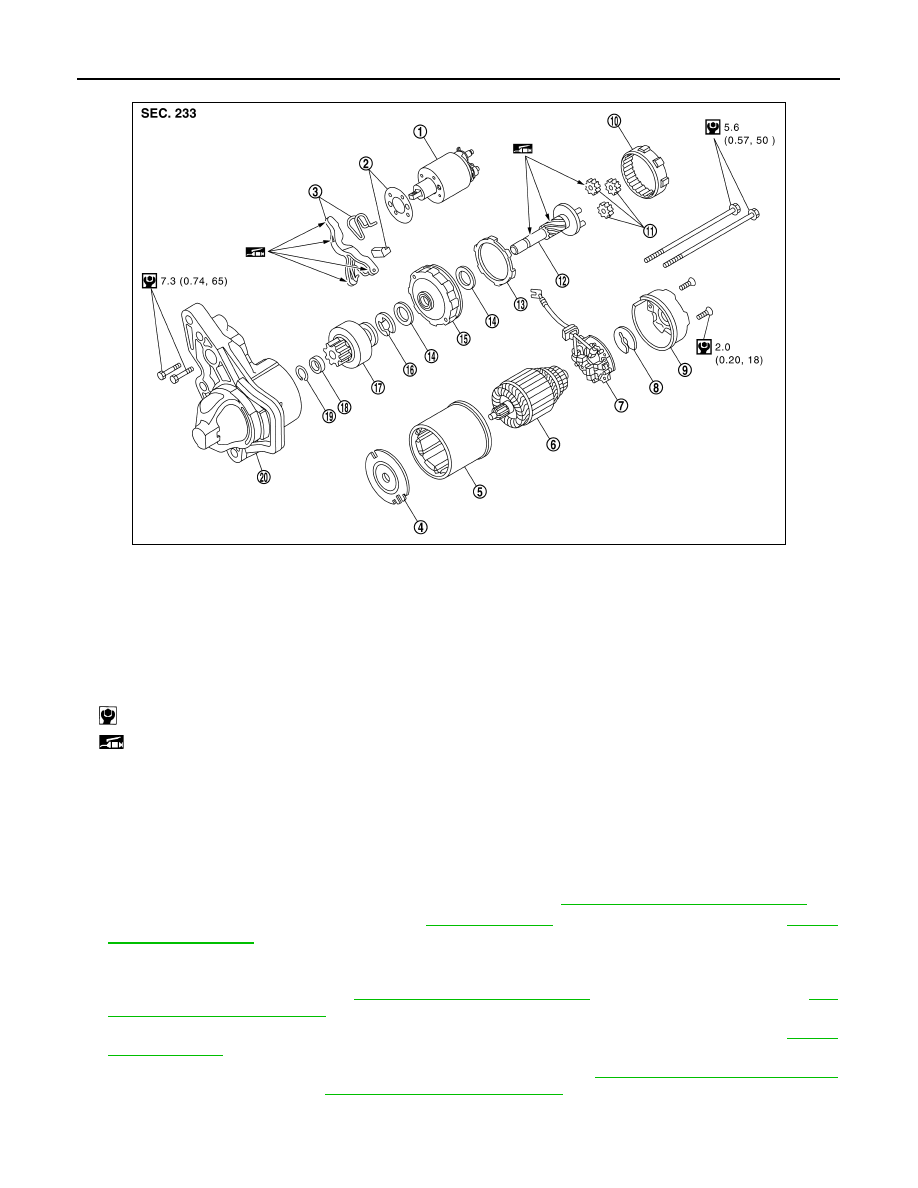

JMBIA4496GB

1.

Magnetic switch assembly

2.

Dust cover kit

3.

Shift lever set

4.

Center bracket (A)

5.

Yoke assembly

6.

Armature assembly

7.

Brush holder assembly

8.

Thrust washer

9.

Rear cover assembly

10. Internal gear

11. Planetary gear

12. Pinion shaft

13. Packing

14. Thrust washer

15. Center bracket (P)

16. E-ring

17. Pinion assembly

18. Pinion stopper

19. Pinion stopper clip

20. Gear case assembly

: N·m (kg-m, in-lb)

: High-temperature grease point

STARTER MOTOR

STR-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

7. Open “B” terminal cover, in the direction indicated by an arrow

as shown in the figure.

8. Remove “B” terminal nut and “B” terminal harness.
9. Remove “S” terminal nut and “S” terminal harness.
10. Disconnect harness connector (1) from crankshaft position sen-

sor.

11. Remove harness fixing clip (A) from oil pan (upper), and then

move harness (2) to a location where they do not inhibit work.

12. Remove starter motor mounting bolts.
13. Remove starter motor forward from the vehicle.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Be careful to tighten “B” terminal nut to the specified torque.

• After work is complete fill engine coolant. Refer to

CO-11, "Refilling"

 (MR for NISMO RS models) or

CO-40, "Draining and Filling"

 (MR except for NISMO RS models).

JMBIA3020ZZ

JMBIA3021ZZ

STR-30

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Starter Motor

INFOID:0000000012201591

Type

S114 - 955

HITACHI make

Reduction gear type

System voltage

[V]

12

No-load

Terminal voltage

[V]

11

Current

[A]

Less than 110

Revolution

[rpm]

More than 3000

TM-1
