CRASH ZONE SENSOR

SR-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

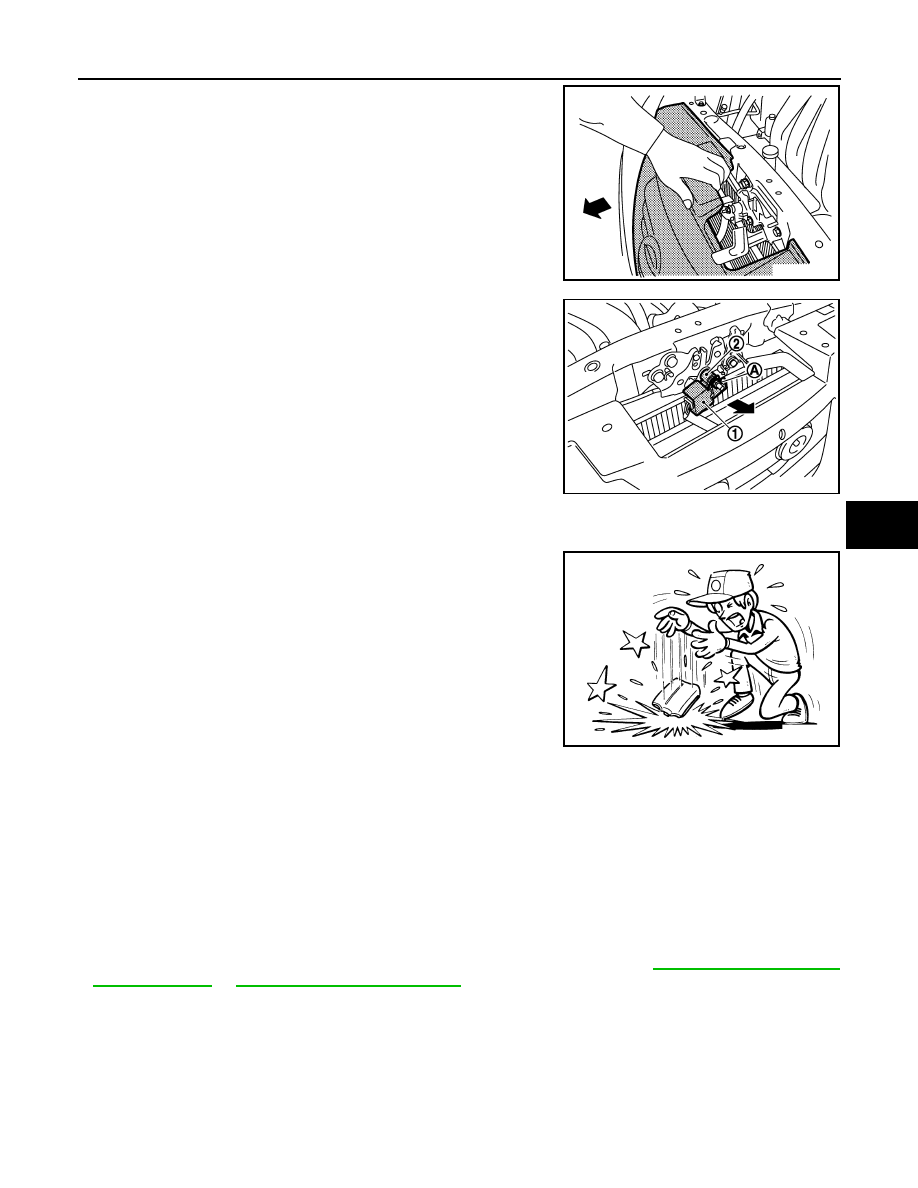

2. Pull back front center grille, it makes work space.

3. Remove the crash zone sensor fixing nuts (A), and then pull the

bracket (1) and crash zone sensor (2) for vehicle front.

4. Disconnect the crash zone sensor harness connector, and then remove crash zone sensor.

CAUTION:

• Never impact the crash zone sensor.

• Replace the crash zone sensor if it has been dropped or sus-

tained an impact.

• Replace the crash zone sensor of deployed driver air bag, deployed passenger air bag, seat belt pre-

tensioner and deployed lap pre-tensioner.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing nut after removal, replace with the new nut.

• Never damage the harness while installing.

• Always install normally aligning to the cutout hole, because performance of the crash zone sensor

excessively fluctuates according to the installation position.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-10, "On Board Diag-

nosis Function"

 or

SRC-15, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA1617ZZ

JMHIA1618ZZ

JMHIA0009ZZ

SR-26

< REMOVAL AND INSTALLATION >

SATELLITE SENSOR

SATELLITE SENSOR

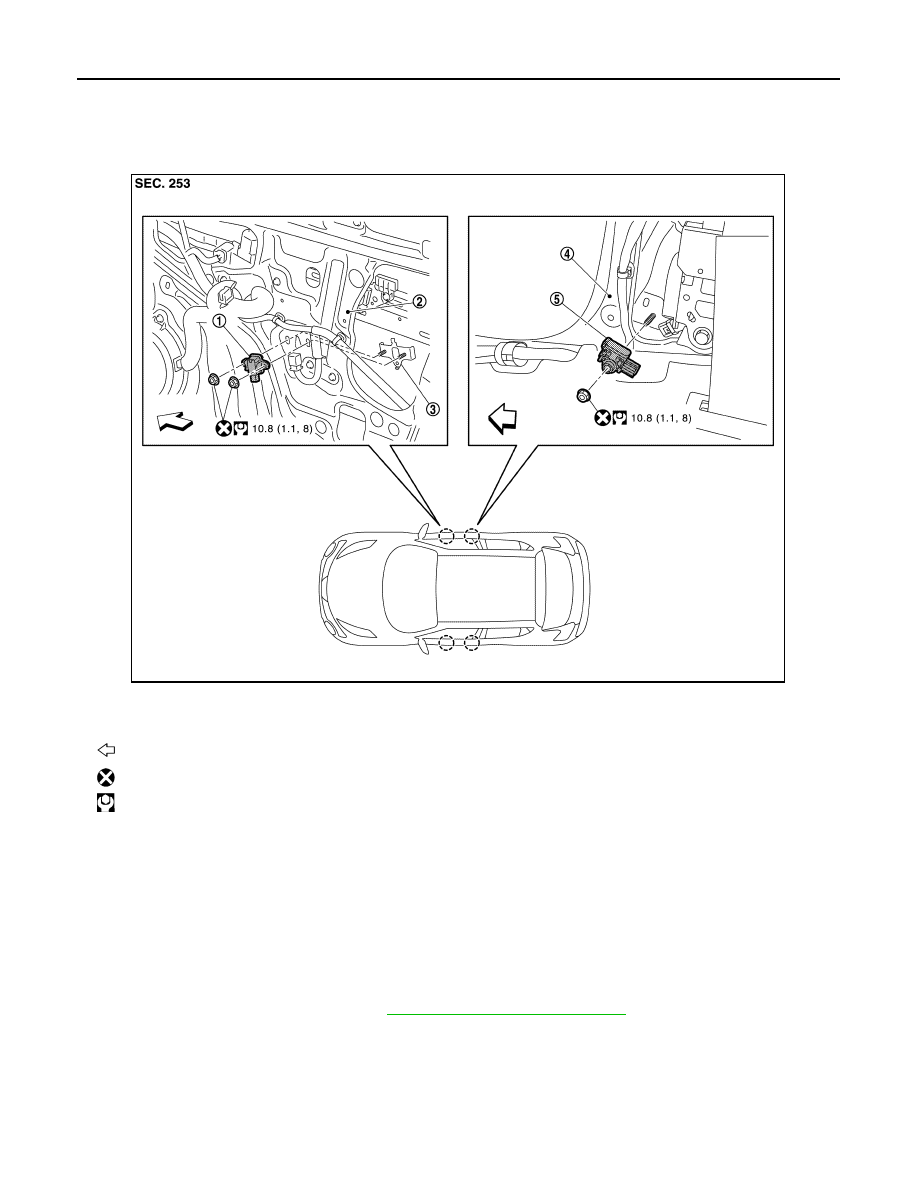

Exploded View

INFOID:0000000012199979

Removal and Installation

INFOID:0000000012199980

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

FRONT SATELLITE SENSOR

Removal

1. Remove the front door finisher. Refer to

INT-13, "Removal and Installation"

.

2. Remove sealing screen (lower side).

NOTE:

Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing

screen is reused.

1.

Front satellite sensor

2.

Front door inner panel

3.

Satellite sensor bracket

4.

Center pillar inner panel

5.

Rear satellite sensor

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA1805GB

SATELLITE SENSOR

SR-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

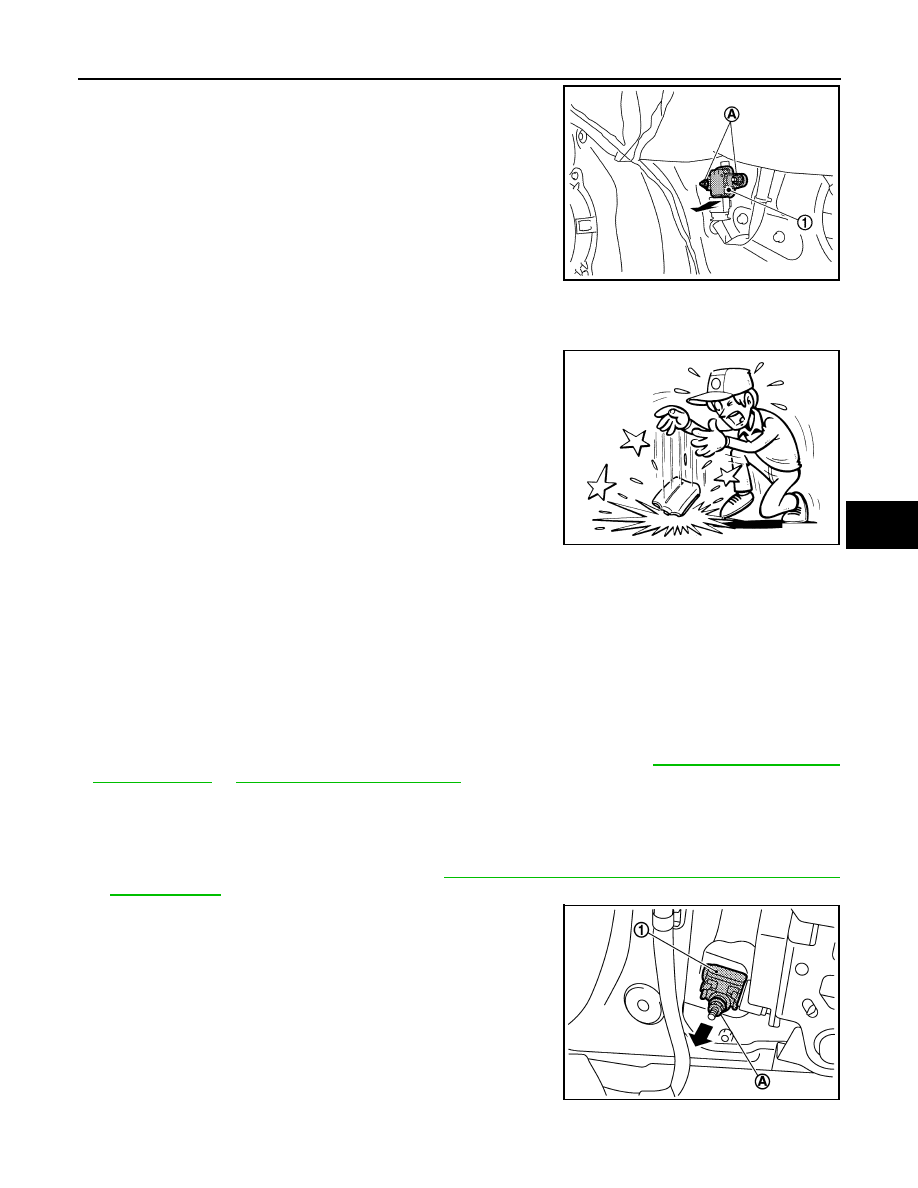

3. Remove the front satellite sensor mounting nuts (A), and then

pull the front satellite sensor (1).

4. Disconnect the harness connector and then remove the front satellite sensor.

CAUTION:

• Never impact the front satellite sensor.

• Replace the front satellite sensor if it has been dropped or

sustained an impact.

• Replace the front satellite sensor of deployed side air bag module and deployed curtain air bag mod-

ule.

Installation

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing nuts after removal, replace with the new nuts.

• Never damage the harness while installing.

• Always install normally aligning to the cutout hole, because performance of the front satellite sensor

excessively fluctuates according to the installation position.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-10, "On Board Diag-

nosis Function"

 or

SRC-15, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

REAR SATELLITE SENSOR

Removal

1. Remove the center pillar lower garnish. Refer to

INT-22, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

2. Remove the rear satellite sensor mounting nut (A), and then pull

the rear satellite sensor (1).

3. Disconnect the harness connector and then remove the rear satellite sensor.

JMHIA1806ZZ

JMHIA0009ZZ

JMHIA1620ZZ

SR-28

< REMOVAL AND INSTALLATION >

SATELLITE SENSOR

CAUTION:

• Never impact the rear satellite sensor.

• Replace the rear satellite sensor if it has been dropped or sus-

tained an impact.

• Replace the rear satellite sensor of deployed side air bag module and deployed curtain air bag mod-

ule.

Installation

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing nut after removal, replace with the new nut.

• Never damage the harness while installing.

• Always install normally aligning to the cutout hole, because performance of the rear satellite sensor

excessively fluctuates according to the installation position.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-10, "On Board Diag-

nosis Function"

 or

SRC-15, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ
