SPIRAL CABLE

SR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

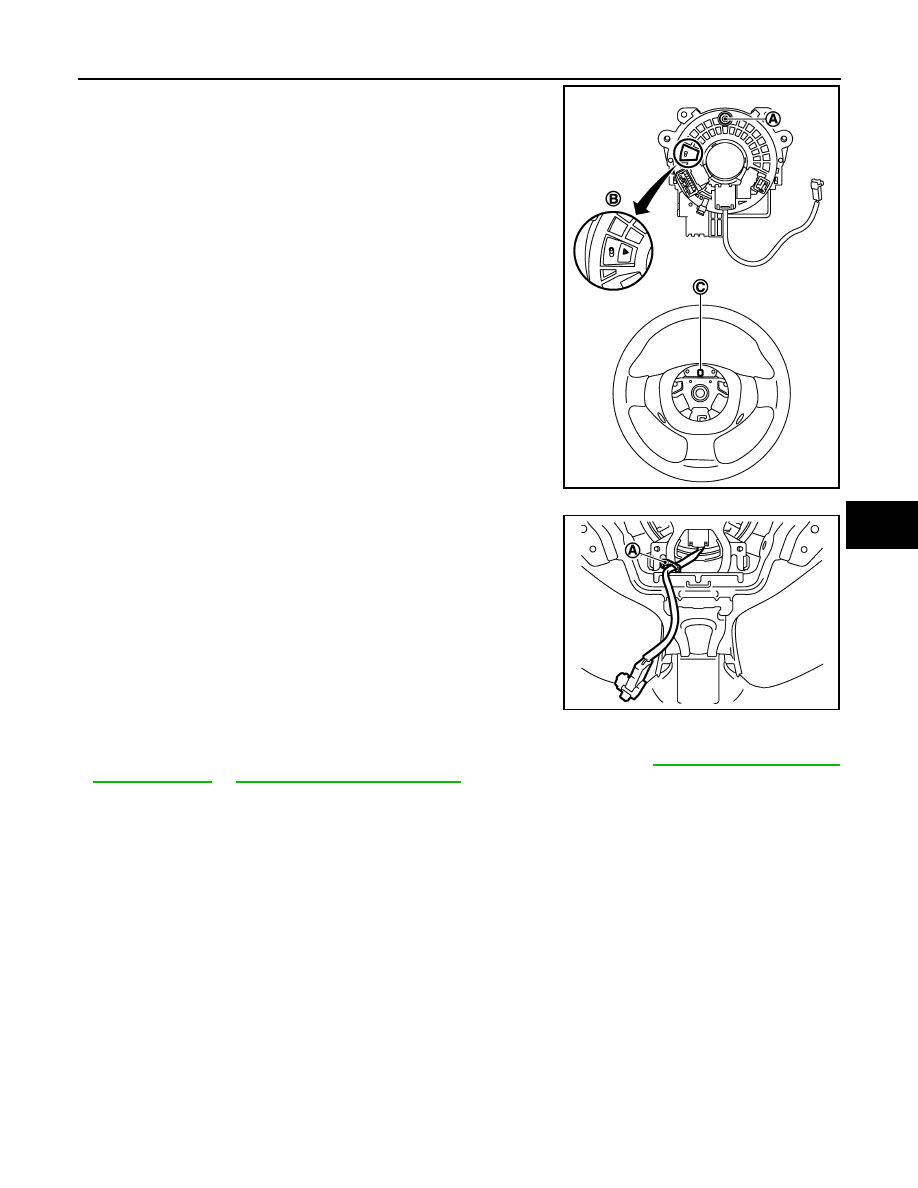

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.

The neutral position is set as per the following.

• Carefully turn the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and

stop turning at the mark (B) when the stopper insertion holes

are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is

removed.

• Never over turn the spiral cable or go beyond the number of

turns required. (This causes the cable to snap)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

• Fix the driver air bag module harnesses to the harness fixing

hook (A).

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-10, "On Board Diag-

nosis Function"

 or

SRC-15, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0879ZZ

JMHIA1608ZZ

SR-18

< REMOVAL AND INSTALLATION >

PASSENGER AIR BAG MODULE

PASSENGER AIR BAG MODULE

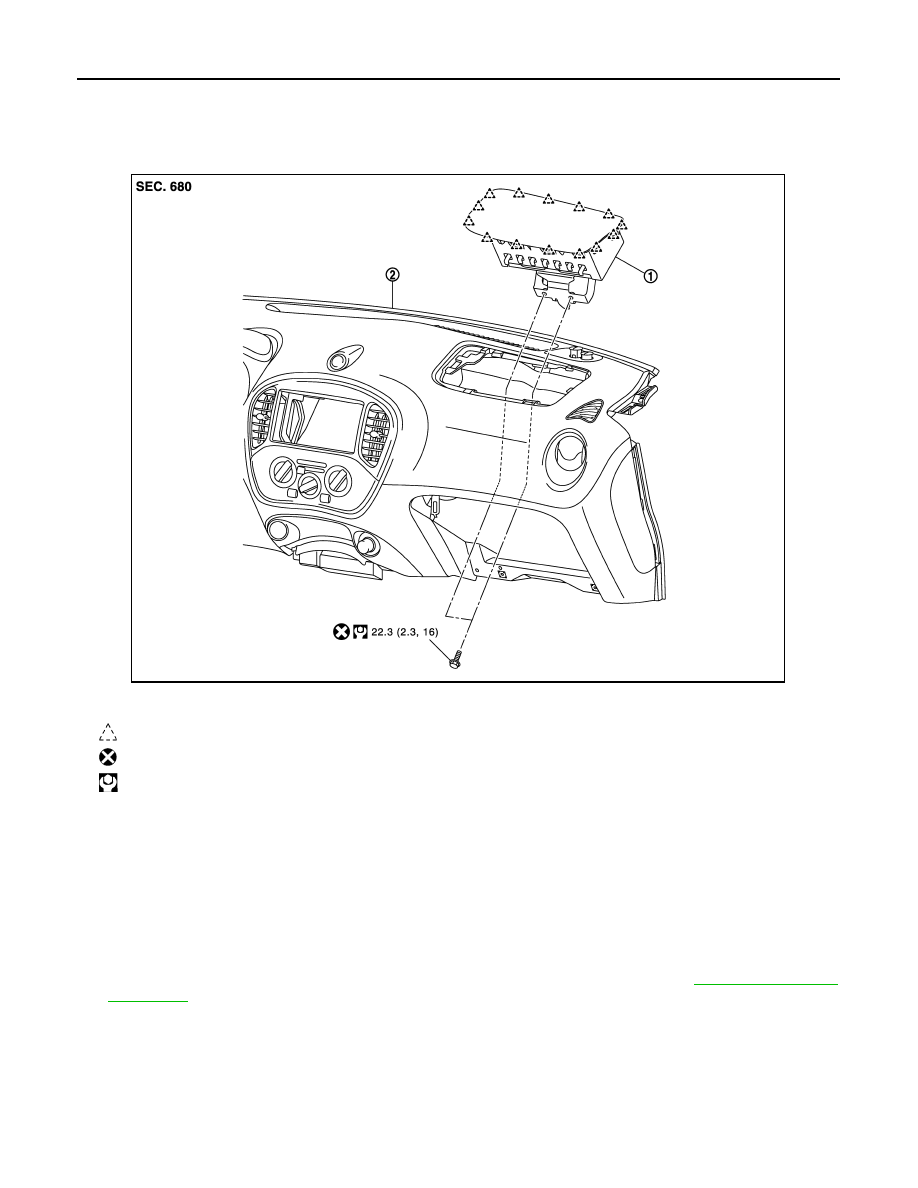

Exploded View

INFOID:0000000012199973

Removal and Installation

INFOID:0000000012199974

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.

• Never use the air tools or the electric tools for servicing.

REMOVAL

1. Remove instrument side finisher RH, glove box lid, and glove box assembly. Refer to

IP-13, "Removal and

Installation"

.

1.

Passenger air bag module

2.

Instrument panel assembly

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA1657GB

PASSENGER AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

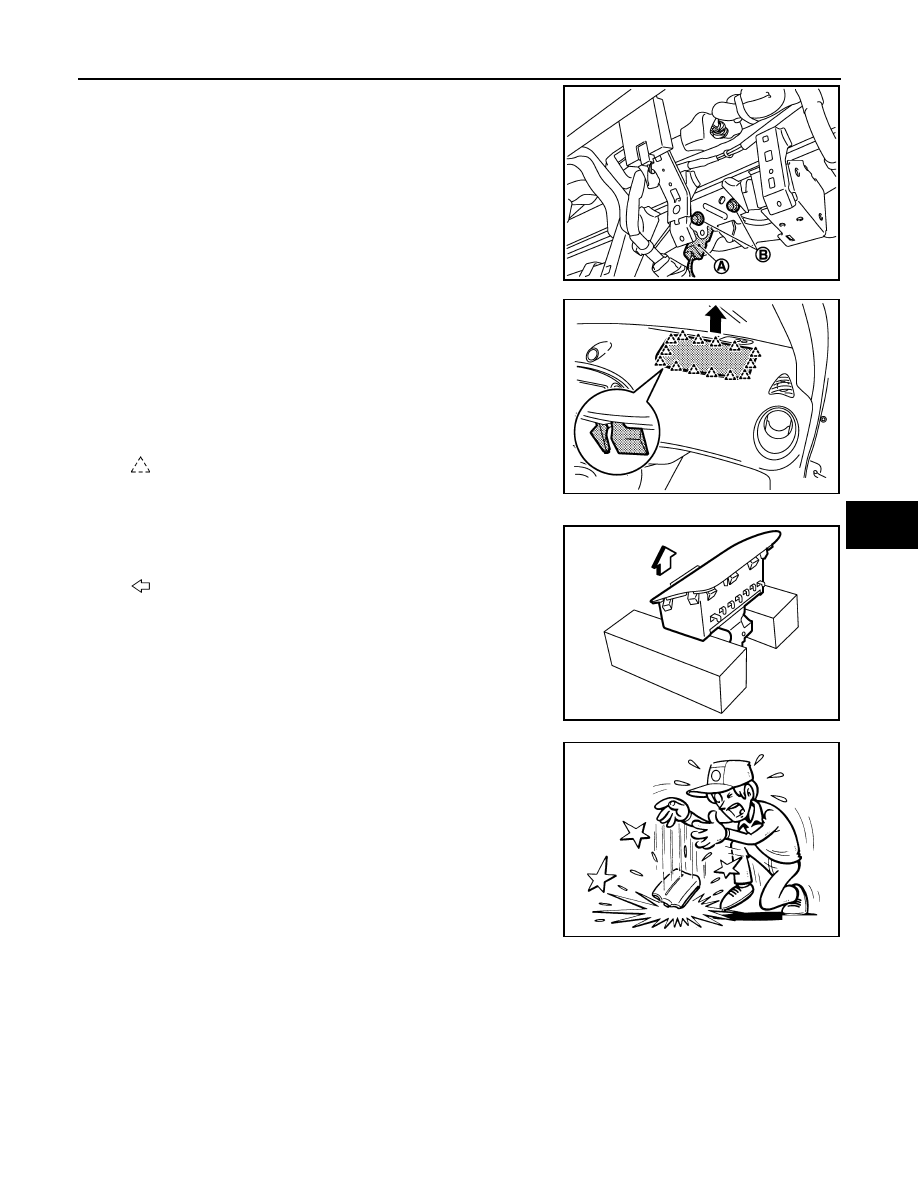

2. Disconnect passenger air bag module harness connector (A)

from passenger air bag module.

3. Remove passenger air bag module fixing bolts (B).

4. Put a hand to back of instrument panel (glove box opening), dis-

engage connections of the passenger air bag module pawls

from the inside of the vehicle toward the outside, and remove.

CAUTION:

• Never insert a remover tool between passenger air bag

module and instrument panel assembly. Doing so may

cause damage.

• Wear gloves.

CAUTION:

• Always place the passenger air bag module with pad side fac-

ing upward.

• Never impact the passenger air bag module.

• Replace the passenger air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the passenger air bag module.

• Never disassemble the passenger air bag module.

• Never expose the passenger air bag module to temperatures exceeding 90

°C (194 °F).

• Never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.

• Never damage the harness while installing.

JMHIA1658ZZ

: Pawl

JMHIA1659ZZ

: Upward

JMHIA1613ZZ

JMHIA0009ZZ

SR-20

< REMOVAL AND INSTALLATION >

PASSENGER AIR BAG MODULE

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-10, "On Board Diag-

nosis Function"

 or

SRC-15, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
