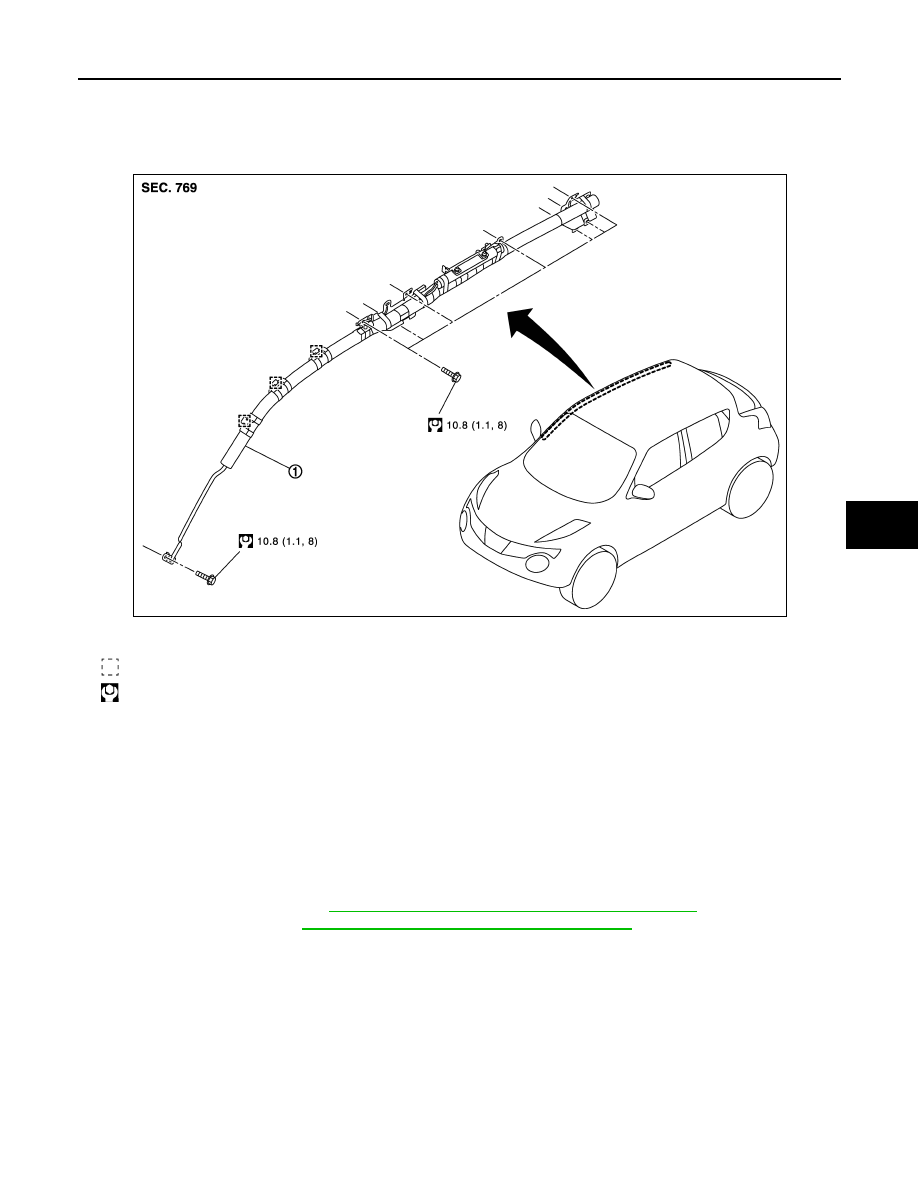

CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000012199975

Removal and Installation

INFOID:0000000012199976

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of curtain air bag module. Never work in front of it.

• Never use the air tools or electric tools for servicing.

REMOVAL

1. Remove headlining assembly.

• Normal roof models: Refer to

INT-27, "NORMAL ROOF : Removal and Installation"

.

• Sunroof models: Refer to

INT-30, "SUNROOF : Removal and Installation"

.

2. Remove the curtain air bag module mounting bolt that is located on the front pillar.

1.

Curtain air bag module

: Metal clip

: N·m (kg-m, ft-lb)

JMHIA1614GB

SR-22

< REMOVAL AND INSTALLATION >

CURTAIN AIR BAG MODULE

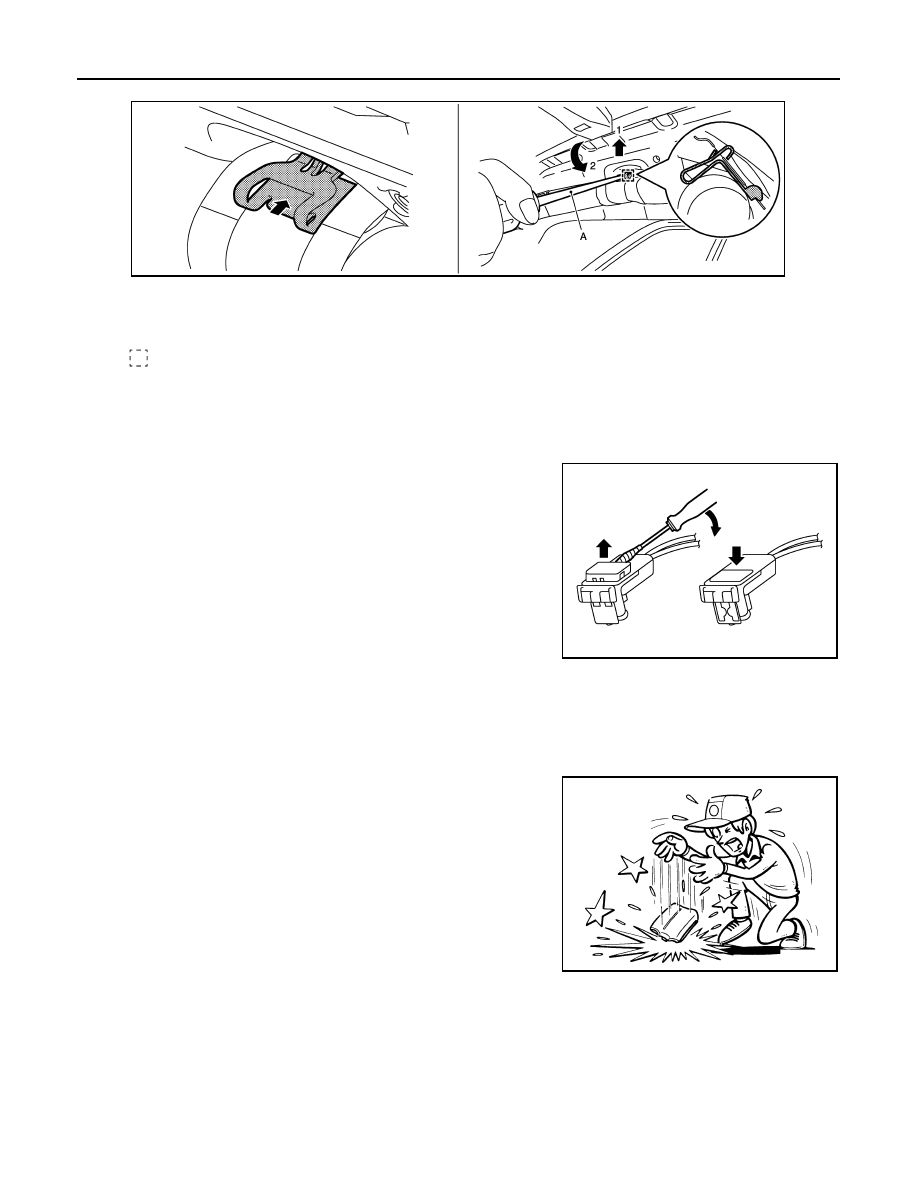

3. Disengage metal clips on the front roof.

1. Fully insert a flat-bladed screwdriver (A) into center of metal clip.

2. Lift the flat-bladed screwdriver upward as shown in the figure and disengage upper side of metal clip.

3. Rotate the flat-bladed screwdriver as shown in the figure and disengage lower side of metal clip.

CAUTION:

Never deform metal clip.

4. Disconnect curtain air bag harness connector.

CAUTION:

• For installing/removing the curtain air bag harness con-

nector, insert thin screwdriver wrapped in tape into notch,

lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

5. Remove the curtain air bag module mounting bolts that are located on the rear pillar.
6. Remove the curtain air bag module mounting bolts that are located on the center pillar.
7. Remove the curtain air bag module mounting bolts that are located on the inflator, and then remove cur-

tain air bag module.

CAUTION:

• Never impact the curtain air bag module.

• Replace the curtain air bag module if it has been dropped or

sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the curtain air bag module.

• Never disassemble the curtain air bag module.

• Never expose the curtain air bag module to temperatures exceeding 90

°C (194 °F).

• Never allow oil, grease, detergent, or water to come in contact with the curtain air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

: Metal clip

JMHIA1615ZZ

PHIA0953J

JMHIA0009ZZ

CURTAIN AIR BAG MODULE

SR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Insert metal clips of front roof until a locking sound is heard. Pull metal clips and check that it is fully

locked to the vehicle body.

• Check perforation of curtain air bag module to check that curtain air bag module is not twisted.

• Never damage the harness while installing.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-10, "On Board Diag-

nosis Function"

 or

SRC-15, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

SR-24

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

CRASH ZONE SENSOR

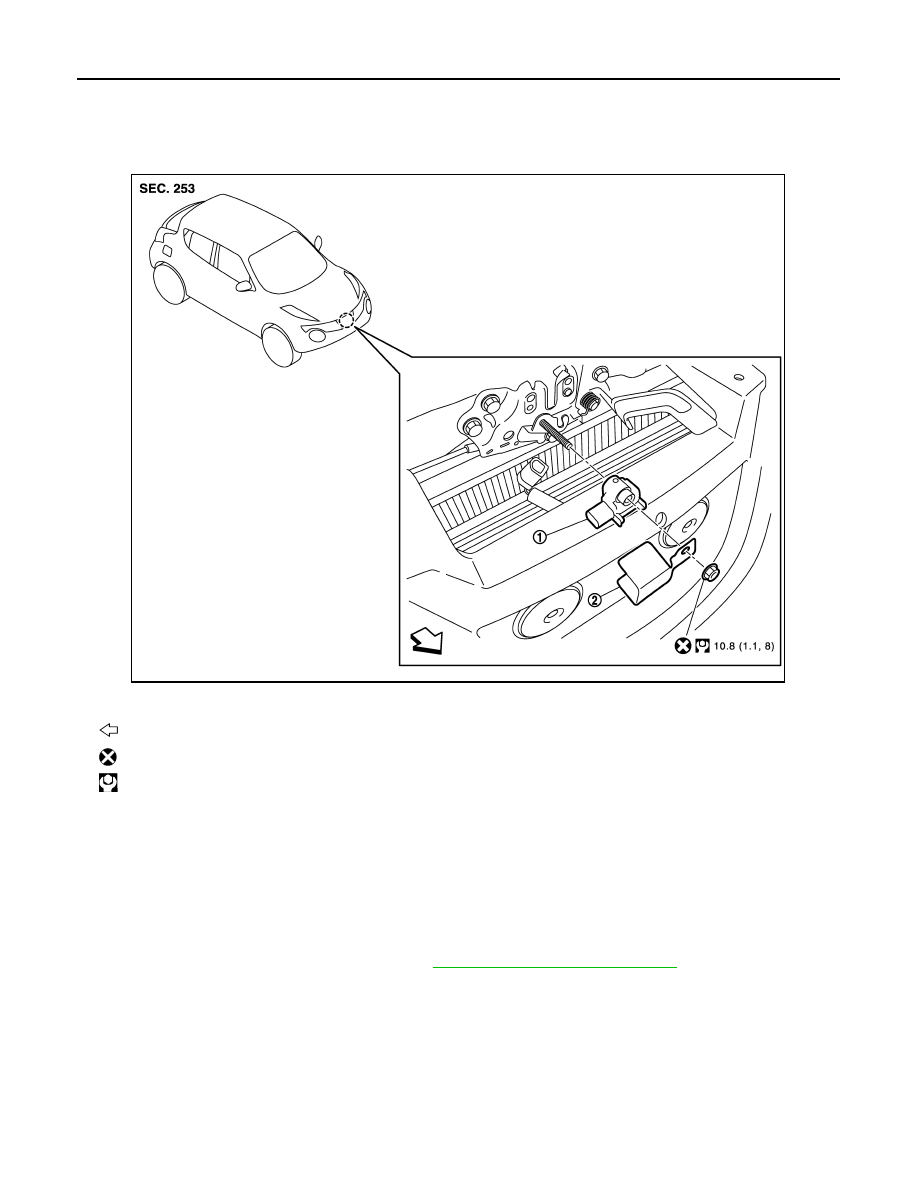

Exploded View

INFOID:0000000012199977

Removal and Installation

INFOID:0000000012199978

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1. Remove front center grille fixing clips. Refer to

EXT-26, "Removal and Installation"

.

1.

Crash zone sensor

2.

Bracket

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA1616GB
