Nissan Juke F15. Manual - part 1095





RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

2WD

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precautions for Suspension ......................................

3

Precautions for Removing Battery Terminal  .............

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tools  ........................................

4

SYMPTOM DIAGNOSIS  ...............................

5

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

5

NVH Troubleshooting Chart  ......................................

5

PERIODIC MAINTENANCE ..........................

6

REAR SUSPENSION ASSEMBLY  .....................

6

Inspection ..................................................................

6

WHEEL ALIGNMENT ..........................................

7

Inspection ..................................................................

7

REMOVAL AND INSTALLATION ................

8

REAR SHOCK ABSORBER  ...............................

8

Exploded View  ..........................................................

8

Removal and Installation ...........................................

9

Inspection ................................................................

10

Disposal ..................................................................

10

COIL SPRING .....................................................

12

Exploded View  ........................................................

12

Removal and Installation .........................................

12

Inspection ................................................................

13

REAR SUSPENSION BEAM ..............................

14

Exploded View  ........................................................

14

Removal and Installation .........................................

14

Inspection ................................................................

15

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

16

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

16

Wheel Alignment  .....................................................

16

Wheelarch Height  ....................................................

16

AWD

PRECAUTION ..............................................

18

PRECAUTIONS .................................................

18

Precautions for Suspension .....................................

18

Precautions for Removing Battery Terminal ............

18

PREPARATION ...........................................

19

PREPARATION .................................................

19

Commercial Service Tools .......................................

19

SYMPTOM DIAGNOSIS  ..............................

20

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ...........................

20

NVH Troubleshooting Chart  ....................................

20

PERIODIC MAINTENANCE  ........................

21

REAR SUSPENSION ASSEMBLY ...................

21

Inspection ................................................................

21

WHEEL ALIGNMENT  .......................................

22

Inspection ................................................................

22

Adjustment ...............................................................

22

REMOVAL AND INSTALLATION ...............

24

REAR SHOCK ABSORBER  .............................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

24

Inspection ................................................................

25

RSU-2

Disposal ..................................................................

26

COIL SPRING  ....................................................

27

Exploded View ........................................................

27

Removal and Installation  ........................................

27

Inspection ...............................................................

28

SUSPENSION ARM ...........................................

29

Exploded View ........................................................

29

Removal and Installation  ........................................

29

Inspection ...............................................................

30

LOWER LINK .....................................................

31

Exploded View ........................................................

31

Removal and Installation  ........................................

31

Inspection ...............................................................

32

UPPER LINK ......................................................

33

Exploded View ........................................................

33

Removal and Installation  ........................................

33

Inspection ................................................................

34

REAR STABILIZER ...........................................

35

Exploded View  ........................................................

35

Removal and Installation .........................................

35

Inspection ................................................................

35

REAR SUSPENSION ASSEMBLY  ...................

36

Exploded View  ........................................................

36

Removal and Installation .........................................

36

Inspection ................................................................

37

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

38

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

38

Wheel Alignment .....................................................

38

Wheelarch Height  ...................................................

38

PRECAUTIONS

RSU-3

< PRECAUTION >

[2WD]

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

PRECAUTION

PRECAUTIONS

Precautions for Suspension

INFOID:0000000012200387

• When installing rubber bushings, the final tightening must be carried out under unladen conditions with tires

on ground. Spilled oil might shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

- Unladen conditions mean that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and

mats are in designated positions.

• After servicing suspension parts, be sure to check wheel alignment.

• Self-lock nuts are not reusable. Always use new ones when installing. Since new self-lock nuts are pre-oiled,

tighten as they are.

• The tightening surface must be kept free from oil/grease.

• When jacking up the vehicle with a floor jack, never hang the jack on the suspension beam.

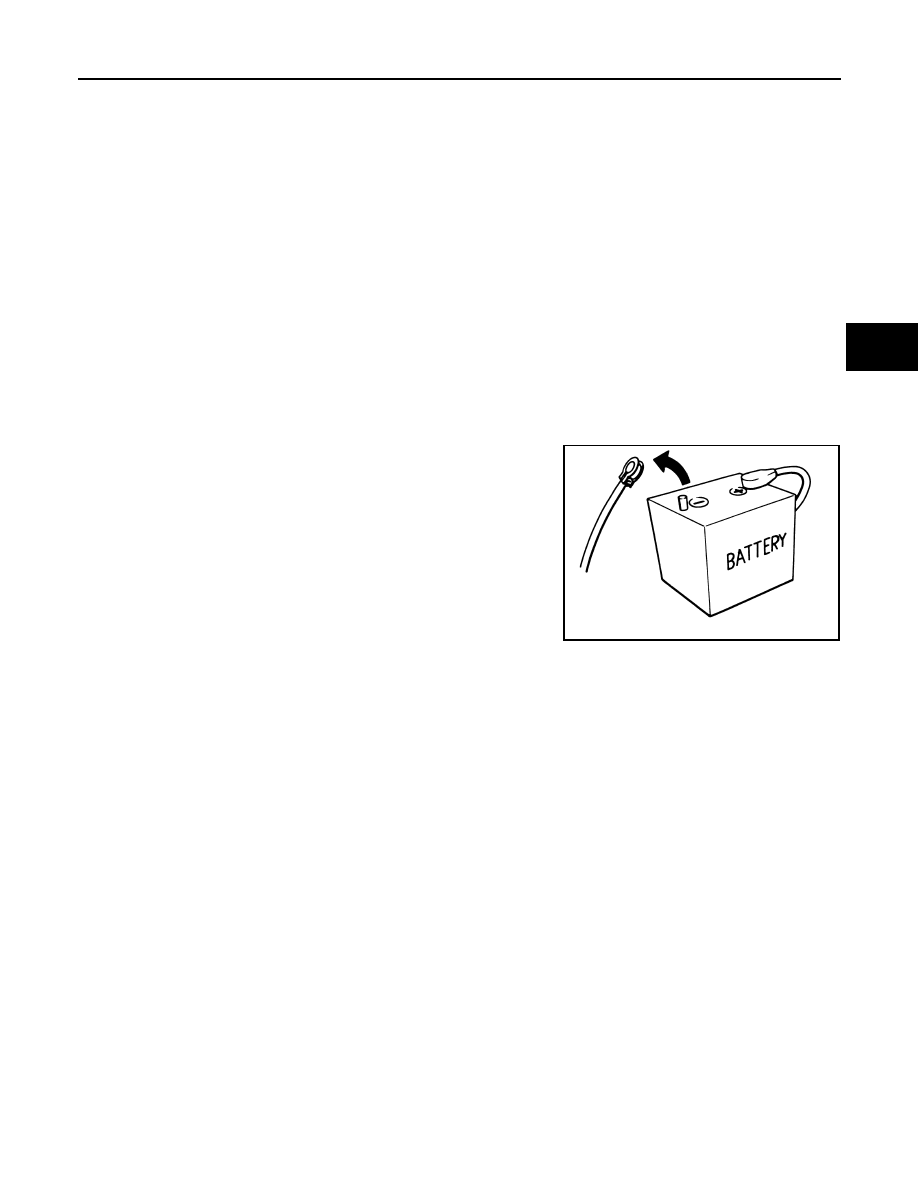

Precautions for Removing Battery Terminal

INFOID:0000000012926513

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

RSU-4

< PREPARATION >

[2WD]

PREPARATION

PREPARATION

PREPARATION

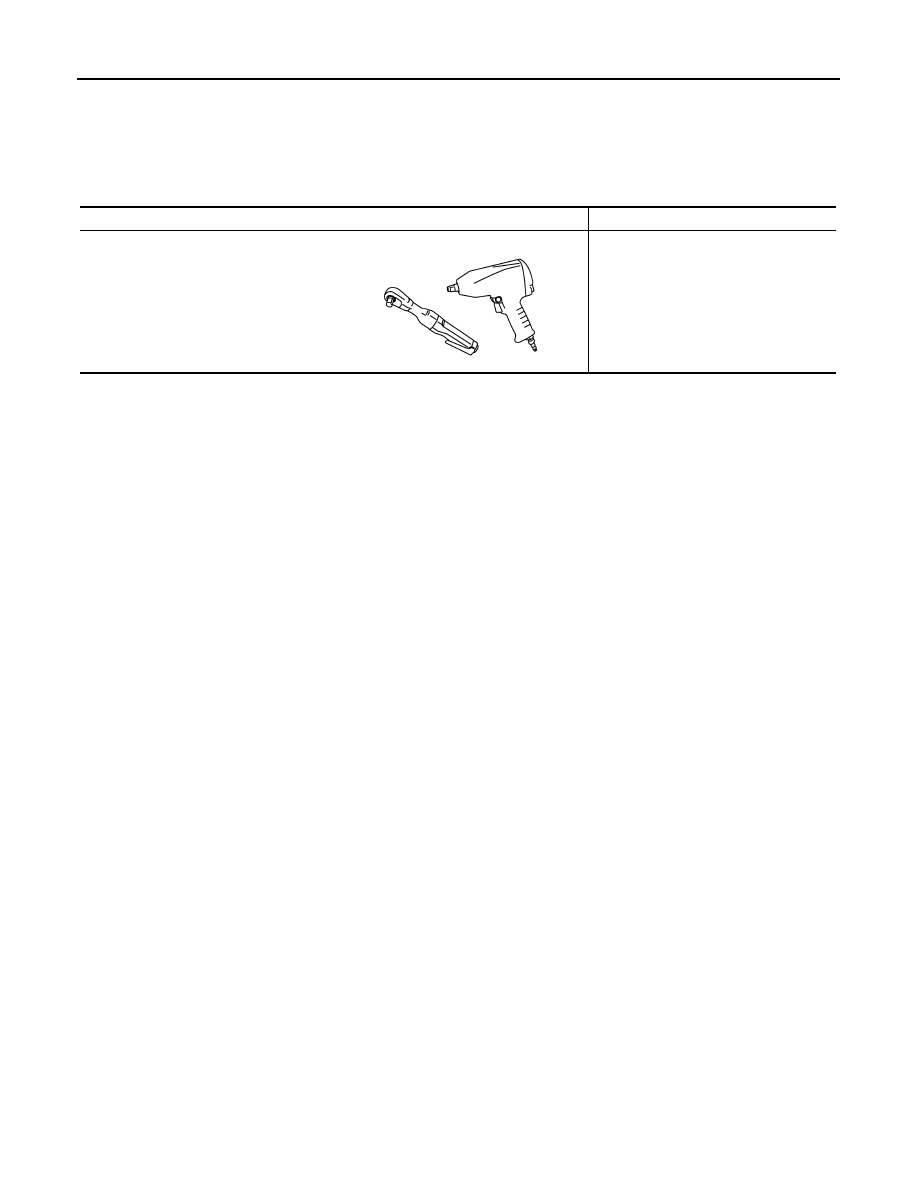

Commercial Service Tools

INFOID:0000000012200389

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E
