RF-42

< REMOVAL AND INSTALLATION >

SUNSHADE

SUNSHADE

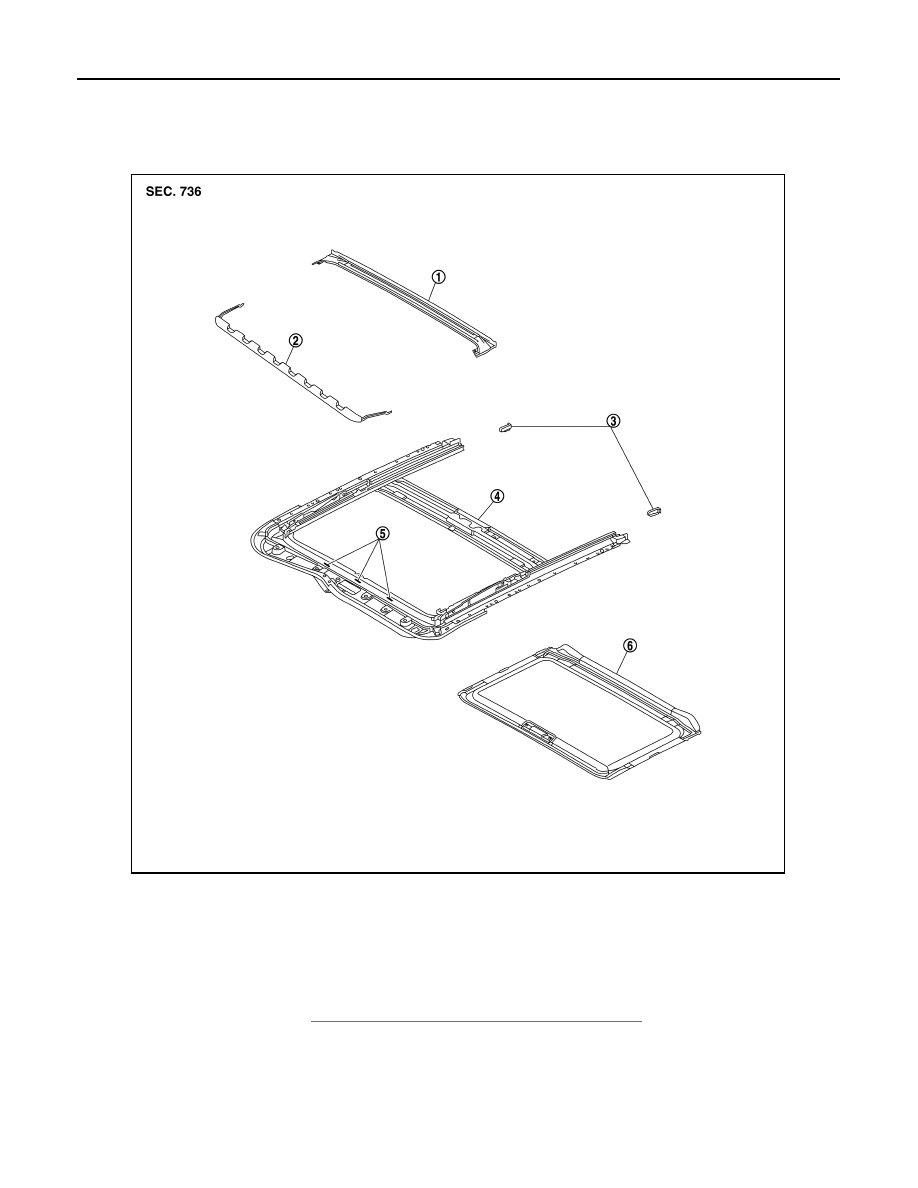

Exploded View

INFOID:0000000012196988

Removal and Installation

INFOID:0000000012196989

REMOVAL

1. Remove headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

1.

Rear drain assembly

2.

Wind deflector

3.

Sunshade stopper

4.

Sunroof frame assembly

5.

Seating deflector

6.

Sunshade

JSKIA2885ZZ

SUNSHADE

RF-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

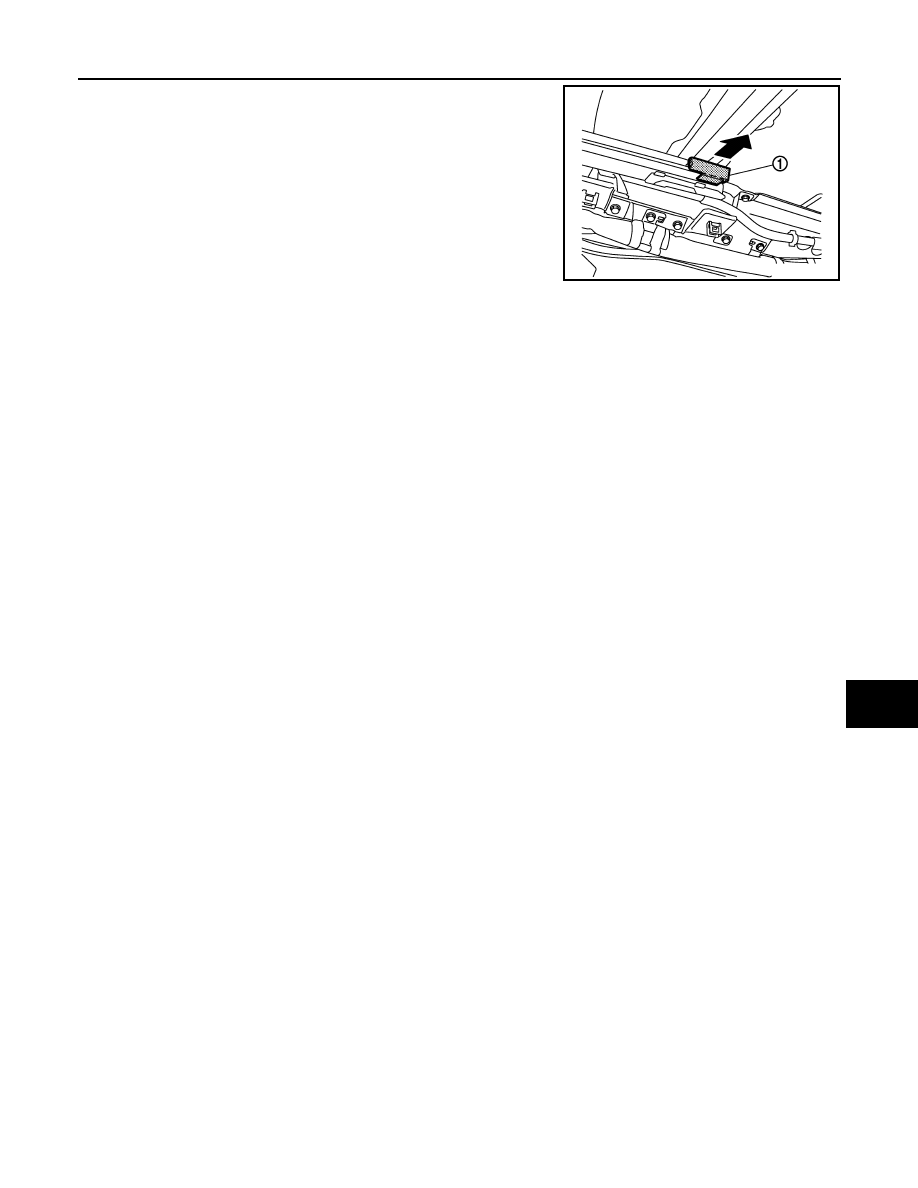

2. Remove the sunshade stopper (1) from the rear end of sunroof

frame.

3. Remove the sunshade from the rear end of sunroof frame.

INSTALLATION

Install in the reverse order of removal.

JMKIA2045ZZ

RF-44

< REMOVAL AND INSTALLATION >

WIND DEFLECTOR

WIND DEFLECTOR

Exploded View

INFOID:0000000012196990

Removal and Installation

INFOID:0000000012196991

REMOVAL

1. Open the glass lid to see the wind deflector installation point on the sun roof slide rail.
2. Remove the wind deflector.

1. Remove the spring from sunroof frame groove.

2. Turn the wind deflector and remove it from sunroof frame.

INSTALLATION

Install in the reverse order of removal.

1.

Rear drain assembly

2.

Wind deflector

3.

Sunshade stopper

4.

Sunroof frame assembly

5.

Seating deflector

6.

Sunshade

JSKIA2885ZZ

SUNROOF SWITCH

RF-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF SWITCH

Removal and Installation

INFOID:0000000012196992

REMOVAL

1. Remove headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

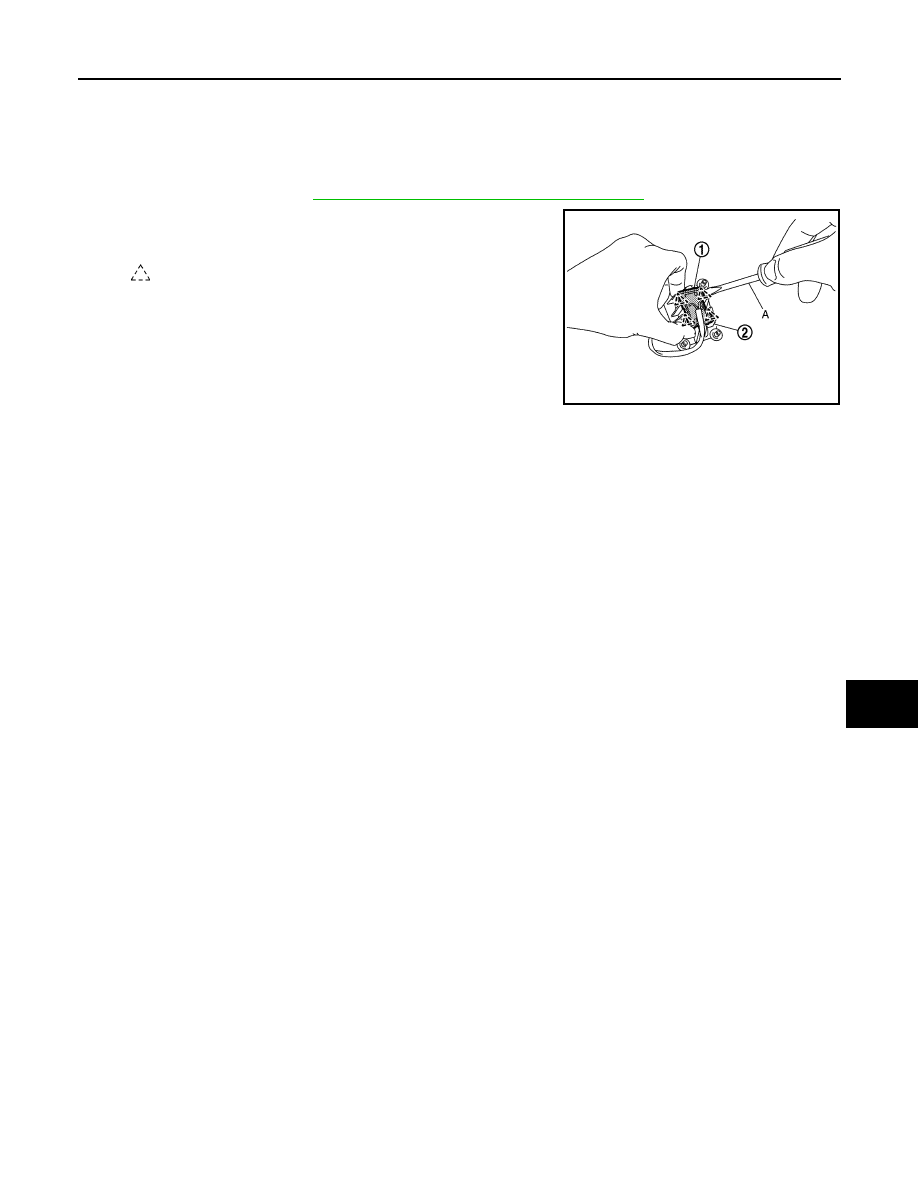

2. Remove sun roof switch (1) from map lamp switch finisher (2)

using remover tool (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl
