U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

DTC Logic

INFOID:0000000012202541

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn the ignition switch ON.

2. Shift the selector lever to “R” position.

3. Perform “All DTC Reading” with CONSULT.

4. Check if the “U111B” is detected as the current malfunction in “Self Diagnostic Result” of “AVM”.
Is “U111B” detected as the current malfunction?

YES

>> Refer to

AV-134, "Diagnosis Procedure"

.

NO-1 >> To check malfunction symptom before repair: Refer to

GI-45, "Intermittent Incident"

.

NO-2 >> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000012202542

1.

CHECK CONTINUITY SIDE CAMERA RH POWER SUPPLY AND GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect around view monitor control unit connector and door mirror (passenger side) connector.

3. Check continuity between around view monitor control unit harness connector and door mirror (passenger

side) harness connector.

4. Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VOLTAGE SIDE CAMERA RH POWER SUPPLY

1. Connect around view monitor control unit connector and door mirror (passenger side) connector.

2. Turn ignition switch ON.

3. Check voltage between around view monitor control unit harness connector and ground.

DTC

Trouble diagnosis name

DTC detecting condition

Possible causes

U111B

SIDE CAMERA RH IM-
AGE SIGNAL

Camera image signal circuit is open or shorted.

• Camera image signal circuit be-

tween side camera RH and around
view monitor control unit

• Around view monitor control unit
• Side  camera  RH

Around view monitor control

unit

Door mirror (passenger

side)

Continuity

Connector

Terminals

Connector

Terminals

M98

9

D9

6

Existed

10

14

Around view monitor control

unit

Ground

Continuity

Connector

Terminal

M98

10

Not existed

AV

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

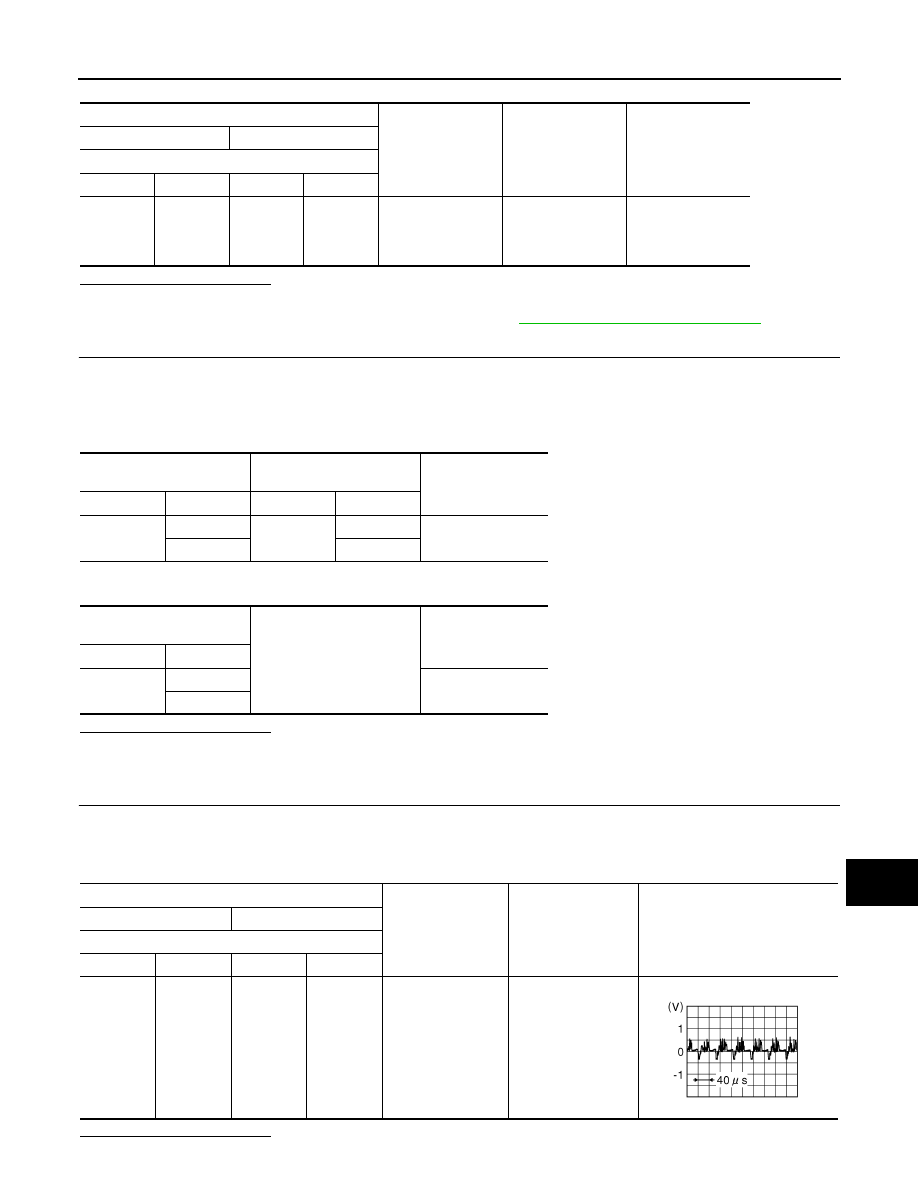

AV-135

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-190, "Removal and Installation"

.

3.

CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect around view monitor control unit connector and door mirror (passenger side) connector.

3. Check continuity between around view monitor control unit harness connector and door mirror (passenger

side) harness connector.

4. Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK CAMERA IMAGE SIGNAL

1. Connect around view monitor control unit connector and door mirror (passenger side) connector.

2. Turn ignition switch ON.

3. Check signal between around view monitor control unit harness connector terminals.

Is inspection result normal?

Terminal

Condition

Standard

Reference voltage

(Approx.)

(+)

(

−)

Around view monitor control unit

Connector

Terminal

Connector

Terminal

M98

10

M98

9

“CAMERA” switch
(around view moni-
tor switch) is ON or
shift position is “R”.

3.5 V or more

6.0 V

Around view monitor control

unit

Door mirror (passenger

side)

Continuity

Connector

Terminals

Connector

Terminals

M98

11

D9

7

Existed

12

15

Around view monitor control

unit

Ground

Continuity

Connector

Terminals

M98

11

Not existed

12

Terminal

Condition

Standard

Reference value

(+)

(

−)

Around view monitor control unit

Connector

Terminal

Connector

Terminal

M98

12

M98

11

Shift position is in

“R”.

Waveform accord-
ing to camera image
is input.

JSNIA0834GB

AV-136

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITH NAVIGATION]

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

YES

>> Replace around view monitor control unit. Refer to

AV-190, "Removal and Installation"

.

NO

>> Replace side camera RH. Refer to

AV-193, "Removal and Installation"

.
