Nissan Juke F15. Manual - part 32

AV-114

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

INSPECTION AND ADJUSTMENT

>> GO TO 5.

5.

WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Select “Manual Configuration”, and write the setting value as shown in the following table to NAVI control unit

according to the vehicle specification.

CAUTION:

Grasp vehicle specifications precisely. The control of ECU may not function normally if the specifica-

tions are misread.

NOTE:

• The items shown in this list depend on vehicle specifications.

• The config list may not be displayed depending on vehicle specifications. This is not a malfunction.

• If selection items are not displayed on the CONSULT screen, touch “NEXT”.

>> GO TO 6.

6.

PERFORM SELF-DIAGNOSIS

CONSULT Self Diagnostic Result

Perform self-diagnosis of CONSULT, and check whether or not DTC U12AA is detected.
Is DTC U12AA detected?

YES

>> GO TO 5.

NO

>> GO TO 7.

7.

OPERATION CHECK

Check that the operation of the NAVI control unit is normal.

>> WORK END

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)

MANUAL SETTING ITEM

Detail

Items

Setting value

TRANSMISSION

MT

M/T models

CVT

CVT models

AT

A/T models

OTHER

Except for above

SOUND SYSTEM

BASE

—

BOSE

With BOSE system

BOSE SURROUND

With BOSE surround system

ROCKFORD FOSGATE

Without BOSE system without woof-
er

ROCKFORD SUB WOOFER

Without BOSE system with woofer

CAMERA SYSTEM

NONE

—

AVM

—

NONE/AVM

Without camera system or with
around view monitor system

REAR

With rear view monitor system

REAR+SIDE

With rear view monitor system and
front-side view monitor function

AVM+PA

With around view monitor system
and parking assist function

AV

INSPECTION AND ADJUSTMENT

AV-115

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Work Procedure

INFOID:0000000012202514

1.

SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Before Replace ECU”, and save the current vehicle specification in CONSULT.
Is the vehicle specification saved normally?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

REPLACE AROUND VIEW MONITOR CONTROL UNIT

Replace around view monitor control unit. Refer to

AV-190, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Select “Configuration” or “After Replace ECU”, and write the vehicle specification saved in CONSULT to

around view monitor control unit.

>> GO TO 6.

4.

REPLACE AROUND VIEW MONITOR CONTROL UNIT

Replace around view monitor control unit. Refer to

AV-190, "Removal and Installation"

.

>> GO TO 5.

5.

WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Select “WRITE CONFIGURATION - Manual selection” and write in the following list at a around view monitor

control unit depending on a vehicle specification.

>> GO TO 6.

6.

PERFORM SELF-DIAGNOSIS

CONSULT Self Diagnostic Result

Perform self-diagnosis of CONSULT, and check whether or not DTC U1305 is detected.
Is DTC U1305 detected?

YES

>> GO TO 5.

NO

>> GO TO 7.

7.

OPERATION CHECK

Check that the operation of the around view monitor control unit and camera images (fixed guide lines and

predictive course lines) are normal.

>> WORK END

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT

Setting item

Detail

Items

Setting value

TRANSMISSION

A/T

CVT models

M/T

M/T models

AV-116

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

INSPECTION AND ADJUSTMENT

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Description

INFOID:0000000012202515

Adjust the center position of the predictive course line of the rear view monitor if it is shifted. Refer to

AV-116,

"PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Work Procedure"

.

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Work Procedure

INFOID:0000000012202516

1.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)
CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description

INFOID:0000000012202517

• Calibration must be performed after removing/replacing the cameras, removing parts (e.g. front grille, door

mirror, and others) mounted on the cameras, or replacing the Around view monitor control unit.

• The use of CONSULT is required to perform calibration or writing of calibration results to the Around view

monitor control unit.

• Align the white lines on the road near the vehicle at the boundary of each camera image by this camera cal-

ibration. The white lines far from the vehicle may not be aligned at the boundary of each camera image. The

farther the line, the greater the difference is.

• Calibrating camera image, refer to

AV-116, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) :

Work Procedure"

.

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure

INFOID:0000000012202518

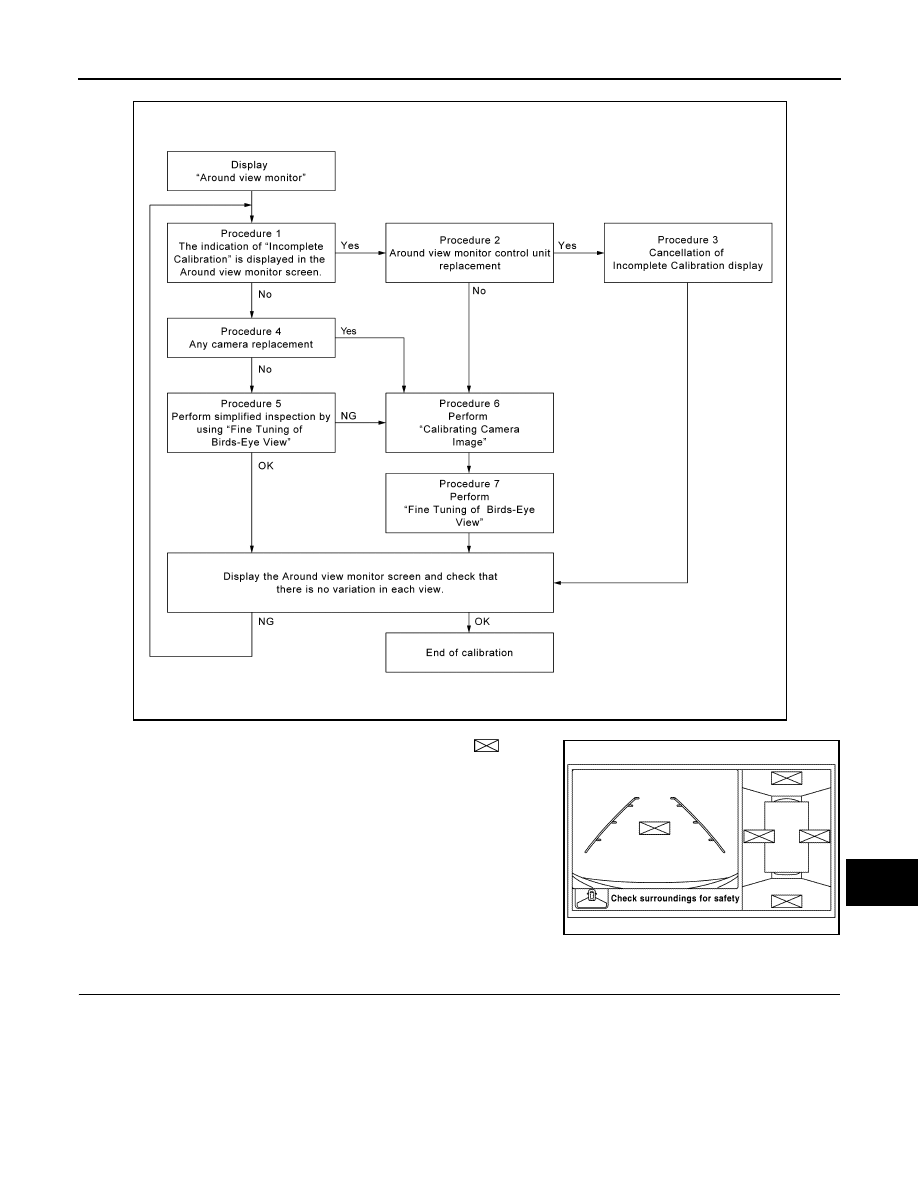

CALIBRATION FLOWCHART

AV

INSPECTION AND ADJUSTMENT

AV-117

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Following the flowchart shown in the figure, perform the calibration.

NOTE:
View in the incomplete calibration state is indicated by “

” on the

around view monitor.

CALIBRATION PROCEDURE

1.

AROUND VIEW MONITOR SCREEN CONFIRMATION

JSNIA8055GB

JSNIA4606ZZ
