Nissan Juke F15. Manual - part 31

AV-110

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

2.

DIAGNOSIS WITH CONSULT

1. Connect CONSULT and perform a self-diagnosis for “MULTI AV”. Refer to

AV-78, "CONSULT Function"

.

NOTE:

Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2. When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1. Check the DTC indicated in the self-diagnosis results.

2. Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-86, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-172, "Symptom

Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1. Repair or replace the identified malfunctioning parts.

2. Perform a self-diagnosis for “MULTI AV” with CONSULT.

NOTE:

Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC

has been indicated in the self-diagnosis results.

3. Check that the symptom does not occur.
Does the symptom occur?

YES

>> GO TO 1.

NO

>> INSPECTION END

AROUND VIEW MONITOR SYSTEM

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-111

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AROUND VIEW MONITOR SYSTEM : Work Flow

INFOID:0000000012202509

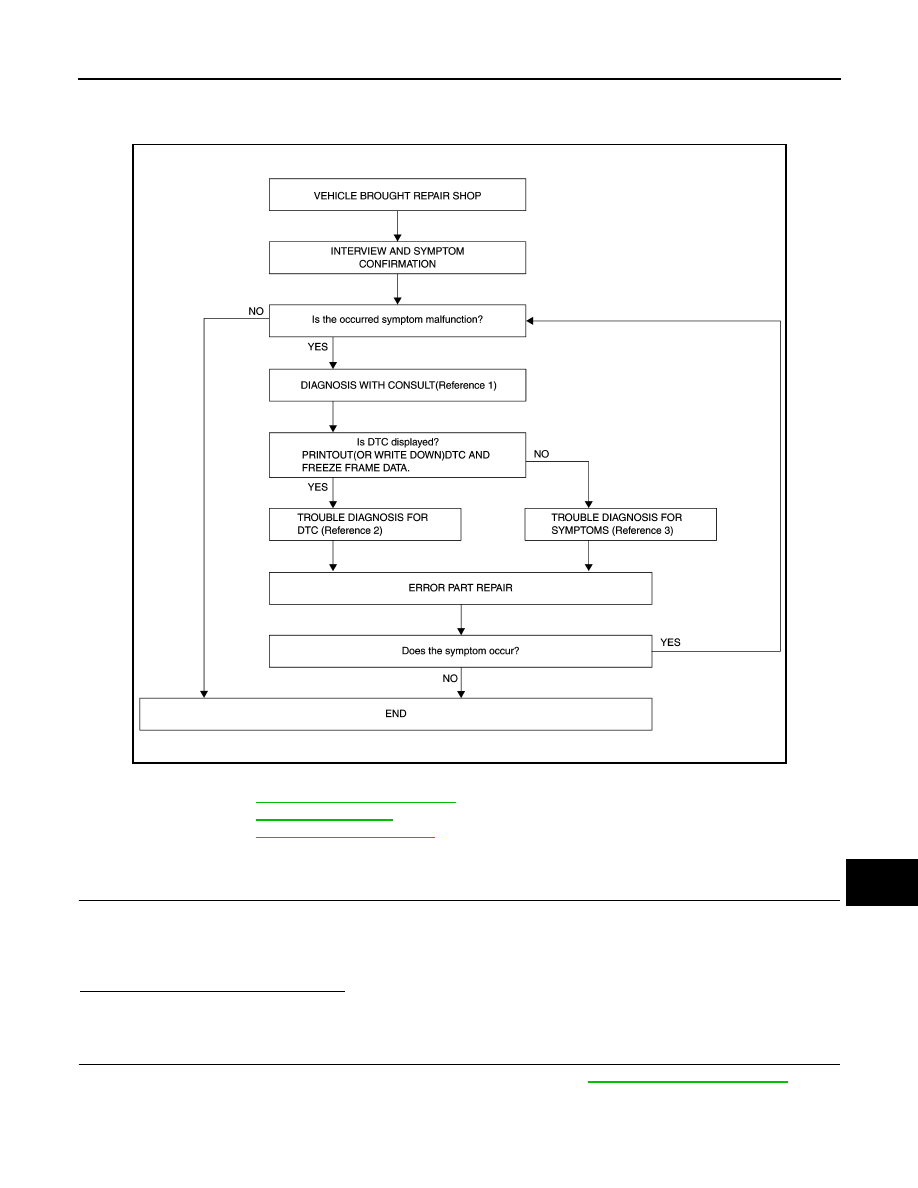

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-80, "CONSULT Function"

.

• Reference 2··· Refer to

AV-93, "DTC Index"

.

• Reference 3··· Refer to

AV-172, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.

• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.
Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

DIAGNOSIS WITH CONSULT

1. Connect CONSULT and perform a self-diagnosis for “AVM”. Refer to

AV-80, "CONSULT Function"

.

NOTE:

Skip to step 4 of the diagnosis procedure if “AVM” is not displayed.

2. When DTC is detected, follow the instructions below:

JSNIA4482GB

AV-112

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

-

Record DTC and Freeze Frame Data.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1. Check the DTC indicated in the self-diagnosis results.

2. Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-93, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-172, "Symptom

Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1. Repair or replace the identified malfunctioning parts.

2. Perform a self-diagnosis for “AVM” with CONSULT.

NOTE:

Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC

has been indicated in the self-diagnosis results.

3. Check that the symptom does not occur.
Does the symptom occur?

YES

>> GO TO 1.

NO

>> INSPECTION END

AV

INSPECTION AND ADJUSTMENT

AV-113

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING NAVI CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING NAVI CONTROL UNIT : Description

INFOID:0000000012202510

Perform the following operations when replacing NAVI control unit.

Configuration, refer to

AV-113, "CONFIGURATION (NAVI CONTROL UNIT) : Description"

.

ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON-
TROL UNIT
ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL
UNIT : Description

INFOID:0000000012202511

Perform the calibrating camera image when replacing around view monitor control unit. Refer to

AV-116,

"CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

.

CONFIGURATION (NAVI CONTROL UNIT)
CONFIGURATION (NAVI CONTROL UNIT) : Description

INFOID:0000000012202512

• Since vehicle specifications are not included in the NAVI control unit after replacement, it is required to write

vehicle specifications with CONSULT. Refer to

AV-113, "CONFIGURATION (NAVI CONTROL UNIT) : Spe-

cial Repair Requirement"

.

• The NAVI control unit configuration includes functions as follows.

CONFIGURATION (NAVI CONTROL UNIT) : Special Repair Requirement

INFOID:0000000012202513

1.

SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Before Replace ECU”, and save the current vehicle specification in CONSULT.
Is the vehicle specification saved normally?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

REPLACE NAVI CONTROL UNIT

Replace NAVI control unit. Refer to

AV-182, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Select “Configuration” or “After Replace ECU”, and write the vehicle specification saved in CONSULT to NAVI

control unit.

>> GO TO 6.

4.

REPLACE NAVI CONTROL UNIT

Replace NAVI control unit. Refer to

AV-182, "Removal and Installation"

.

Function

Description

Read/Write Configuration

Before Replace ECU

Allows the reading of vehicle specification written in NAVI control
unit to store the specification in CONSULT.

After Replace ECU

Allows the writing of the vehicle information stored in CONSULT
into the NAVI control unit.

Manual Configuration

Allows the writing of the vehicle specification into the NAVI control
unit by hand.
