AV-106

< WIRING DIAGRAM >

[AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

JRNWF0750GB

AV

NAVIGATION SYSTEM

AV-107

< WIRING DIAGRAM >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWF0751GB

AV-108

< WIRING DIAGRAM >

[AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

JRNWF0752GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-109

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

NAVIGATION SYSTEM

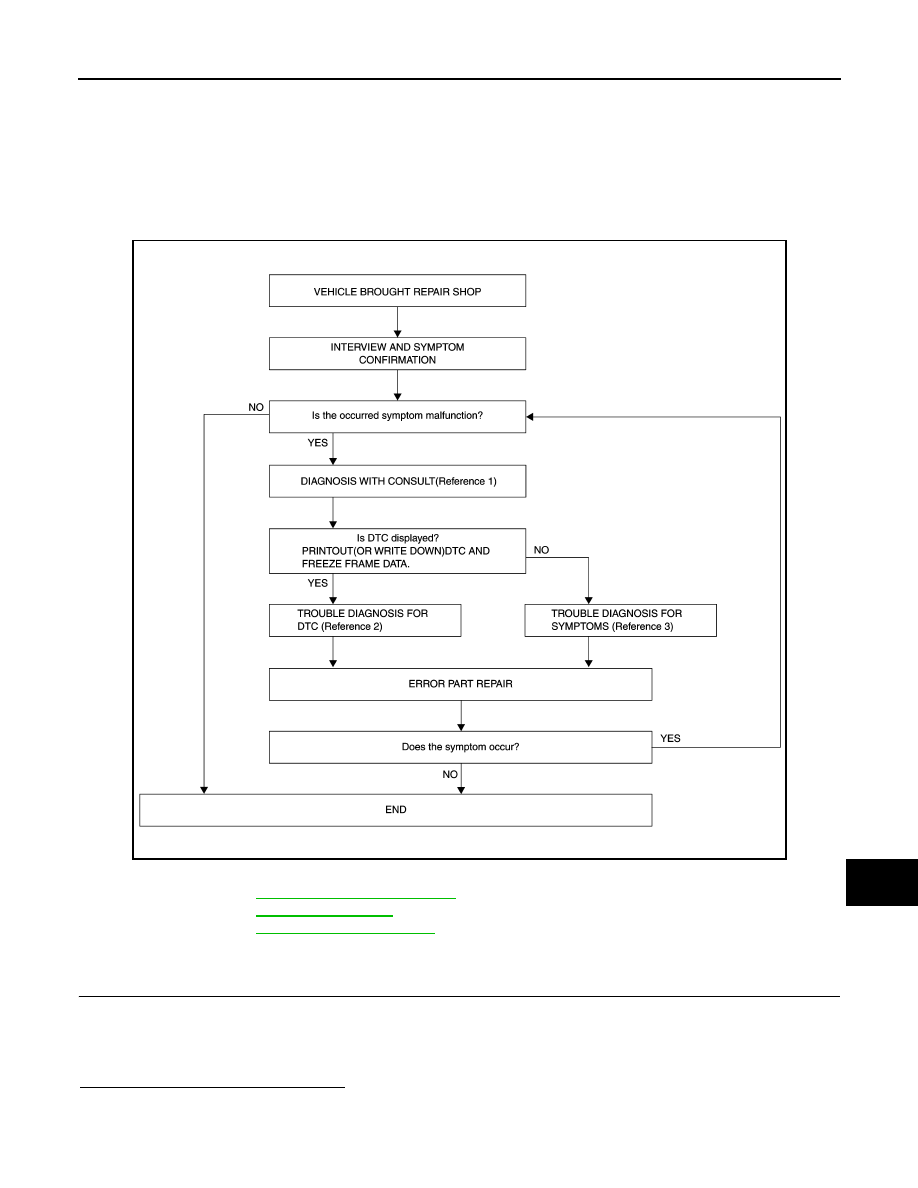

NAVIGATION SYSTEM : Work Flow

INFOID:0000000012202508

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-78, "CONSULT Function"

.

• Reference 2··· Refer to

AV-86, "DTC Index"

.

• Reference 3··· Refer to

AV-172, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.

• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.
Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

JSNIA4482GB
