AV-70

< SYSTEM DESCRIPTION >

[AUDIO WITH NAVIGATION]

SYSTEM

• The screen is switched to the around view monitor by shifting the selector lever to the reverse position.

• In the around view monitor, Birds-Eye view, Front-side view can be switched by pressing the “CAMERA”

switch.

• The around view monitor is cancelled 3 minutes after pressing the “CAMERA” switch, and then the screen

returns to the screen before displaying the around view monitor when selector lever is in a position other

than the reverse position.

• In the Birds-Eye view, the invisible area is displayed to show the border of 4 camera images. In addition, red

fixed lines are displayed in 4 corners of the vehicle icon. After turning the ignition switch ON, the invisible

area is highlighted with yellow and red fixed lines are blink only once.

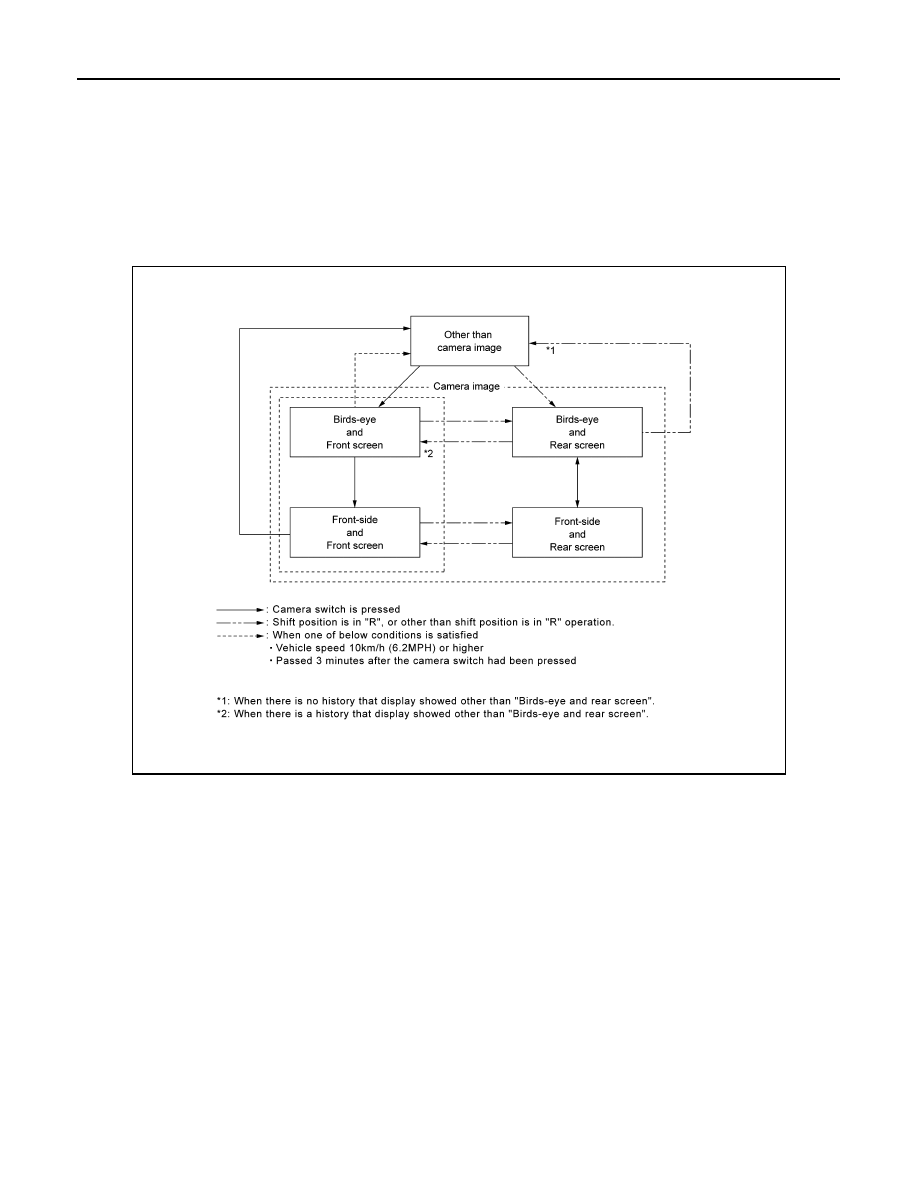

Around view monitor screen transition

FRONT VIEW

• The front view image is from the front camera.

• When the selector lever is in any position other than the reverse position, the front view is displayed by

pressing the “CAMERA” switch. It improves the visibility of obstacles in front of the vehicle and helps driving

by the images displayed from Birds-Eye view and Front-Side view.

• Display the vehicle width guiding line and vehicle distance guiding line in front view and display the predic-

tive course line according to the steering angle.

• If the steering angle is within approximately 90 degrees, the predictive course lines on the left/right side are

displayed. If the steering angle is exceeding approximately 90 degrees, only the predictive course line on the

outside (in the opposite side of steering direction) is displayed.

• Around view monitor control unit receives the steering angle signal from steering angle sensor via CAN com-

munication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed by CONSULT.

JSNIA8115GB

AV

SYSTEM

AV-71

< SYSTEM DESCRIPTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

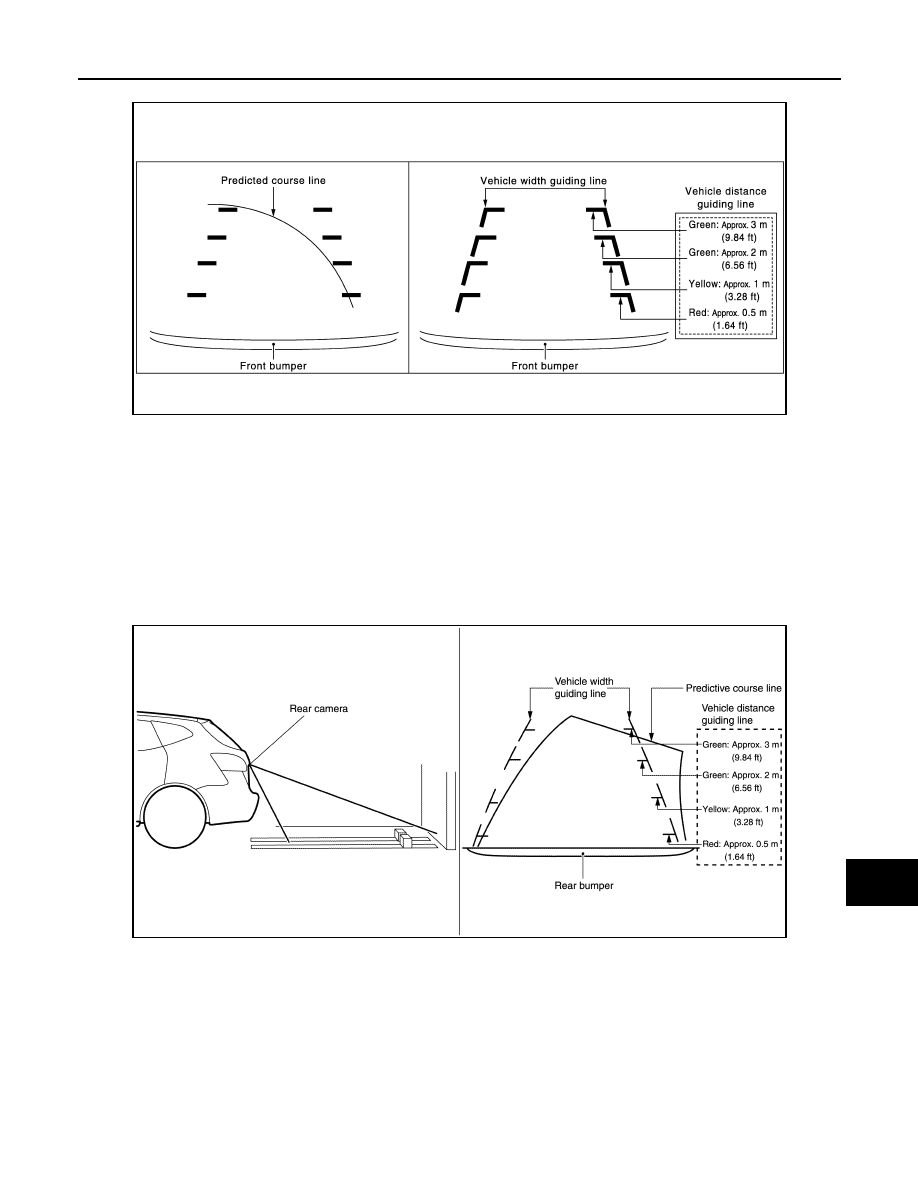

Front view guiding lines

REAR VIEW

• The rear view image is from the rear camera.

• When the selector lever is in the reverse position, the rear view is displayed. Backing and parking are

improved by the images from Birds-Eye view and Front-Side view.

• Display the vehicle width guiding line and vehicle distance guiding line in Rear view and display the predic-

tive course line according to the steering angle.

• The predictive course line is not displayed at the steering neutral position.

• Around view monitor control unit receives the steering angle signal from steering angle sensor via CAN com-

munication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed by CONSULT.

Rear view guiding lines

MOVING OBJECT DETECTION (MOD)

• Moving Object Detection (MOD) is a function that notifies the driver of the presence of moving objects in the

area around the vehicle. MOD detects moving objects from camera image, illuminates frame of view in yel-

low whenever “MOD” icon is displayed in blue, and sounds buzzer in combination meter.

• MOD detects moving objects while camera image is displayed on display.

• Around view monitor control unit performs the following process when moving objects are detected.

- Superimposes yellow frame line on camera image signal and outputs them to display.

- Transmits buzzer output signal to combination meter via CAN communication so that buzzer in combination

meter sounds.

• Around view monitor control unit detects moving objects from camera image according to an image recogni-

tion method called optical flow.

JSNIA0770GB

JSNIA4567GB

AV-72

< SYSTEM DESCRIPTION >

[AUDIO WITH NAVIGATION]

SYSTEM

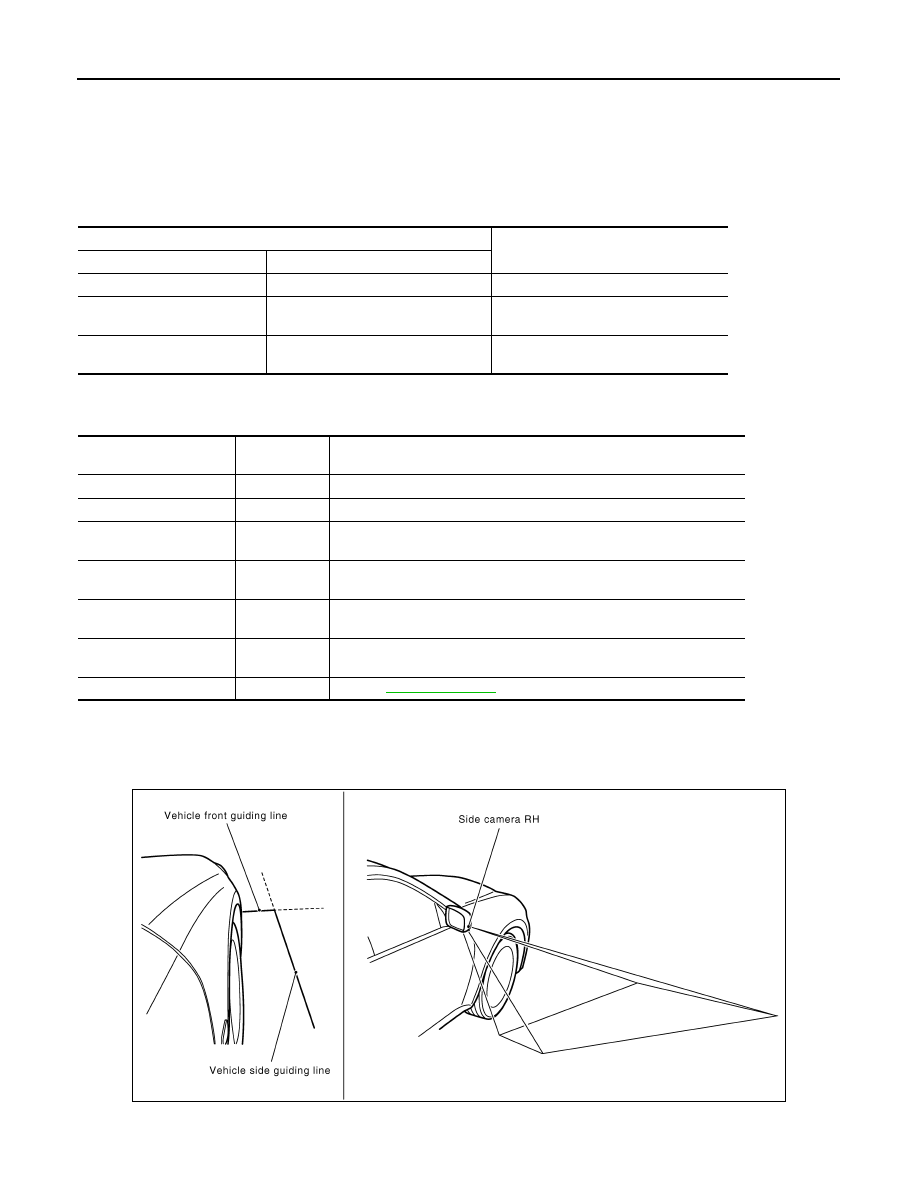

• MOD does not detect a background as a moving object when the vehicle moves (when whole screen

moves), but detects a moving object when an actual moving object is displayed on screen.

• Color of “MOD” icon indicates whether or not MOD is operative. “MOD” icon is displayed as shown in the fol-

lowing table. When MOD is operative, “MOD” icon is displayed in blue. When MOD is not operative, “MOD”

icon is displayed in gray or orange. MOD icon is not displayed when MOD is off (permanent off).

• MOD illuminates frame of view in yellow and sounds buzzer, when any of the conditions in the following table

are satisfied.

• MOD does not operate or stops operation when any of the conditions in the following table are satisfied.

“MOD” icon is displayed in gray or orange.

FRONT-SIDE VIEW

• The front-side view image is from the side camera RH.

• In Front-Side view, display the vehicle distance guiding line and vehicle width guiding line.

Front-side view area and guiding line

BIRDS-EYE VIEW

Operation Condition

View where MOD is operative

Shift position

Vehicle speed

P and N position

0 km/h (0 MPH)

Birds-eye view

R position

0 km/h (0 MPH) or more - less than 8
km/h (5 MPH)

Rear view

D position

0 km/h (0 MPH) or more - less than 8
km/h (5 MPH)

Front view

Operation stop condition

“MOD” icon

color

Note

Front or rear door is open. Gray

Operation of Birds-eye view stops when door is open.

Back door is open.

Gray

Operation of Birds-eye view and rear view stops when back door is open.

Rear camera installation
angle is incorrect

Gray

Operation of rear view stops when rear view camera installation angle is
incorrect.

Front camera image is
abnormal (Temporary)

Gray

Operation of Birds-eye view and front view stops when front camera im-
age is temporarily abnormal.

Side camera image is ab-
normal (Temporary)

Gray

Operation of Birds-eye view stops when side camera image is temporari-
ly abnormal.

Rear camera image is ab-
normal (Temporary)

Gray

Operation of Birds-eye view and rear view stops when rear camera image
is temporarily abnormal.

System malfunction

Orange

Refer to

AV-93, "DTC Index"

JSNIA0771GB

AV

SYSTEM

AV-73

< SYSTEM DESCRIPTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

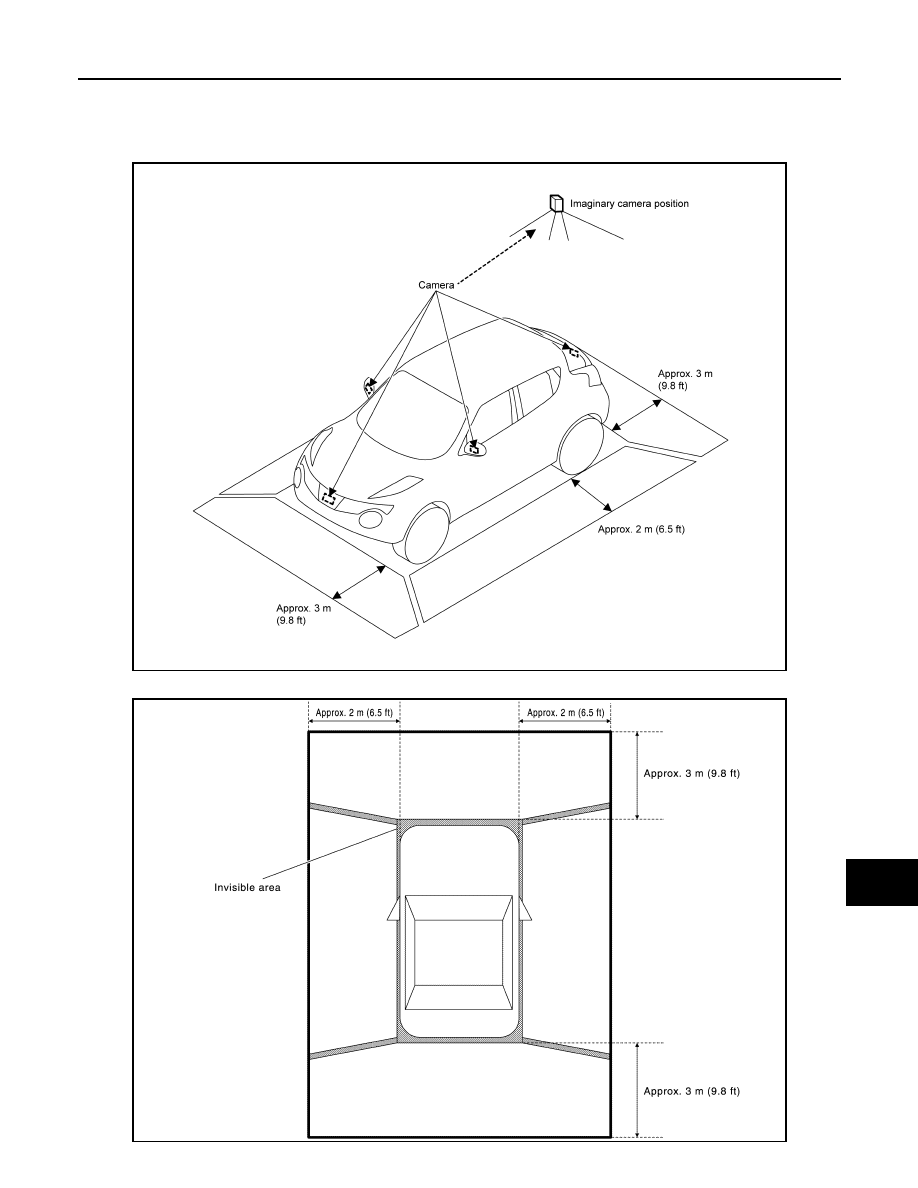

• The image from the 4 cameras is cut out and converted into the overhead view, and the surroundings of the

vehicle is displayed in birds-eye view.

• In Birds-Eye view, the invisible area is displayed on the image to specify the boundary of the 4 cameras.

Birds-Eye view display image

Birds-Eye view display area

JSNIA8054GB

JSNIA3986GB
