AV-62

< PREPARATION >

[AUDIO WITH NAVIGATION]

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000012202493

Tool name

Description

Power tool

Loosening screws

PBIC0191E

AV

COMPONENT PARTS

AV-63

< SYSTEM DESCRIPTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

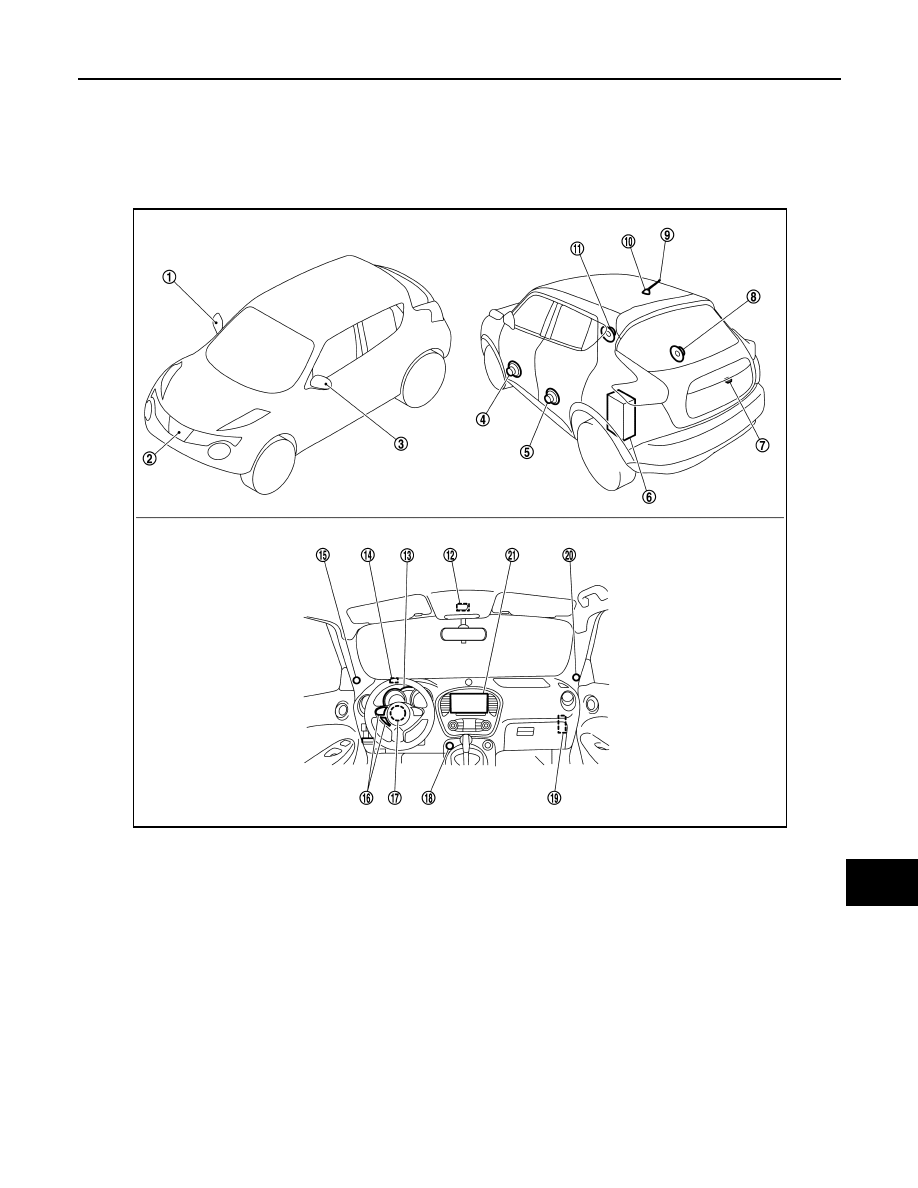

Component Parts Location

INFOID:0000000012202494

1.

Side camera RH

2. Front camera

3. Side camera LH

4.

Front door speaker LH

5. Rear door speaker LH

6. Woofer

7.

Rear camera

8. Rear door speaker RH

9. Antenna rod

10.

Antenna base (antenna amp. and
satellite radio antenna)

11. Front door speaker RH

12. Microphone

13. Combination meter

14. GPS antenna

15. Tweeter LH

16. Steering switch

17. Steering angle sensor

18. USB connector and AUX jack

19. Around view monitor control unit

20. Tweeter RH

21. NAVI control unit

JSNIA8049ZZ

AV-64

< SYSTEM DESCRIPTION >

[AUDIO WITH NAVIGATION]

COMPONENT PARTS

Component Description

INFOID:0000000012202495

Part name

Description

NAVI control unit

• Operational switch of navigation system and audio system are integrated.
• Includes the audio, hands-free phone, navigation, satellite radio, rear view

monitor, USB connection and AUX connection functions.

• Map data can be loaded from the SD-card inserted in the built-in SD-card

slot.

• Sound signals are output to each speaker and woofer.
• It inputs the illumination signals that are required for the display dimming con-

trol.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

• Touch panel function can be operated for each system by touching a display

directly.

• Camera image signal is input from around view monitor control unit.

Map SD-card

A collection of Map data.

Front door speaker

• Outputs sound signal from NAVI control unit.
• Outputs mid and low range sounds.

Tweeter

• Outputs sound signal from NAVI control unit.
• Outputs high range sounds.

Rear door speaker

• Outputs sound signal from NAVI control unit.
• Outputs high, mid and low range sounds.

Woofer

• Woofer amp. ON signal is input from NAVI control unit.
• Outputs sound signal from NAVI control unit.
• Outputs low range sounds.

Steering switch

• Operations for audio and hands-free phone are possible.
• Steering switch signal (operation signal) is output to NAVI control unit.

Microphone

• Used for hands-free phone operation.
• Microphone signal is transmitted to NAVI control unit.
• Power (microphone VCC) is supplied from NAVI control unit.

GPS antenna

GPS signal is received and transmitted to NAVI control unit.

Antenna base

A radio antenna base integrated with radio antenna amp. and satellite radio an-
tenna is adopted.

ANTENNA AMP.

• Radio signal received by rod antenna is amplified and transmitted to NAVI

control unit.

• Power (antenna amp. ON signal) is supplied from NAVI control unit.

SATELLITE RADIO ANTENNA

• Receives satellite radio waves and outputs it to NAVI control unit.

Around view monitor control unit

• It supplies power to front camera, rear camera, and side camera. And then it

superimposes the images from each camera and outputs them to NAVI con-
trol unit.

• Superimpose the guiding line and predicted course line to the camera image

that outputs to NAVI control unit.

• It performs the reception/transmission of communication signal with each

camera.

Combination meter

Receives the buzzer output signal from the around view monitor control unit via
CAN communication.

Front camera

• It inputs the power supply from around view monitor control unit and outputs

the image of the vehicle front to around view monitor control unit.

• It performs the reception/transmission of the communication signal with

around view monitor control unit.

Rear camera

• It inputs the power supply from around view monitor control unit and outputs

the image of the vehicle rear to around view monitor control unit.

• It performs the reception/transmission of the communication signal with

around view monitor control unit.

AV

COMPONENT PARTS

AV-65

< SYSTEM DESCRIPTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Side camera LH

• It inputs the power supply from around view monitor control unit and outputs

the image of the vehicle LH to around view monitor control unit.

• It performs the reception/transmission of the communication signal with

around view monitor control unit.

Side camera RH

• It inputs the power supply from around view monitor control unit and outputs

the image of the vehicle RH to around view monitor control unit.

• It performs the reception/transmission of the communication signal with

around view monitor control unit.

Steering angle sensor

It is connected to the around view monitor control unit and transmits the steer-
ing angle sensor signal via CAN communication.

USB connector and AUX jack

• Sound signal of auxiliary input is transmitted to NAVI control unit.
• Sound signal of USB input is transmitted to NAVI control unit.

Part name

Description
