AV-54

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000012202480

REMOVAL

1. Remove headlining. Refer to

INT-27, "NORMAL ROOF : Removal and Installation"

 (normal roof) or

INT-

30, "SUNROOF : Removal and Installation"

 (sunroof).

2. Remove microphone connector and pawl to remove microphone.

INSTALLATION

Install in the reverse order of removal.

AV

STEERING SWITCH

AV-55

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000012202481

Refer to

SR-12, "Exploded View"

.

Removal and Installation

INFOID:0000000012202482

REMOVAL

Refer to

ST-9, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV-56

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000012202483

REMOVAL

1. Remove back door lower finisher. Refer to

INT-39, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2. Remove connector to remove rear view camera.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000012202484

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

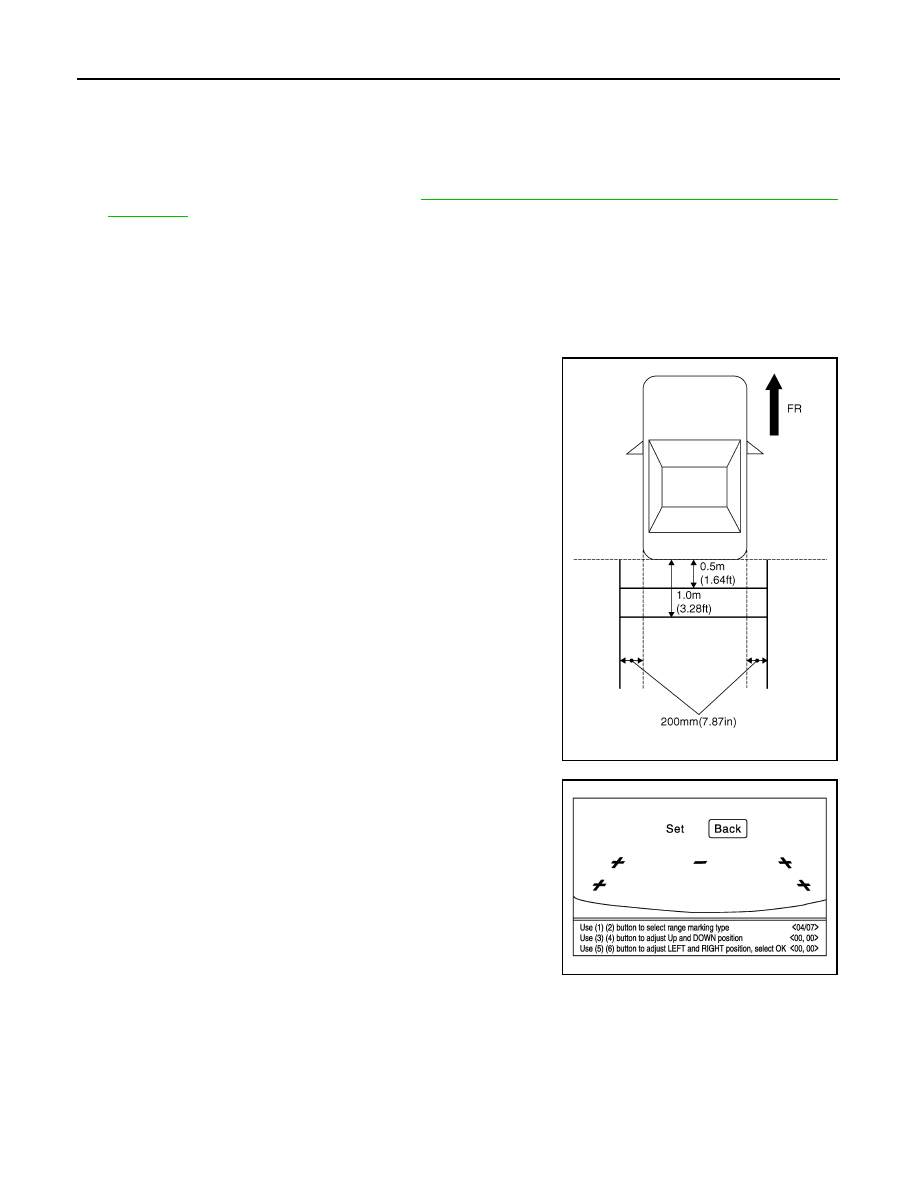

1. Draw lines on rearward area of the vehicle passing through the

following points: 200 mm (7.87 in) from both sides of the vehicle,

and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the

bumper.

2. Set into “Camera system” mode of Confirmation / Adjustment

mode.

3. Press “1” or “2” switches, and then select the guiding line pattern

so that its angle is aligned with the correction line of the rear of

the vehicle.

4. Make fine adjustment to the correction line of the rear of the

vehicle with “3”, “4”, “5” or “6” switches so that its position is

aligned with the guiding line. Press “ENTER/SETTING” switch

and record the adjusted guiding line position to the camera con-

trol unit.

CAUTION:

Never operate other function such as pressing BACK while writing index data.

SKIB3691E

Selected pattern

: 7

Up/Down adjustment range

: (

−20) – (20)

Left/Right adjustment range

: (

−20) – (20)

JSNIA1876ZZ

AV

USB CONNECTOR AND AUX JACK

AV-57

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR AND AUX JACK

Removal and Installation

INFOID:0000000012202485

REMOVAL

1. Remove cluster tray. Refer to

IP-13, "Removal and Installation"

.

2. Push the pawl from the back of cluster tray to remove USB connector and AUX jack.

INSTALLATION

Install in the reverse order of removal.
