HOW TO FOLLOW TROUBLE DIAGNOSES

GI-19

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

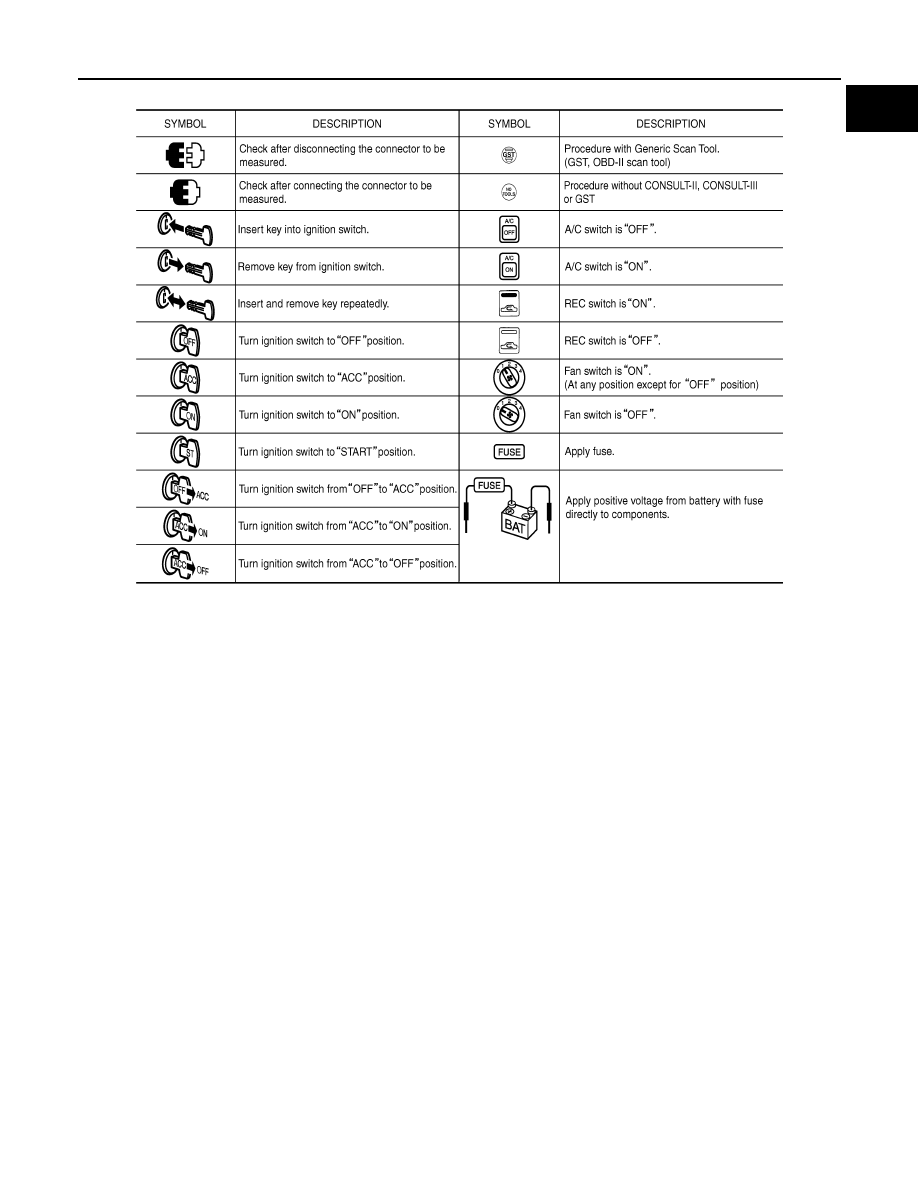

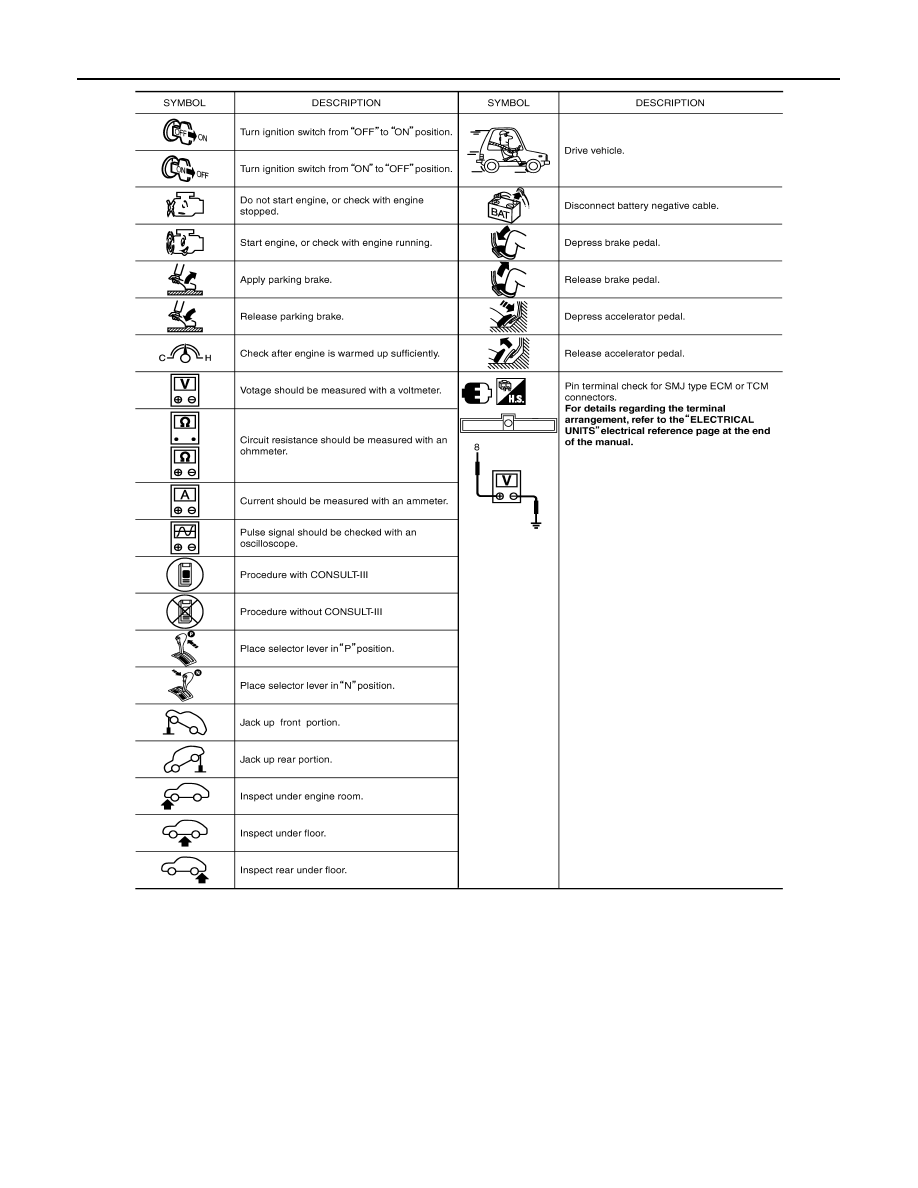

Key to Symbols Signifying Measurements or Procedures

INFOID:0000000001691459

SAIA1539E

GI-20

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

SAIA1540E

HOW TO READ WIRING DIAGRAMS

GI-21

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

HOW TO READ WIRING DIAGRAMS

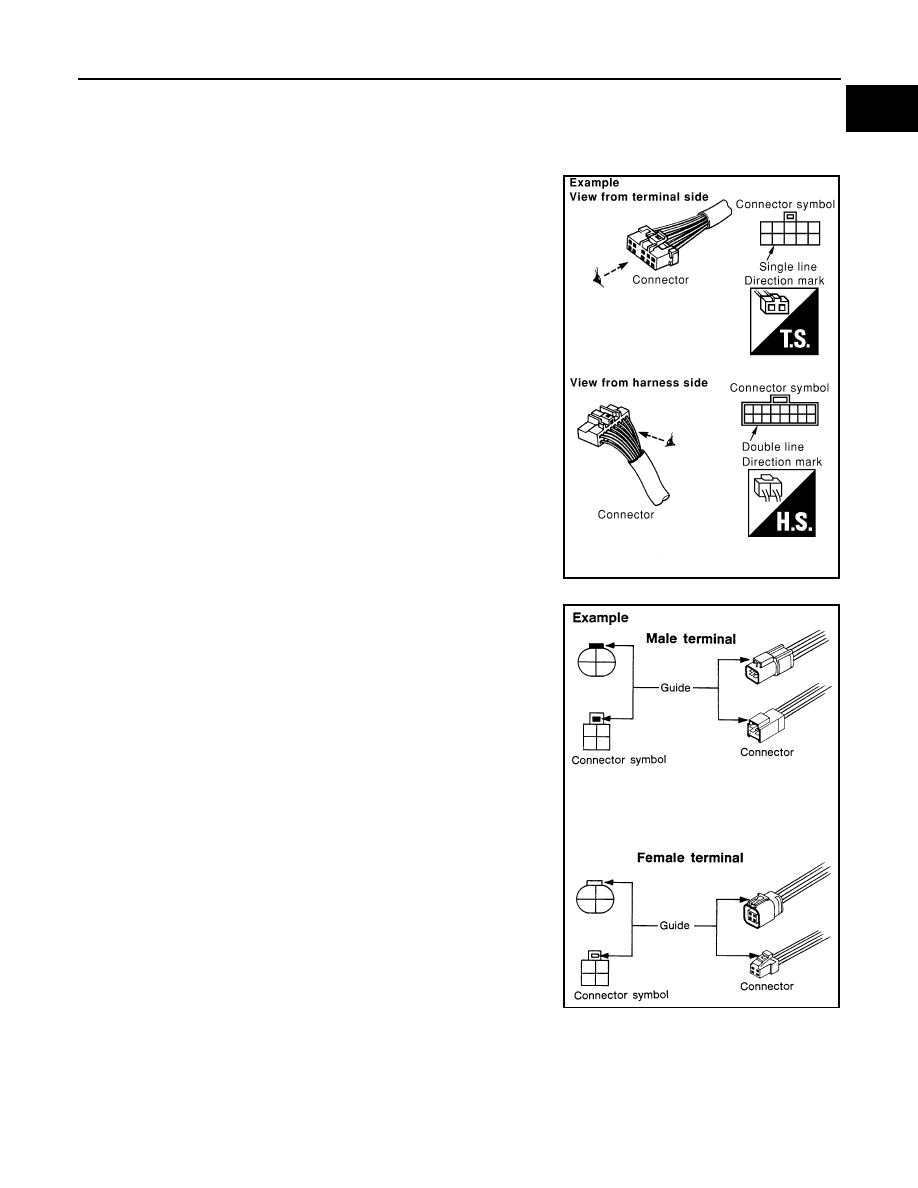

Connector symbols

INFOID:0000000001691460

Most of connector symbols in wiring diagrams are shown from the terminal side.
• Connector symbols shown from the terminal side are enclosed by

a single line and followed by the direction mark.

• Connector symbols shown from the harness side are enclosed by

a double line and followed by the direction mark.

• Certain systems and components, especially those related to

OBD, may use a new style slide-locking type harness connector.
For description and how to disconnect, refer to PG section,
“Description”, “HARNESS CONNECTOR”.

• Male and female terminals

Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.

SAIA0257E

SGI363

GI-22

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

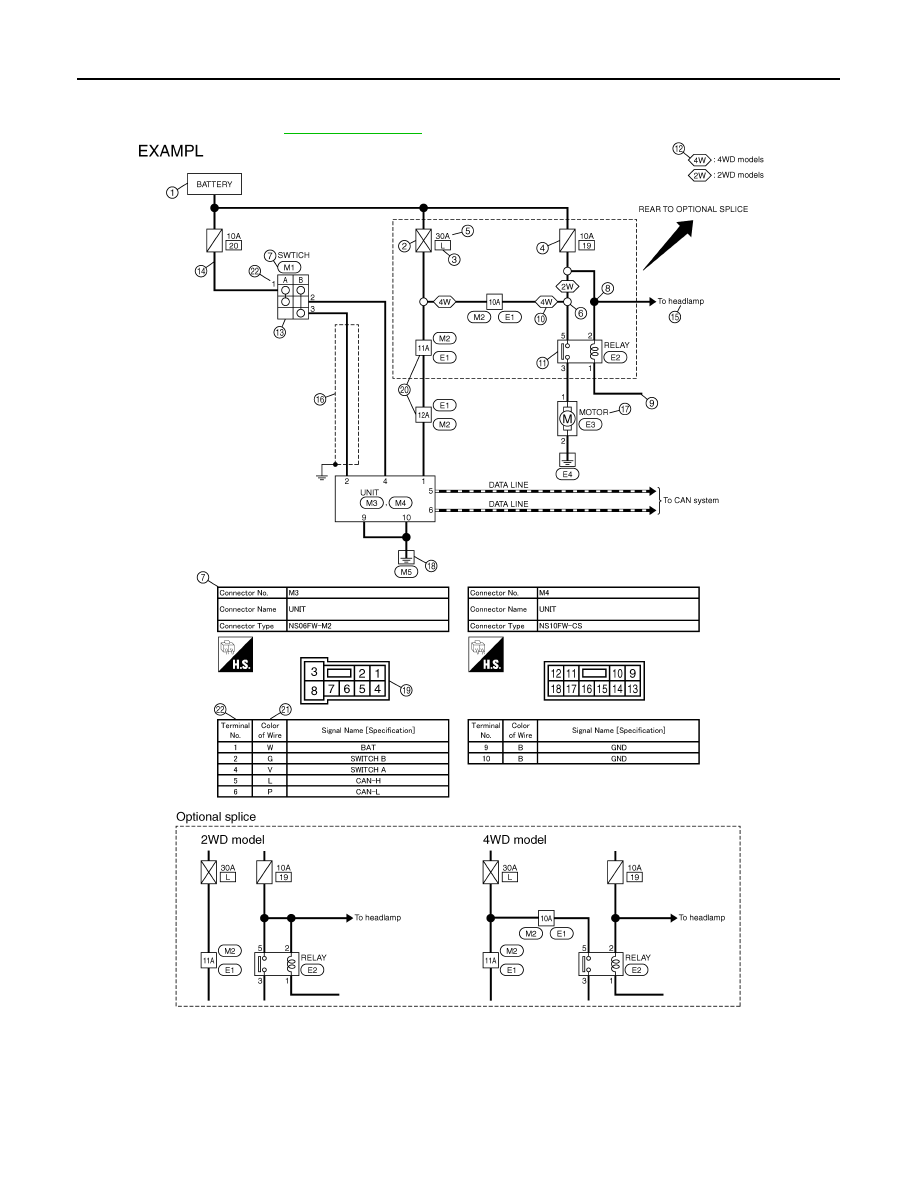

Sample/wiring diagram -example-

INFOID:0000000001691461

• For detail, refer to following

GI-23, "Description"

.

JCAWA0005GB
