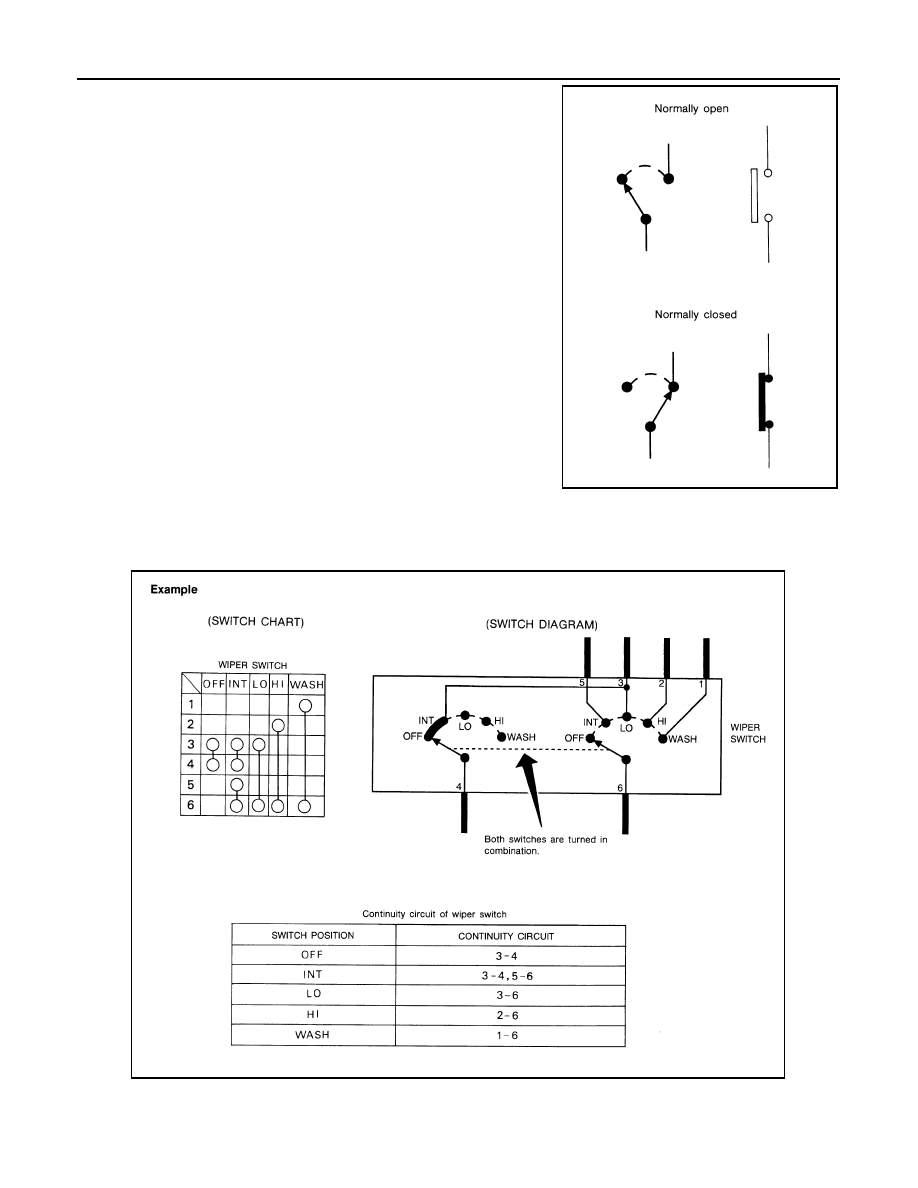

HOW TO READ WIRING DIAGRAMS GI-23 < HOW TO USE THIS MANUAL > C D E F G H I J K L M B GI N O P Description INFOID:0000000001691462 SWITCH POSITIONS Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition. Number Item Description 1 Power supply • This means the power supply of fusible link or fuse. 2 Fusible link • “X” means the fusible link. 3 Number of fusible link/ • This means the number of fusible link or fuse location. 4 Fuse • “/” means the fuse. 5 Current rating of fus- • This means the current rating of the fusible link or fuse. 6 Optional splice • The open circle shows that the splice is optional depending on vehicle application. 7 Connector number • The letter shows which harness the connector is located in. UNIT LOCATION in PG, HARNESS LAYOUT in PG. 8 Splice • The shaded circle “ ” means the splice. 9 Page crossing • This circuit continues to an adjacent page. 10 Option abbreviation • This means the vehicle specifications which layouts the circuit between “ ”. 11 Relay • This shows an internal representation of the relay. 12 Option description • This shows a description of the option abbreviation used on the page. 13 Switch • This shows that continuity exists between terminals 1 and 2 when the switch is in the A position. Continuity exists between terminals 1 and 3 when the switch is in the B position. 14 Circuit (Wiring) • This means the wiring. 15 System branch • This shows that the circuit is branched to other systems. 16 Shielded line • The line enclosed by broken line circle shows shield wire. 17 Component name • This shows the name of a component. 18 Ground (GND) • This shows the ground connection. 19 Connector • This means the connector information. 20 Connectors • This means that a transmission line bypasses two connectors or more. 21 Wire color • This shows a code for the color of the wire. B = Black BR = Brown • When the wire color is striped, the base color is given first, followed by the stripe color as shown below: 22 Terminal number • This means the terminal number of a connector. |
