Nissan Tiida C11. Manual - part 803





HOW TO USE THIS MANUAL

GI-15

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

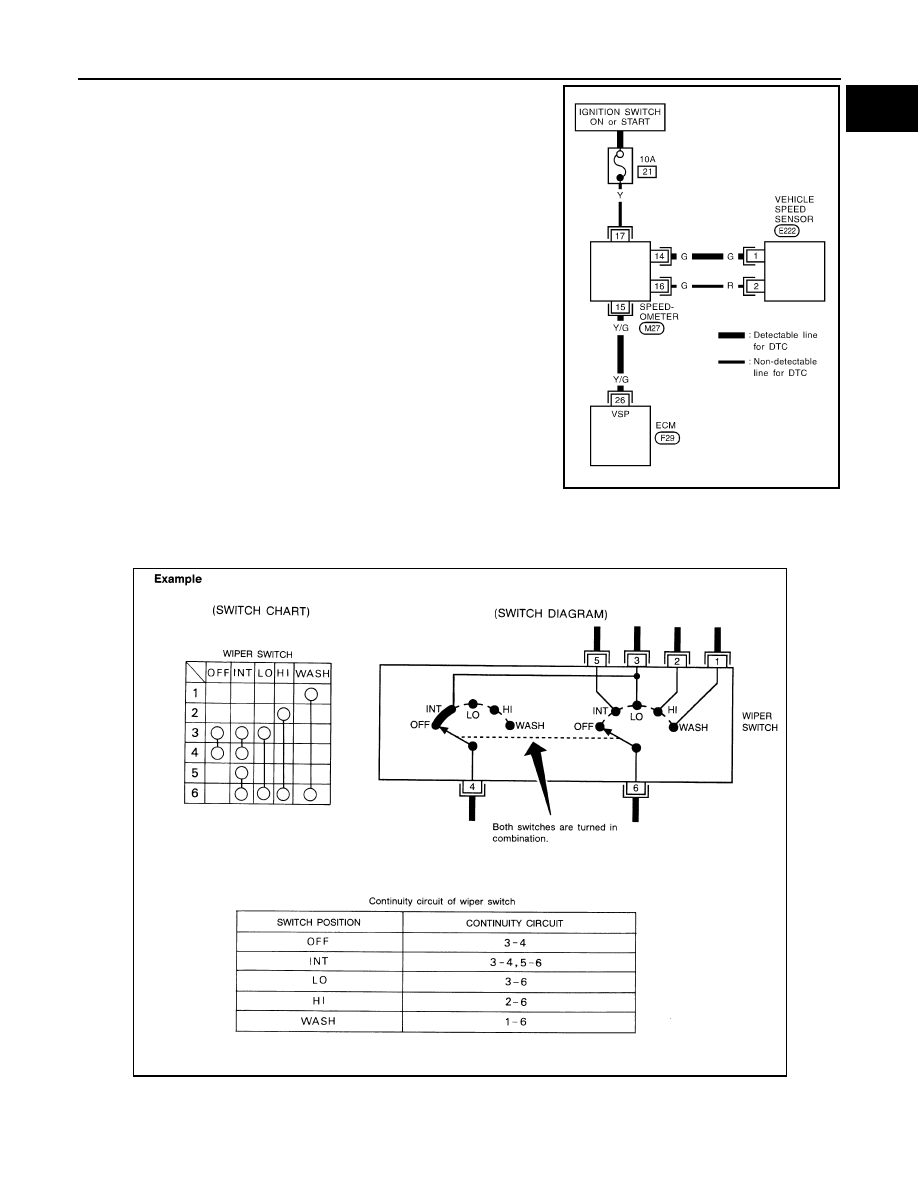

• A line with regular weight (wider line) represents a “detectable line

for DTC (Diagnostic Trouble Code)”. A “detectable line for DTC” is
a circuit in which ECM can detect its malfunctions with the on
board diagnostic system.

• A line with less weight (thinner line) represents a “non-detectable

line for DTC”. A “non-detectable line for DTC” is a circuit in which
ECM cannot detect its malfunctions with the on board diagnostic
system.

Multiple Switch

The continuity of multiple switch is described in two ways as shown below.
• The switch chart is used in schematic diagrams.
• The switch diagram is used in wiring diagrams.

Reference Area

SGI862-B

SGI875

GI-16

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

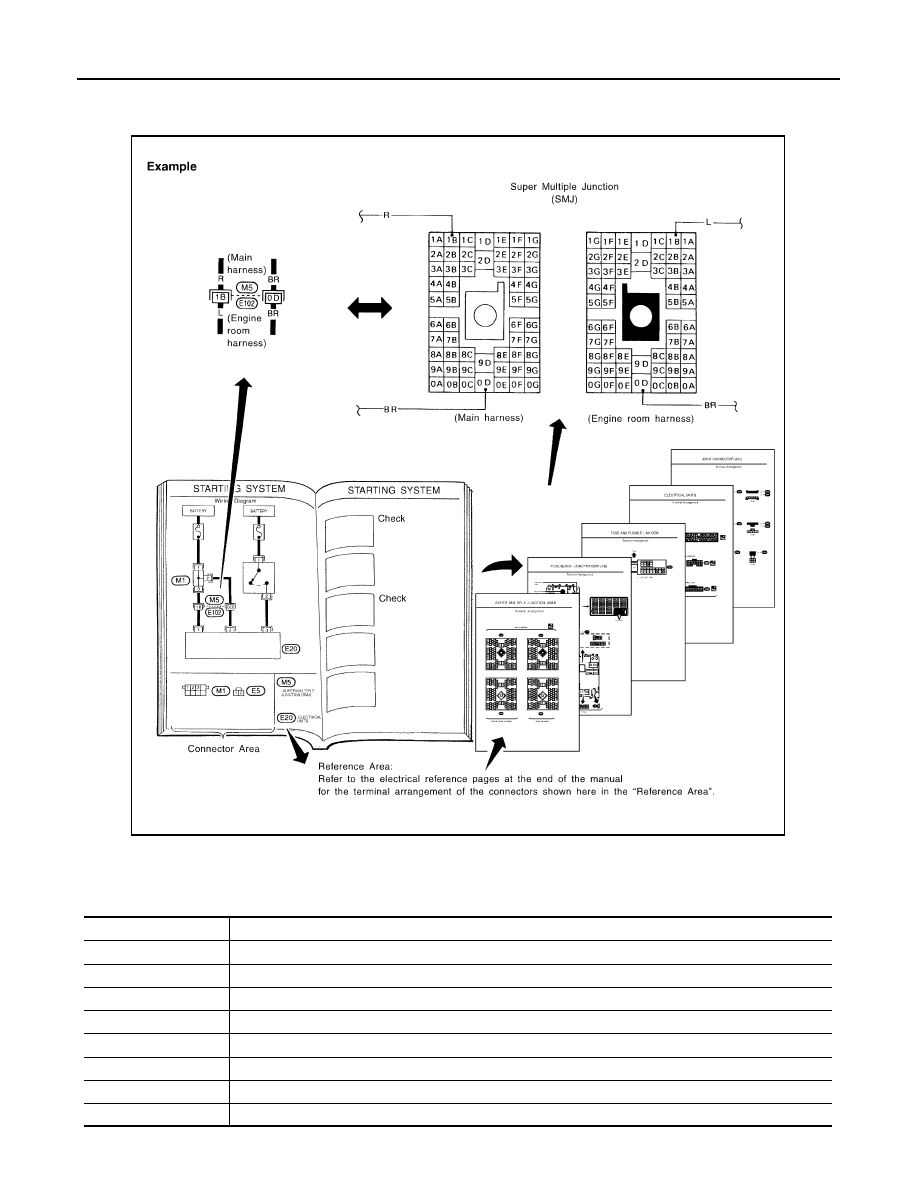

The Reference Area of the wiring diagram contains references to additional electrical reference pages at the
end of the manual. If connector numbers and titles are shown in the Reference Area of the wiring diagram,
these connector symbols are not shown in the Connector Area.

Abbreviations

INFOID:0000000001606150

The following ABBREVIATIONS are used:

SGI092A

ABBREVIATION

DESCRIPTION

A/C

Air Conditioner

A/T

Automatic Transaxle/Transmission

ATF

Automatic Transmission Fluid

CVT

Continuously Variable Transmission

D

1

Drive range 1st gear

D

2

Drive range 2nd gear

D

3

Drive range 3rd gear

D

4

Drive range 4th gear

HOW TO USE THIS MANUAL

GI-17

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

FR, RR

Front, Rear

LH, RH

Left-Hand, Right-Hand

M/T

Manual Transaxle/Transmission

OD

Overdrive

P/S

Power Steering

SAE

Society of Automotive Engineers, Inc.

SDS

Service Data and Specifications

SST

Special Service Tools

2WD

2-Wheel Drive

2

2

2nd range 2nd gear

2

1

2nd range 1st gear

1

2

1st range 2nd gear

1

1

1st range 1st gear

ABBREVIATION

DESCRIPTION

GI-18

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

HOW TO FOLLOW TROUBLE DIAGNOSES

Description

INFOID:0000000001691457

NOTICE:
Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following
instructions before diagnosing.
• Before performing trouble diagnoses, read the “Work Flow” in each section.
• After repairs, re-check that the problem has been completely eliminated.
• Refer to Component Parts and Harness Connector Location for the Systems described in each section for

identification/location of components and harness connectors.

• When checking circuit continuity, ignition switch should be OFF.
• Refer to the Circuit Diagram for quick pinpoint check.

If you need to check circuit continuity between harness connectors in more detail, such as when a sub-har-
ness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identi-
fication of harness connectors.

• Before checking voltage at connectors, check battery voltage.
• After accomplishing the Diagnosis Procedures and Electrical Components Inspection, make sure that all

harness connectors are reconnected as they were.

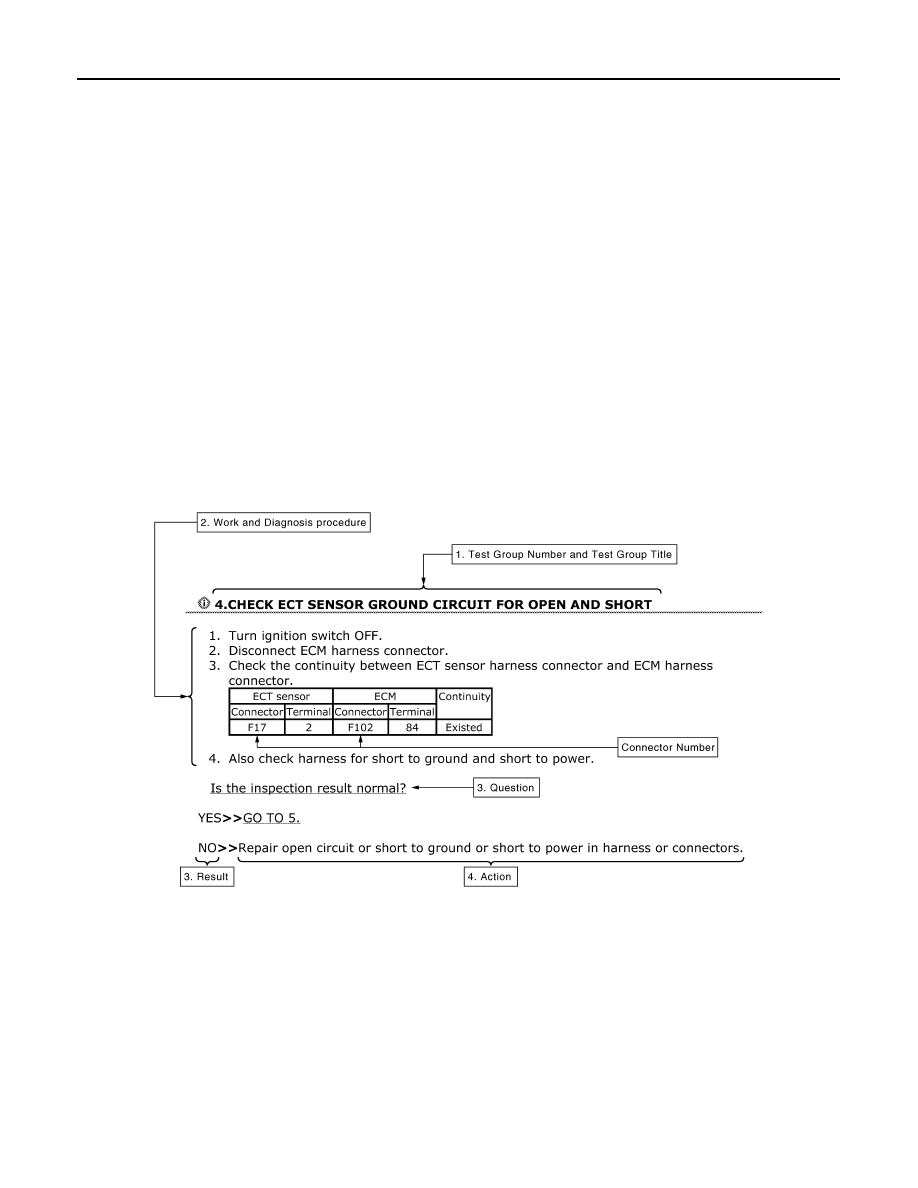

How to Follow Test Groups in Trouble Diagnosis

INFOID:0000000001691458

1.

Test group number and test group title
• Test group number and test group title are shown in the upper portion of each test group.

2.

Work and diagnosis procedure
• Start to diagnose a problem using procedures indicated in enclosed test groups.

3.

Questions and results
• Questions and required results are indicated in test group.

4.

Action
• Next action for each test group is indicated based on result of each question.

JPAIA0021GB
