HOW TO USE THIS MANUAL

GI-11

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

• For detail, refer to following “DESCRIPTION”.

SGI091A

GI-12

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

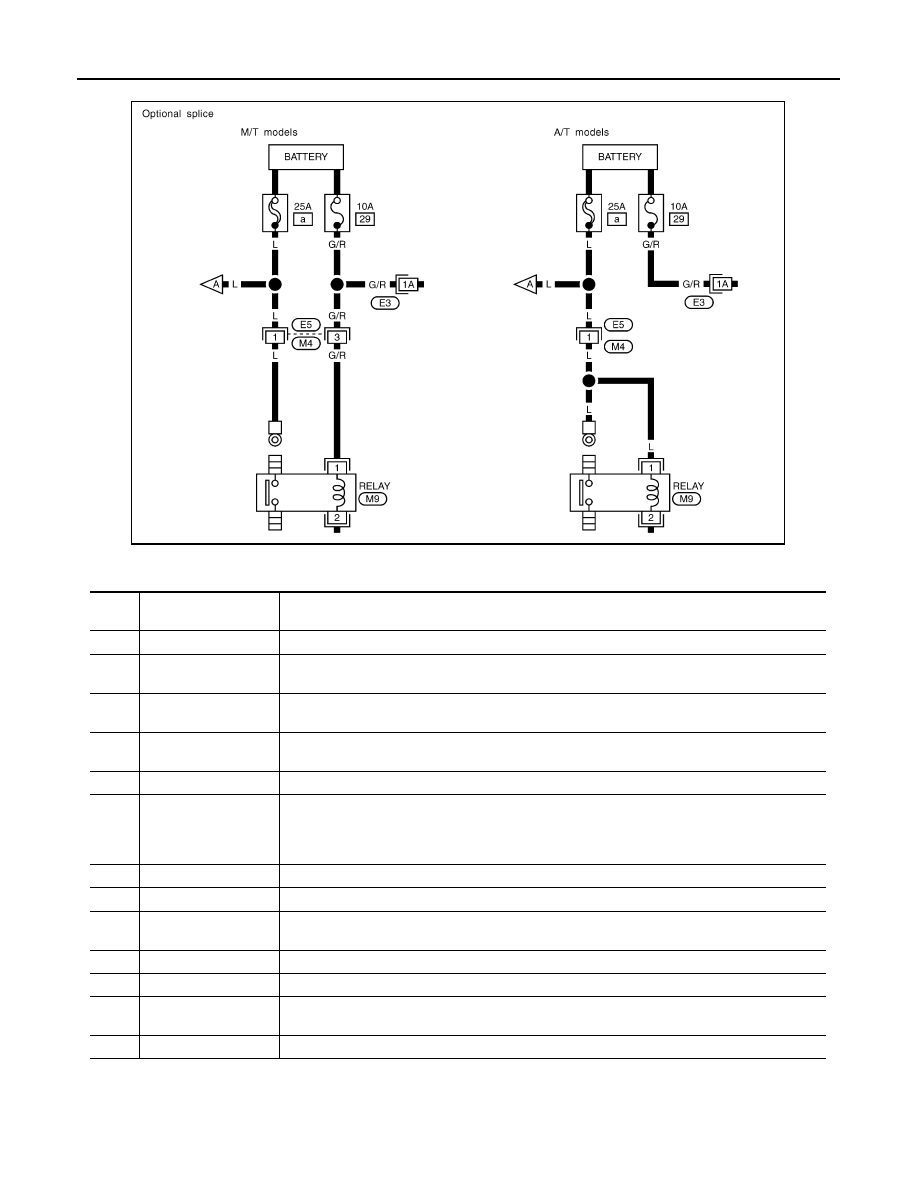

Optional Splice

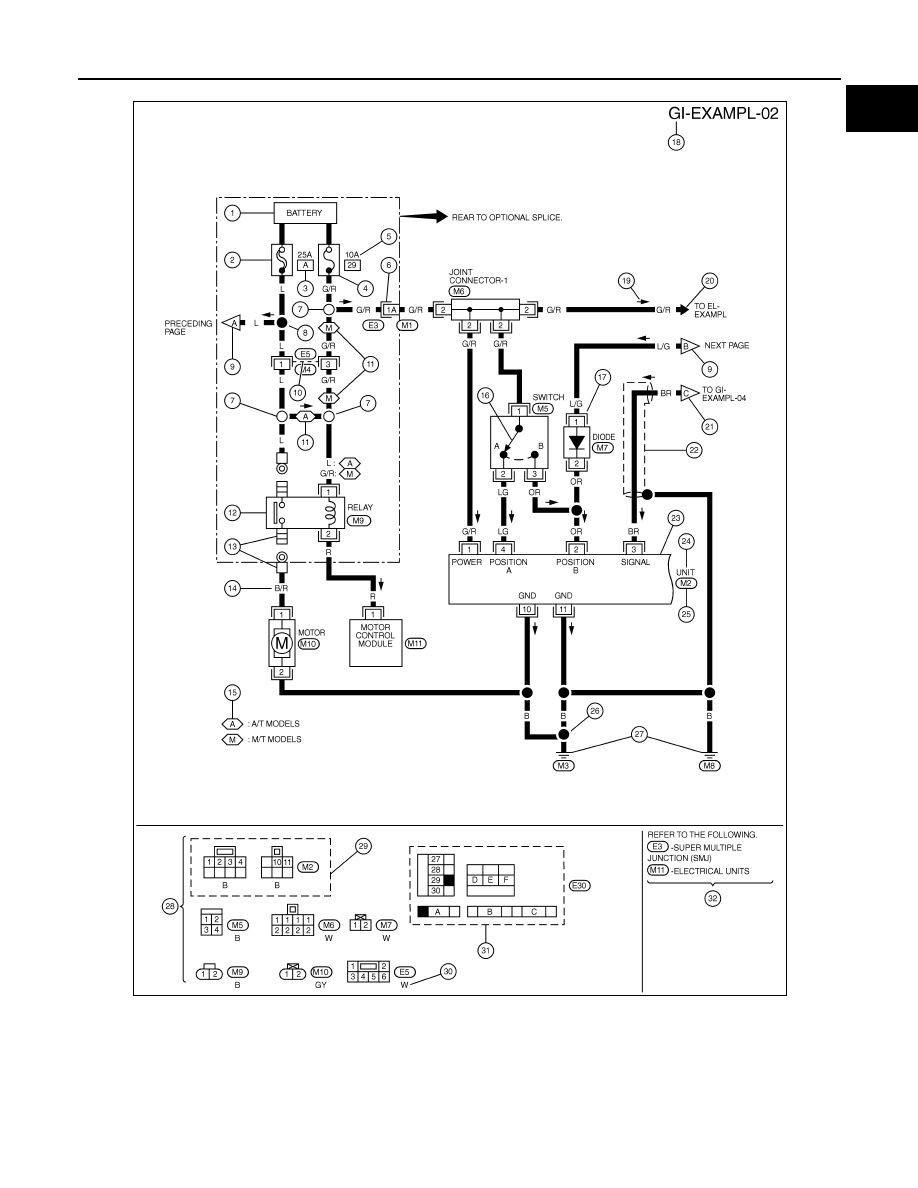

DESCRIPTION

SGI942

Num-

ber

Item

Description

1

Power condition

• This shows the condition when the system receives battery positive voltage (can be operated).

2

Fusible  link

• The double line shows that this is a fusible link.
• The open circle shows current flow in, and the shaded circle shows current flow out.

3

Fusible link/fuse loca-
tion

• This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-

ment, refer to PG section, POWER SUPPLY ROUTING.

4

Fuse

• The single line shows that this is a fuse.
• The open circle shows current flow in, and the shaded circle shows current flow out.

5

Current rating

• This shows the current rating of the fusible link or fuse.

6

Connectors

• This shows that connector E3 is female and connector M1 is male.
• The G/R wire is located in the 1A terminal of both connectors.
• Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connector.

Refer to PG section,  SMJ (SUPER MULTIPLE JUNCTION).

7

Optional splice

• The open circle shows that the splice is optional depending on vehicle application.

8

Splice

• The shaded circle shows that the splice is always on the vehicle.

9

Page crossing

• This arrow shows that the circuit continues to an adjacent page.
• The A will match with the A on the preceding or next page.

10

Common connector

• The dotted lines between terminals show that these terminals are part of the same connector.

11

Option abbreviation

• This shows that the circuit is optional depending on vehicle application.

12

Relay

• This shows an internal representation of the relay. For details, refer to PG section, STAN-

DARDIZED RELAY.

13

Connectors

• This shows that the connector is connected to the body or a terminal with bolt or nut.

HOW TO USE THIS MANUAL

GI-13

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

Harness Indication

14

Wire color

• This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green

BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe

15

Option description

• This shows a description of the option abbreviation used on the page.

16

Switch

• This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-

tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.

17

Assembly parts

• Connector terminal in component shows that it is a harness incorporated assembly.

18

Cell code

• This identifies each page of the wiring diagram by section, system and wiring diagram page

number.

19

Current flow arrow

• Arrow indicates electric current flow, especially where the direction of standard flow (vertically

downward or horizontally from left to right) is difficult to follow.

• A double arrow “

 ” shows that current can flow in either direction depending on circuit

operation.

20

System branch

• This shows that the system branches to another system identified by cell code (section and

system).

21

Page crossing

• This arrow shows that the circuit continues to another page identified by cell code.
• The C will match with the C on another page within the system other than the next or preceding

pages.

22

Shielded line

• The line enclosed by broken line circle shows shield wire.

23

Component box in
wave line

• This shows that another part of the component is also shown on another page (indicated by

wave line) within the system.

24

Component name

• This shows the name of a component.

25

Connector number

• This shows the connector number.
• The letter shows which harness the connector is located in.
• Example: M: main harness. For detail and to locate the connector, refer to PG section "Main

Harness", “Harness Layout”. A coordinate grid is included for complex harnesses to aid in lo-
cating connectors.

26

Ground (GND)

• The line spliced and grounded under wire color shows that ground line is spliced at the ground-

ed connector.

27

Ground (GND)

• This shows the ground connection. For detailed ground distribution information, refer to

"Ground Distribution" in PG section.

28

Connector views

• This area shows the connector faces of the components in the wiring diagram on the page.

29

Common component

• Connectors enclosed in broken line show that these connectors belong to the same compo-

nent.

30

Connector color

• This shows a code for the color of the connector. For code meaning, refer to wire color codes,

Number 14 of this chart.

31

Fusible link and fuse
box

• This shows the arrangement of fusible link(s) and fuse(s), used for connector views of "POW-

ER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.

32

Reference area

• This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors

(J/C) exists on the PG section. Refer to "Reference Area" for details.

Num-

ber

Item

Description

GI-14

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

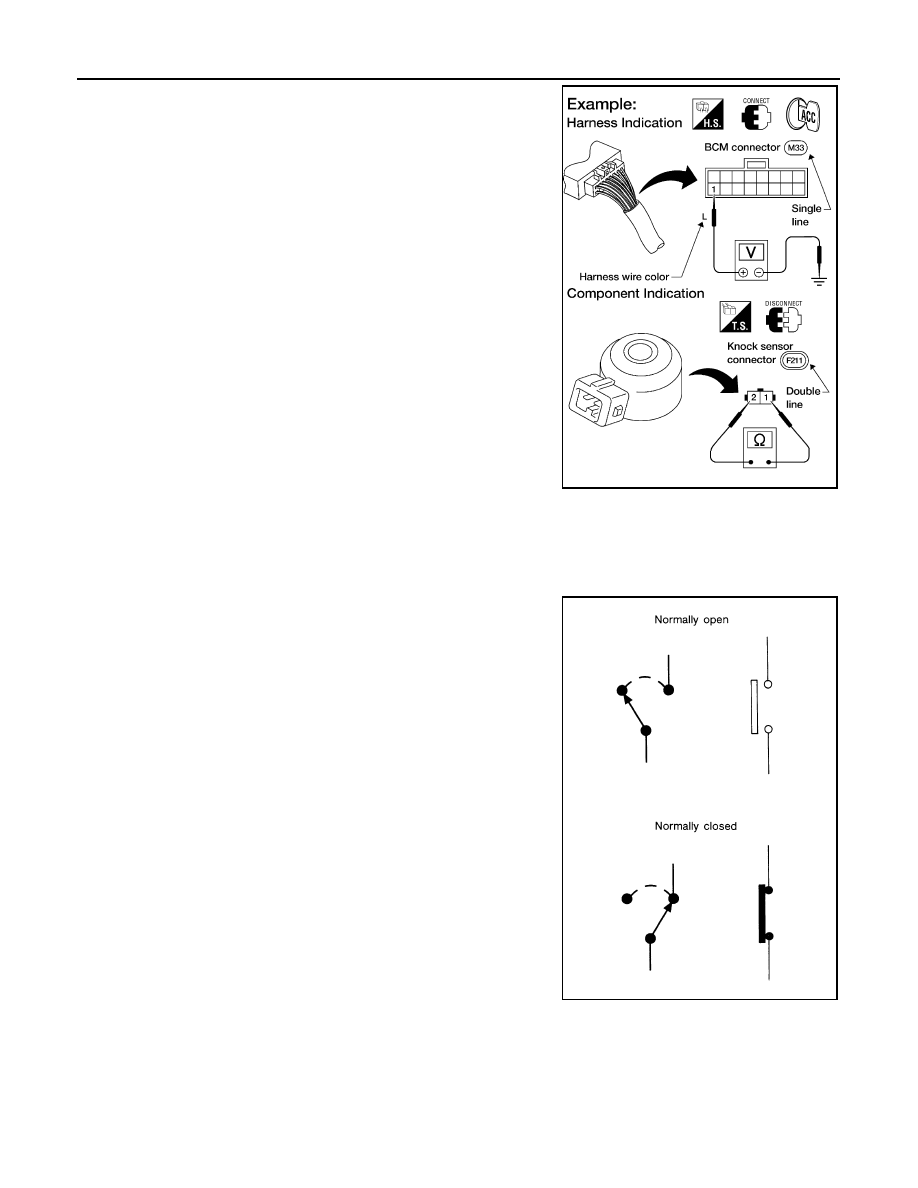

• Letter designations next to test meter probe indicate harness (con-

nector) wire color.

• Connector numbers in a single circle M33 indicate harness con-

nectors.

Component Indication

Connector numbers in a double circle F211 indicate component connectors.

Switch Positions

Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition.
A vehicle is in the “normal” condition when:
• ignition switch is “OFF”,
• doors, hood and trunk lid/back door are closed,
• pedals are not depressed, and
• parking brake is released.

Detectable Lines and Non-Detectable Lines

In some wiring diagrams, two kinds of lines, representing wires, with different weight are used.

AGI070

SGI860
