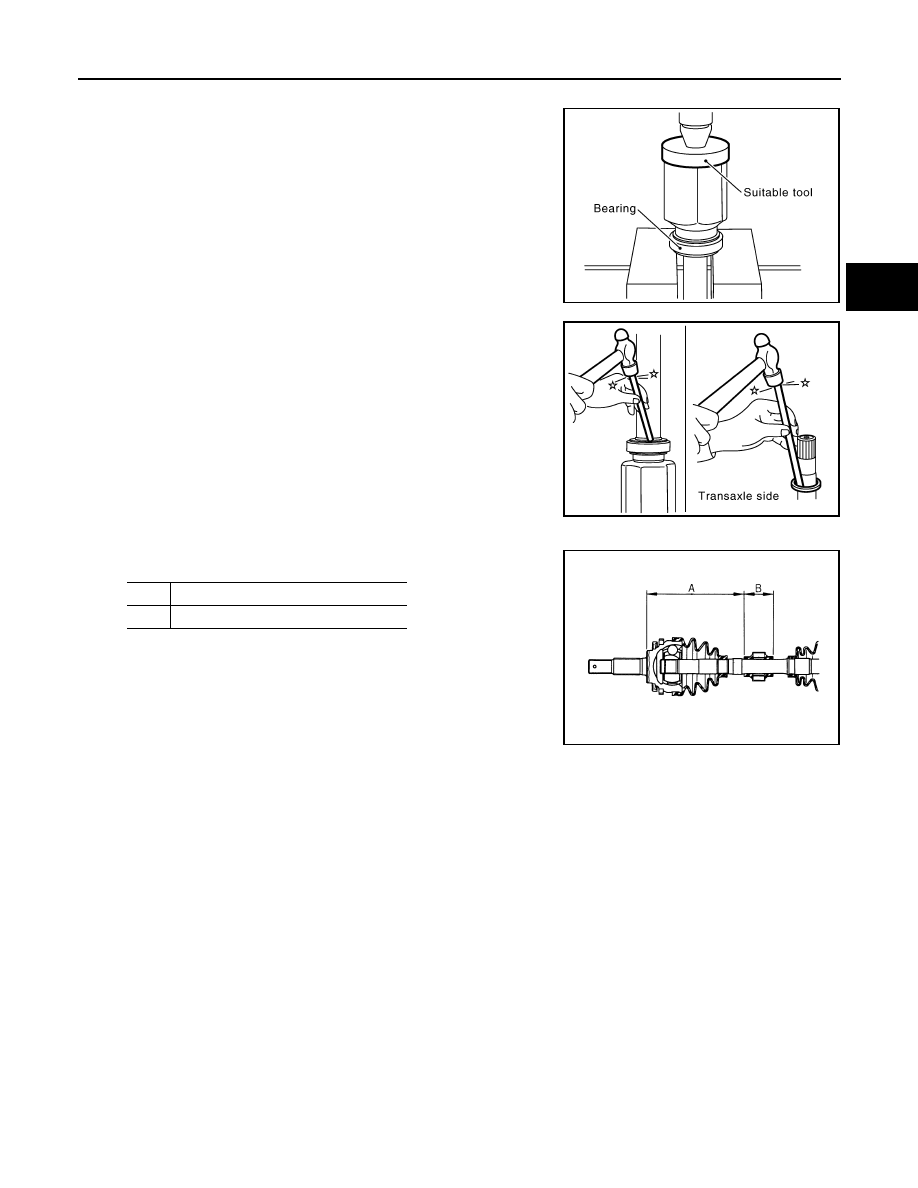

Support Bearing

1.

Install new dust shield on drive shaft

CAUTION:

Do not reuse dust shield.

2.

Press support bearing onto drive shaft.

3.

Install new snap ring.

CAUTION:

Do not reuse snap ring.

4.

Install new dust shield

CAUTION:

Do not reuse dust shield.

Damper

1.

Secure damper with new damper bands.

CAUTION:

Do not reuse damper bands.

YAX007

YAX008

“A”

: 230 – 236 mm (9.06 – 9.29 in)

“B”

: 70 mm (2.76 in)

FAC0156D

FAX-26

< SERVICE DATA AND SPECIFICATIONS (SDS)

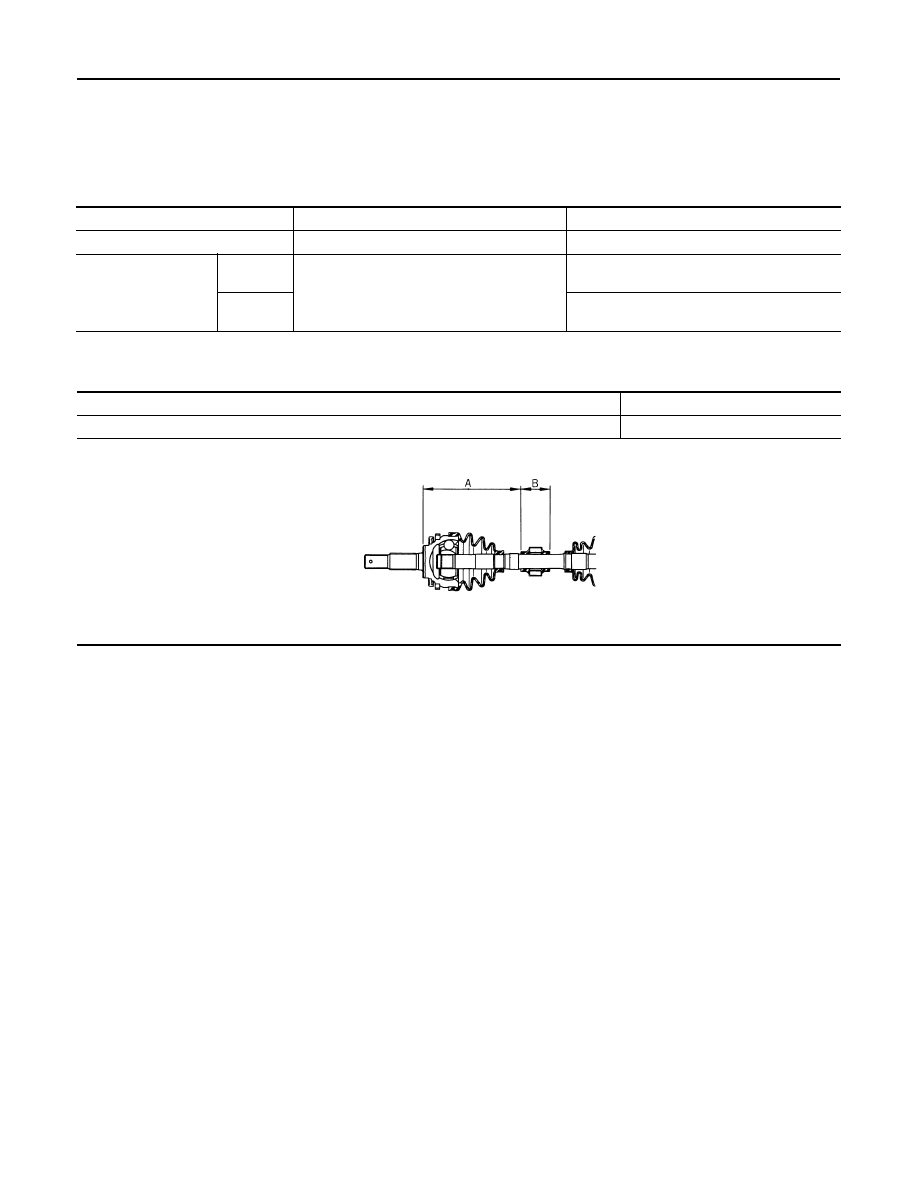

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Drive Shaft

INFOID:0000000001716805

Dynamic Damper

INFOID:0000000001716806

Joint type

Wheel side

Transaxle side

Grease quantity

70 - 90 g (2.5 - 3.2 oz)

130 - 140 g (4.6 - 4.9 oz)

Boots installed length

Left side

142 mm (5.59 in)

176 mm (6.93 in) (A/T model)

181.2 mm (7.13 in) (M/T models)

Right side

178 mm (7.01 in) (A/T model)

168 mm (6.61 in) (M/T models)

Dimension A

230 – 236 mm (9.06 – 9.29 in)

Dimension B

70 mm (2.76 in)

FAC0156D

FL-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

FL

A

FL

N

O

P

CONTENTS

FUEL SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

ON-VEHICLE MAINTENANCE .....................

4

FUEL SYSTEM  ....................................................

4

Checking Fuel Line  ...................................................

4

General Precaution  ...................................................

4

ON-VEHICLE REPAIR ..................................

5

FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY  ..........................

5

HR16DE, HR18DE  ...................................................

5

Exploded View ..........................................................

5

Removal and Installation  ..........................................

5

K9K ...........................................................................

8

Exploded View ..........................................................

8

Removal and Installation  ..........................................

8

FUEL TANK  ......................................................

10

HR16DE, HR18DE  ..................................................

10

Exploded View .........................................................

10

Removal and Installation  .........................................

10

K9K ..........................................................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

16

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

16

Standard and Limit  ..................................................

16

FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001722973

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SR inoperative, which could increase the risk of personal injury or death in
